Isuzu WW
▶
TRUCKS
▶
NLS
▶
51176 - NLS(EUROPE)RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#76096) — 59 parça
◀

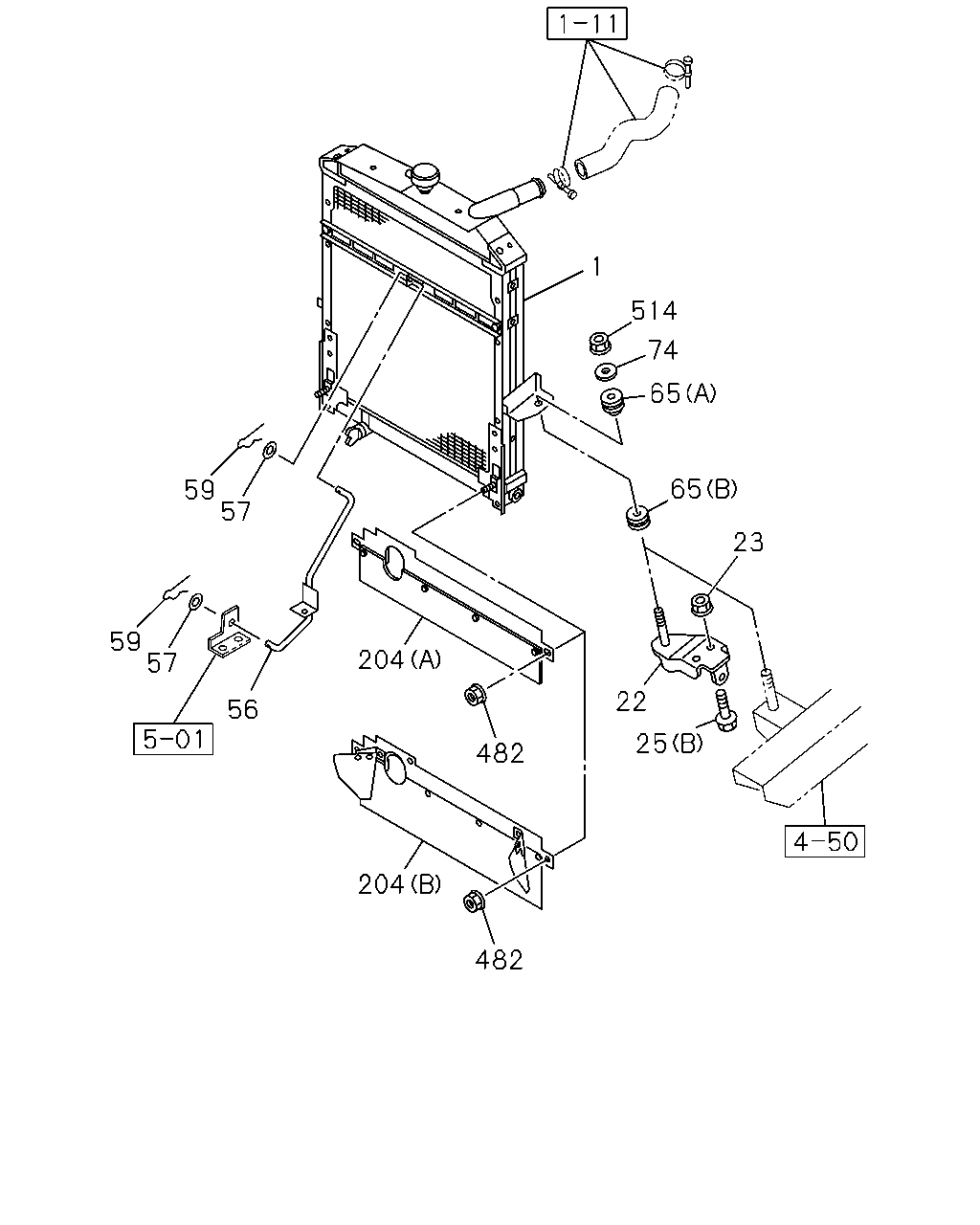

[110A] NO.1 (22 parça)

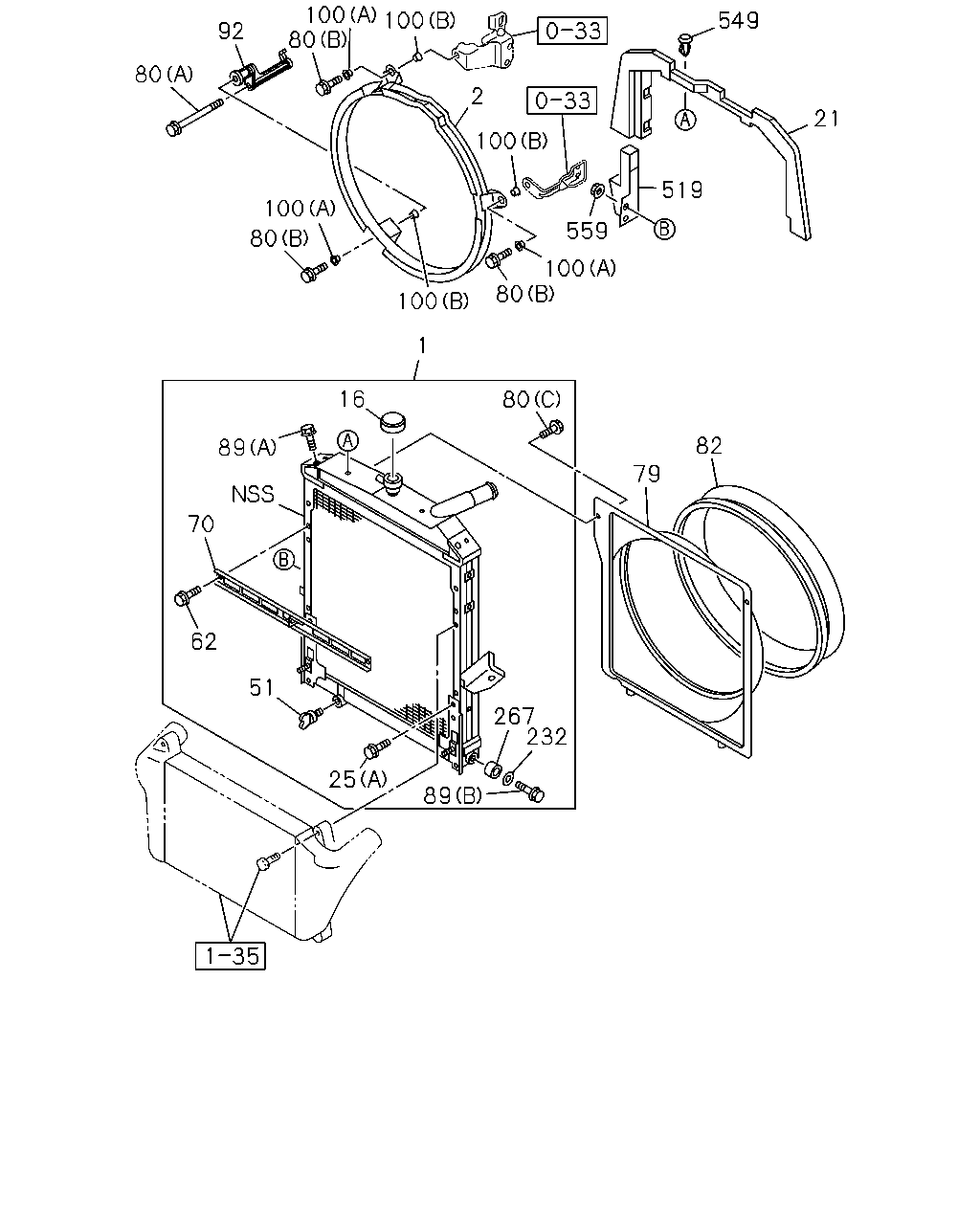

[110A] NO.2 (37 parça)
▶
1
514
74
65
65
59
57
23
59
57
204
22
56
25
482
204
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
EURO5 SPECIFICATION(NT5)
8-98122-344-0
01
1
0907-1404
1
01.219 RADIATOR ASM
EURO5 SPECIFICATION(NT5)
8-98276-927-0
01
1
1405-
1
01.219 RADIATOR ASM
8-98011-335-1
01
1
0806-0906
1
01.219 RADIATOR ASM
EURO4 SPECIFICATION(NT4)
8-98011-335-1
01
1
0907-1401
1
01.219 RADIATOR ASM
EURO4 SPECIFICATION(NT4)
8-98253-689-0
02
1
1402-
22
01.270 BRACKET; RAD MTG
8-98000-883-1
01
1
0806-
22
01.270 BRACKET; RAD MTG
8-98000-882-1
01
1
0806-
23
01.271 NUT; RAD MTG
04.085 M10 FLANGE
0-91180-210-0
04
1
0806-0909
23
01.271 NUT; RAD MTG
03.162 M10 FLANGE
0-91180-110-0
04
1
0910-
25
01.271 BOLT; BRKT
03.162 (A) M6X12 FLANGE
0-28050-612-0
04
1
0806-
25
01.271 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
04
1
0806-
56
01.270 STAY; RAD
8-97383-948-0
01
1
0806-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
0806-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0806-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
0806-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
0806-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0806-
204
01.267 GUIDE ASM; AIR
(A)
8-98041-145-1
01
1
0806-1007
204
01.267 GUIDE ASM; AIR
(B)
8-98165-476-1
01
1
1008-1009
204
01.267 GUIDE ASM; AIR
(B)
8-98041-145-1
01
1
1010-
482
01.277 NUT; AIR GUIDE
01.062 M8 FLANGE
0-91180-108-0
02
1
0806-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
0806-
100
80
100
549
92
80
2
21
100
519
100
559
80
100
80
100
1
16
80
82
89
79
70
62
51
267
232
89
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
EURO5 SPECIFICATION(NT5)
8-98122-344-0
01
1
0907-1404
1
01.219 RADIATOR ASM
EURO5 SPECIFICATION(NT5)
8-98276-927-0
01
1
1405-
1
01.219 RADIATOR ASM
8-98011-335-1
01
1
0806-0906
1
01.219 RADIATOR ASM
EURO4 SPECIFICATION(NT4)
8-98011-335-1
01
1
0907-1401
1
01.219 RADIATOR ASM
EURO4 SPECIFICATION(NT4)
8-98253-689-0
02
1
1402-
2
01.277 GUIDE; FAN
8-98054-659-0
01
1
0806-
16
01.203 CAP; RAD
8-98011-641-0
01
1
0806-
21
01.276 SEAL; RAD
8-98000-818-1
01
1
0806-
25
01.271 BOLT; BRKT
03.162 (A) M6X12 FLANGE
0-28050-612-0
04
1
0806-
25
01.271 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
04
1
0806-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0806-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0806-
70
01.271 STAY; RAD
EURO5 SPECIFICATION(NT5)
8-98114-297-0
01
1
0907-
70
01.271 STAY; RAD
8-98018-940-0
01
1
0806-0906
70
01.271 STAY; RAD
EURO4 SPECIFICATION(NT4)
8-98018-940-0
01
1
0907-
79
01.277 GUIDE; FAN,RAD
EURO4 SPECIFICATION(NT4)
8-98256-726-0
01
1
1402-1404
79
01.277 GUIDE; FAN,RAD
8-98256-726-0
01
1
1405-
79
01.277 GUIDE; FAN,RAD
8-98000-823-0
01
1
0806-1401
80
01.277 BOLT; FAN GUIDE
EURO4 SPECIFICATION(NT4) (C) M6X12
8-98039-672-0
04
1
1402-1404
80
01.277 BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1405-
80
01.277 BOLT; FAN GUIDE
01.428 (A) M8X130 FLANGE
0-28055-813-0
01
1
0806-
80
01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE
0-28650-830-0
03
1
0806-
80
01.277 BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
0806-1401
82
01.277 COVER; FAN,RAD
8-97387-085-1
01
1
0806-
89
01.277 BOLT
02.343 (A) M8X12 FLANGE
0-28050-812-0
02
1
0806-
89
01.277 BOLT
01.271 (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0806-
92
01.277 BRACKET; FAN GUIDE
8-97381-550-1
01
1
0806-1303
92
01.277 BRACKET; FAN GUIDE
8-98237-770-0
01
1
1304-
100
01.277 RUBBER; MTG
(B) OD=32
8-94395-766-0
03
1
0806-
100
01.277 RUBBER; MTG
(A)
8-98058-502-1
03
1
0806-
232
01.540 COLLAR; DIST,CUSHION RUBBER
EURO4 SPECIFICATION(NT4)
8-98141-232-0
02
1
1402-1404
232
01.540 COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1405-
232
01.540 COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0806-1401
267
01.277 RUBBER; CUSHION
1-21467-023-0
02
1
0806-
519
01.276 SEAL; RAD SIDE
8-98038-591-0
01
1
0806-
549
03.438 CLIP; SEAL,RAD
01.276
8-97228-568-0
06
1
0806-
559
01.276 NUT; RAD SIDE
01.062 M6 FLANGE
0-91180-106-0
02
1
0806-
