◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#76092) — 14 parça

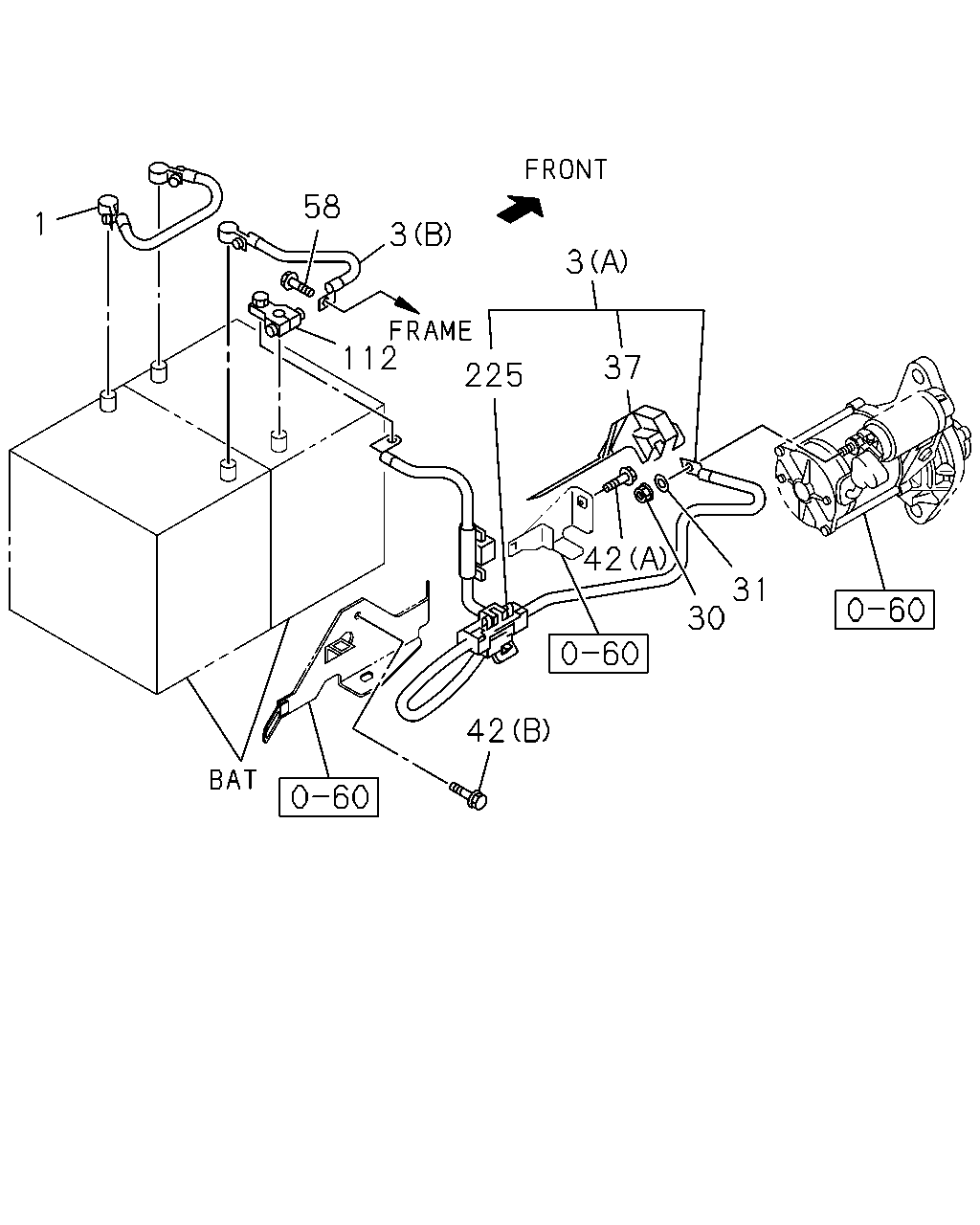

çizim 73391
58 1 3 3 112 37 225 42 31 30 42
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0806-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98048-439-3 01 1 0806-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98293-886-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 0806-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0806-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0806-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0806-
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0806-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0806-
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0806-1004
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0806-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0806-1409
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
