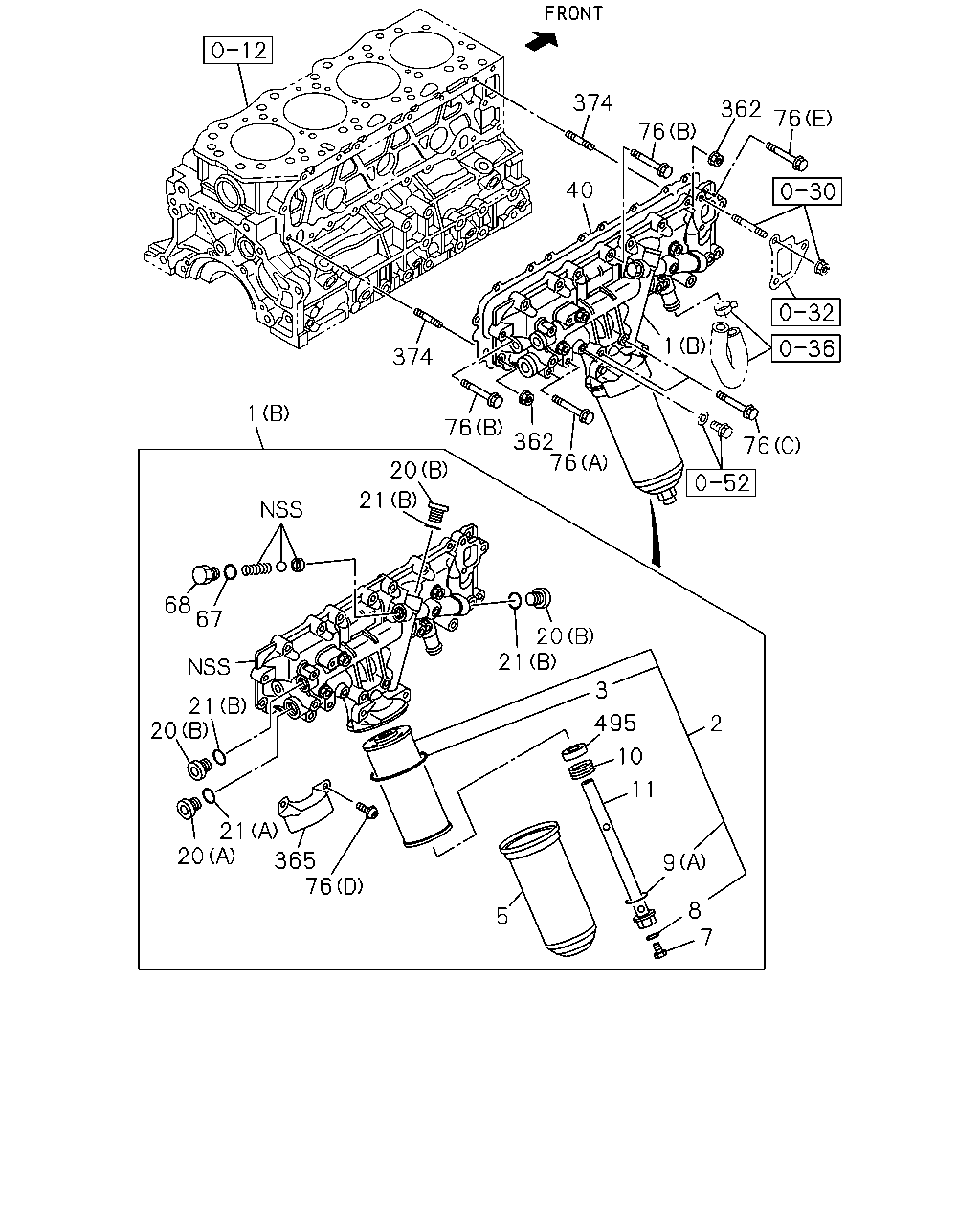

0-50 — OIL COOLER AND OIL FILTER (#76087) — 81 parça

374 362 76 76 40 1 374 1 76 362 76 76 20 21 68 67 20 21 3 21 20 495 2 10 11 21 20 365 76 9 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.540 FILTER & COOLER ASM; OIL EURO5 SPECIFICATION(NT5) (B)	8-98074-745-5	01	1	0907-1408
1	01.540 FILTER & COOLER ASM; OIL EURO5 SPECIFICATION(NT5) (B)	8-98270-497-0	01	1	1409-
1	01.540 FILTER & COOLER ASM; OIL (A)	8-98003-929-9	01	1	0806-0906
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-98003-929-9	01	1	0907-1208
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-98196-739-0	01	1	1209-1504
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-98270-496-0	01	1	1505-
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	0806-
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-118-0	01	1	0806-
3	01.540 GASKET	8-98024-708-0	01	1	0806-
5	01.837 CASE; OIL FILTER	8-98018-862-0	01	1	0806-
7	01.840 PLUG; CENTER BOLT	8-98018-846-0	01	1	0806-
8	01.840 GASKET; PLUG 03.417 ID=9.8	1-09623-055-0	01	1	0806-
9	01.840 GASKET; CENTER BOLT (A)	1-09623-500-0	01	1	0806-
9	01.840 GASKET; CENTER BOLT 01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-226-0	02	1	0806-0906
9	01.840 GASKET; CENTER BOLT EURO4 SPECIFICATION(NT4) 01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-226-0	02	1	0907-
10	01.840 SPRING; ELEMENT	8-98018-850-0	01	1	0806-
11	01.840 BOLT; CENTER	8-98018-847-0	01	1	0806-
20	01.540 PLUG; COOLER BODY EURO5 SPECIFICATION(NT5) (A)	8-94396-753-0	01	1	0907-
20	01.540 PLUG; COOLER BODY EURO5 SPECIFICATION(NT5) (B)	8-98133-978-0	03	1	0907-
21	01.550 GASKET; PLUG EURO5 SPECIFICATION(NT5) (A)	8-98133-060-0	01	1	0907-
21	01.550 GASKET; PLUG EURO5 SPECIFICATION(NT5) (B)	8-98133-979-0	03	1	0907-
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5)	8-98074-746-0	01	1	0907-
67	01.550 GASKET; VLV EURO5 SPECIFICATION(NT5)	8-98133-059-0	01	1	0907-
67	01.550 GASKET; VLV	9-09562-215-0	01	1	0806-0906
67	01.550 GASKET; VLV EURO4 SPECIFICATION(NT4)	9-09562-215-0	01	1	0907-
68	01.837 PLUG; VLV 01.540	9-13263-010-0	01	1	0806-
76	01.840 BOLT; OIL FILTER EURO5 SPECIFICATION(NT5) 04.338 (E) M8X20 FLANGE	0-28050-820-0	01	1	0907-
76	01.840 BOLT; OIL FILTER EURO5 SPECIFICATION(NT5) 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0907-
76	01.840 BOLT; OIL FILTER EURO5 SPECIFICATION(NT5) 01.060 (B) M8X35 FLANGE	0-28650-835-0	12	1	0907-
76	01.840 BOLT; OIL FILTER 00.206 (A) M8X70 FLANGE	0-28050-870-0	04	1	0806-0906
76	01.840 BOLT; OIL FILTER EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	04	1	0907-
76	01.840 BOLT; OIL FILTER 02.100 (C) M8X90 FLANGE	0-28050-890-0	02	1	0806-
76	01.840 BOLT; OIL FILTER 01.060 (B) M8X35 FLANGE	0-28650-835-0	11	1	0806-0906
76	01.840 BOLT; OIL FILTER EURO4 SPECIFICATION(NT4) 01.060 (B) M8X35 FLANGE	0-28650-835-0	11	1	0907-
76	01.840 BOLT; OIL FILTER (D)	8-98041-912-0	02	1	0806-
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0806-
365	01.840 PROTECTOR; OIL FILTER EURO5 SPECIFICATION(NT5)	8-98133-061-0	01	1	0907-
365	01.840 PROTECTOR; OIL FILTER	8-98018-857-0	01	1	0806-0906
365	01.840 PROTECTOR; OIL FILTER EURO4 SPECIFICATION(NT4)	8-98018-857-0	01	1	0907-
374	01.840 STUD; OIL FILTER 01.428 M8X18 L=30	0-41010-818-0	02	1	0806-0807
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0808-
495	03.680 PLATE; OIL FILTER	8-98018-853-0	01	1	0806-

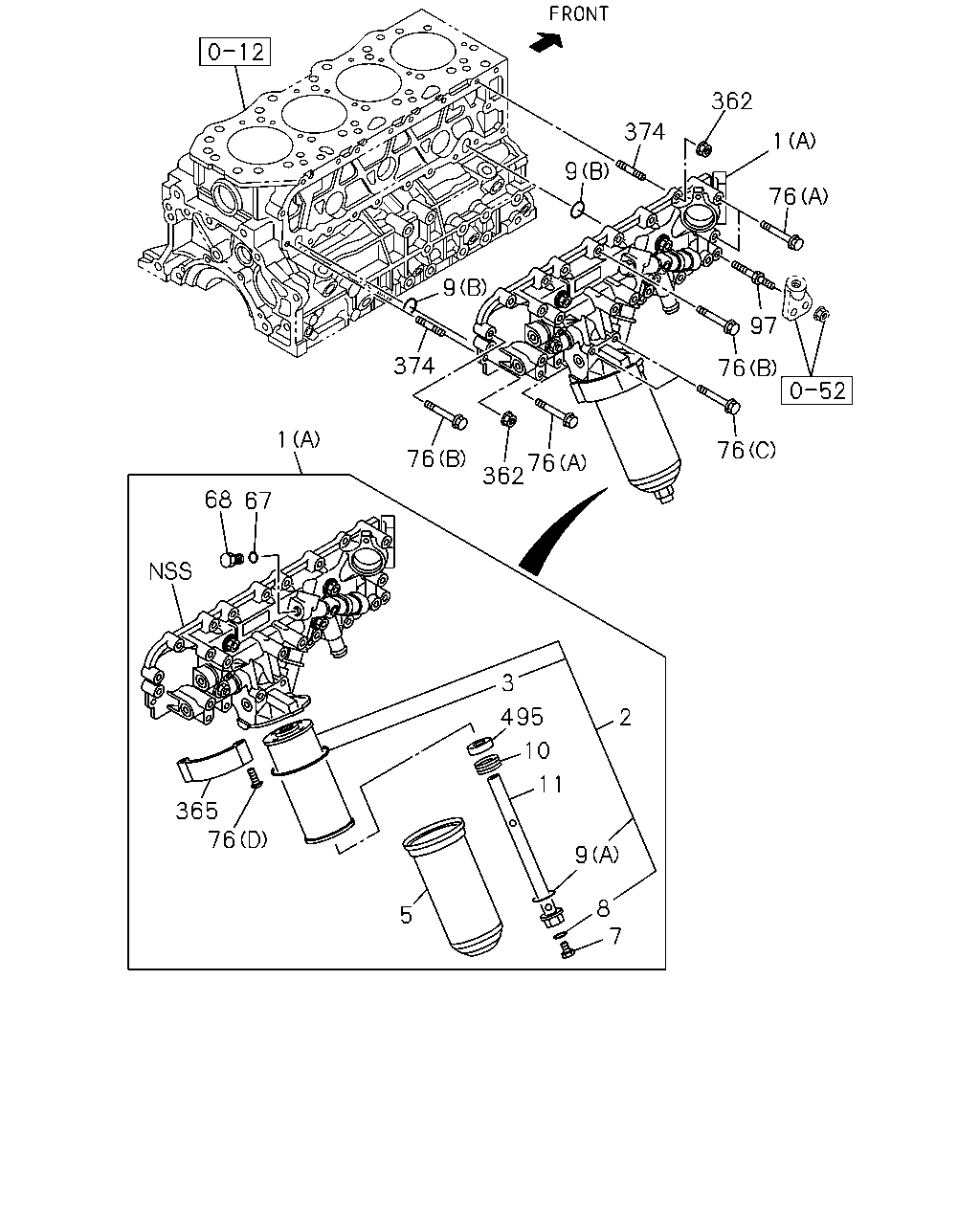

362 374 1 9 76 9 97 374 76 1 76 76 76 362 68 67 3 495 2 10 11 365 76 9 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.540 FILTER & COOLER ASM; OIL EURO5 SPECIFICATION(NT5) (B)	8-98074-745-5	01	1	0907-1408
1	01.540 FILTER & COOLER ASM; OIL EURO5 SPECIFICATION(NT5) (B)	8-98270-497-0	01	1	1409-
1	01.540 FILTER & COOLER ASM; OIL (A)	8-98003-929-9	01	1	0806-0906
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-98003-929-9	01	1	0907-1208
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-98196-739-0	01	1	1209-1504
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-98270-496-0	01	1	1505-
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	0806-
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-118-0	01	1	0806-
3	01.540 GASKET	8-98024-708-0	01	1	0806-
5	01.837 CASE; OIL FILTER	8-98018-862-0	01	1	0806-
7	01.840 PLUG; CENTER BOLT	8-98018-846-0	01	1	0806-
8	01.840 GASKET; PLUG 03.417 ID=9.8	1-09623-055-0	01	1	0806-
9	01.840 GASKET; CENTER BOLT (A)	1-09623-500-0	01	1	0806-
9	01.840 GASKET; CENTER BOLT 01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-226-0	02	1	0806-0906
9	01.840 GASKET; CENTER BOLT EURO4 SPECIFICATION(NT4) 01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-226-0	02	1	0907-
10	01.840 SPRING; ELEMENT	8-98018-850-0	01	1	0806-
11	01.840 BOLT; CENTER	8-98018-847-0	01	1	0806-
67	01.550 GASKET; VLV EURO5 SPECIFICATION(NT5)	8-98133-059-0	01	1	0907-
67	01.550 GASKET; VLV	9-09562-215-0	01	1	0806-0906
67	01.550 GASKET; VLV EURO4 SPECIFICATION(NT4)	9-09562-215-0	01	1	0907-
68	01.837 PLUG; VLV 01.540	9-13263-010-0	01	1	0806-
76	01.840 BOLT; OIL FILTER EURO5 SPECIFICATION(NT5) 04.338 (E) M8X20 FLANGE	0-28050-820-0	01	1	0907-
76	01.840 BOLT; OIL FILTER EURO5 SPECIFICATION(NT5) 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0907-
76	01.840 BOLT; OIL FILTER EURO5 SPECIFICATION(NT5) 01.060 (B) M8X35 FLANGE	0-28650-835-0	12	1	0907-
76	01.840 BOLT; OIL FILTER 00.206 (A) M8X70 FLANGE	0-28050-870-0	04	1	0806-0906
76	01.840 BOLT; OIL FILTER EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	04	1	0907-
76	01.840 BOLT; OIL FILTER 02.100 (C) M8X90 FLANGE	0-28050-890-0	02	1	0806-
76	01.840 BOLT; OIL FILTER 01.060 (B) M8X35 FLANGE	0-28650-835-0	11	1	0806-0906
76	01.840 BOLT; OIL FILTER EURO4 SPECIFICATION(NT4) 01.060 (B) M8X35 FLANGE	0-28650-835-0	11	1	0907-
76	01.840 BOLT; OIL FILTER (D)	8-98041-912-0	02	1	0806-
97	01.540 STUD; OIL COOLER BRKT M6X13,M8X35 L=53	8-98045-481-0	01	1	0806-0906
97	01.540 STUD; OIL COOLER BRKT EURO4 SPECIFICATION(NT4) M6X13,M8X35 L=53	8-98045-481-0	01	1	0907-
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0806-
365	01.840 PROTECTOR; OIL FILTER EURO5 SPECIFICATION(NT5)	8-98133-061-0	01	1	0907-
365	01.840 PROTECTOR; OIL FILTER	8-98018-857-0	01	1	0806-0906
365	01.840 PROTECTOR; OIL FILTER EURO4 SPECIFICATION(NT4)	8-98018-857-0	01	1	0907-
374	01.840 STUD; OIL FILTER 01.428 M8X18 L=30	0-41010-818-0	02	1	0806-0807
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0808-
495	03.680 PLATE; OIL FILTER	8-98018-853-0	01	1	0806-
