Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#76084) — 169 parça

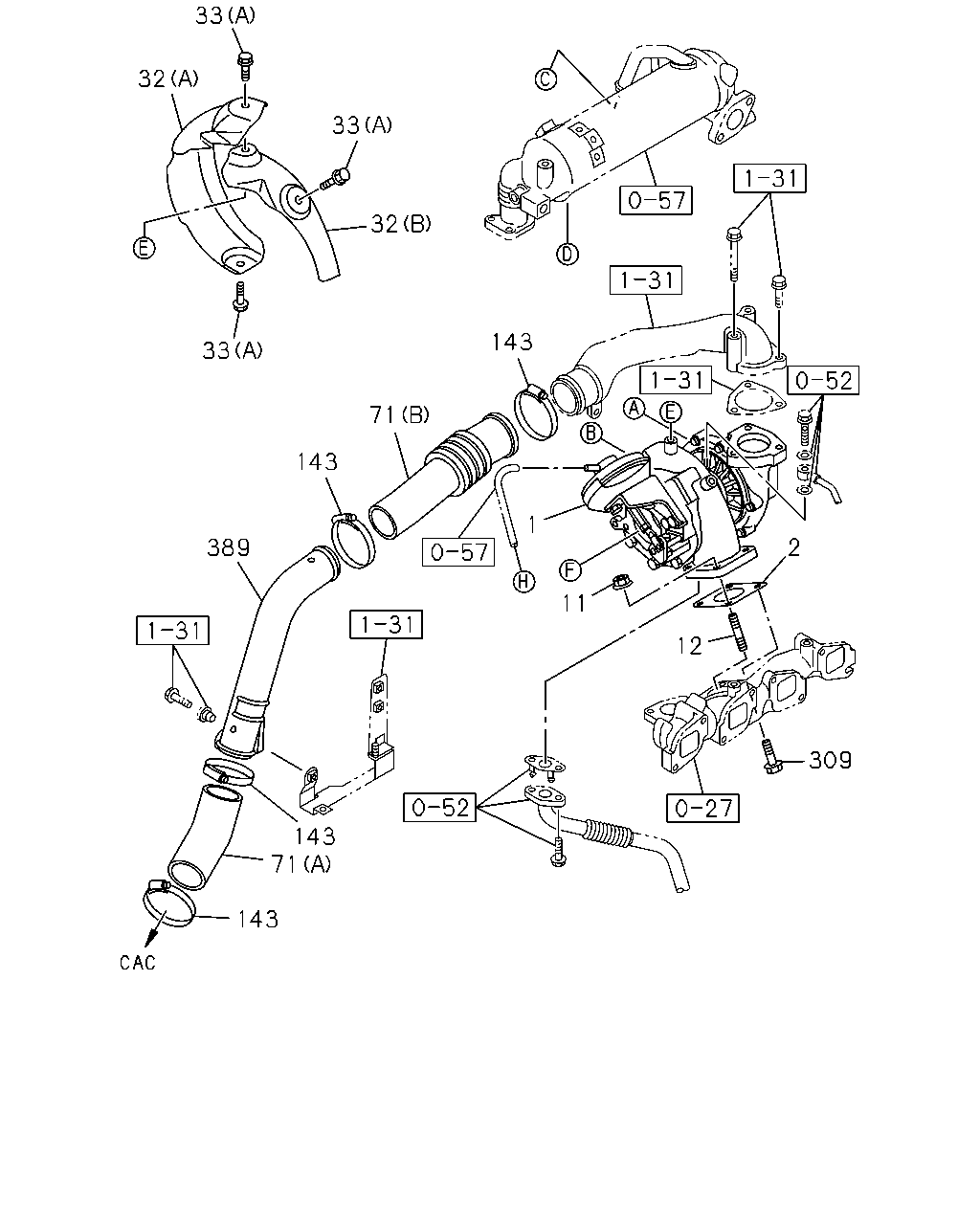

33 32 33 32 143 33 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM EURO5 SPECIFICATION(NT5)	8-98083-041-2	01	1	0907-
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0806-0906
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0907-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0806-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0806-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0806-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0806-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0806-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0806-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0806-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0806-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-919-0	01	1	0806-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1002-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0806-0810
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0811-1001
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1002-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0806-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-997-1	01	1	0806-

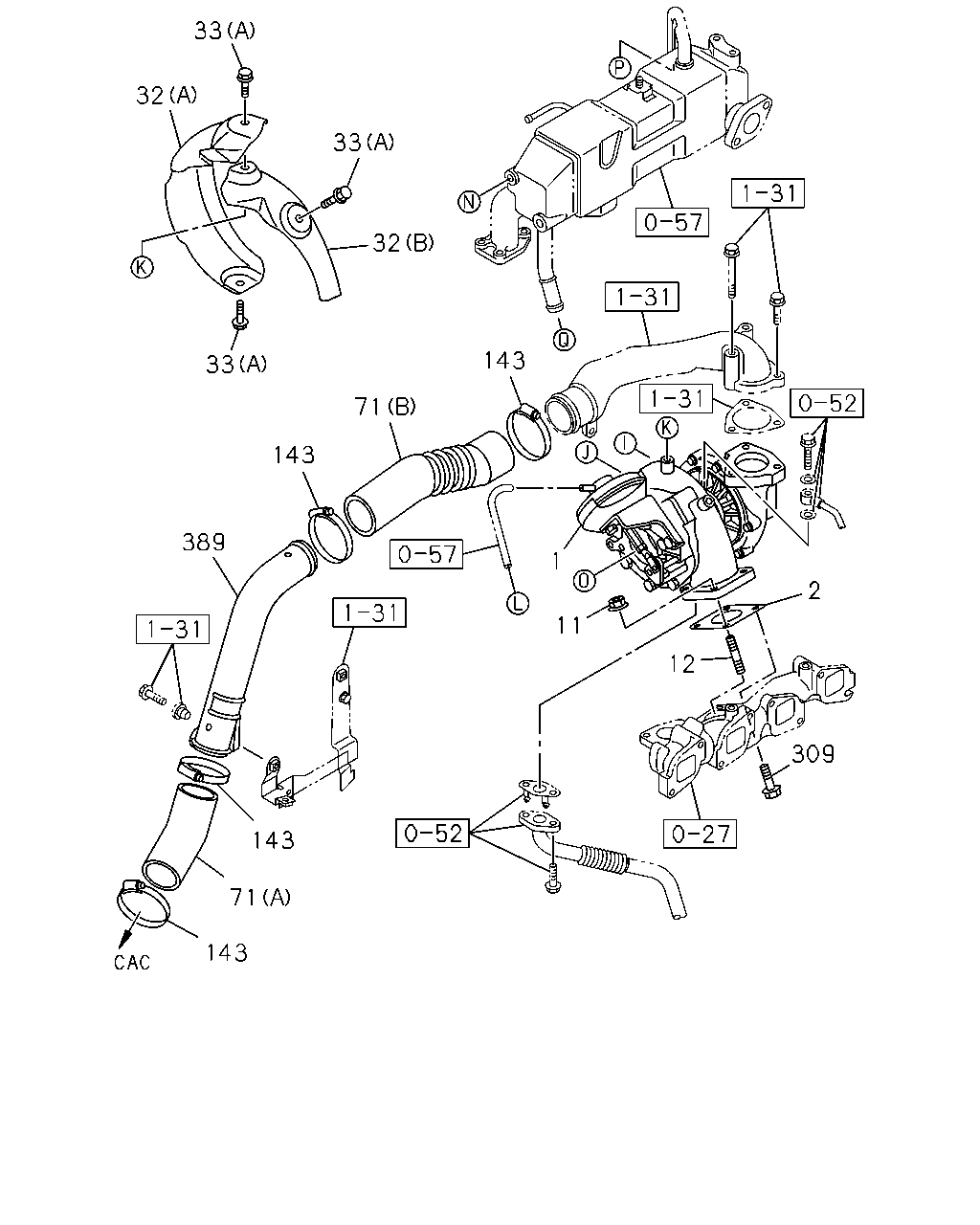

33 32 33 32 143 33 71 143 1 2 389 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM EURO5 SPECIFICATION(NT5)	8-98083-041-2	01	1	0907-
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0806-0906
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0907-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0806-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0806-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0806-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0806-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0806-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0806-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0806-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0806-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-919-0	01	1	0806-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1002-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0806-0810
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0811-1001
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1002-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0806-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-997-1	01	1	0806-

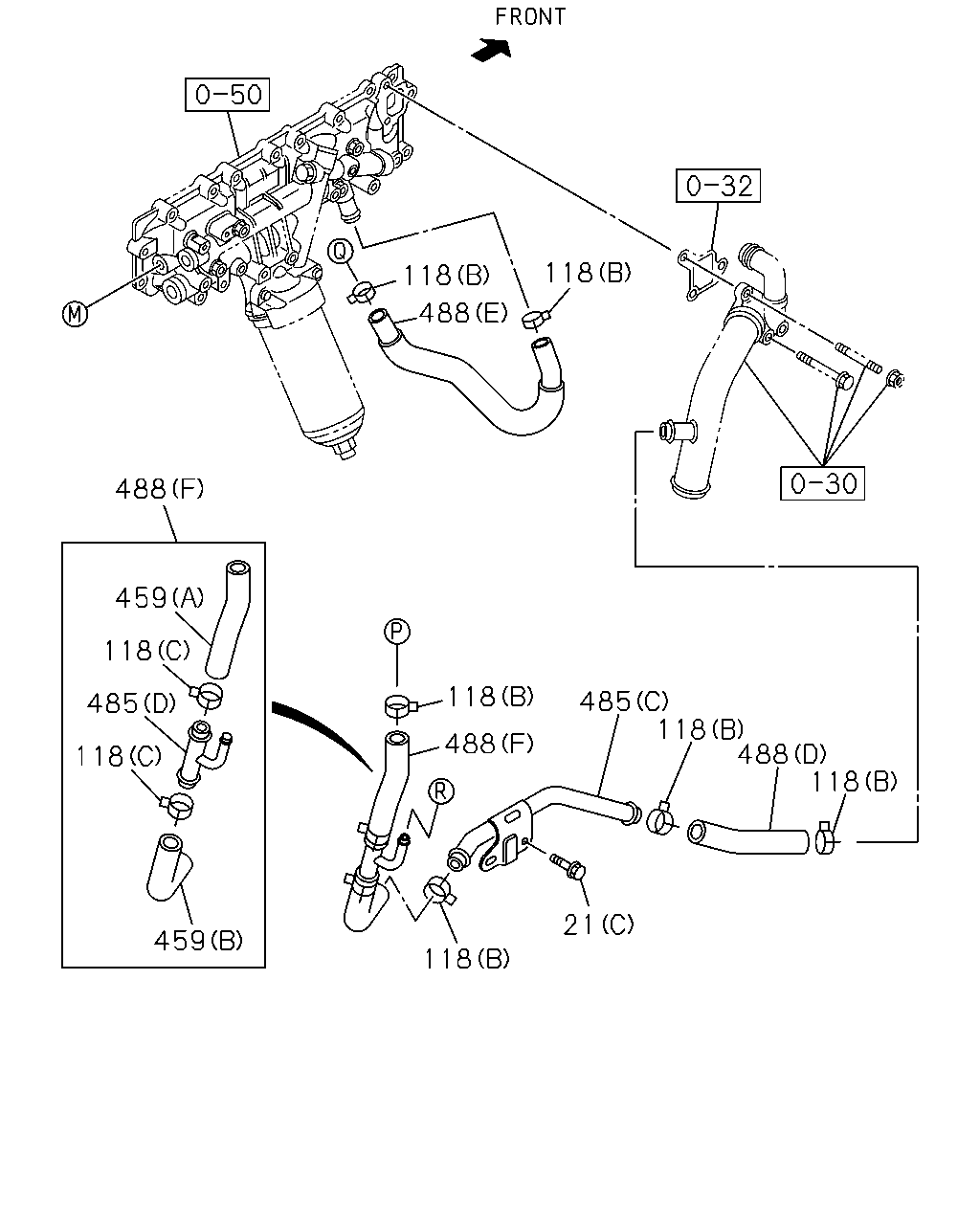

118 118 488 488 459 118 118 485 118 488 118 485 488 118 21 459 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	03.358 BOLT; PIPE EURO5 SPECIFICATION(NT5) 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	0907-
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-0906
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0806-0809
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-0906
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0907-
118	03.342 CLIP; WATER HOSE EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0907-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0806-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0806-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
459	03.341 HOSE; WATER EURO5 SPECIFICATION(NT5) (A)	8-98107-347-0	01	1	0907-
459	03.341 HOSE; WATER EURO5 SPECIFICATION(NT5) (B)	8-98108-321-0	01	1	0907-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (C)	8-98082-424-1	01	1	0907-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (D)	8-98107-346-0	01	1	0907-
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0806-0906
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-97381-651-0	01	1	0907-
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0806-0906
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-97381-652-0	01	1	0907-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=110 SERVICED BY L=3000	0-03666-300-0	01	1	0907-1102
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1103-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (E)	8-98075-184-0	01	1	0907-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (F)	8-98082-221-0	01	1	0907-
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0806-0906
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0907-
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0806-0906
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0907-
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0806-0906
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	0907-

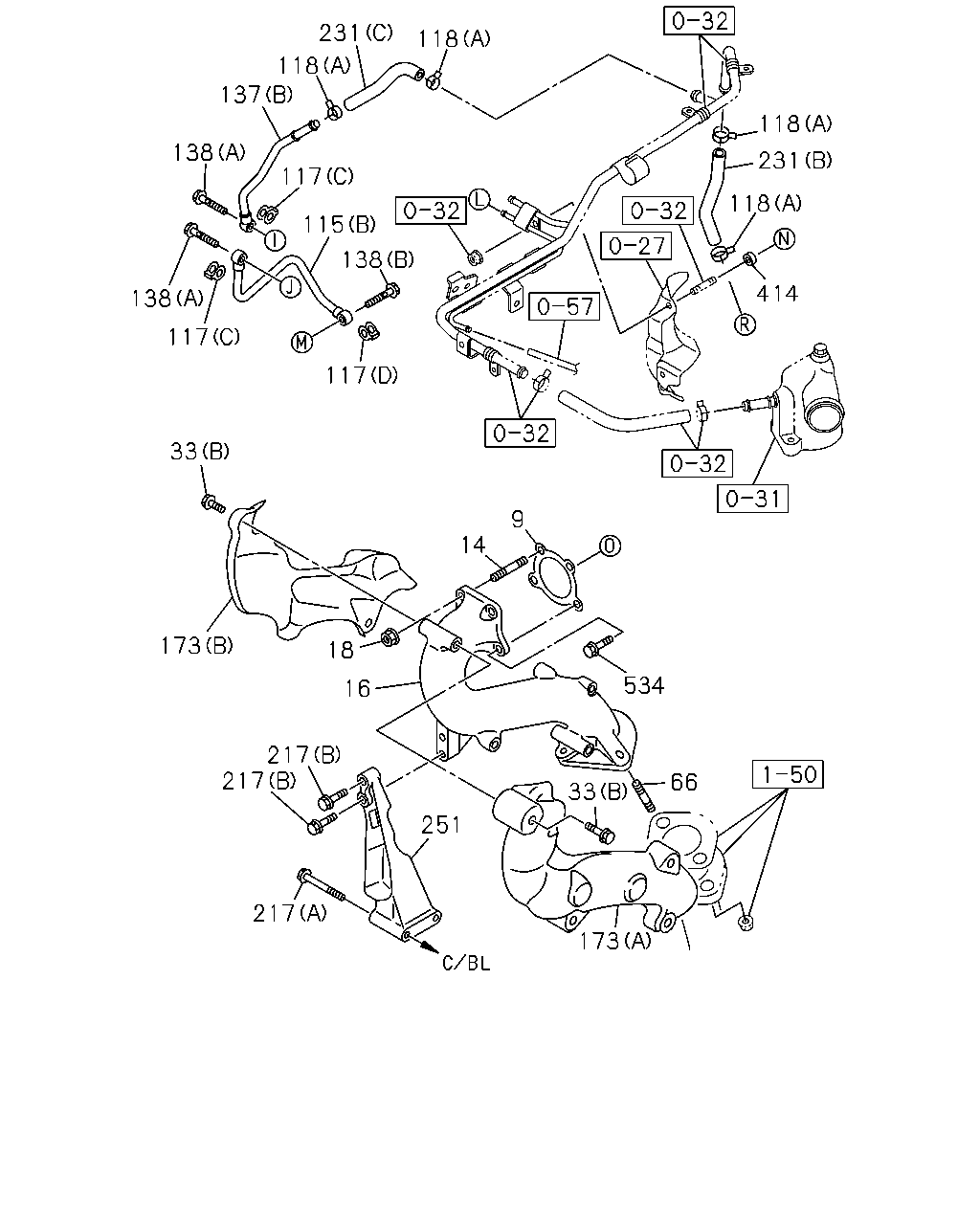

231 118 118 137 118 138 231 117 118 115 138 414 138 117 117 33 9 14 173 18 534 16 217 217 66 33 251 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0806-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0806-0903
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0806-0910
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0806-0903
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0806-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0806-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0806-
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98083-025-1	01	1	0907-
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	0806-0906
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98113-333-0	01	1	0907-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0907-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0806-0906
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (A)	8-97262-117-0	01	1	0907-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0806-0904
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-0906
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	0907-
118	03.342 CLIP; WATER HOSE EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0907-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0806-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0806-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5 SPECIFICATION(NT5) (B)	8-98074-761-0	01	1	0907-
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	0806-0906
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (A)	8-97381-650-0	01	1	0907-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0907-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0806-0906
138	03.342 BOLT; EYE,WATER PIPE EURO5 SPECIFICATION(NT5) 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	0907-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0806-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0806-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0806-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0806-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (C)	8-98075-182-1	01	1	0907-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98120-394-1	01	1	0907-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98030-402-0	01	1	0806-0906
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98030-402-0	01	1	0907-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0806-
414	03.602 SPACER EURO5 SPECIFICATION(NT5)	8-98143-884-0	01	1	0907-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0806-0903
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-

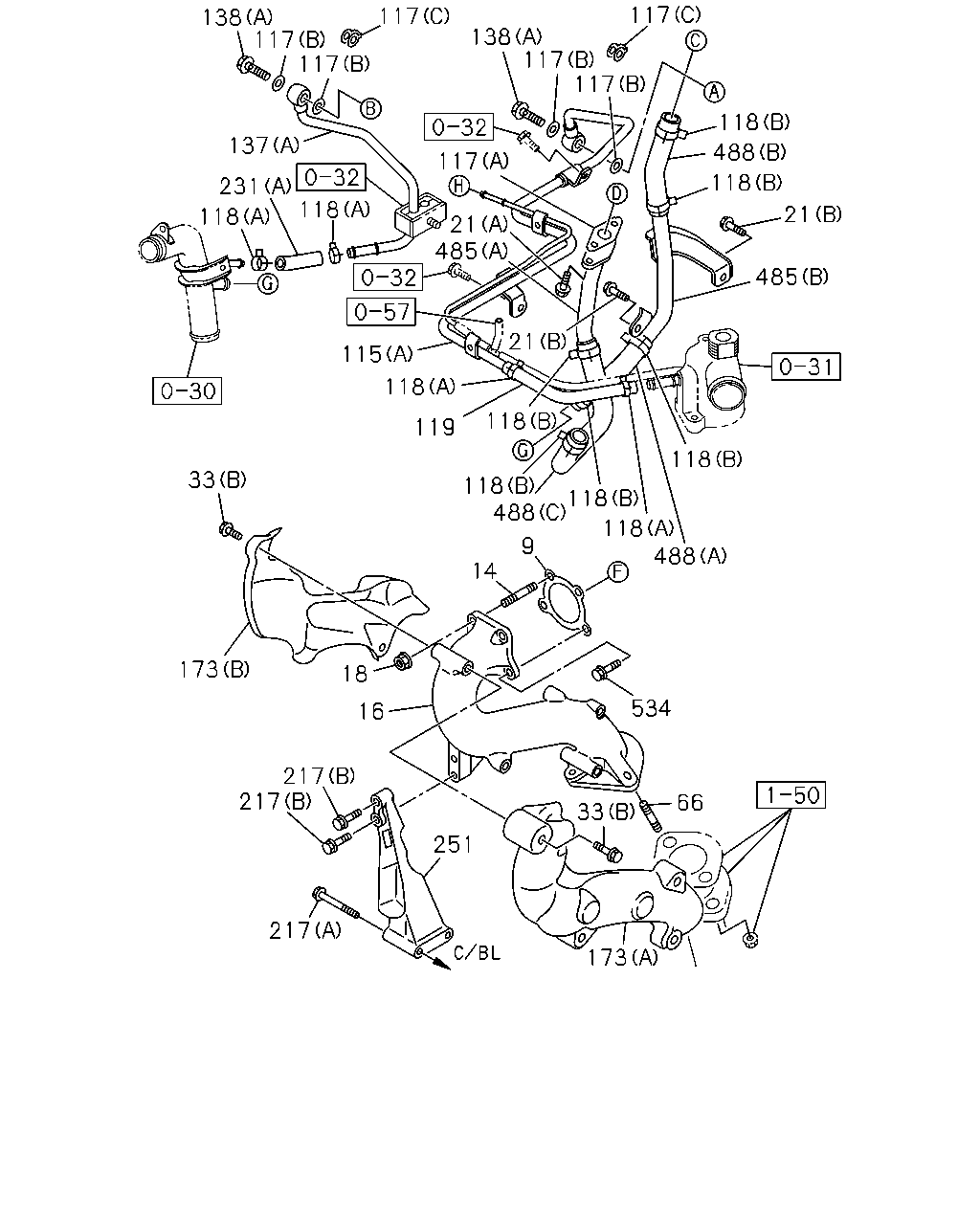

117 117 138 117 117 138 117 117 118 137 488 117 118 231 118 21 118 21 485 485 21 115 118 118 119 118 33 118 118 488 118 488 9 14 173 18 534 16 217 217 66 33 251 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0806-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0806-0903
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0806-0910
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0806-0903
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-
21	03.358 BOLT; PIPE EURO5 SPECIFICATION(NT5) 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	0907-
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-0906
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0806-0809
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-0906
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0907-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0806-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0806-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0806-
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98083-025-1	01	1	0907-
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	0806-0906
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98113-333-0	01	1	0907-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0907-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0806-0906
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (A)	8-97262-117-0	01	1	0907-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0806-0904
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-0906
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	0907-
118	03.342 CLIP; WATER HOSE EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0907-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0806-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0806-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0806-0906
119	03.342 HOSE; WATER,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98113-336-0	01	1	0907-
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5 SPECIFICATION(NT5) (B)	8-98074-761-0	01	1	0907-
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	0806-0906
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (A)	8-97381-650-0	01	1	0907-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0907-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0806-0906
138	03.342 BOLT; EYE,WATER PIPE EURO5 SPECIFICATION(NT5) 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	0907-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0806-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0806-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0806-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0806-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (C)	8-98075-182-1	01	1	0907-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98120-394-1	01	1	0907-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98030-402-0	01	1	0806-0906
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98030-402-0	01	1	0907-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0806-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (C)	8-98082-424-1	01	1	0907-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (D)	8-98107-346-0	01	1	0907-
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0806-0906
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-97381-651-0	01	1	0907-
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0806-0906
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-97381-652-0	01	1	0907-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=110 SERVICED BY L=3000	0-03666-300-0	01	1	0907-1102
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1103-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (E)	8-98075-184-0	01	1	0907-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (F)	8-98082-221-0	01	1	0907-
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0806-0906
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0907-
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0806-0906
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0907-
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0806-0906
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	0907-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0806-0903
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
