◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#76078) — 12 parça

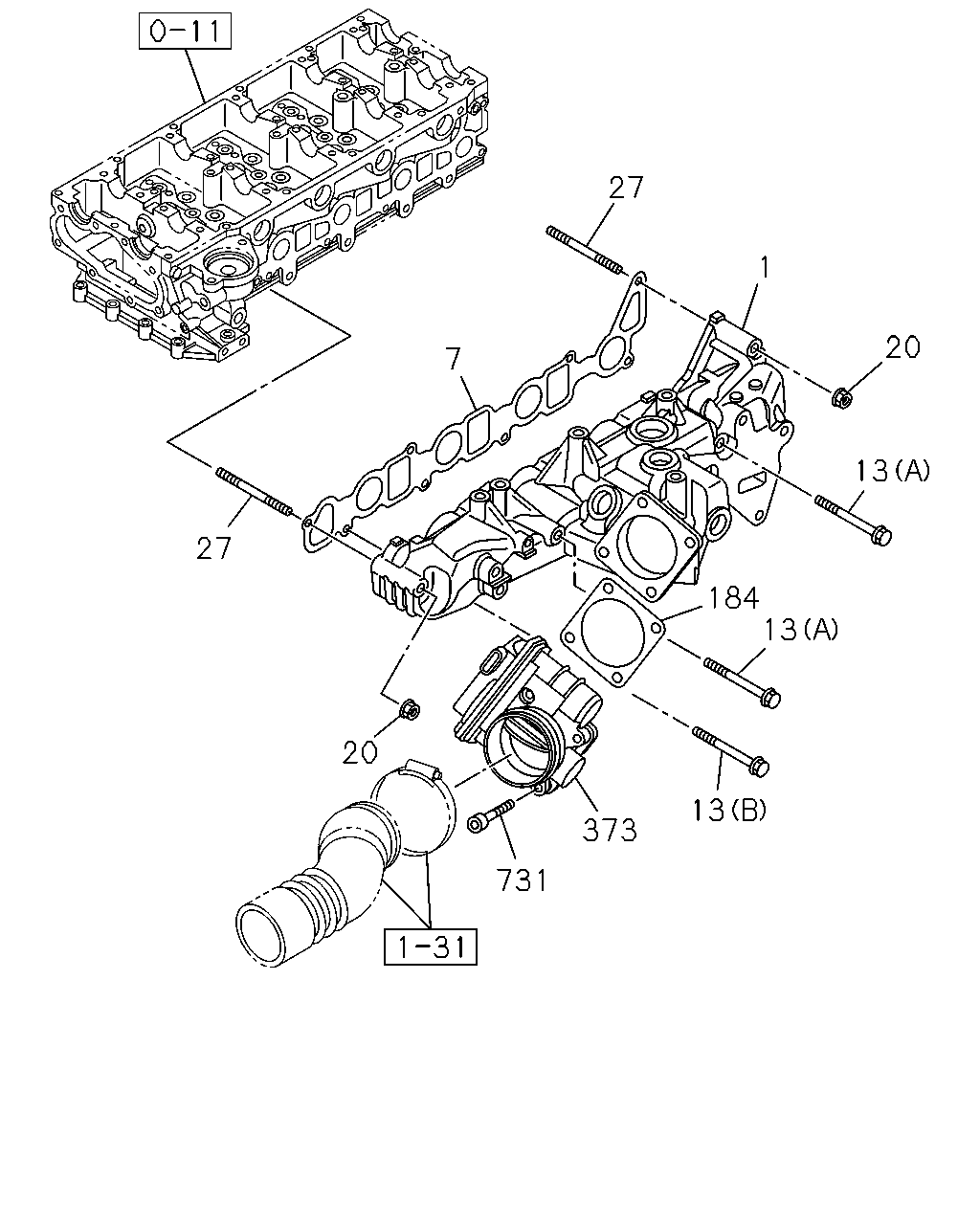

çizim 186095
27 1 20 7 13 27 184 13 20 13 373 731
BalonParca AdiParca NoAdetTipApplied Date
1 03.265 MANIFOLD; INL 8-98024-411-1 01 1 0806-
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97312-067-1 01 1 0806-0902
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98063-396-0 01 1 0903-1211
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98212-999-0 01 1 1212-
13 03.275 BOLT; INL MANIF
(A) M8X110 FLANGE 		0-28055-811-0 02 1 0806-
13 03.275 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0806-
20 03.275 NUT; INL MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0806-
27 03.275 STUD; INL MANIF
M8X71 L=83 		8-98017-063-0 02 1 0806-
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97366-784-1 01 1 0806-0902
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98096-968-0 01 1 0903-
373 03.265 THROTTLE ASM; INT 8-98040-003-4 01 1 0806-
731 02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
