0-14 — CAMSHAFT AND VALVE (#76074) — 56 parça

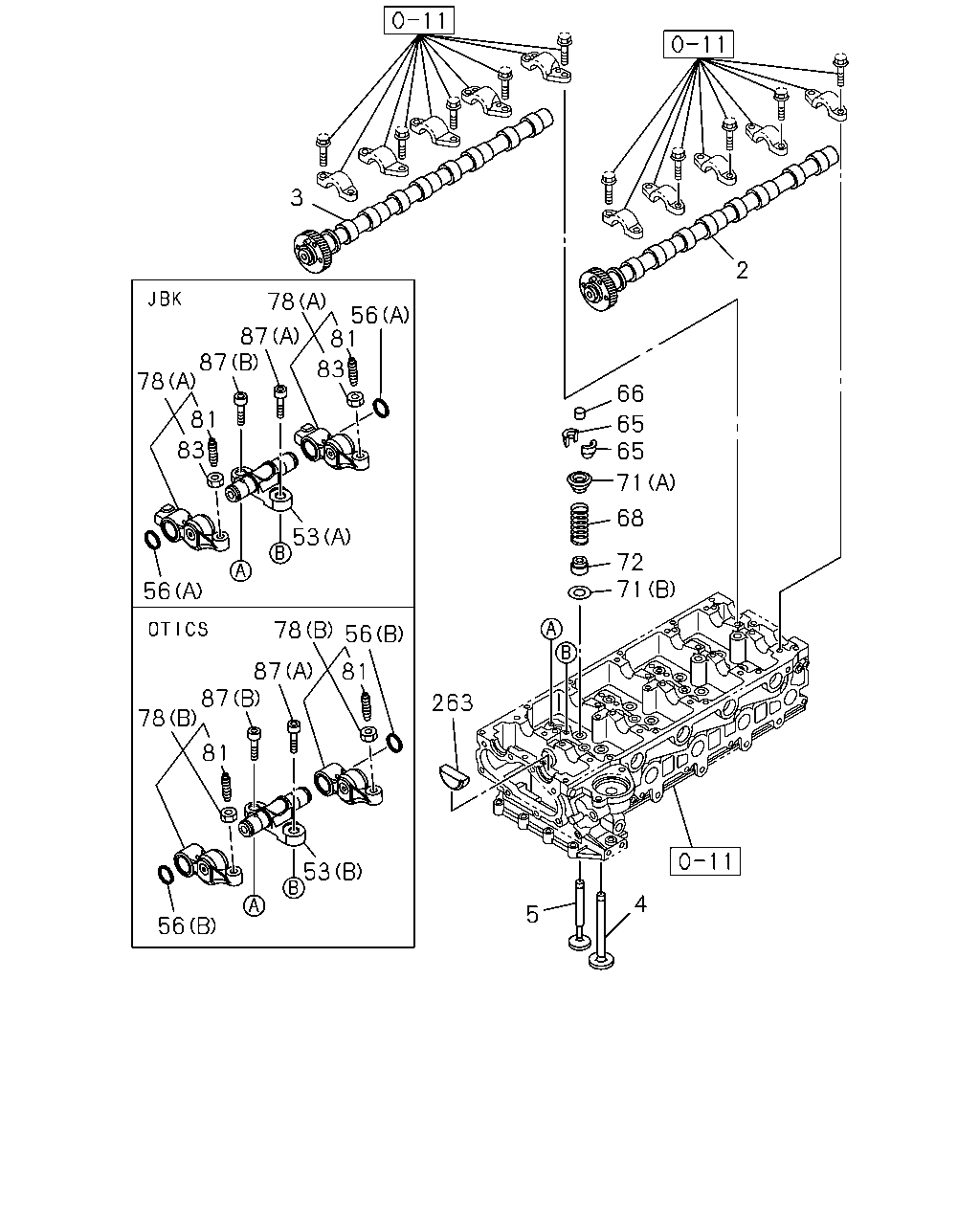

3 2 78 56 81 87 87 83 78 66 81 65 65 83 71 68 53 72 71 56 78 56 87 87 78 81 263 81 53 4 5 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	00.519 CAMSHAFT; INL	8-98003-129-4	01	1	0806-
3	00.519 CAMSHAFT; EXH	8-98003-130-4	01	1	0806-
4	00.296 VALVE; INL	8-98016-973-0	08	1	0806-
5	00.297 VALVE; EXH	8-98016-974-1	08	1	0806-
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1001-
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1001-
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	0806-
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	0806-
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1001-
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	0806-
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0806-
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0806-0910
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0806-
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0806-
71	00.309 SEAT; SPR (B)	8-97144-584-0	16	1	0806-
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	0806-
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97328-647-0	16	1	0806-
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1001-
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	0806-
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1001-
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0806-
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	0806-
87	00.349 BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET	0-58330-825-0	08	1	0806-
87	00.349 BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	0806-
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98101-472-0	04	1	0806-1204
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98216-269-0	04	1	1205-

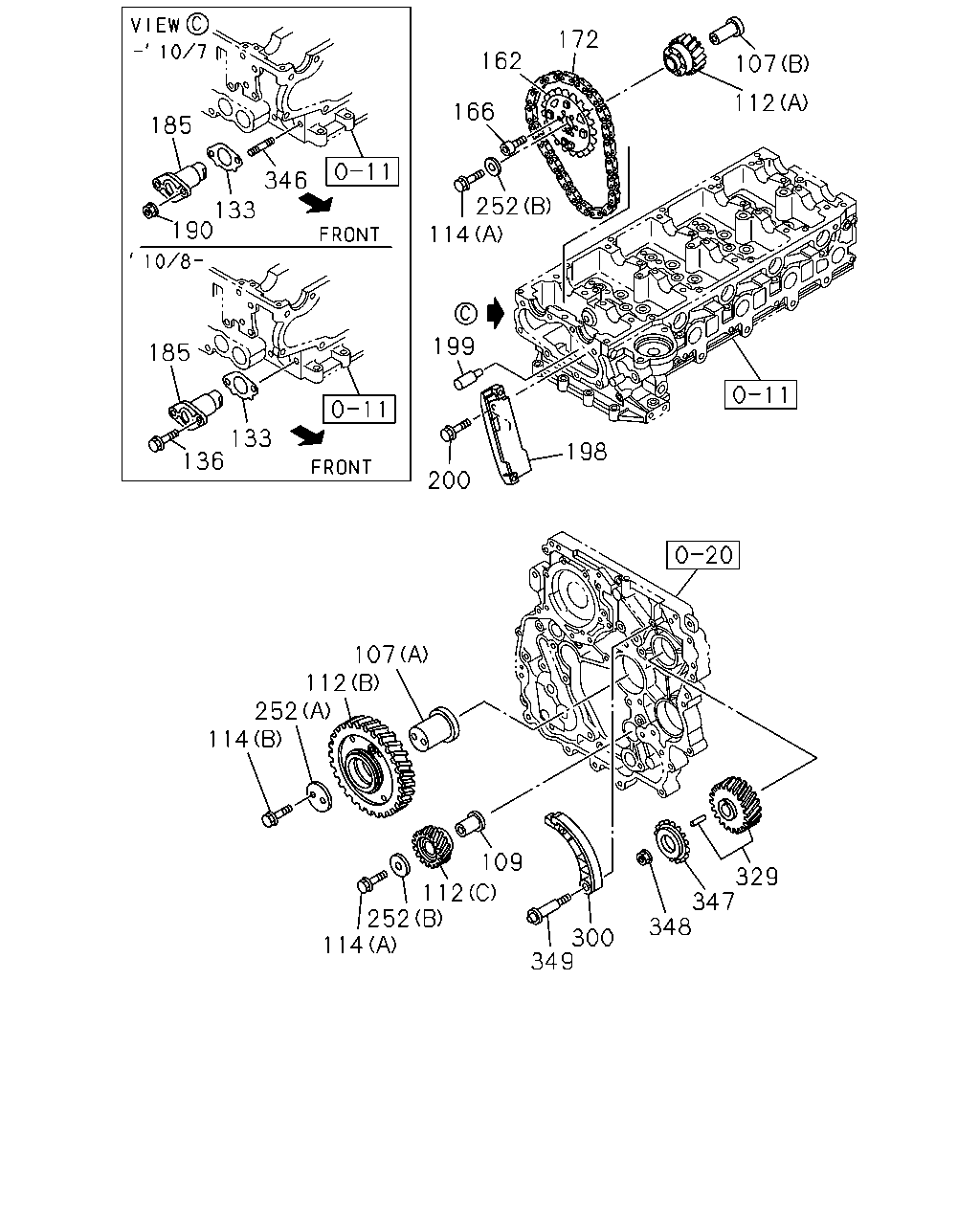

185 133 190 185 133 136 200 198 199 114 252 166 162 172 112 107 112 252 114 107 114 112 252 109 300 347 348 329 349 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	0806-
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	0806-
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0806-
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	0806-1311
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1312-
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	0806-
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	0806-
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0806-
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0806-
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-336-0	01	1	0806-
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1008-
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	0806-1109
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1110-
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0806-
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0806-
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	0806-
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0806-1007
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0806-
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0806-
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	0806-
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	0806-
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	0806-
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0806-
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	0806-
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0806-1007
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0806-1207
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1208-
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0806-
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0806-
