◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51176 - NLS(EUROPE)RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶

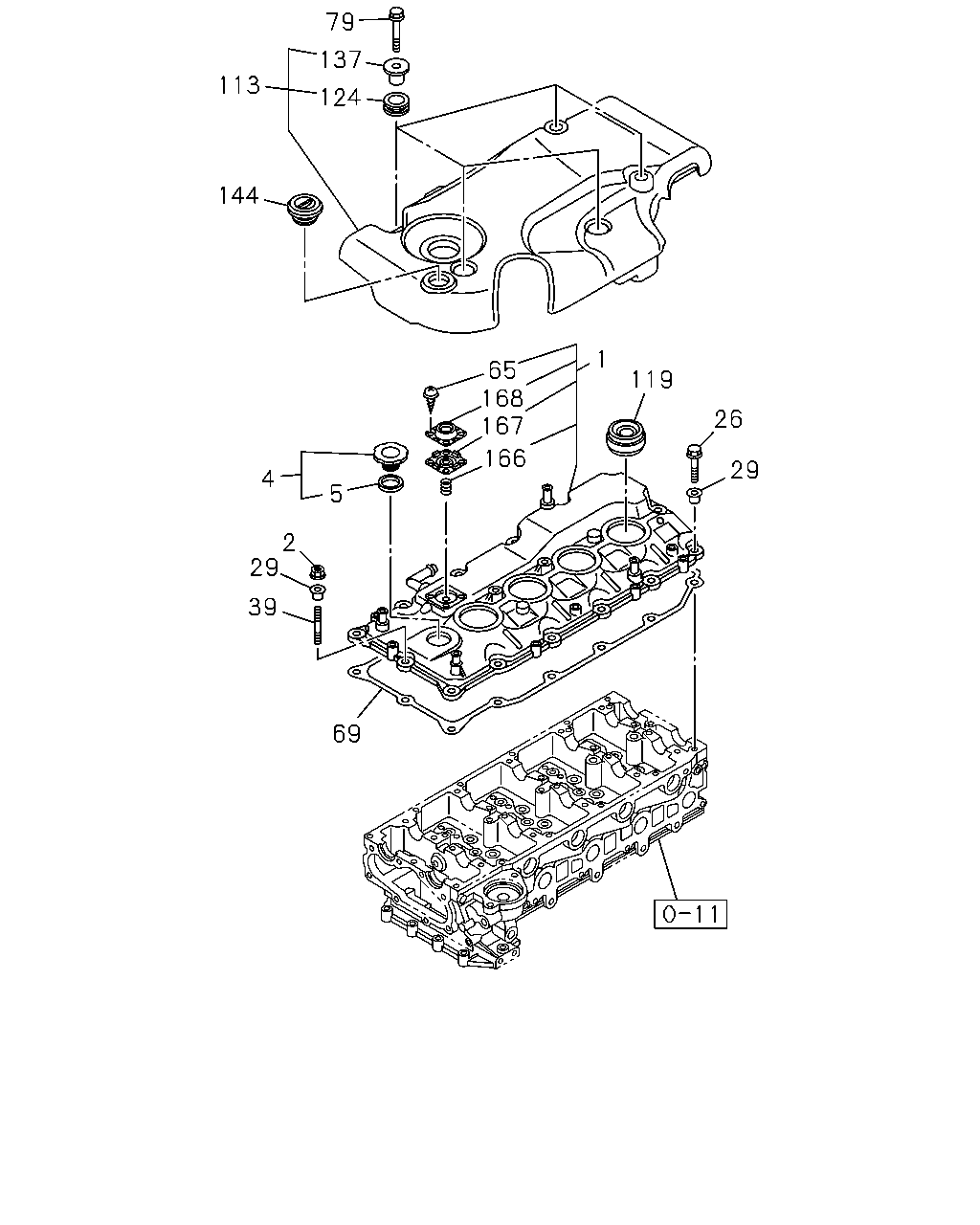

0-10 — CYLINDER HEAD COVER (#76070) — 24 parça

79 137 113 124 144 1 65 168 167 119 26 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0806-1305
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0806-
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0806-
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0806-
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0806-
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	0806-1408
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-
39	00.413 STUD; COVER,HD M6X30 L=38	8-97372-795-0	01	1	0806-
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0806-
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	0806-
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	0806-
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	0806-1104
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0806-
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0806-
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	0806-
144	01.758 CAP; PIPE,CYL HEAD COVER	8-98036-117-0	01	1	0806-0907
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0806-
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0806-1305
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0806-
