◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51175 - NLS(EUROPE)LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#76064) — 17 parça

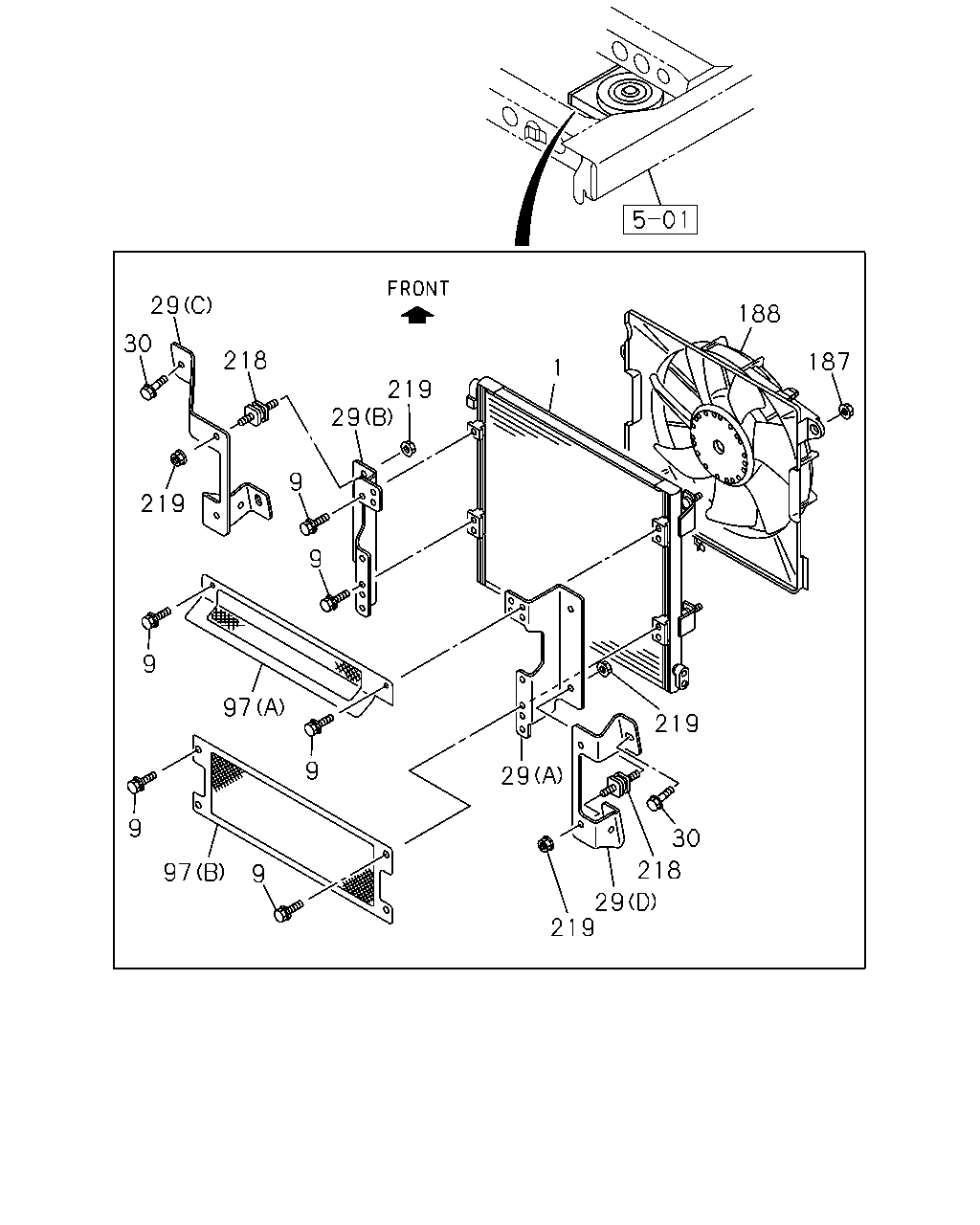

çizim 158263
29 188 30 218 187 1 219 29 9 219 9 9 97 219 9 29 9 30 218 97 9 29 219
BalonParca AdiParca NoAdetTipApplied Date
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 0806-
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 12 1 0806-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 0806-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 0806-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98042-122-1 01 1 0806-
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-123-1 01 1 0806-
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0806-
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98041-900-0 01 1 0806-
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-018-1 01 1 0806-
187 09.190 NUT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 0806-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 0806-
218 09.215 CUSHION; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-898-0 04 1 0806-
219 09.190 NUT; CUSHION
AIR CONDITIONER MANUAL CONT(C60) M8 		1-83539-319-0 08 1 0806-

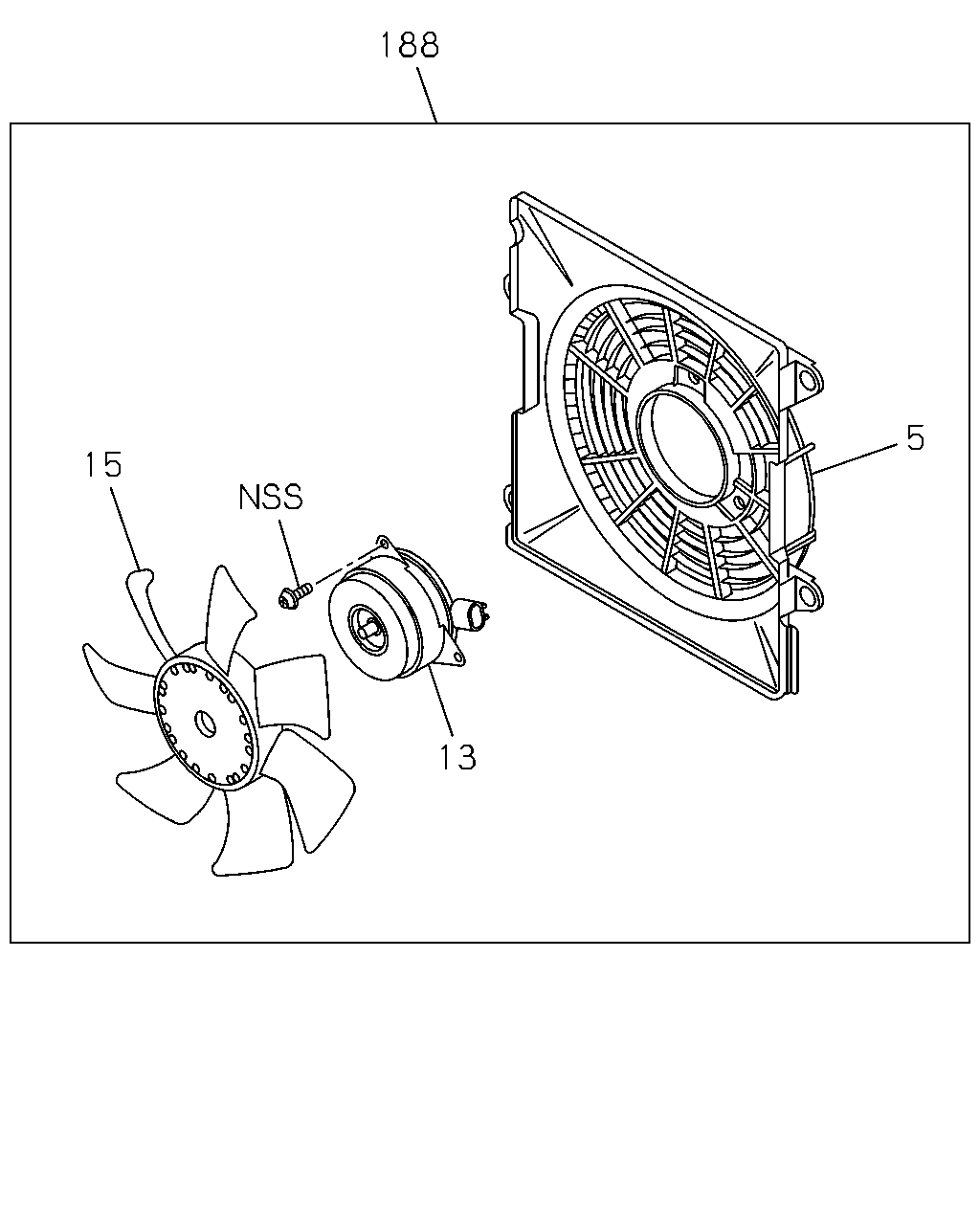

çizim 158383
188 5 15 13
BalonParca AdiParca NoAdetTipApplied Date
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-865-0 01 1 0806-
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-044-0 01 1 0806-
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-860-0 01 1 0806-
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 0806-
