◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#7606) — 113 parça

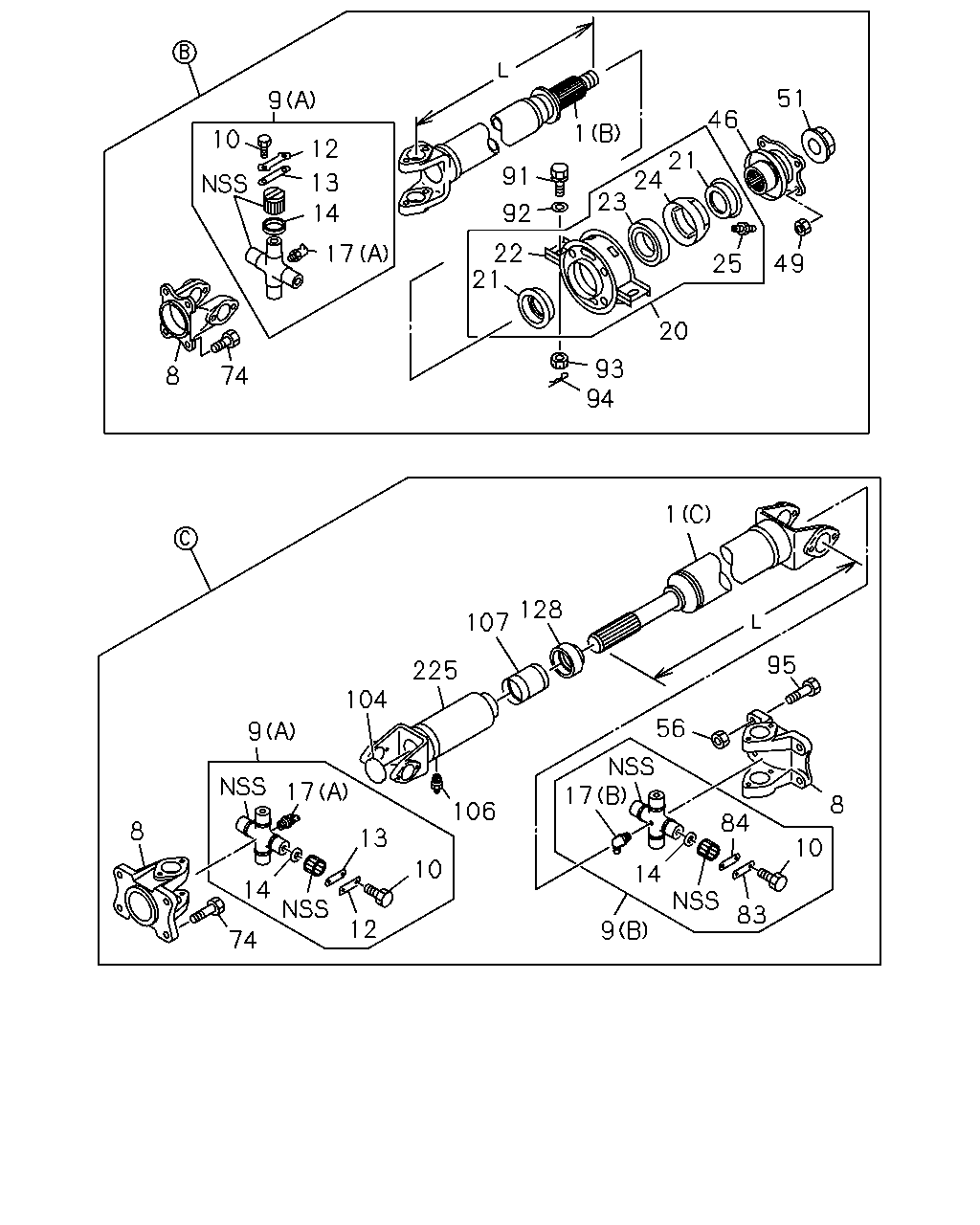

çizim 7601
51 9 46 1 10 12 13 14 21 24 23 25 91 92 22 21 17 49 20 93 94 1 128 107 95 225 104 56 9 17 106 17 8 84 8 13 10 14 83 10 14 12 9 74 8 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=959 		1-37124-113-0 01 1 0101- ●
1 SHAFT; PROP
(A) 52W,54W (B) 63W L=786 		1-37152-074-0 01 1 0101- ● ● ●
1 SHAFT; PROP
(C) L=1119 		1-37124-152-0 01 1 0101- ●
1 SHAFT; PROP
(C) L=1194 		1-37124-114-0 01 1 0101- ●
1 SHAFT; PROP
6HH1 STD ENG<65L> (A) L=1096 		1-37152-075-0 01 1 0101- ●
1 SHAFT; PROP
(C) L=1024 		1-37124-258-0 01 1 0101- ●
1 SHAFT; PROP
(A) L=916 		1-37152-279-0 01 1 0101- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0101- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 03 1 0101- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-0 AR 1 0101- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-0 AR 1 0101- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-095-0 AR 1 0101- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 16 1 0101- ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 08 1 0101- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 24 1 0101- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0101- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 08 1 0101- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0101- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 08 1 0101- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 0101- ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 0101- ● ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 0101- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0101- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0101- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 0101- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0101- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0101- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0101- ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0101- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0101- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0101- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 02 1 0101- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0101- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0101- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0101- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0101- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0101- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0101- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0101- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0101- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0101- ● ● ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0101- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0101- ● ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0101- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0101- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0101- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 0101- ● ● ● ●
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0101- ● ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0101- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0101- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0101- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0101- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0101- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0101- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MT6 STRAIGHT 		1-09380-006-0 01 1 0101- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0101- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0101- ● ● ● ●
128 SEAL; SLEEVE 1-37247-021-0 01 1 0101- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0101- ● ● ● ●

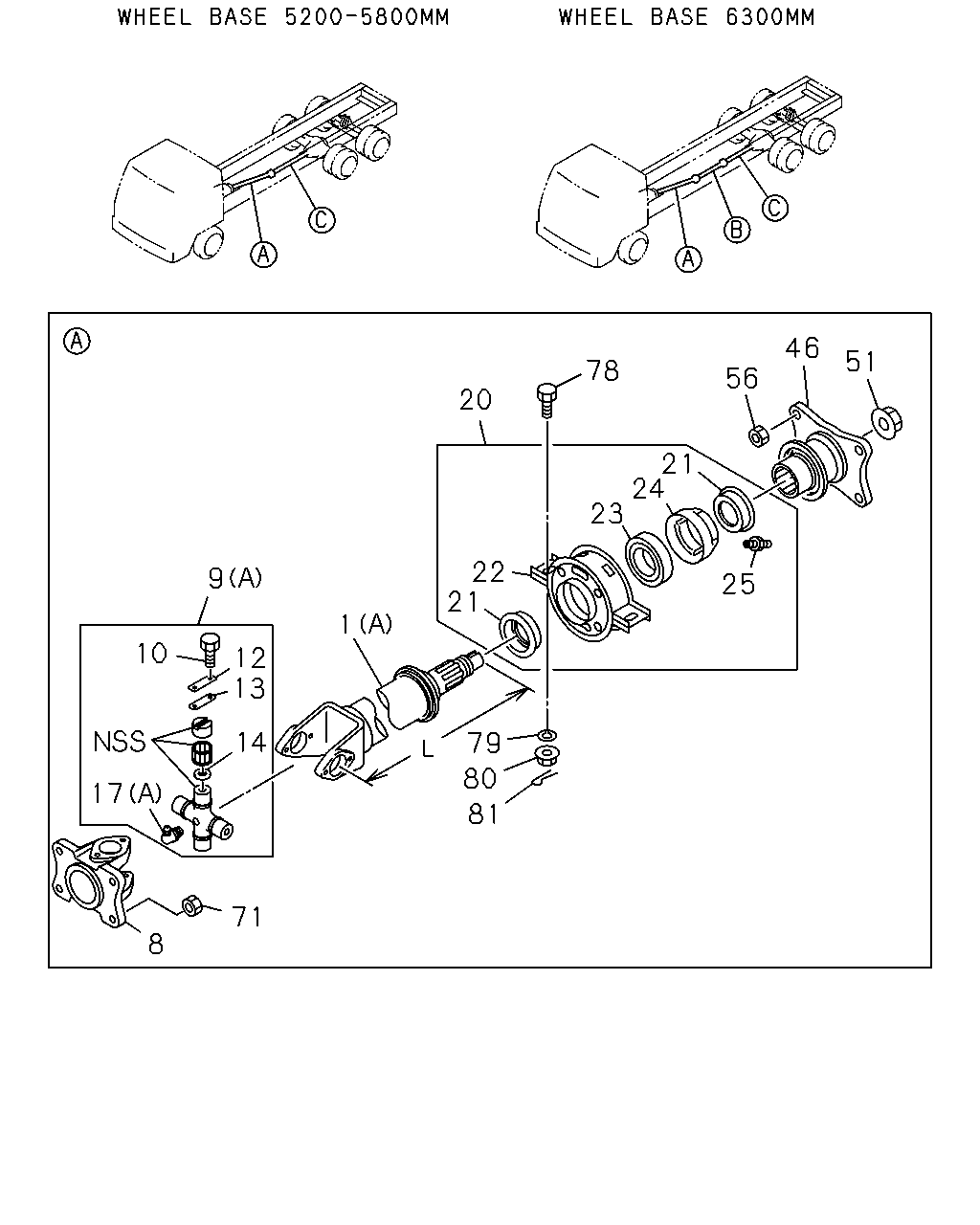

çizim 44227
46 51 78 56 20 21 24 23 22 21 9 25 1 10 12 13 14 79 80 17 81 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=959 		1-37124-113-0 01 1 0101- ●
1 SHAFT; PROP
(A) 52W,54W (B) 63W L=786 		1-37152-074-0 01 1 0101- ● ● ●
1 SHAFT; PROP
(C) L=1119 		1-37124-152-0 01 1 0101- ●
1 SHAFT; PROP
(C) L=1194 		1-37124-114-0 01 1 0101- ●
1 SHAFT; PROP
6HH1 STD ENG<65L> (A) L=1096 		1-37152-075-0 01 1 0101- ●
1 SHAFT; PROP
(C) L=1024 		1-37124-258-0 01 1 0101- ●
1 SHAFT; PROP
(A) L=916 		1-37152-279-0 01 1 0101- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0101- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 03 1 0101- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-0 AR 1 0101- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-0 AR 1 0101- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-095-0 AR 1 0101- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 16 1 0101- ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 08 1 0101- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 24 1 0101- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0101- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 08 1 0101- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0101- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 08 1 0101- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 0101- ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 0101- ● ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 0101- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0101- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0101- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 0101- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0101- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0101- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0101- ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0101- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0101- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0101- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 02 1 0101- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0101- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0101- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0101- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0101- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0101- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0101- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0101- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0101- ● ● ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0101- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0101- ● ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0101- ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0101- ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0101- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0101- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0101- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0101- ● ● ● ●
