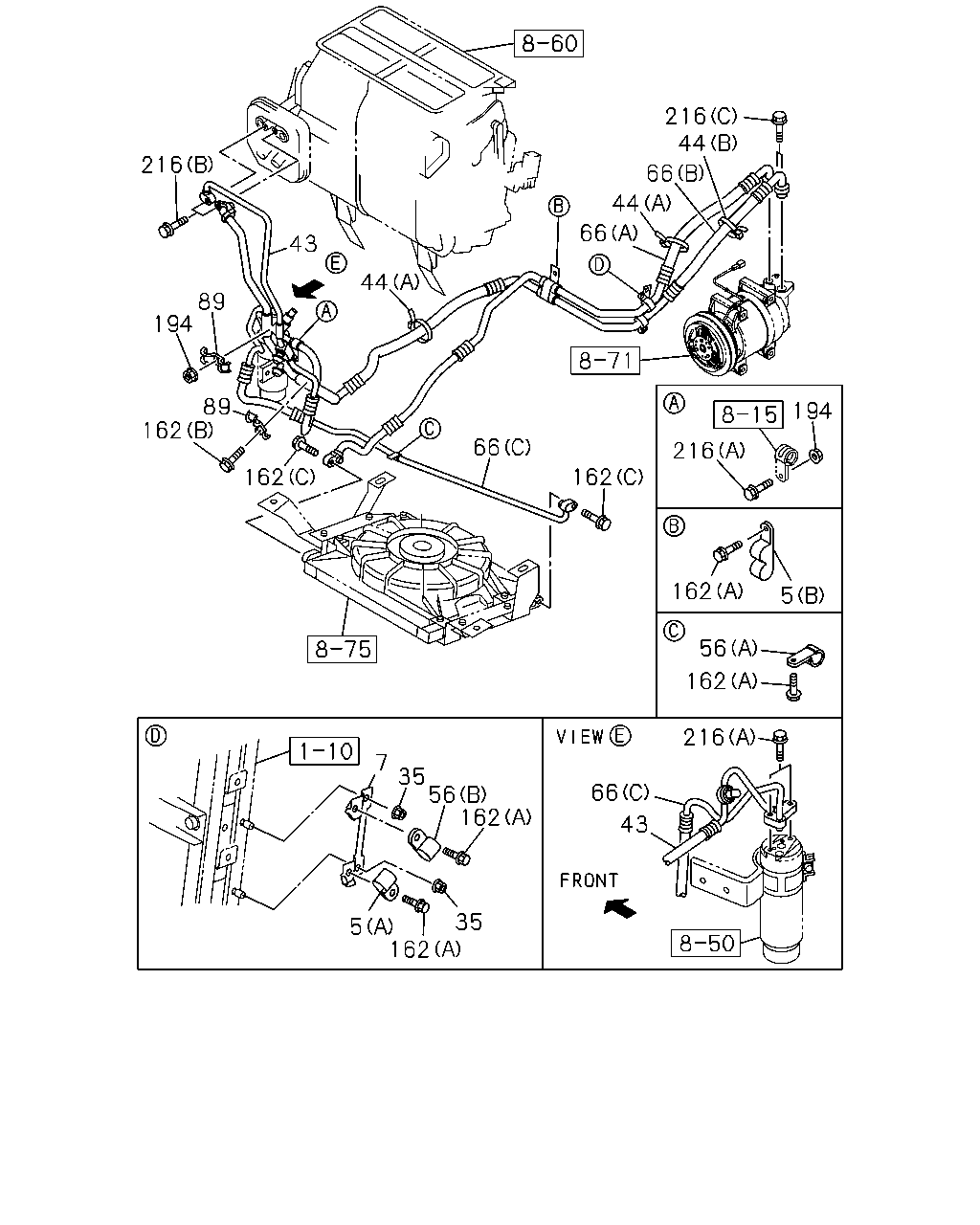

8-52 — PIPING; AIR CONDITIONING (#76059) — 64 parça

216 44 216 66 44 66 43 44 89 194 89 162 194 66 216 162 162 162 5 56 162 216 7 35 56 162 66 43 35 5 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	0806-1308
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	0806-
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0806-
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98083-517-0	01	1	0806-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0806-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0806-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0806-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=9 L=16	0-95234-822-0	01	1	0806-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	0806-1308
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) HIGH PRESSURE	8-98001-335-4	01	1	0907-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98083-518-0	01	1	0907-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98159-625-1	01	1	1010-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-335-4	01	1	0806-0906
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B) LOW PRESSURE	8-98122-212-0	01	1	0907-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B) LOW PRESSURE	8-98159-643-1	01	1	1010-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B) LOW PRESSURE	8-98248-638-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98083-518-0	01	1	0806-0906
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98122-213-0	01	1	0907-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98248-642-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98083-519-0	01	1	0806-
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	02	1	0806-1009
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1010-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1010-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0806-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0806-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	0806-
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0806-0906
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0907-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0806-0906
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0907-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	0806-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0806-

50 148 50 147 67 49 49 67 67 66 147 148 66 67 67 66 43 202 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98083-517-0	01	1	0806-
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (A)	8-98257-461-0	01	1	1312-
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98257-462-0	01	1	1312-
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	0806-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) HIGH PRESSURE	8-98001-335-4	01	1	0907-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98083-518-0	01	1	0907-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98159-625-1	01	1	1010-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-335-4	01	1	0806-0906
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B) LOW PRESSURE	8-98122-212-0	01	1	0907-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B) LOW PRESSURE	8-98159-643-1	01	1	1010-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B) LOW PRESSURE	8-98248-638-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98083-518-0	01	1	0806-0906
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98122-213-0	01	1	0907-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98248-642-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98083-519-0	01	1	0806-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=7.5	1-83539-316-0	02	1	0806-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0806-0906
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) ID=11.7	8-97095-907-0	02	1	0907-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0806-0906
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0907-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	0806-0906
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=17.6	8-98036-895-0	01	1	0907-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	0806-0906
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) CAP MARK L	1-83539-331-0	01	1	0907-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0806-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	0806-0906
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-97095-909-0	01	1	0907-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	0806-
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	0806-
