Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#76058) — 17 parça
◀

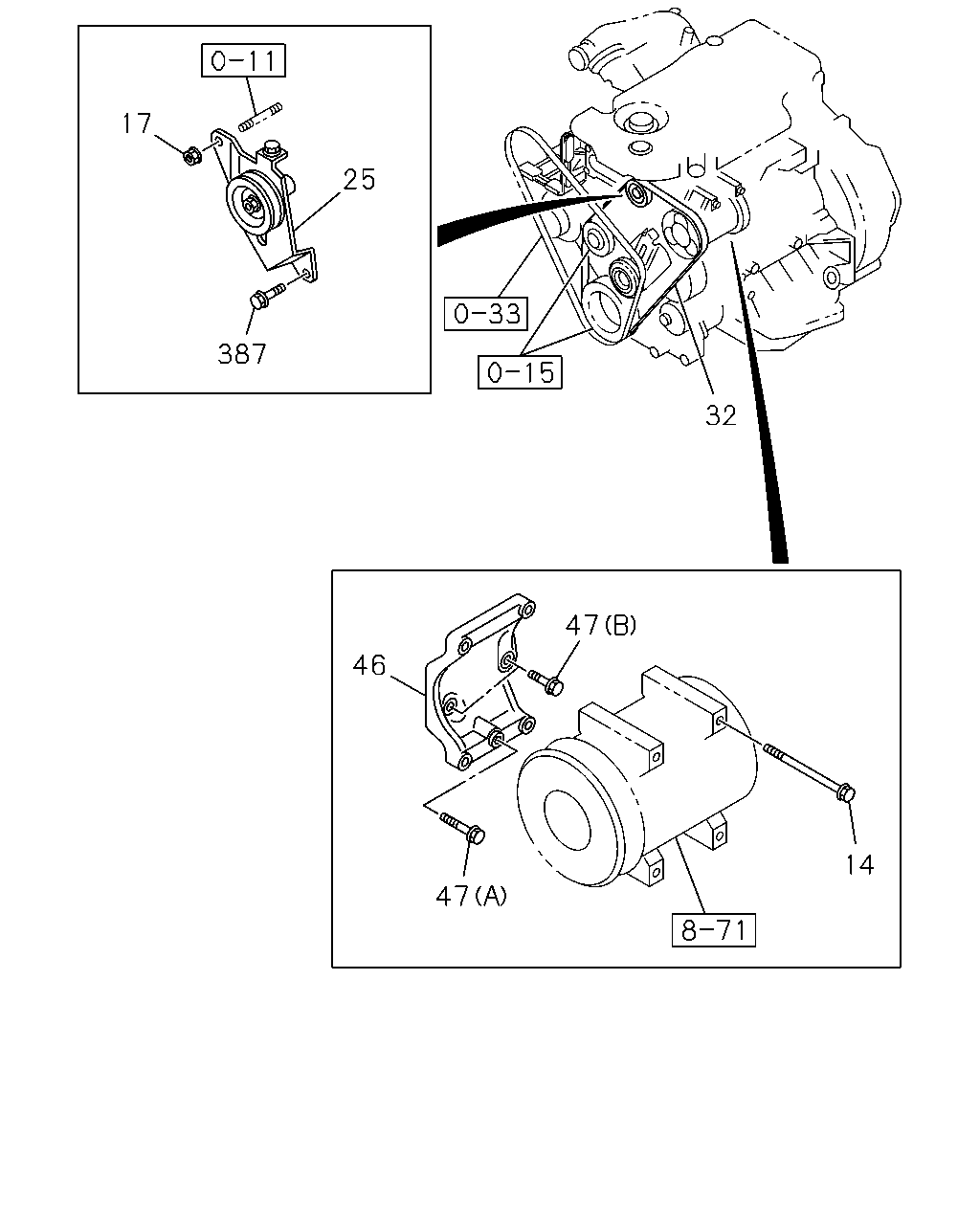

[850A] PULLEY AND COMP BRACKET (10 parça)

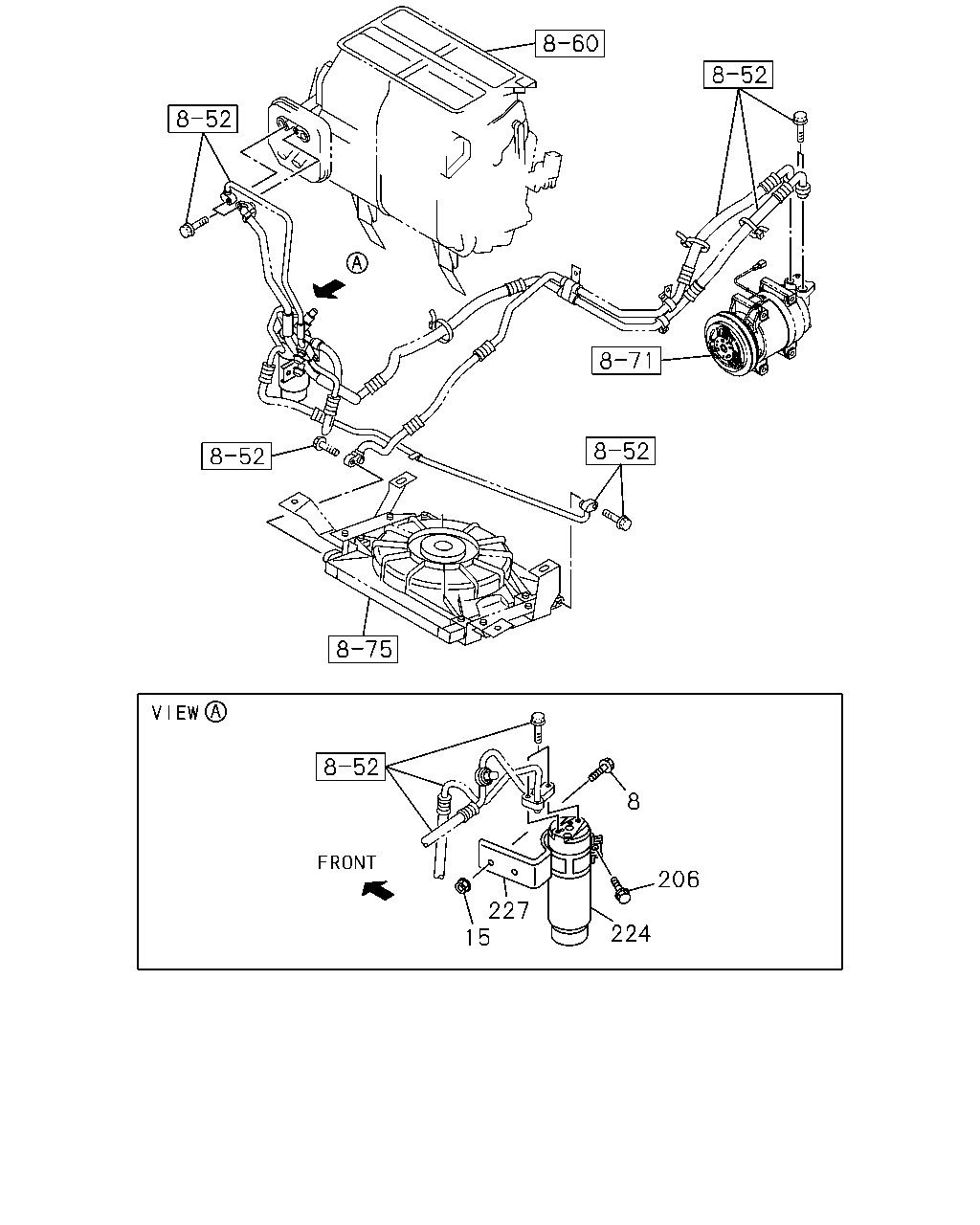

[850A] RECEIVER TANK (5 parça)
[850A] DRAIN HOSE AND COVER (2 parça)
▶
17
25
387
32
47
46
14
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE
0-28050-800-0
04
1
0806-
17
09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE
0-91180-208-0
01
1
0806-
25
09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE
8-98051-011-0
01
1
0806-1006
25
09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE
8-98114-437-0
01
1
1007-
32
01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI
8-98088-385-0
01
1
0806-
32
01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS
5-87610-103-0
01
1
0806-
46
09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242
8-98037-322-0
01
1
0806-
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE
0-28050-845-0
01
1
0806-
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE
0-28650-825-0
02
1
0806-
387
09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE
0-28650-820-0
01
1
0806-
8
206
227
15
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE
0-28650-825-0
02
1
0806-
15
09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE
0-91180-108-0
02
1
0806-
206
09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16
8-97096-525-0
01
1
0806-
224
09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60)
8-97096-593-0
01
1
0806-
227
09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60)
8-98042-566-0
01
1
0806-
378
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98017-235-1
01
1
0806-
378
09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98105-819-0
01
1
0806-
