Sayfa 8-45 - Isuzu EPC

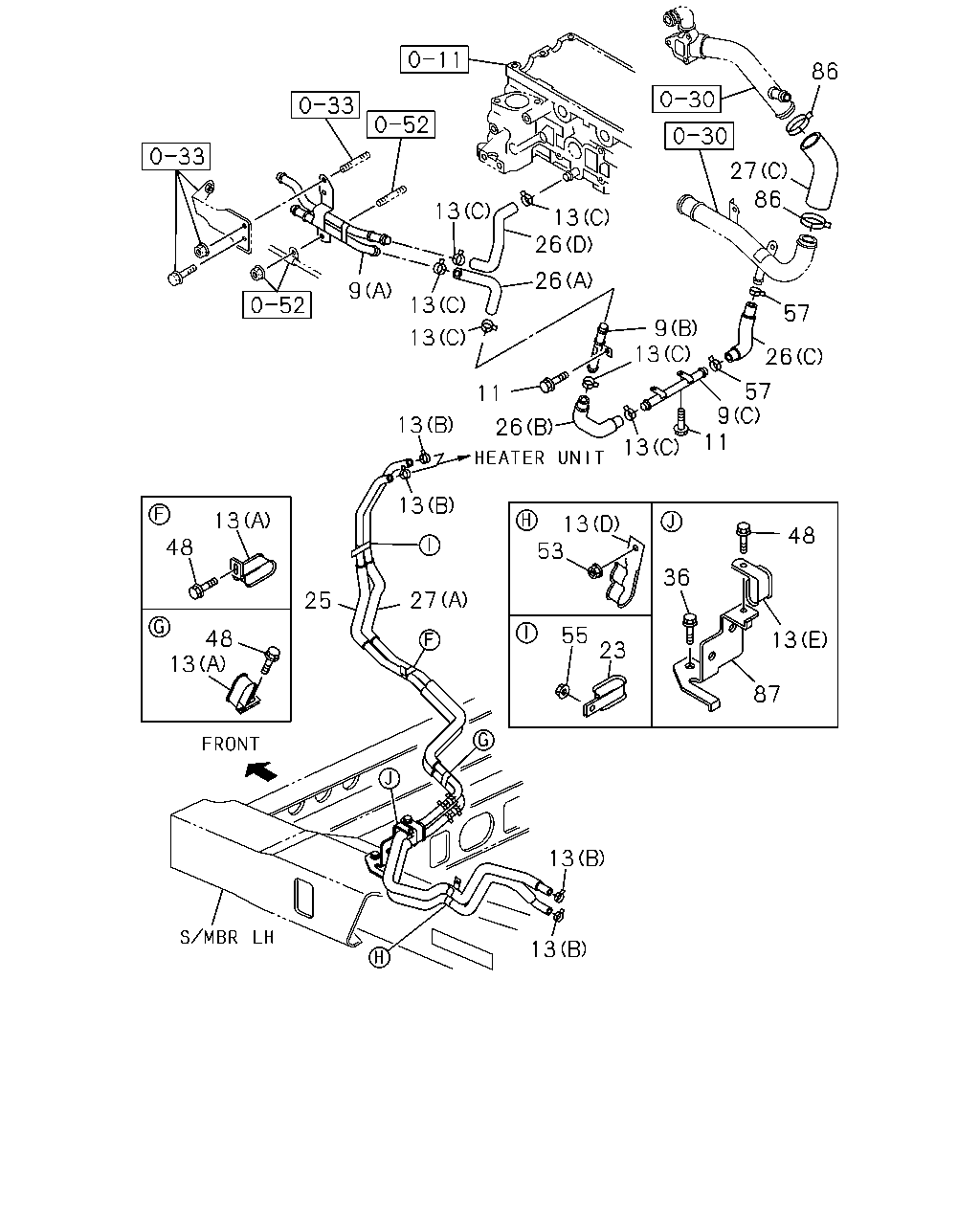

8-45 — HEATER PIPING (#76057) — 154 parça

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 26 13 13 13 13 13 53 48 48 36 27 25 55 48 13 13 23 87 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR KD PREPARATORY PACK<6HF> (C)	8-97383-035-0	01	1	0806-0905
9	08.846 PIPE; HTR (C)	8-97383-035-0	01	1	0906-0906
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (C)	8-97383-035-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C)	8-97383-035-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-97383-035-1	01	1	0912-
9	08.846 PIPE; HTR KD PREPARATORY PACK<6HF> (B)	8-98009-709-1	01	1	0806-0905
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0906-0906
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (B)	8-98009-709-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (B)	8-98009-709-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98009-709-1	01	1	0912-
9	08.846 PIPE; HTR KD PREPARATORY PACK<6HF> (A)	8-98028-829-1	01	1	0806-0905
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0906-0906
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A)	8-98028-829-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A)	8-98028-829-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98028-829-1	01	1	0912-
11	08.845 BOLT; HTR PIPE KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0806-0905
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0906-0906
11	08.845 BOLT; HTR PIPE EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0907-0911
11	08.845 BOLT; HTR PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0907-0911
11	08.845 BOLT; HTR PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0912-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1312-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0806-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0806-1308
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0806-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98040-023-0	01	1	0806-
13	08.846 CLIP; HTR HOSE KD PREPARATORY PACK<6HF> 01.166 (C) ID=20.8	8-94125-862-1	06	1	0806-0905
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0906-0906
13	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 01.166 (C) ID=20.8	8-94125-862-1	06	1	0907-0911
13	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 01.166 (C) ID=20.8	8-94125-862-1	06	1	0907-0911
13	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0912-
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0806-1205
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98083-521-1	01	1	0806-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (A)	0-03516-240-0	01	1	0806-0905
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A)	0-03516-240-0	01	1	0907-0910
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A)	0-03516-240-0	01	1	0907-0910
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A)	8-98143-868-0	01	1	0911-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A)	8-98143-868-0	01	1	0911-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98143-868-0	01	1	0912-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (D)	8-97383-048-1	01	1	0806-0905
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (D)	8-97383-048-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (D)	8-97383-048-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (D)	8-97383-048-1	01	1	0912-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (B)	8-98009-702-1	01	1	0806-0905
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (B)	8-98009-702-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (B)	8-98009-702-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98009-702-1	01	1	0912-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (C)	8-98009-703-2	01	1	0806-0905
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (C)	8-98009-703-2	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C)	8-98009-703-2	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-98009-703-2	01	1	0912-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C)	8-98106-016-0	01	1	0907-0911
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (C)	8-98106-016-0	01	1	0912-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98083-520-1	01	1	0806-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI KD PREPARATORY PACK<6HF> (B)	8-98009-701-0	01	1	0806-0905
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98009-701-0	01	1	0906-0906
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO4 SPECIFICATION(NT4) (B)	8-98009-701-0	01	1	0907-
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0806-
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0806-
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0806-
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
57	08.846 CLIP; HOSE KD PREPARATORY PACK<6HF> 01.166 ID=20.8	8-94125-862-1	02	1	0806-0905
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0906-0906
57	08.846 CLIP; HOSE EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 01.166 ID=20.8	8-94125-862-1	02	1	0907-0911
57	08.846 CLIP; HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 01.166 ID=20.8	8-94125-862-1	02	1	0907-0911
57	08.846 CLIP; HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.166 ID=20.8	8-94125-862-1	02	1	0912-
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF>	8-98110-004-0	02	1	0907-0911
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	0912-
86	08.846 CLIP; HTR HOSE KD PREPARATORY PACK<6HF> 01.166 ID=40.5	8-97313-472-0	02	1	0806-0905
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0906-0906
86	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) 01.166 ID=40.5	8-97313-472-0	02	1	0907-
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-465-3	01	1	0806-

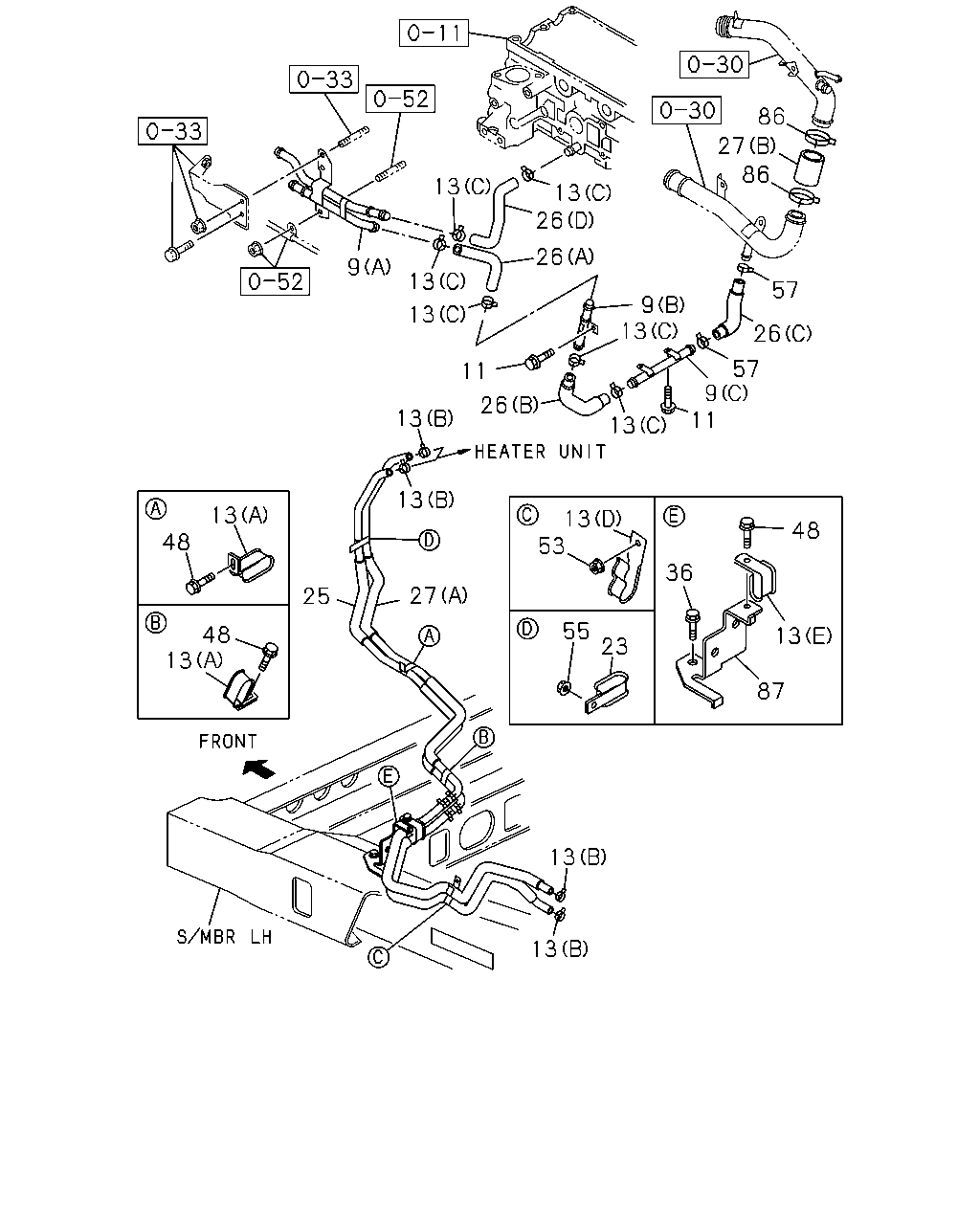

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 26 13 13 13 13 53 48 48 36 27 25 55 48 13 13 23 87 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR KD PREPARATORY PACK<6HF> (C)	8-97383-035-0	01	1	0806-0905
9	08.846 PIPE; HTR (C)	8-97383-035-0	01	1	0906-0906
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (C)	8-97383-035-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C)	8-97383-035-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-97383-035-1	01	1	0912-
9	08.846 PIPE; HTR KD PREPARATORY PACK<6HF> (B)	8-98009-709-1	01	1	0806-0905
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0906-0906
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (B)	8-98009-709-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (B)	8-98009-709-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98009-709-1	01	1	0912-
9	08.846 PIPE; HTR KD PREPARATORY PACK<6HF> (A)	8-98028-829-1	01	1	0806-0905
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0906-0906
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A)	8-98028-829-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A)	8-98028-829-1	01	1	0907-0911
9	08.846 PIPE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98028-829-1	01	1	0912-
11	08.845 BOLT; HTR PIPE KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0806-0905
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0906-0906
11	08.845 BOLT; HTR PIPE EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0907-0911
11	08.845 BOLT; HTR PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0907-0911
11	08.845 BOLT; HTR PIPE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0912-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1312-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0806-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0806-1308
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0806-
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98040-023-0	01	1	0806-
13	08.846 CLIP; HTR HOSE KD PREPARATORY PACK<6HF> 01.166 (C) ID=20.8	8-94125-862-1	06	1	0806-0905
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0906-0906
13	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 01.166 (C) ID=20.8	8-94125-862-1	06	1	0907-0911
13	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 01.166 (C) ID=20.8	8-94125-862-1	06	1	0907-0911
13	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0912-
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0806-1205
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98083-521-1	01	1	0806-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (A)	0-03516-240-0	01	1	0806-0905
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A)	0-03516-240-0	01	1	0907-0910
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A)	0-03516-240-0	01	1	0907-0910
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A)	8-98143-868-0	01	1	0911-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A)	8-98143-868-0	01	1	0911-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-98143-868-0	01	1	0912-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (D)	8-97383-048-1	01	1	0806-0905
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (D)	8-97383-048-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (D)	8-97383-048-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (D)	8-97383-048-1	01	1	0912-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (B)	8-98009-702-1	01	1	0806-0905
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (B)	8-98009-702-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (B)	8-98009-702-1	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B)	8-98009-702-1	01	1	0912-
26	08.846 HOSE; HTR KD PREPARATORY PACK<6HF> (C)	8-98009-703-2	01	1	0806-0905
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0906-0906
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (C)	8-98009-703-2	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C)	8-98009-703-2	01	1	0907-0911
26	08.846 HOSE; HTR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C)	8-98009-703-2	01	1	0912-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C)	8-98106-016-0	01	1	0907-0911
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (C)	8-98106-016-0	01	1	0912-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98083-520-1	01	1	0806-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI KD PREPARATORY PACK<6HF> (B)	8-98009-701-0	01	1	0806-0905
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98009-701-0	01	1	0906-0906
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO4 SPECIFICATION(NT4) (B)	8-98009-701-0	01	1	0907-
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0806-
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0806-
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0806-
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
57	08.846 CLIP; HOSE KD PREPARATORY PACK<6HF> 01.166 ID=20.8	8-94125-862-1	02	1	0806-0905
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0906-0906
57	08.846 CLIP; HOSE EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 01.166 ID=20.8	8-94125-862-1	02	1	0907-0911
57	08.846 CLIP; HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 01.166 ID=20.8	8-94125-862-1	02	1	0907-0911
57	08.846 CLIP; HOSE EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.166 ID=20.8	8-94125-862-1	02	1	0912-
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF>	8-98110-004-0	02	1	0907-0911
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	0912-
86	08.846 CLIP; HTR HOSE KD PREPARATORY PACK<6HF> 01.166 ID=40.5	8-97313-472-0	02	1	0806-0905
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0906-0906
86	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) 01.166 ID=40.5	8-97313-472-0	02	1	0907-
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-465-3	01	1	0806-
