8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#76052) — 73 parça

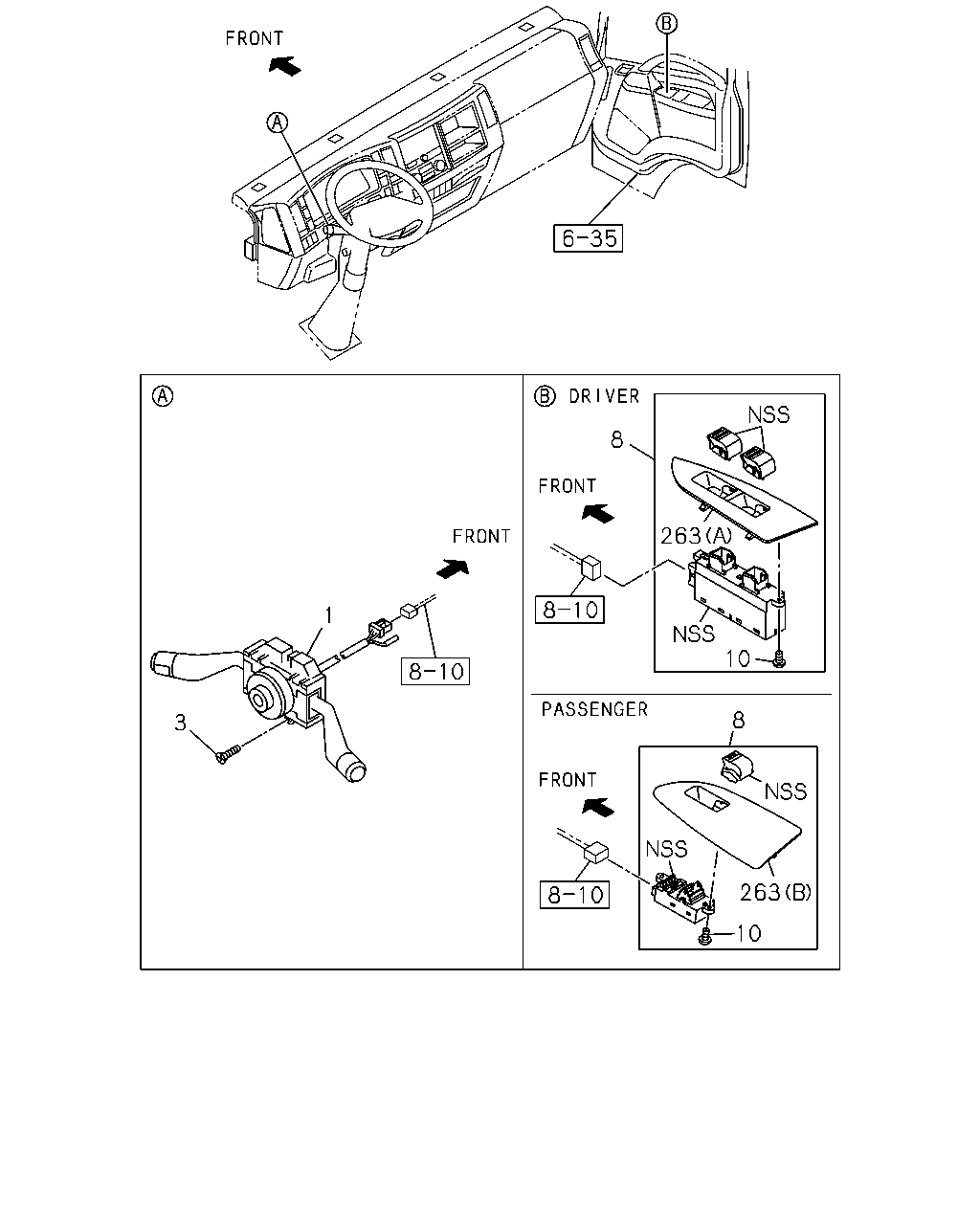

çizim 137771
8 263 1 10 8 3 263 10
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-015-1 01 1 0806-0905
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-639-0 01 1 0906-1210
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98217-812-0 01 1 1211-1310
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-740-0 01 1 1311-
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98073-850-1 01 1 0806-1310
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-757-0 01 1 1311-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0806-
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98001-737-2 01 1 0806-
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98003-784-1 01 1 0806-0809
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98129-845-0 01 1 0810-1001
8 16.263 SWITCH; POWER WINDOW
06.609 DRIVER SIDE 		8-98159-544-0 01 1 1002-
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0806-
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 0806-
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 0806-

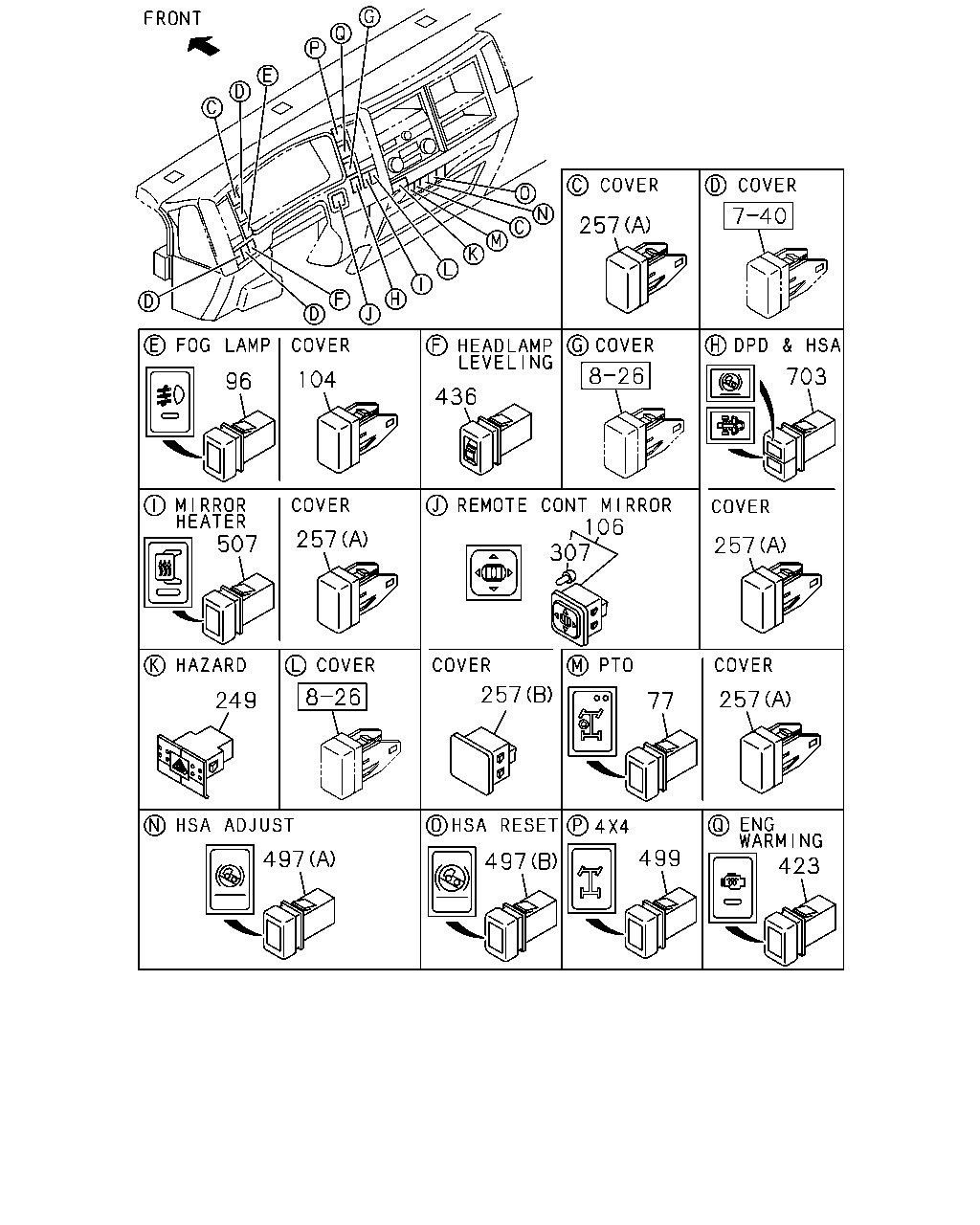

çizim 138020
257 703 257 307 106 436 104 96 507 257 77 257 257 249 497 497 499 423
BalonParca AdiParca NoAdetTipApplied Date
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-3 01 1 0806-1211
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-4 01 1 1212-
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 0806-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1205-
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0806-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0806-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0806-0912
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1211
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1211
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1001-1211
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1001-1211
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1212-
257 16.081 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1212-
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1212-
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0806-
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 0806-0912
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0806-
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 0806-
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0806-
497 04.439 SWITCH; HSA
(A) ADJUST 		8-97386-967-2 01 1 0806-0806
497 04.439 SWITCH; HSA
(B) RESET 		8-98119-946-0 01 1 0807-
497 04.439 SWITCH; HSA
(B) RESET 		8-97386-985-1 01 1 0806-0806
497 04.439 SWITCH; HSA
(A) ADJUST 		8-98119-947-1 01 1 0807-
499 09.755 SWITCH; 4X4 8-97386-914-3 01 1 0806-
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 0806-
703 02.780 SWITCH; DPD & HSA 8-98011-346-2 01 1 0806-0906
703 02.780 SWITCH; DPD & HSA
CATALYSIS CONTROL WITH DPD(8JM) 		8-98011-346-2 01 1 0907-

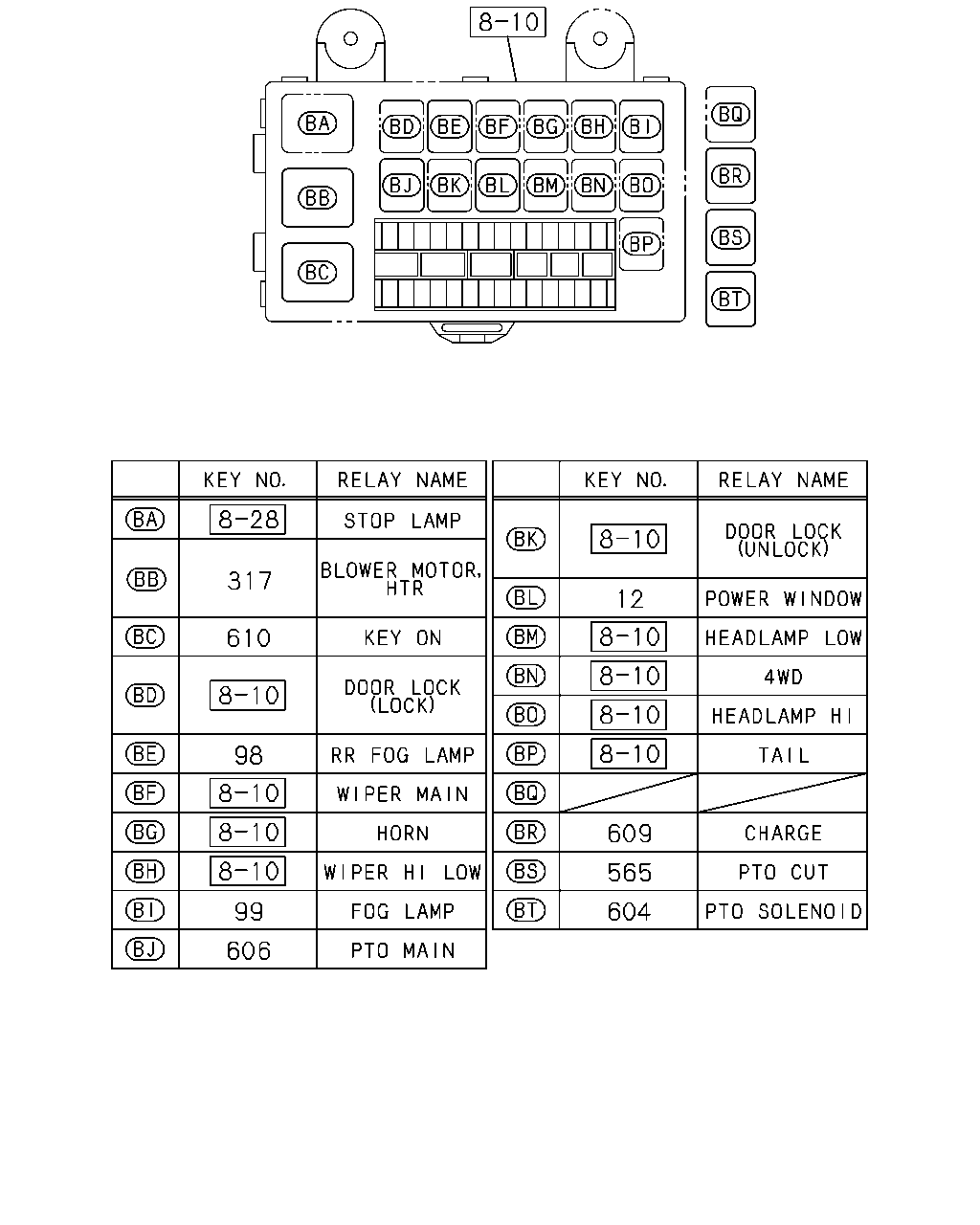

çizim 138149
317 12 610 98 609 565 99 604 606
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-1204
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-

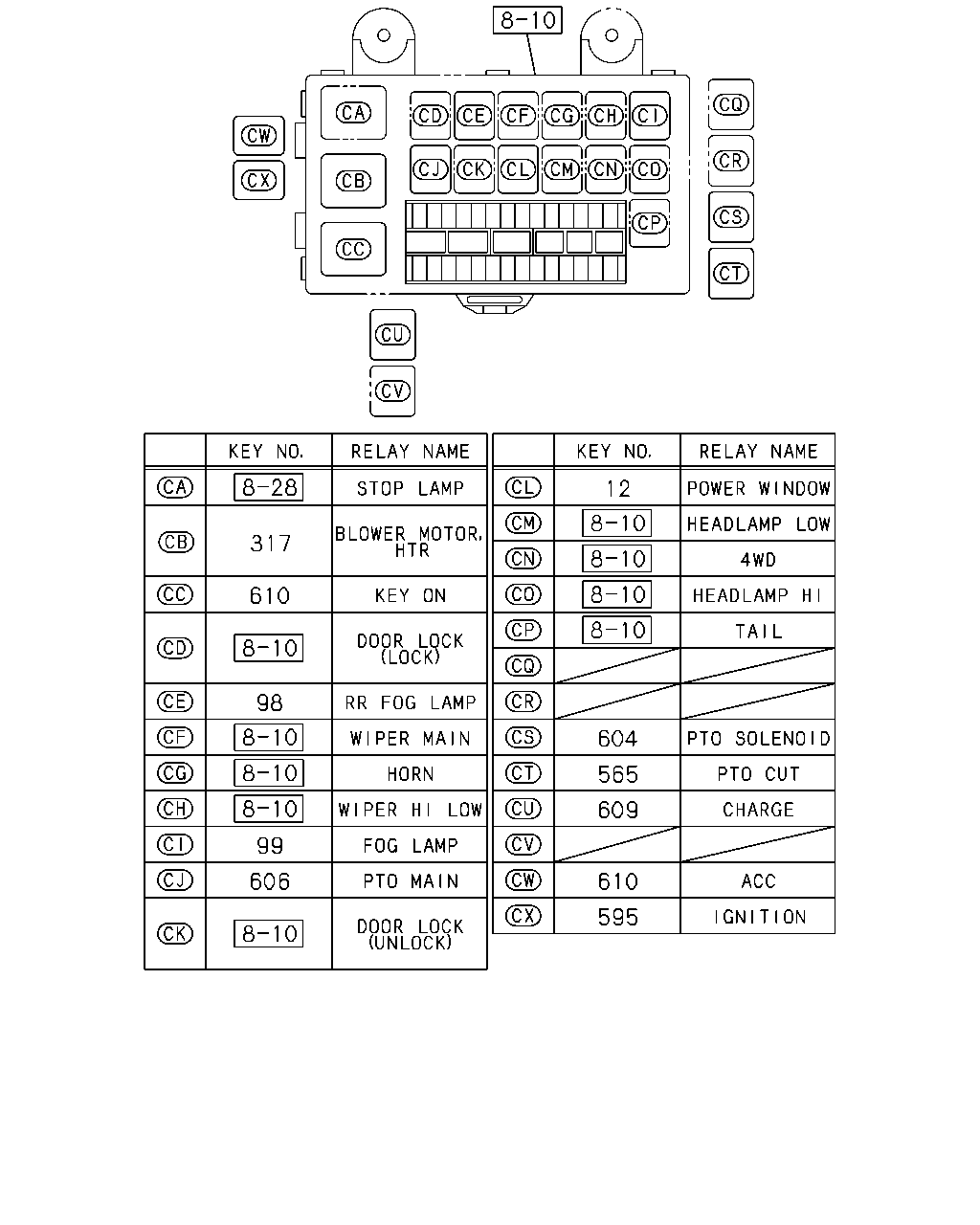

çizim 138271
12 317 610 98 604 565 609 99 606 610 595
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-1204
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
çizim 186027
151 154
BalonParca AdiParca NoAdetTipApplied Date
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0806-
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0806-

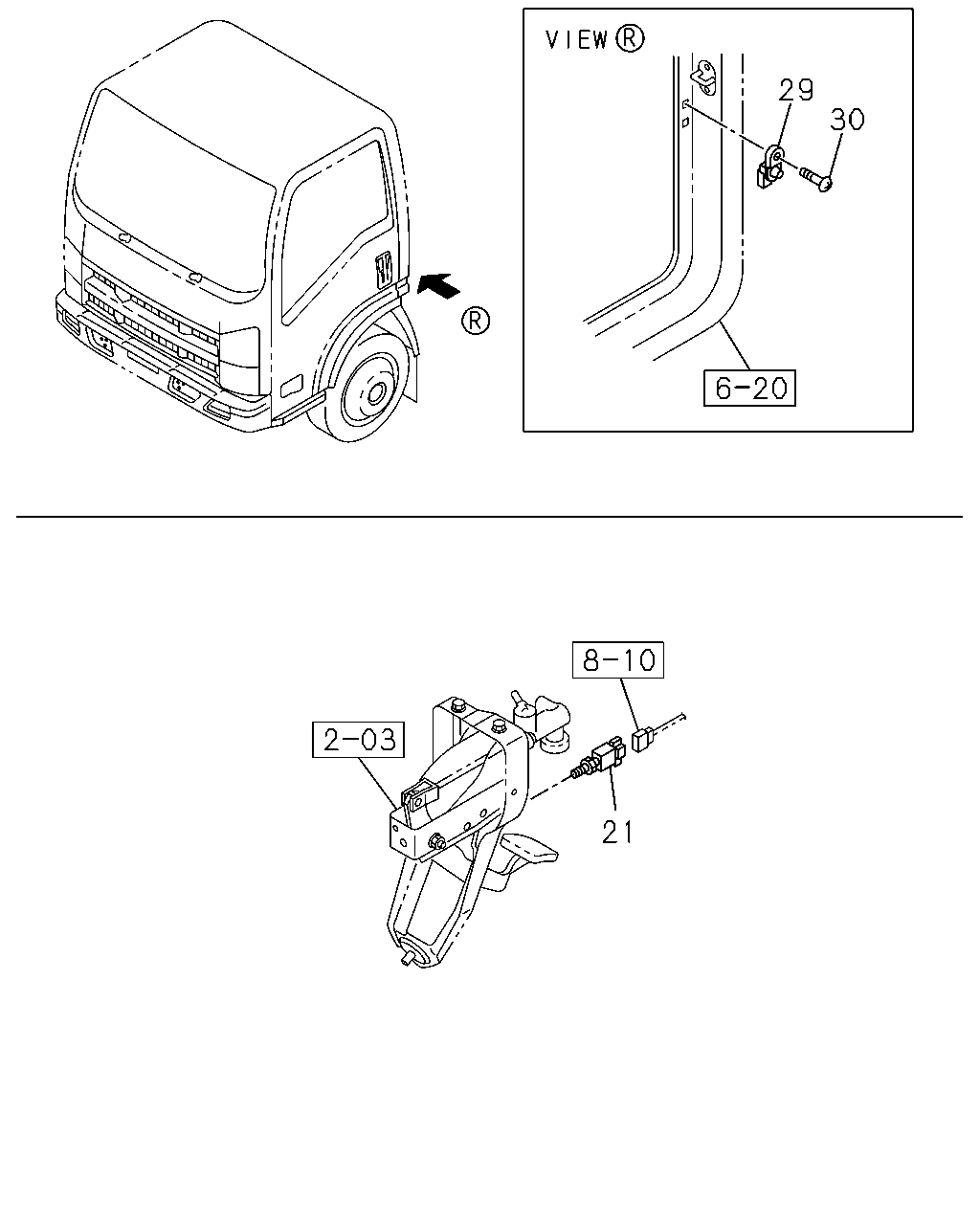

çizim 186028
29 30 21
BalonParca AdiParca NoAdetTipApplied Date
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 0806-
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 0806-
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0806-
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0806-
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 0806-
