8-21 — METER ASM
(#76051) — 17 parça
◀

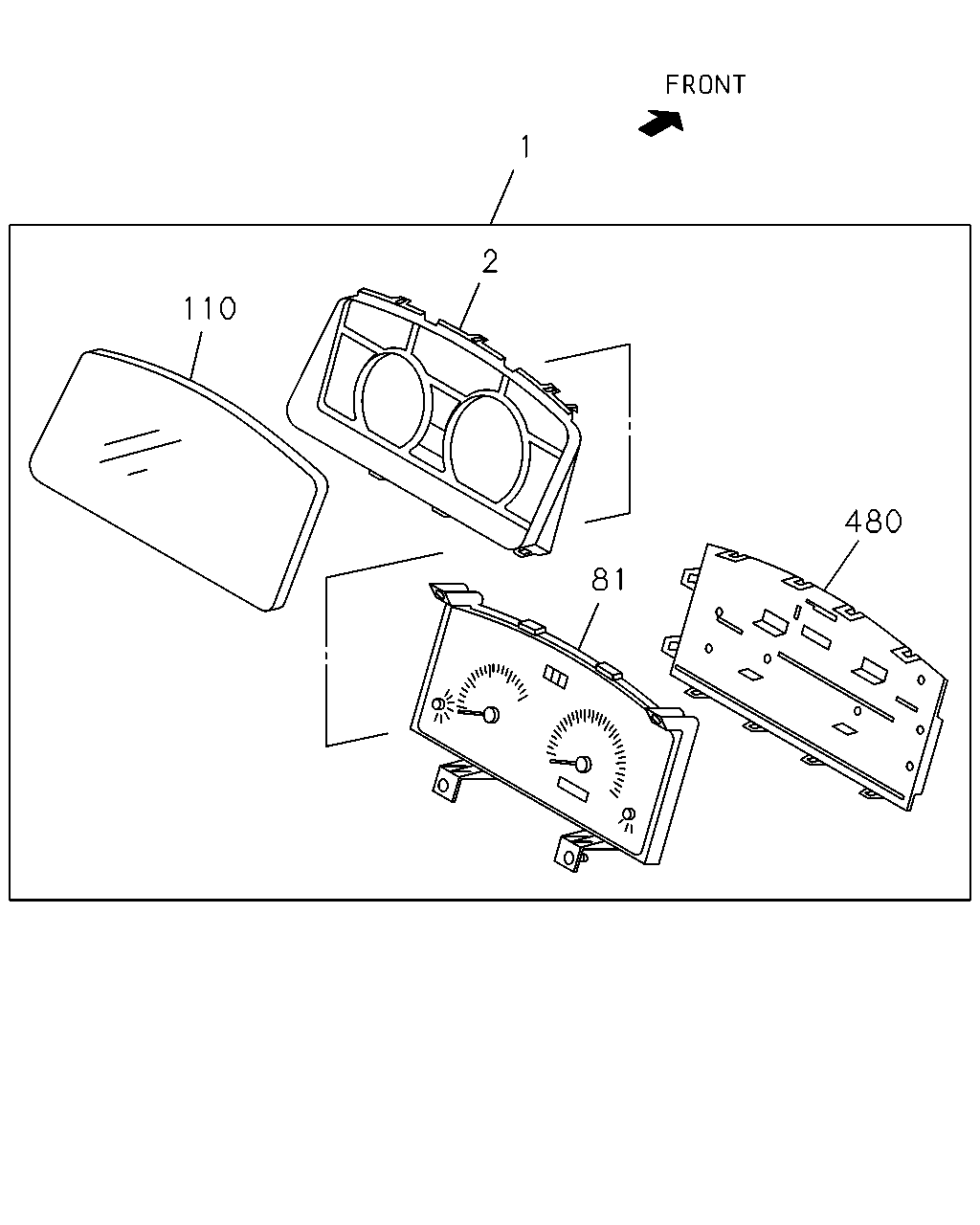

[821A] NO.2 (5 parça)
[821A] NO.1 (12 parça)
▶
1
2
110
480
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-98096-900-4
01
1
0806-
2
09.735 PANEL; CLUSTER
8-98054-432-0
01
1
0806-
81
09.735 METER SUB ASM
8-98096-965-0
01
1
0806-
110
09.748 GLASS; CLUSTER METER
8-98054-431-0
01
1
0806-
480
09.748 COVER; METER
BLACK
8-98054-433-0
01
1
0806-
482
151
11
1
151
151
31
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-98096-900-4
01
1
0806-
11
09.743 CLUSTER ASM; METER
DARK GRAY
8-97406-005-5
01
1
0806-1001
11
09.743 CLUSTER ASM; METER
DARK GRAY
8-97418-534-1
01
1
1002-
21
09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG>
8-98204-881-1
01
1
1205-
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
0806-1101
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
151
09.747 CLIP; METER CLUSTER
16.090 (B)
8-98152-030-0
01
1
1002-
151
09.747 CLIP; METER CLUSTER
16.090 (C)
8-98152-031-0
01
1
1002-
151
09.747 CLIP; METER CLUSTER
16.085 (A)
8-98021-271-0
13
1
0806-1001
151
09.747 CLIP; METER CLUSTER
16.085 (A)
8-98021-271-0
12
1
1002-
482
09.772 SEAL; CLUSTER METER
8-98116-843-0
01
1
0806-
