8-10 — WIRING HARNESS AND FUSE (#76049) — 127 parça

1 29 431 431 431 41 5 2 693 2 28 4 453 293 479 479 431 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

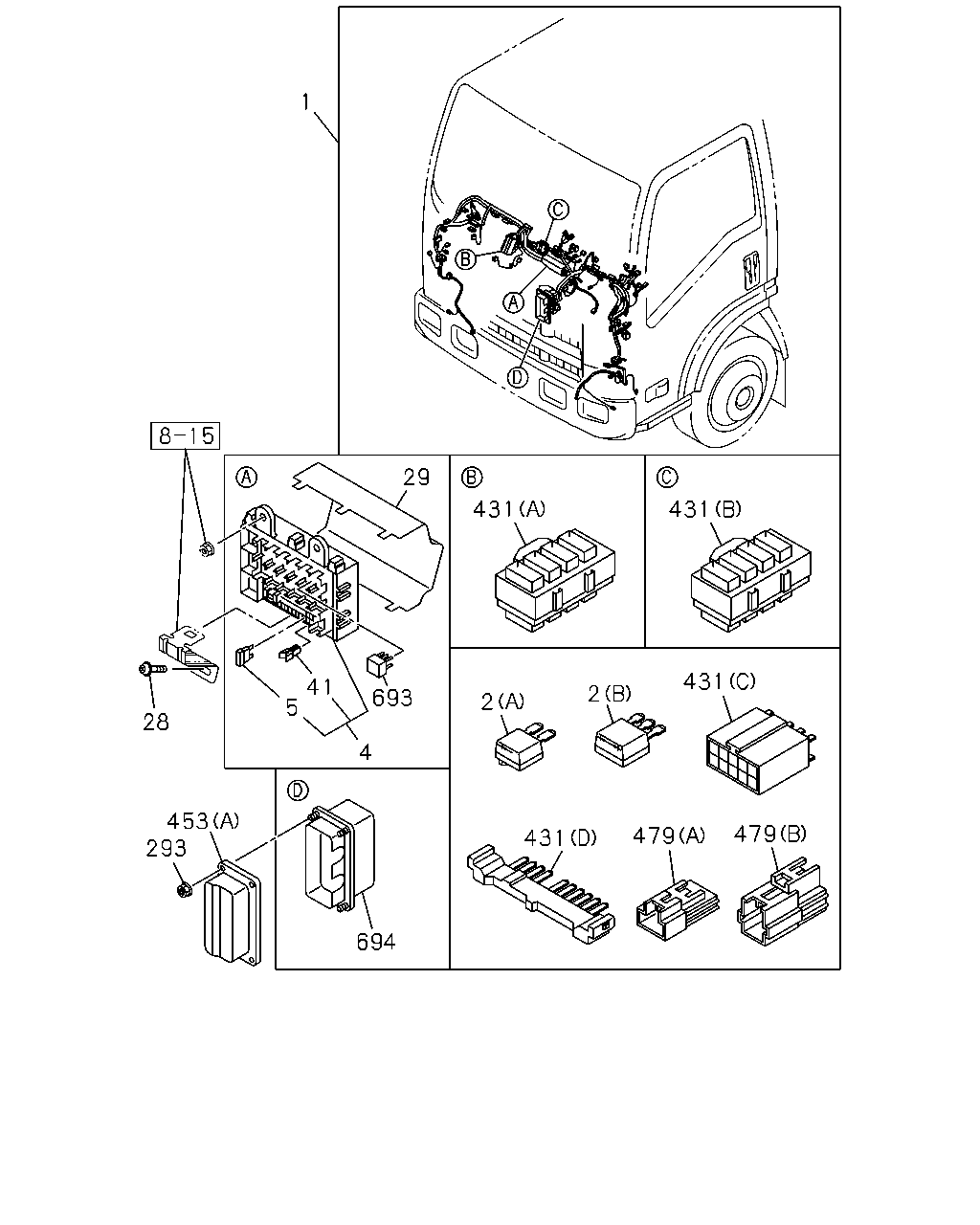

1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98105-317-6	01	1	0806-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98204-637-0	01	1	1205-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0806-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0806-

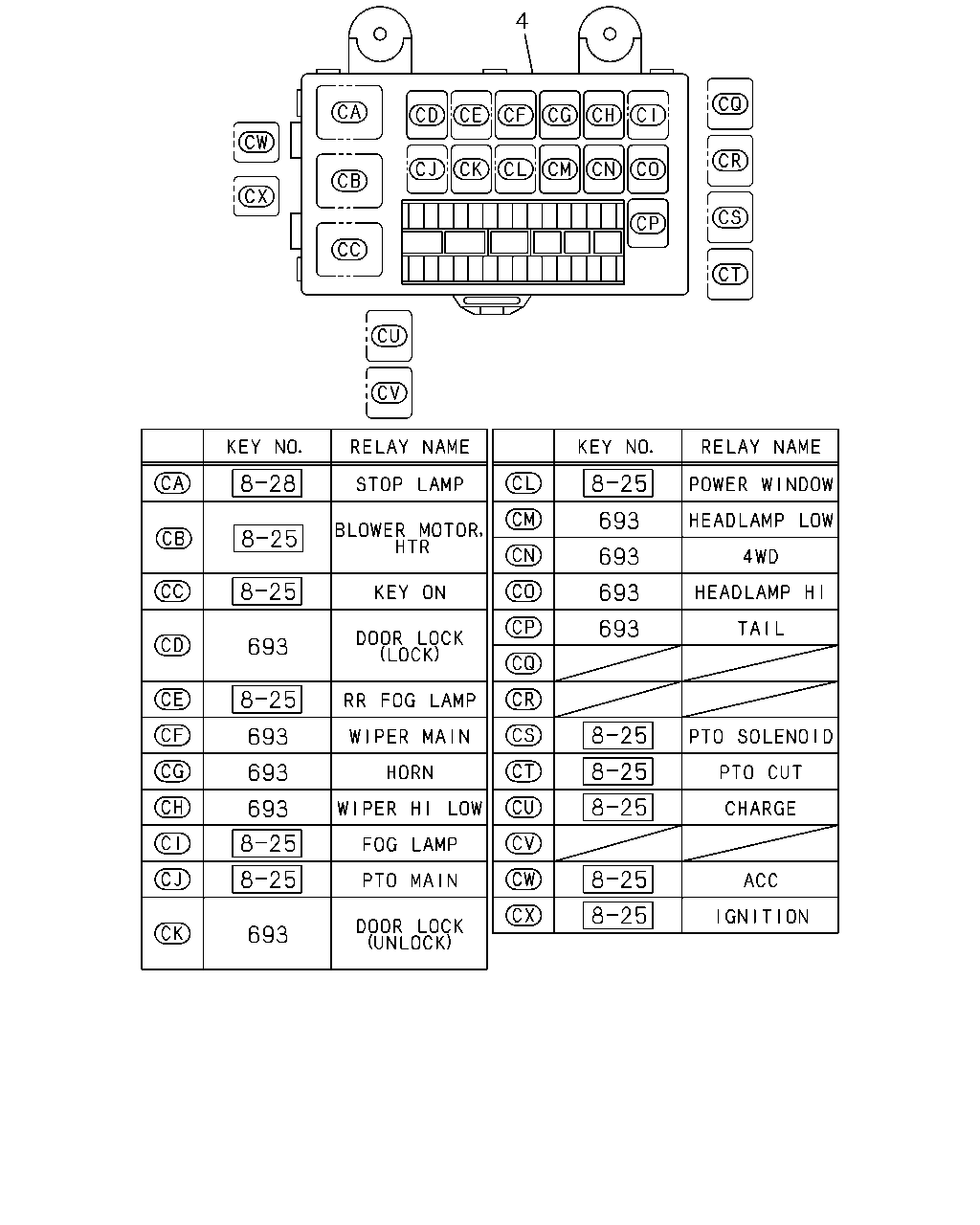

4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98067-619-1	01	1	0806-
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0806-
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0806-
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0806-
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0806-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
29	02.483 COVER; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98056-968-0	01	1	0806-
41	08.821 PULLER; FUSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-260-0	01	1	0806-
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0806-
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 10P BLUE	1-82699-598-0	01	1	0806-1005
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 10P	8-97077-943-0	02	1	0806-1204
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98046-205-0	01	1	0806-
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98046-206-0	01	1	0806-
453	02.483 PROTECTOR; HARNESS EURO4 SPECIFICATION(NT4) (D)	8-94417-716-0	02	1	0907-1301
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1302-
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	0806-0906
453	02.483 PROTECTOR; HARNESS EURO5 SPECIFICATION(NT5) (D)	8-94417-716-0	01	1	0907-1301
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0806-
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0806-
453	02.483 PROTECTOR; HARNESS (E)	8-98036-785-0	01	1	0806-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0806-
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0809-
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0809-
693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0806-
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98057-640-0	01	1	0806-1204
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98190-772-0	01	1	1205-

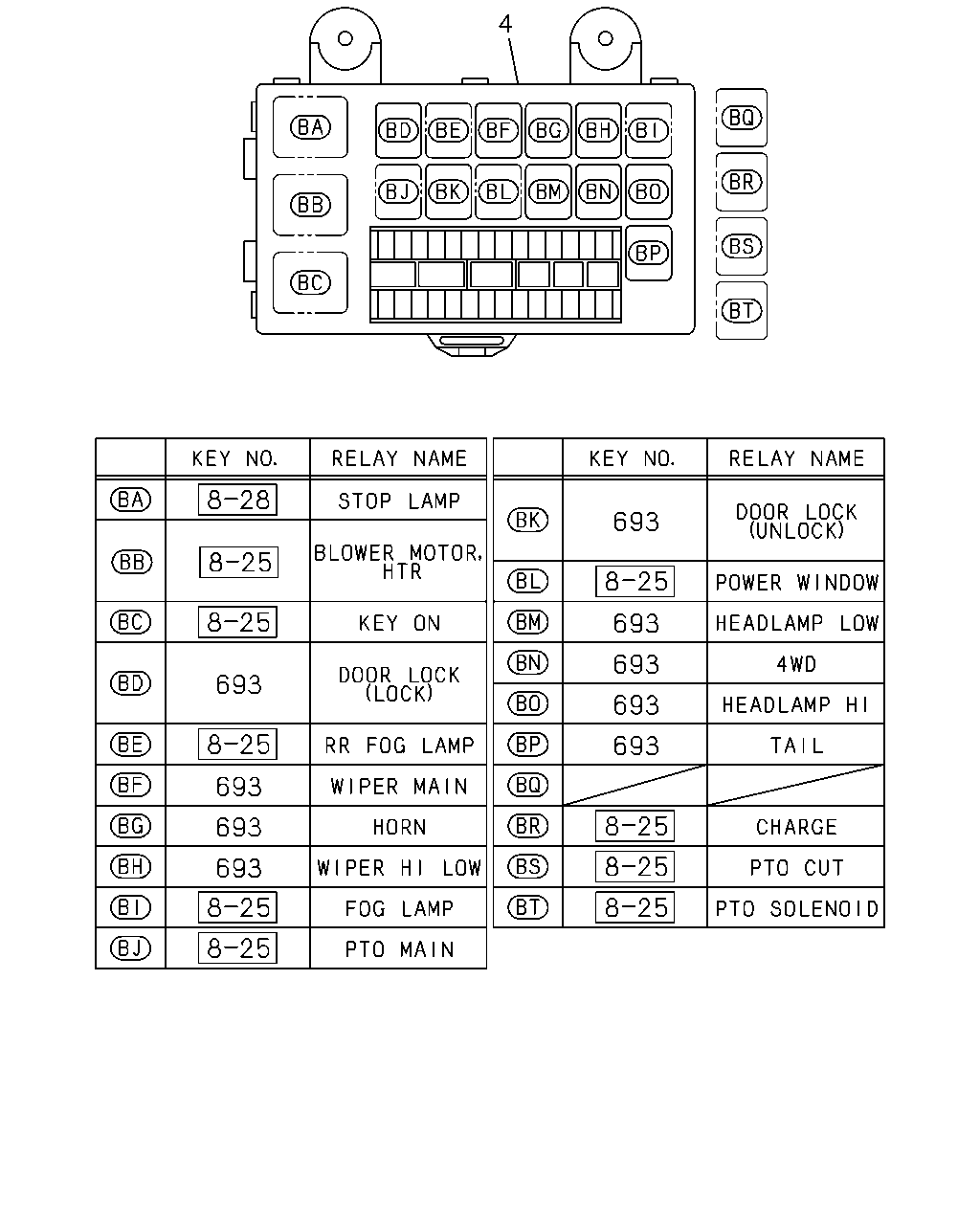

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98067-619-1	01	1	0806-
	693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0806-

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98067-619-1	01	1	0806-
	693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0806-

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

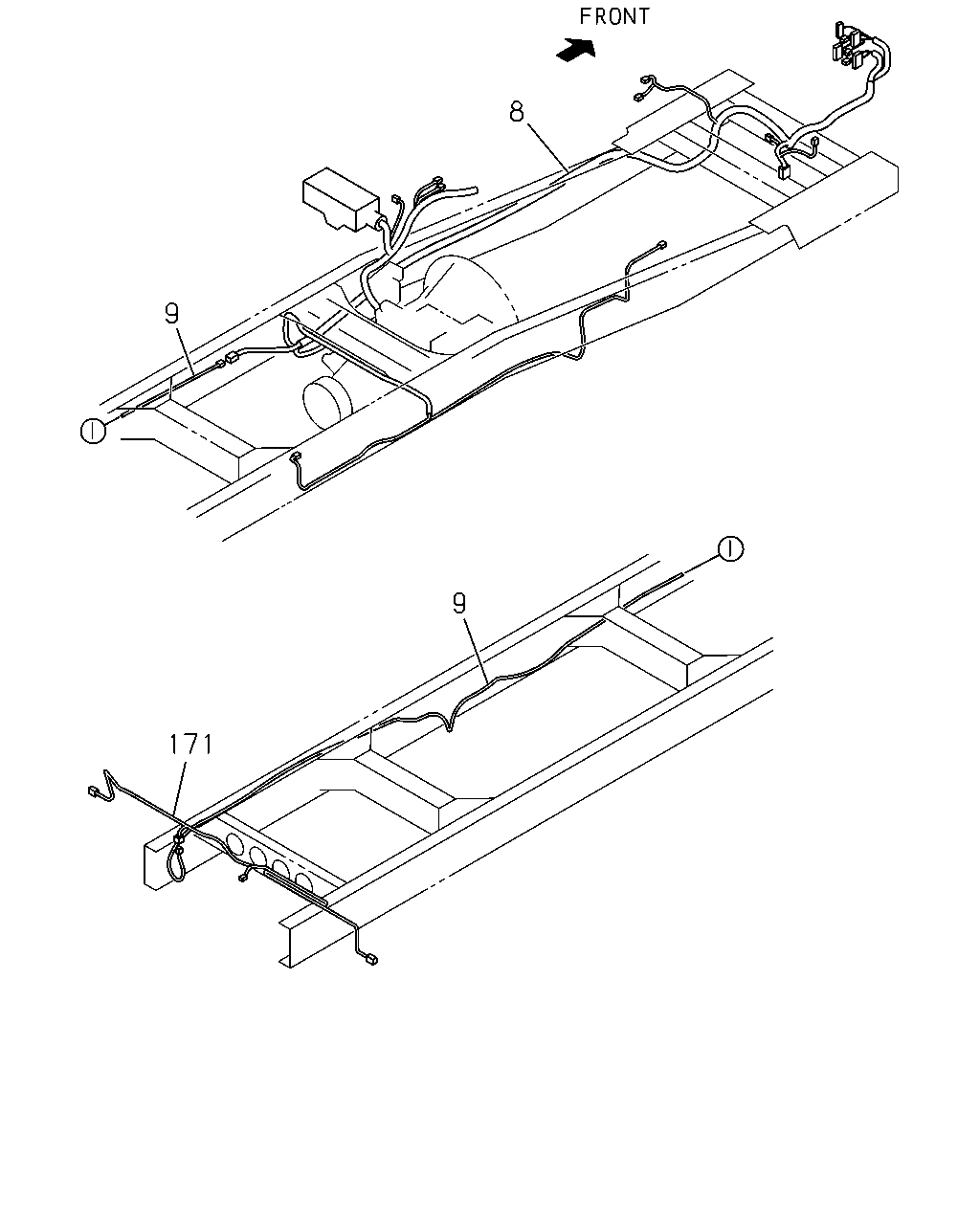

8	02.480 HARNESS; FRAME,FRT EURO5 SPECIFICATION(NT5)	8-98144-149-4	01	1	0907-1409
8	02.480 HARNESS; FRAME,FRT EURO5 SPECIFICATION(NT5)	8-98294-078-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT	8-98106-301-4	01	1	0806-0906
8	02.480 HARNESS; FRAME,FRT EURO4 SPECIFICATION(NT4)	8-98106-301-4	01	1	0907-1409
8	02.480 HARNESS; FRAME,FRT EURO4 SPECIFICATION(NT4)	8-98294-076-0	01	1	1410-
9	02.480 HARNESS; FRAME,RR	8-98048-419-1	01	1	0806-
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0806-1009
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1010-

85 18 18 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

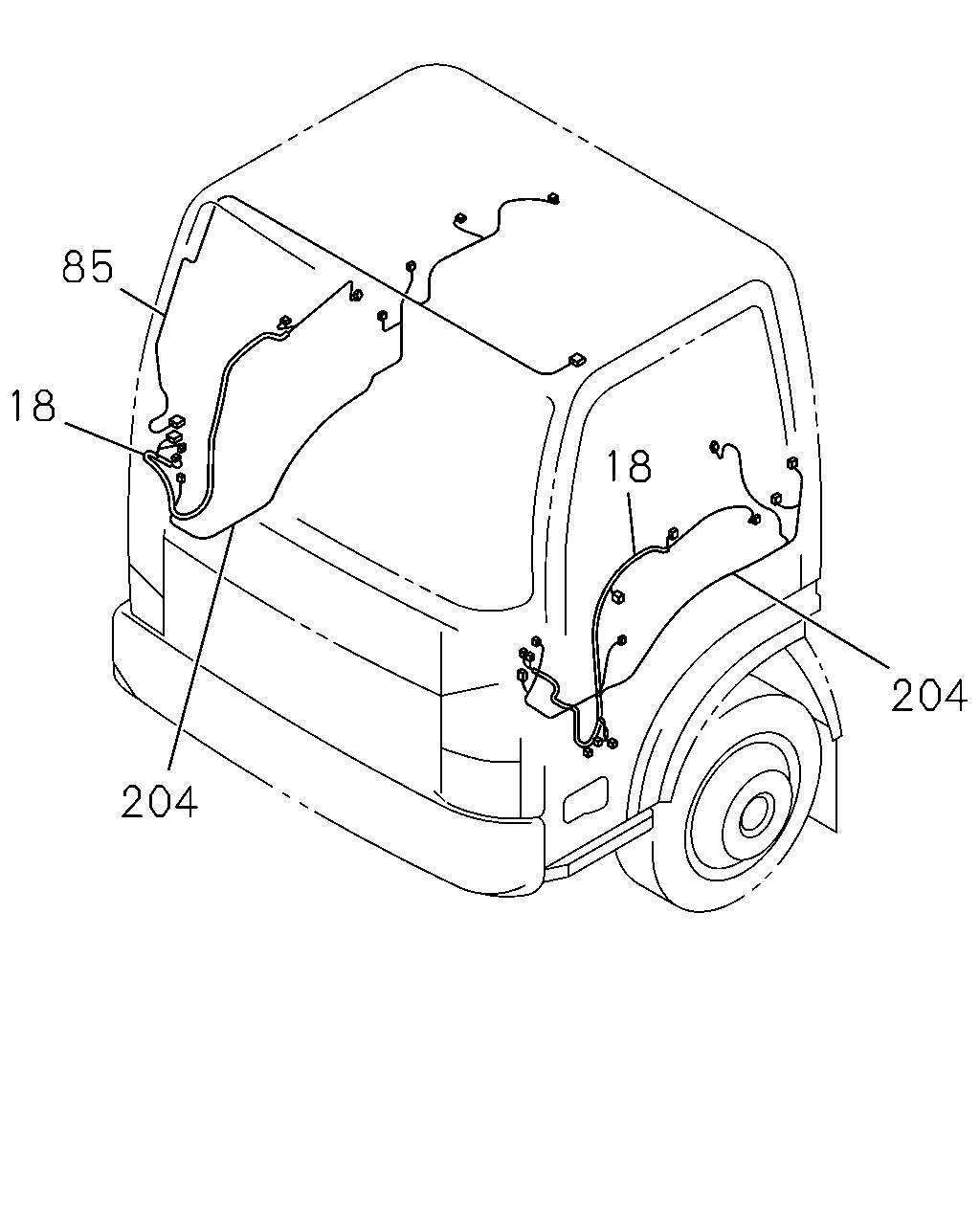

18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-082-3	01	1	0806-
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-090-3	01	1	0806-
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-080-3	01	1	0806-
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-088-3	01	1	0806-
85	06.495 HARNESS; ROOM LAMP	8-98072-201-2	01	1	0806-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-595-3	01	1	0806-
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	0806-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-800-5	01	1	0806-
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-799-5	01	1	0806-

101 290 290 101 267 101 267 290 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

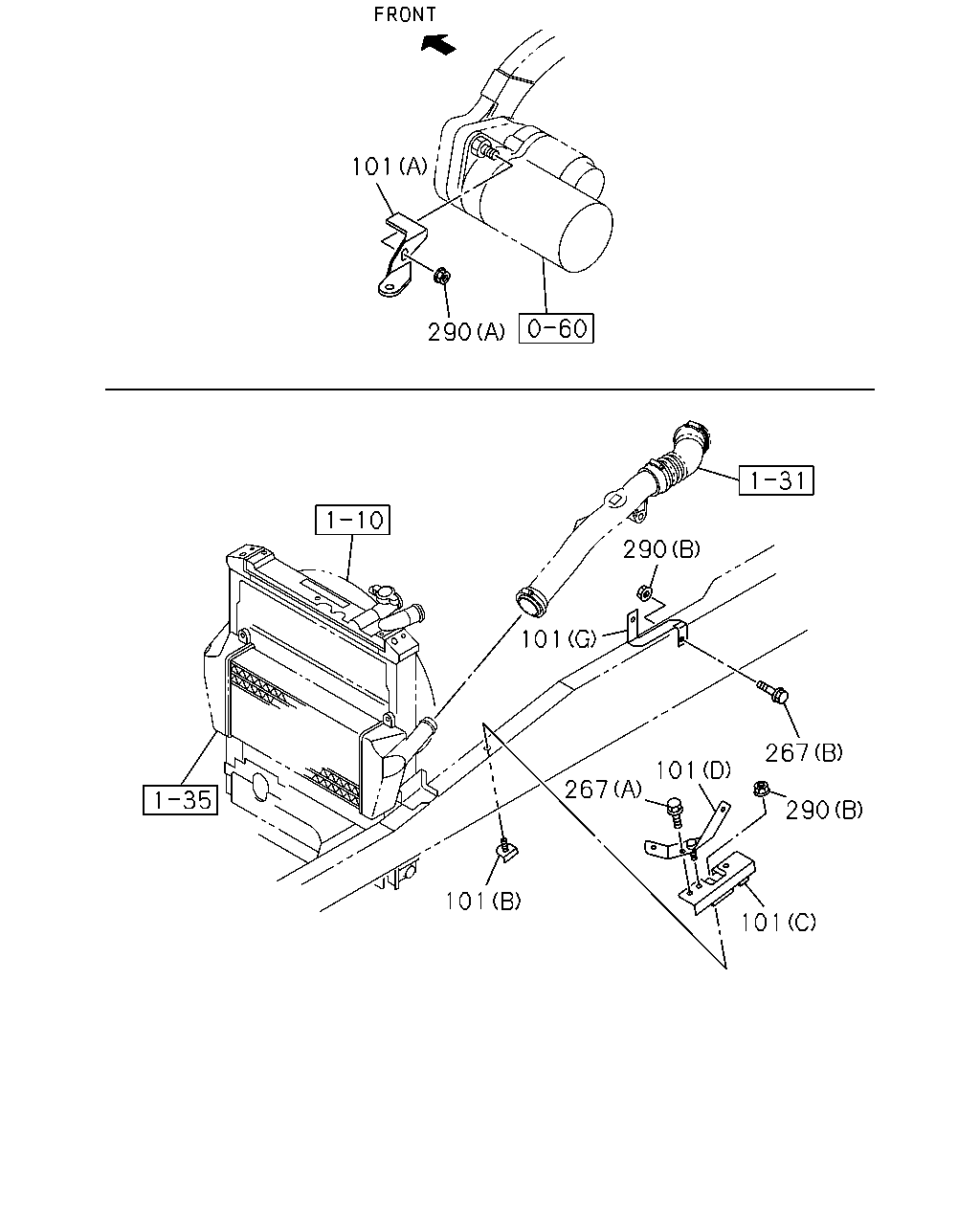

101	02.483 BRACKET; HARNESS CONNECTOR 02.183 (A)	8-98030-725-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98039-957-0	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98039-960-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (G)	8-98106-295-0	01	1	0806-
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0806-
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0806-
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0806-
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0806-
290	02.483 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0806-

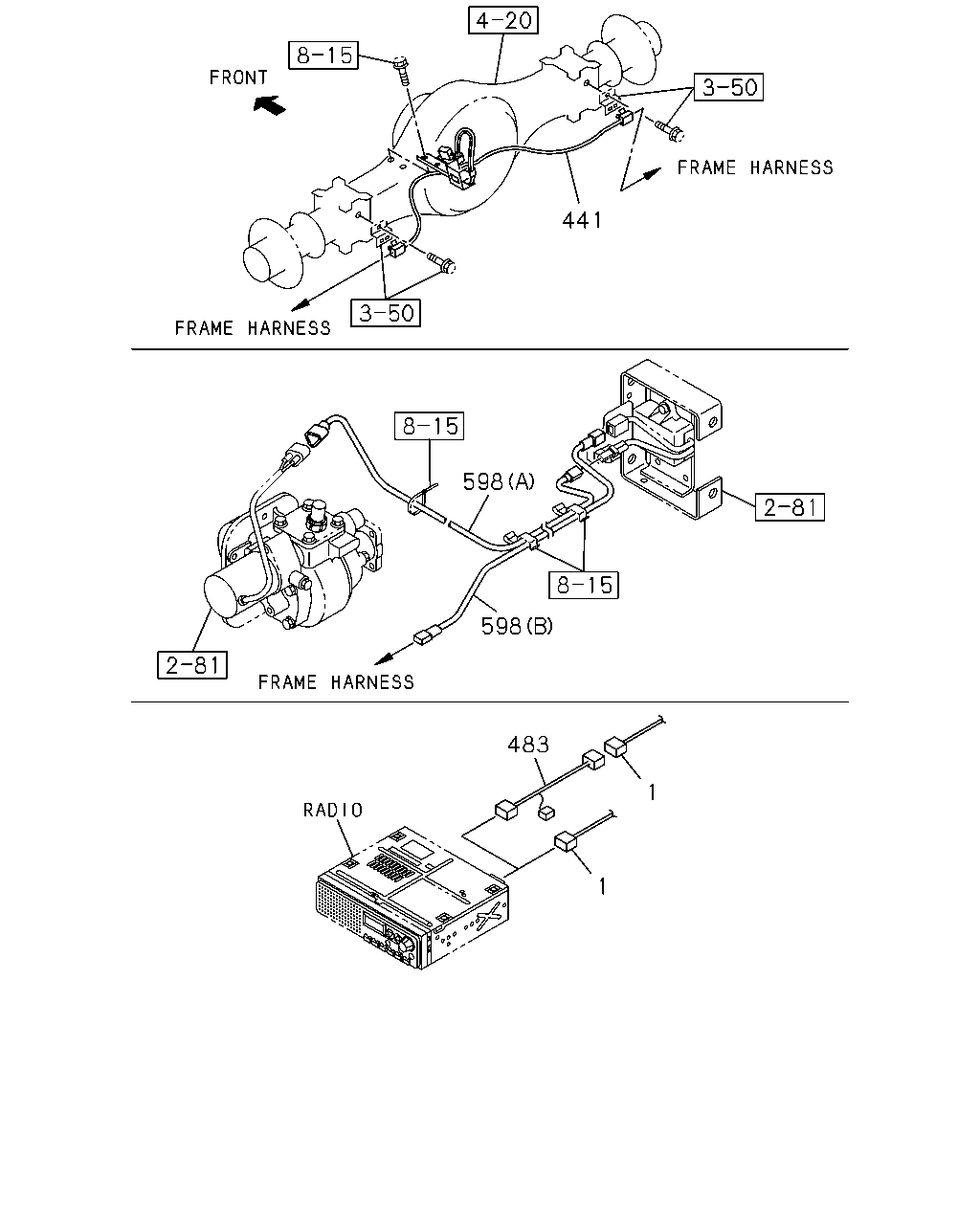

441 598 598 483 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98105-317-6	01	1	0806-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98204-637-0	01	1	1205-
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-97308-220-4	01	1	0806-
483	02.480 HARNESS; EXT,RADIO IDENTIFICATION LABEL FOR KD<6UT>	8-98116-875-0	01	1	0806-
598	02.480 HARNESS; EXT,PTO EURO5 SPECIFICATION(NT5) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98046-643-2	01	1	0907-
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98040-290-2	01	1	0806-0806
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98123-454-1	01	1	0807-1211
598	02.480 HARNESS; EXT,PTO EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98123-454-1	01	1	1212-

290 666 267 101 101 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

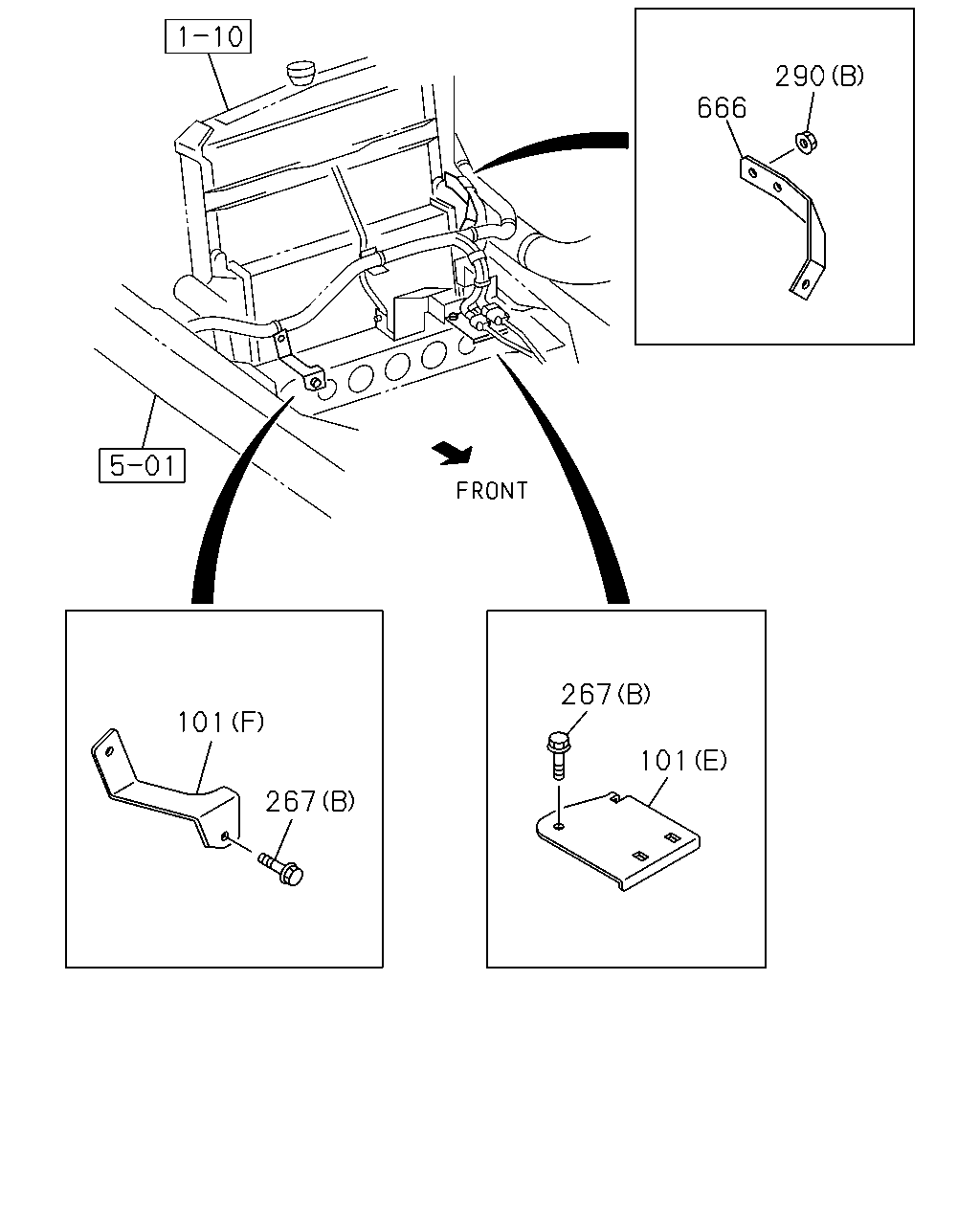

101	02.483 BRACKET; HARNESS CONNECTOR 02.183 (A)	8-98030-725-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98039-957-0	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98039-960-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	0806-
101	02.483 BRACKET; HARNESS CONNECTOR (G)	8-98106-295-0	01	1	0806-
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0806-
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0806-
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0806-
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0806-
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0806-
290	02.483 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0806-
666	02.483 BRACKET; CLIP	8-98039-551-1	01	1	0806-1210
666	02.483 BRACKET; CLIP	8-98179-532-0	01	1	1211-

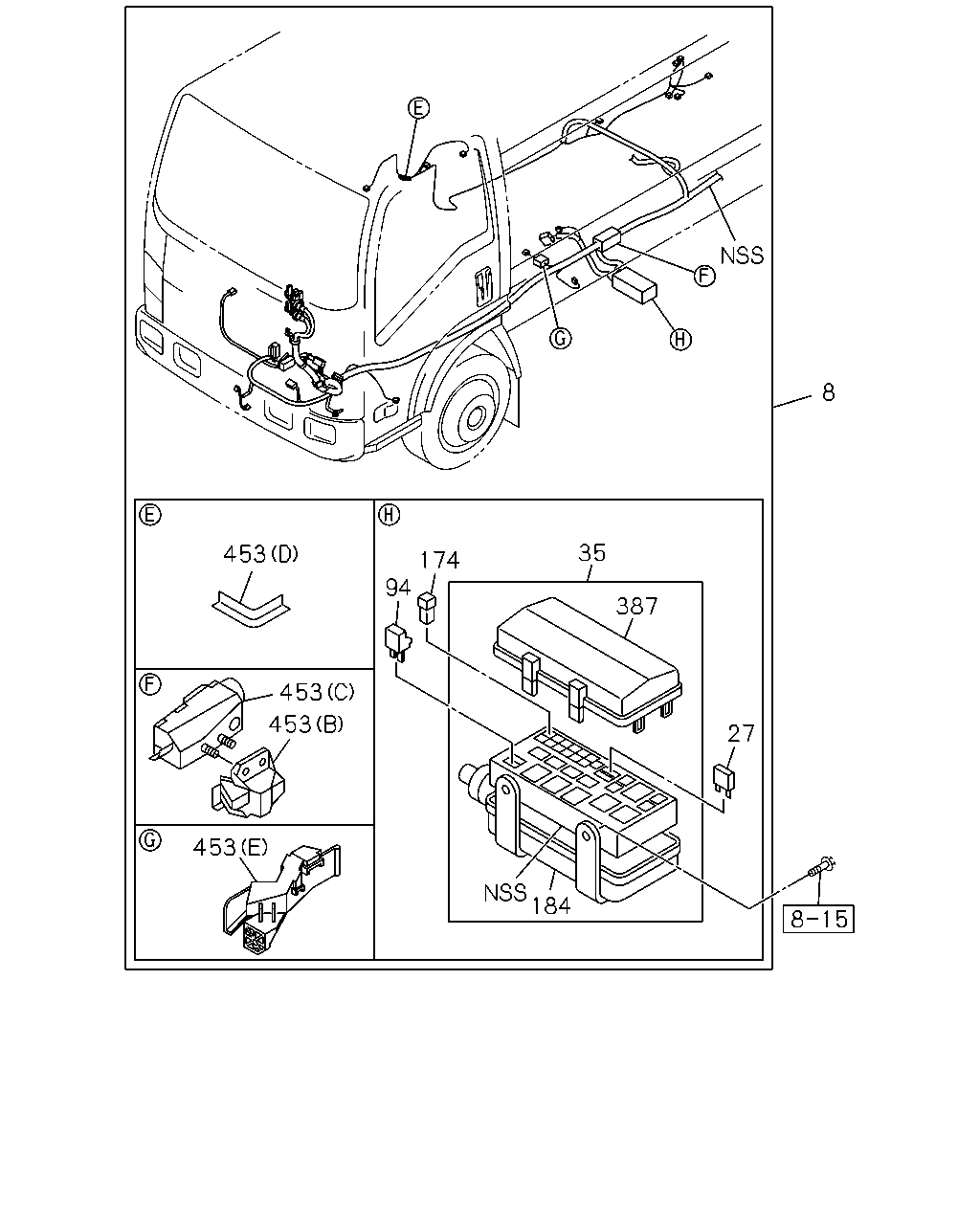

8 35 453 174 94 387 453 453 27 453 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT EURO5 SPECIFICATION(NT5)	8-98144-149-4	01	1	0907-1409
8	02.480 HARNESS; FRAME,FRT EURO5 SPECIFICATION(NT5)	8-98294-078-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT	8-98106-301-4	01	1	0806-0906
8	02.480 HARNESS; FRAME,FRT EURO4 SPECIFICATION(NT4)	8-98106-301-4	01	1	0907-1409
8	02.480 HARNESS; FRAME,FRT EURO4 SPECIFICATION(NT4)	8-98294-076-0	01	1	1410-
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0806-
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0806-0906
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0907-
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0806-
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0806-
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0806-
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0806-
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0806-
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0806-
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0806-
453	02.483 PROTECTOR; HARNESS EURO4 SPECIFICATION(NT4) (D)	8-94417-716-0	02	1	0907-1301
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1302-
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	0806-0906
453	02.483 PROTECTOR; HARNESS EURO5 SPECIFICATION(NT5) (D)	8-94417-716-0	01	1	0907-1301
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0806-
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0806-
453	02.483 PROTECTOR; HARNESS (E)	8-98036-785-0	01	1	0806-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0806-

13 699 699 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

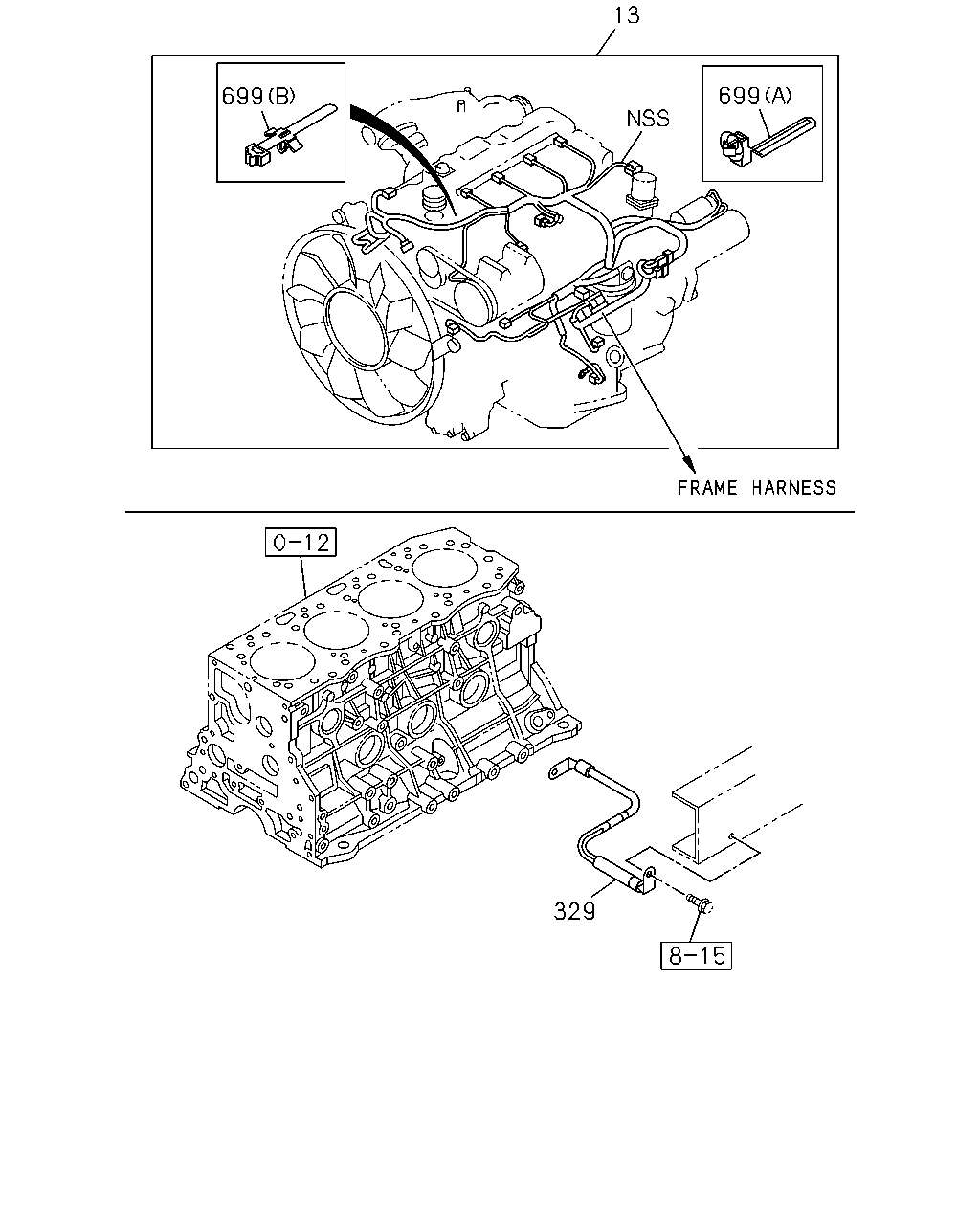

13	02.525 HARNESS; ENG EURO5 SPECIFICATION(NT5)	8-98244-736-0	01	1	1311-
13	02.525 HARNESS; ENG KD PREPARATORY PACK<6HF>	8-98082-046-4	01	1	0806-0905
13	02.525 HARNESS; ENG	8-98082-046-4	01	1	0906-0906
13	02.525 HARNESS; ENG	8-98082-046-4	01	1	0907-1006
13	02.525 HARNESS; ENG	8-98147-730-1	01	1	1007-1310
13	02.525 HARNESS; ENG EURO4 SPECIFICATION(NT4)	8-98147-730-1	01	1	1311-
329	02.480 CABLE; ENG TO FRAME	8-98033-951-1	01	1	0806-
699	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> 04.105 (A) L=140	8-97122-360-0	03	1	0806-0905
699	02.559 CLIP; ENG HARNESS 04.105 (A) L=140	8-97122-360-0	03	1	0906-1310
699	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 04.105 (A) L=140	8-97122-360-0	03	1	1311-
699	02.559 CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (B)	8-98088-438-0	01	1	0806-0905
699	02.559 CLIP; ENG HARNESS (B)	8-98088-438-0	01	1	0906-1310
699	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B)	8-98088-438-0	01	1	1311-

57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

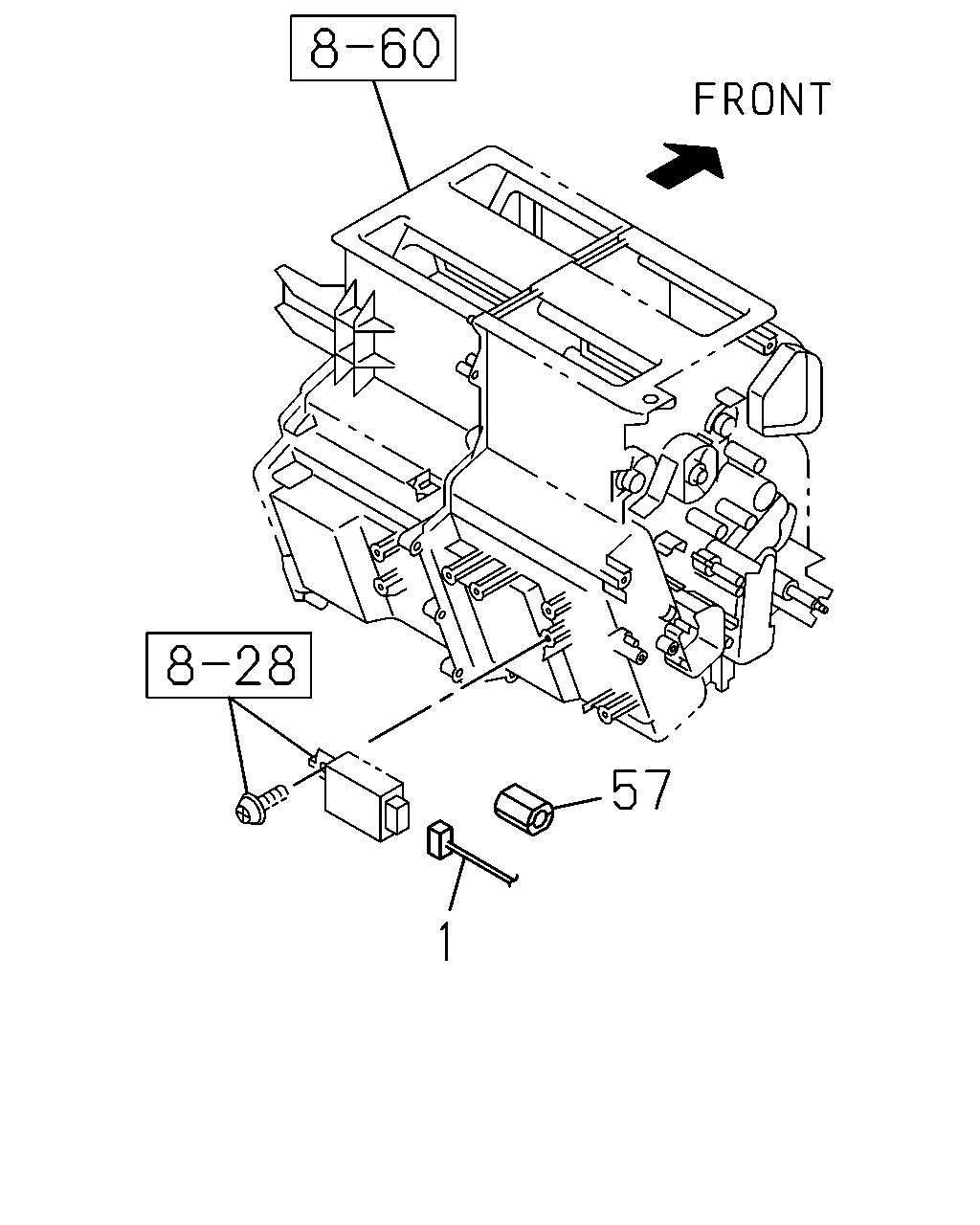

1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98105-317-6	01	1	0806-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98204-637-0	01	1	1205-
57	02.483 FILTER; FUSE BOX	8-98211-338-0	01	1	1205-
