7-50 — FRONT SEAT (#76044) — 53 parça

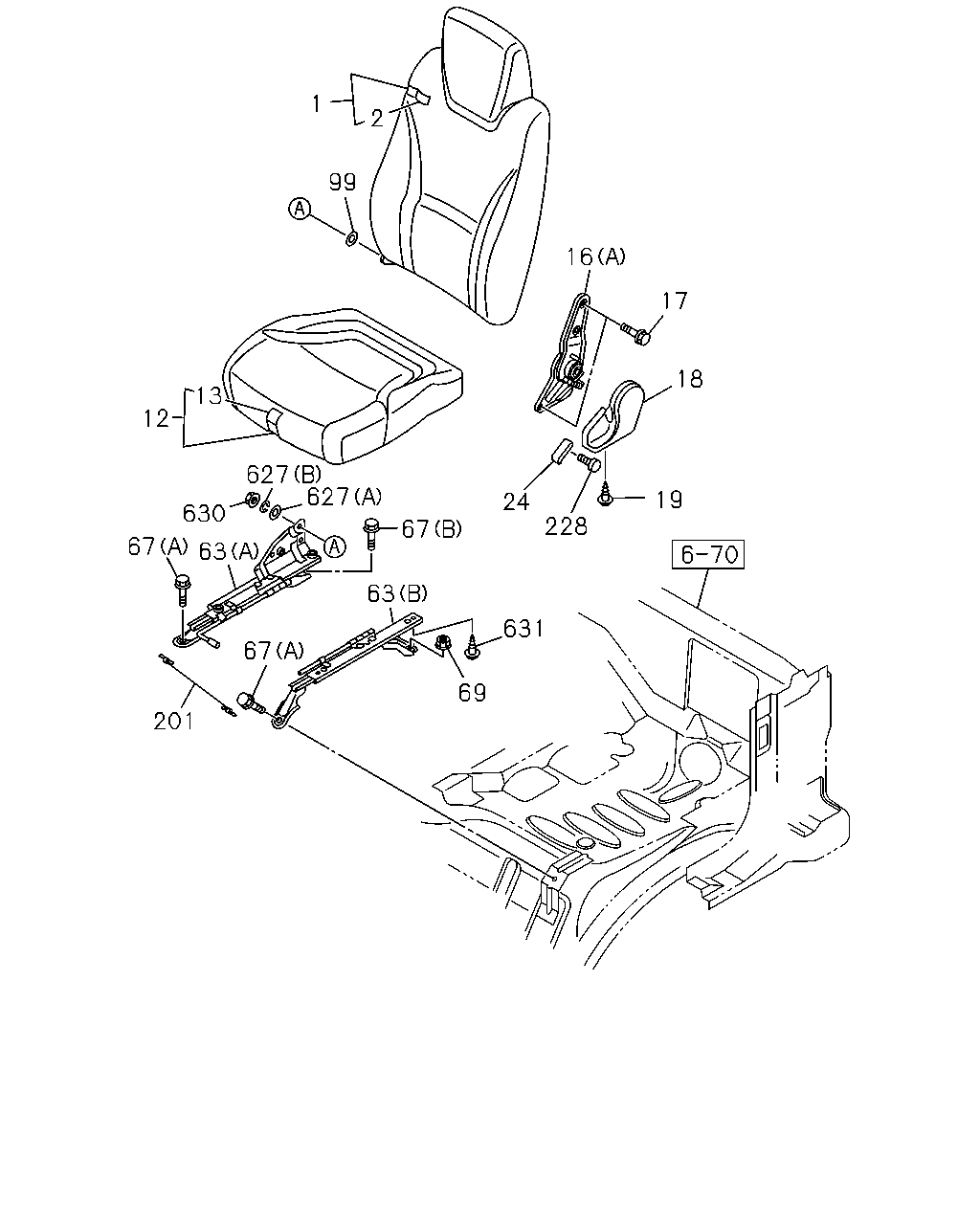

1 2 99 16 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0806-1009
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-237-1	01	1	1010-
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0806-1009
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-256-0	01	1	1010-
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-359-3	01	1	0806-0902
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97416-254-1	01	1	0903-1009
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-243-1	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-360-3	01	1	0806-0902
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97416-262-0	01	1	0903-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-262-1	01	1	1010-
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0806-
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0806-
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0806-
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0806-
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0806-
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0806-
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-98002-907-2	01	1	0806-
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-98002-908-1	01	1	0806-
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0806-
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0806-
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0806-
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0806-
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0806-
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0806-
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0806-
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0806-
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0806-
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-

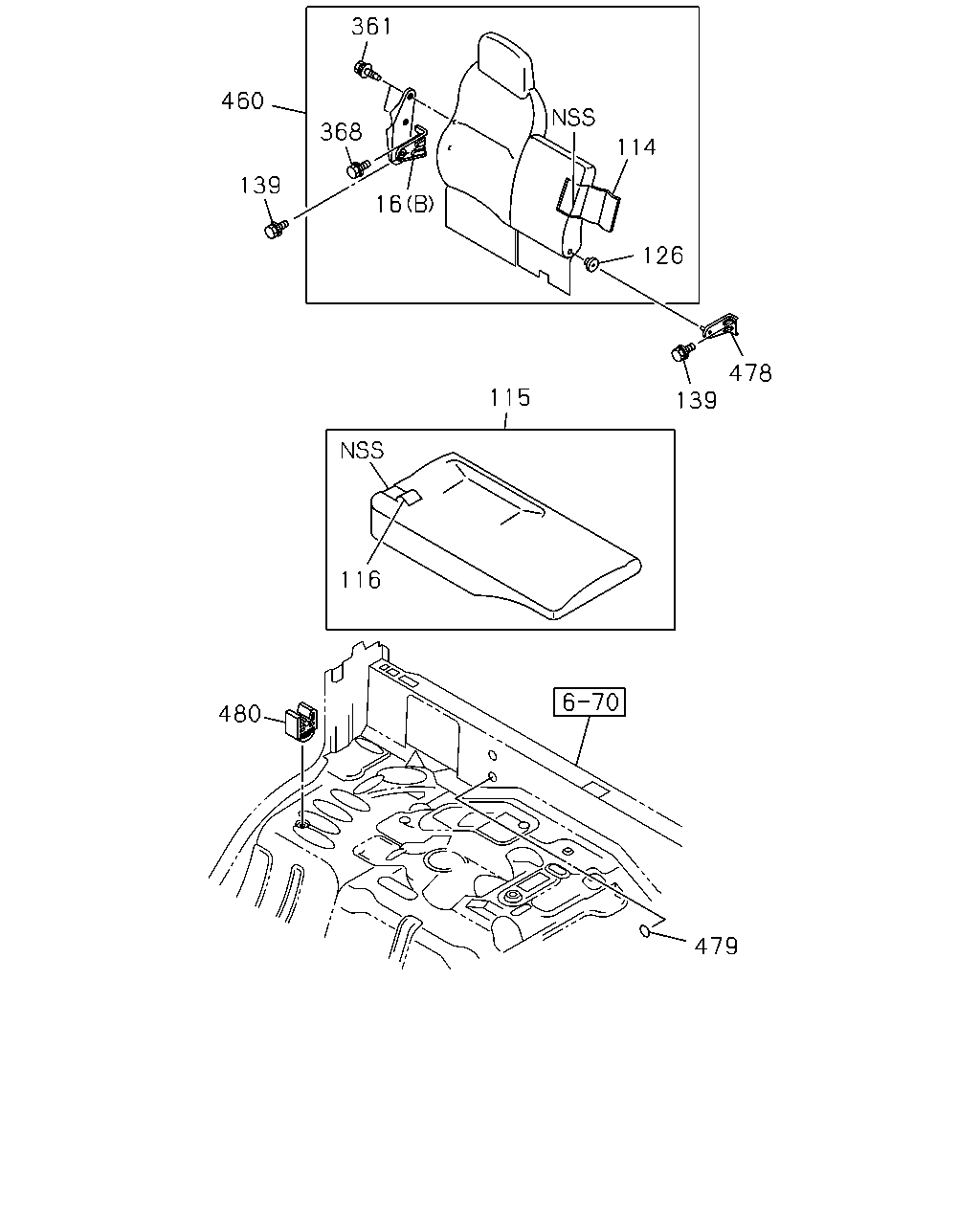

361 460 368 114 139 16 126 478 115 139 116 480 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0806-
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0806-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97414-178-0	01	1	0806-0912
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97418-723-0	01	1	1001-1009
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-294-1	01	1	1010-
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97411-689-2	01	1	0806-0902
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-275-0	01	1	0903-0912
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97418-708-0	01	1	1001-1009
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-323-1	01	1	1010-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97414-174-1	01	1	0806-0902
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97416-290-0	01	1	0903-0912
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97418-737-0	01	1	1001-1009
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97421-343-1	01	1	1010-
126	16.686 BUSHING; HINGE,RECLINING 16.679 M8X20 W/PL WASHER	8-98031-841-0	01	1	0806-0808
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0809-
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	0806-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0806-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0806-
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97411-693-3	01	1	0806-0912
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97418-694-0	01	1	1001-1009
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97421-281-2	01	1	1010-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-187-0	01	1	0806-
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	0806-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0806-
