7-43 — SUN VISOR AND ASSIST GRIP (#76043) — 67 parça

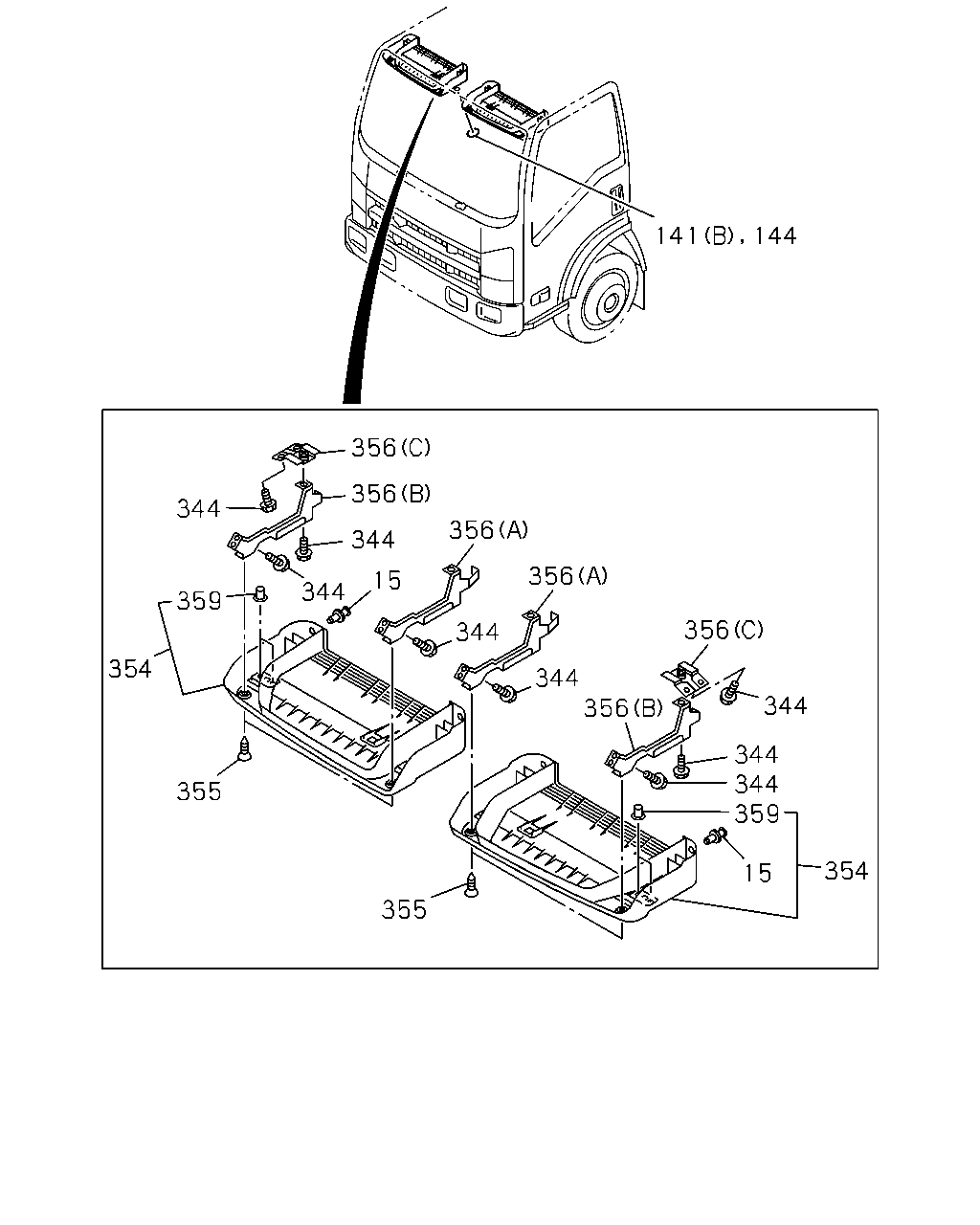

141 144 356 356 344 356 344 356 15 344 359 356 344 354 344 356 344 344 344 359 355 354 15 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	0806-
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	0806-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	0806-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & P ASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & P ASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	0806-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & P ASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	0806-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	0806-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0806-0810
144	16.070 SEAL; LOCATION HOLE BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0806-0810
144	16.070 SEAL; LOCATION HOLE BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & P ASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0806-0810
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0811-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0811-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & P ASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0811-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1504-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 00.206 M6X12 FLANGE	0-28450-612-0	06	1	0806-0809
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 00.206 M6X12 FLANGE	0-28450-612-0	06	1	0806-0809
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0810-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0810-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-064-2	01	1	0806-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-065-2	01	1	0806-
354	16.120 TRAY; HEADER ROOF INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-061-2	01	1	0806-
354	16.120 TRAY; HEADER ROOF INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97408-060-2	01	1	0806-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	0806-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	0806-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	0806-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (C)	8-97386-874-1	01	1	0806-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (B)	8-97585-576-4	01	1	0806-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	0806-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A)	8-98036-023-4	01	1	0806-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-022-4	01	1	0806-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	0806-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY>	8-98041-754-0	02	1	0806-

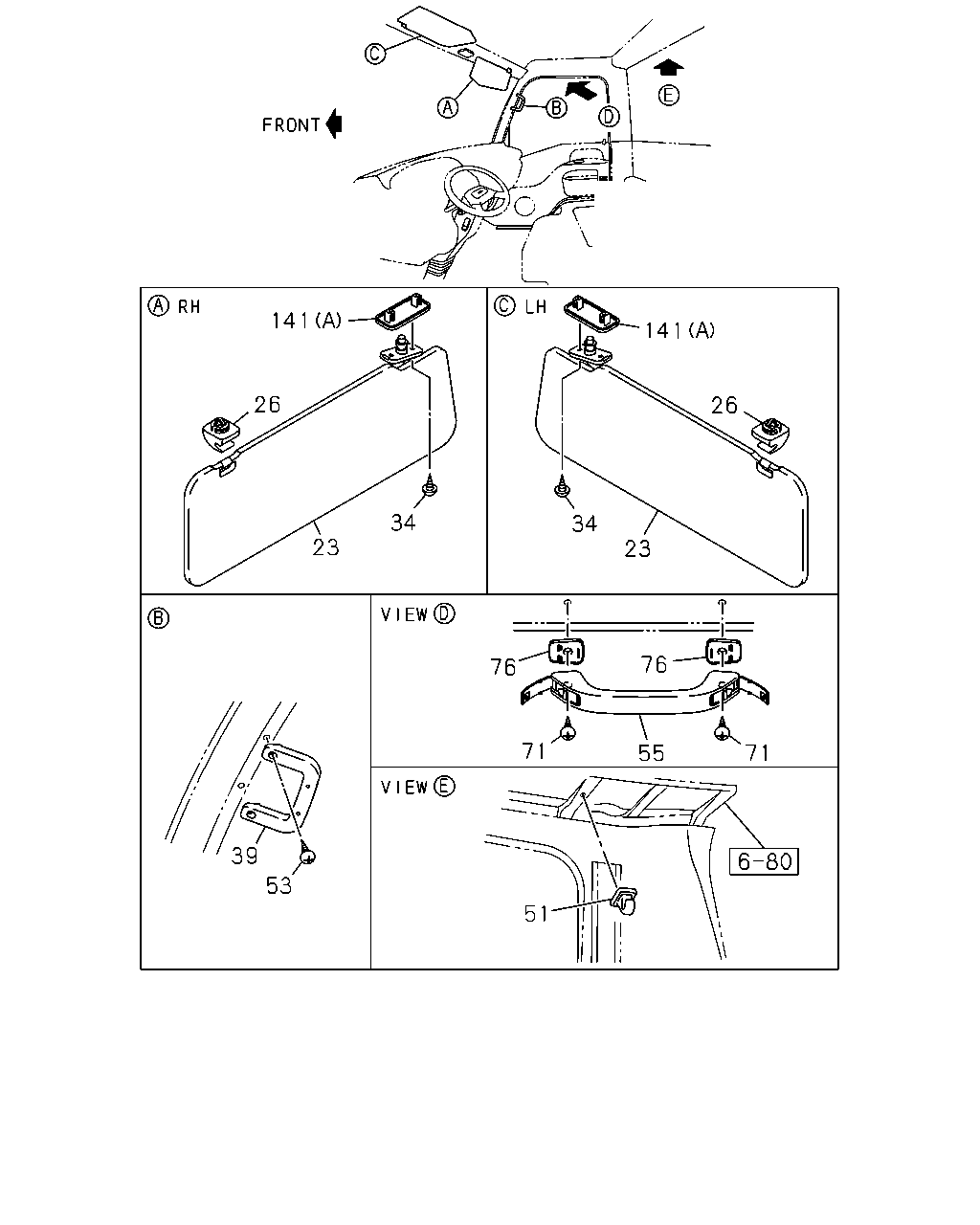

141 141 26 26 34 34 23 23 76 76 71 71 55 39 53 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> EXC. EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) DARK GRAY	8-97406-197-3	01	1	0907-
23	16.070 SUN VISOR EXC. EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5),HEADER TRAY DRIVER<W56>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-196-1	01	1	0907-
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97413-094-2	01	1	0806-0906
23	16.070 SUN VISOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97413-094-2	01	1	0907-
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97413-092-1	01	1	0806-0906
23	16.070 SUN VISOR EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97413-092-1	01	1	0907-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97409-857-0	01	1	0806-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97409-858-0	01	1	0806-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	0806-
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	0806-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	0806-
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	0806-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	04	1	0806-
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	0806-
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	0806-
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	0806-
51	16.570 HOOK; COAT HANGER COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-302-1	01	1	0806-
51	16.570 HOOK; COAT HANGER COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.070 DARK GRAY	8-97406-200-0	01	1	0806-
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	0806-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	0806-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	0806-
76	16.742 SPACER; ASSIST GRIP ASSIST GRIP PASSENGER<EG5> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-286-0	02	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	0806-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIORTRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVE R & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	0806-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	0806-
