Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#7603) — 12 parça
◀

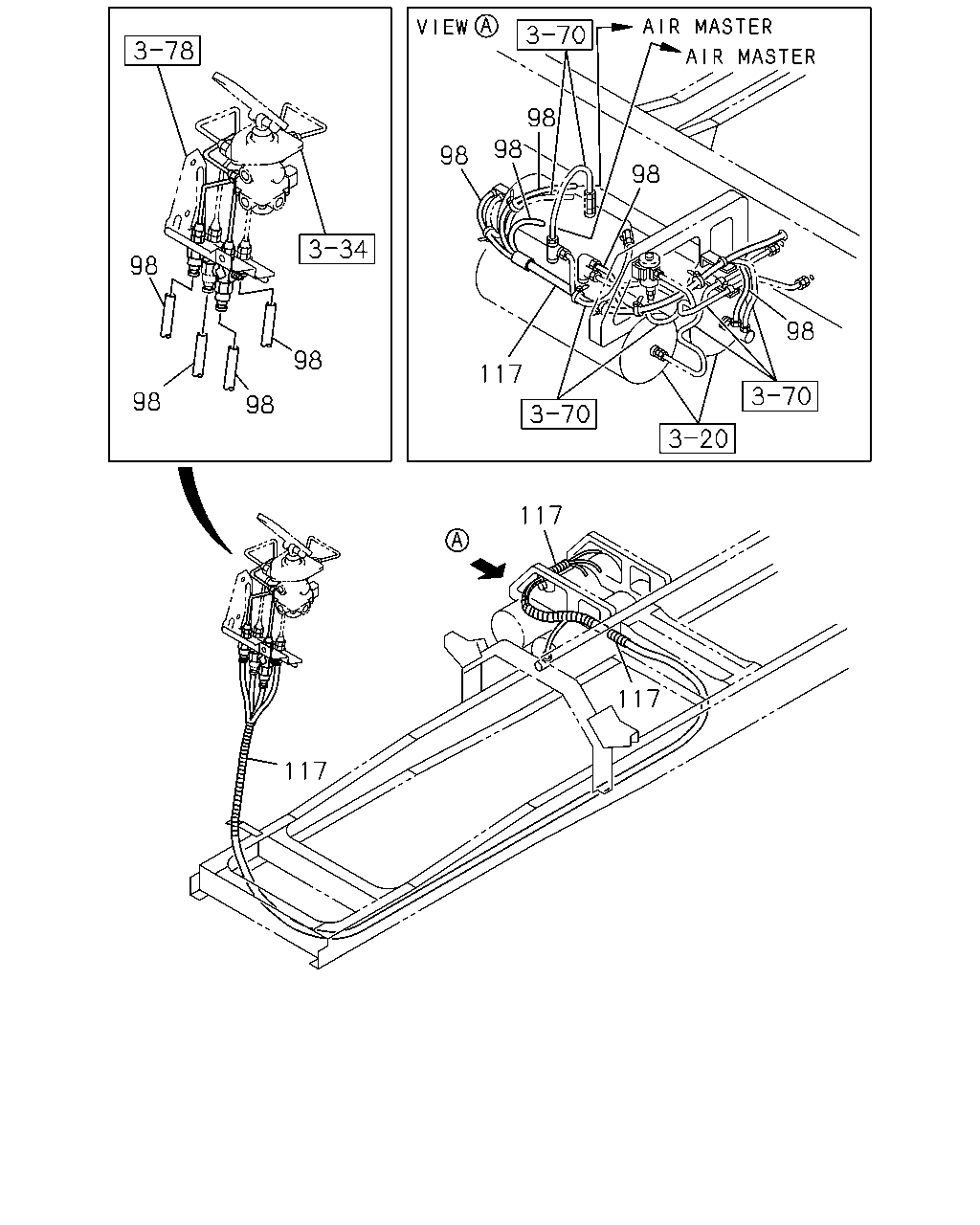

[375A] PIPING (7 parça)
[375A] UNION;BRAKE VALVE (5 parça)
▶
98
98
98
98
98
98
98
98
98
117
117
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
04
1
0101-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
02
1
0101-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
02
1
0101-0106
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
03
1
0107-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87410-104-0
04
1
0101-0106
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87410-104-0
03
1
0107-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
0107-
118
115
116
138
115
116
138
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
114
UNION; NYLON TUBE
1-09660-807-2
02
1
0101-
115
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0101-
116
WASHER; LK,TUBE UNION
ID=16.2
9-09150-516-0
02
1
0101-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0101-
138
WASHER; PL,UNION
ID=17
9-09160-516-0
02
1
0101-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
