Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#76026) — 57 parça
◀

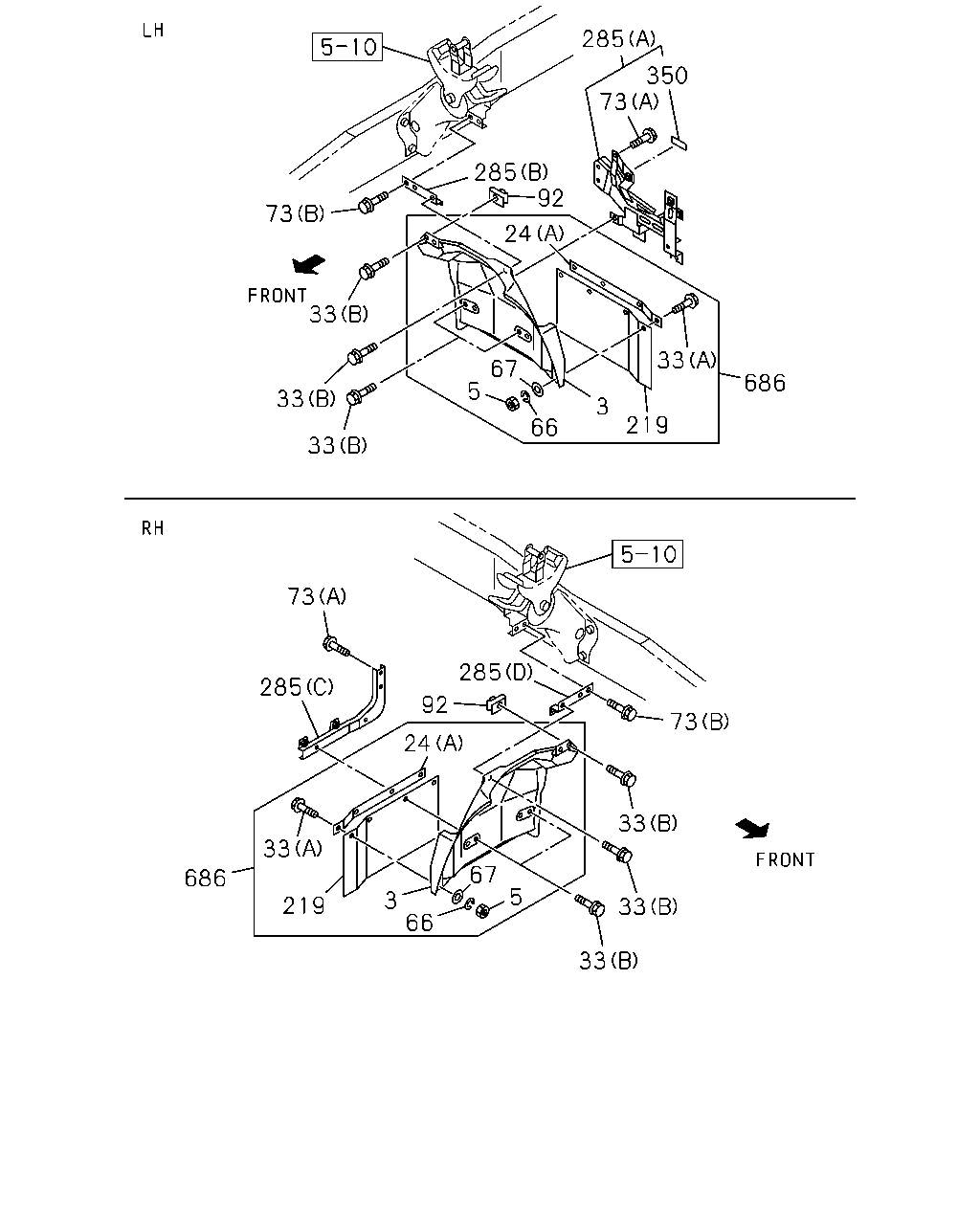

[647A] MUD GUARD FRONT (25 parça)

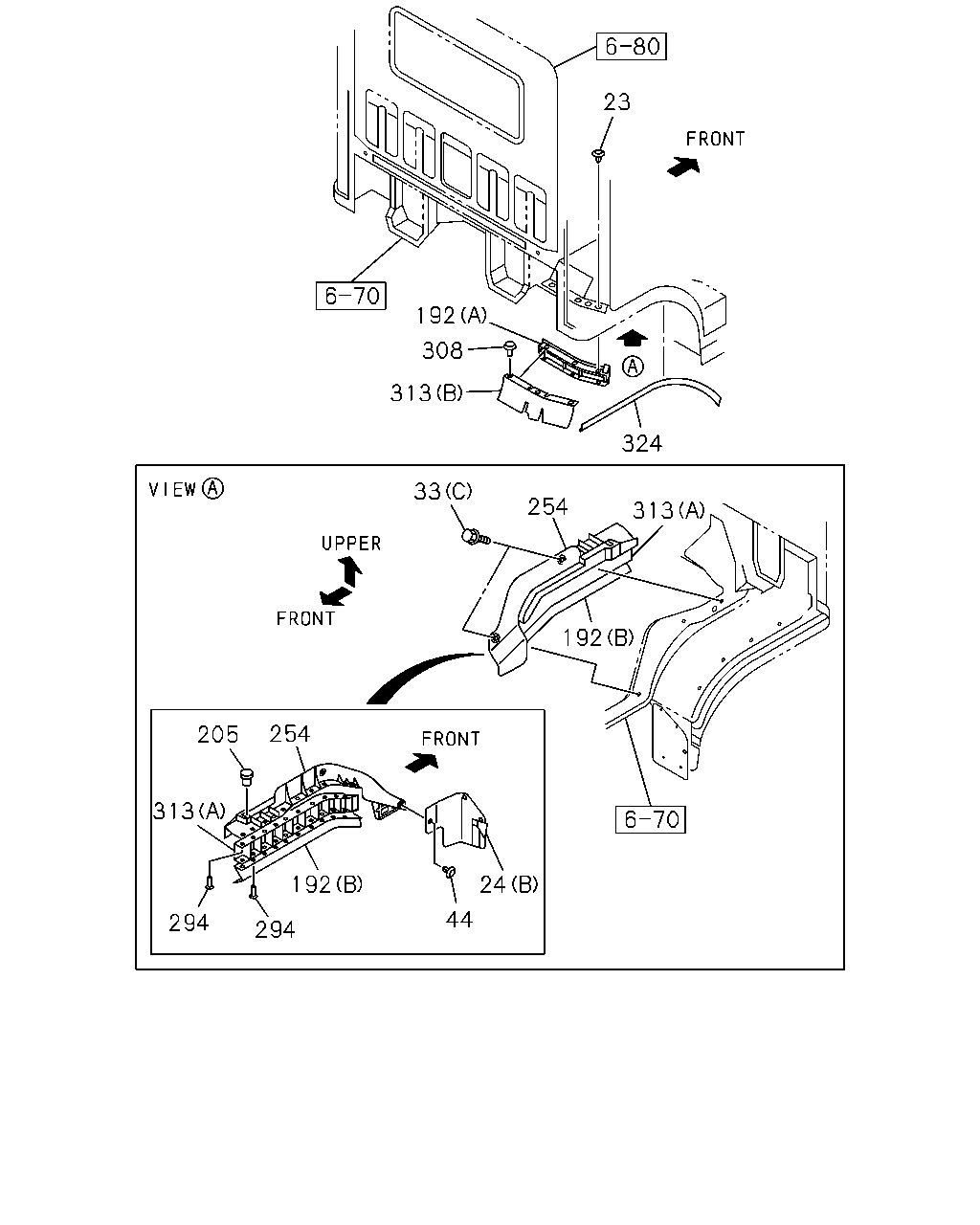

[647A] PROTECTOR AND OTHER PARTS (25 parça)

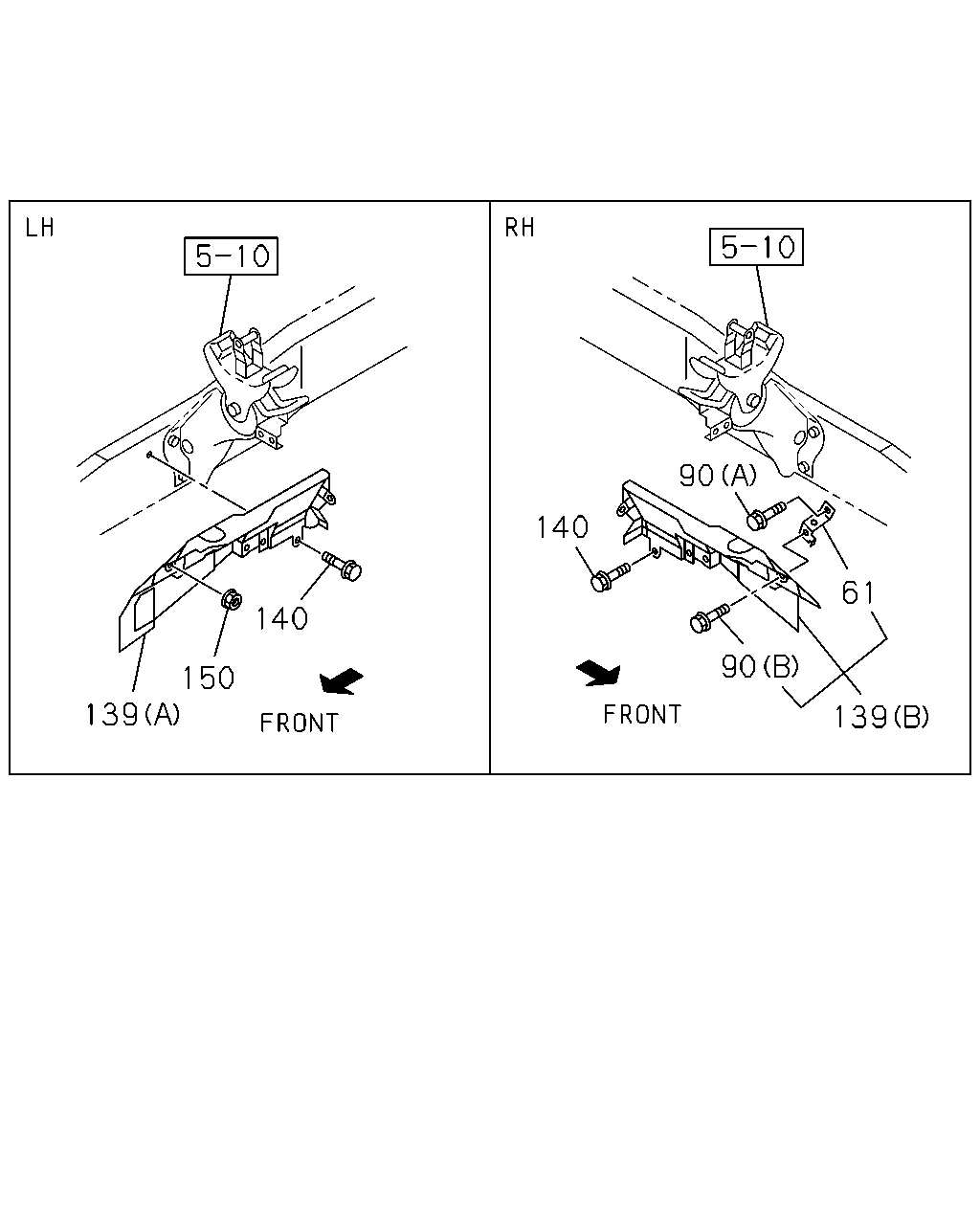

[647A] SIDE COVER (7 parça)
▶
285
350
73
285
92
73
24
33
33
67
686
5
33
3
219
66
33
73
285
285
92
73
24
33
33
67
686
5
3
66
219
33
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
08.153 GUARD; MUD,RR
8-98004-030-4
01
1
0806-
3
08.153 GUARD; MUD,RR
8-98055-620-2
01
1
0806-
5
08.155 NUT; FLAP RUBBER
03.330 M6
0-91110-506-0
08
1
0806-1209
5
08.155 NUT; FLAP RUBBER
M6
8-98227-380-0
08
1
1210-
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
0806-
24
08.155 PLATE; MUD COVER
(B)
8-98069-060-0
02
1
0806-0910
24
08.155 PLATE; MUD COVER
(B)
8-98154-261-0
02
1
0911-
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0806-1209
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0806-
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0806-
66
08.155 WASHER; LK
ID=6.1
0-91510-606-0
08
1
0806-1209
67
08.155 WASHER; PL
00.413 ID=6.4
0-91610-606-0
08
1
0806-1209
73
08.155 BOLT; MUD COVER BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0806-
73
08.155 BOLT; MUD COVER BRKT
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
0806-
92
08.155 NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
0806-
219
08.155 FLAP; MUD GUARD
8-98010-741-1
02
1
0806-
285
08.155 BRACKET; MUD COVER
(B)
8-98038-865-1
01
1
0806-
285
08.155 BRACKET; MUD COVER
(A)
8-98082-272-0
01
1
0806-
285
08.155 BRACKET; MUD COVER
(C)
8-98001-316-1
01
1
0806-0809
285
08.155 BRACKET; MUD COVER
(C)
8-98131-079-0
01
1
0810-
285
08.155 BRACKET; MUD COVER
(D)
8-98059-689-0
01
1
0806-
350
08.155 PROTECTOR; EDGE,MUD COVER
03.008 L=80
5-22439-006-0
01
1
0806-
686
08.155 FLAP ASM; MUD
8-98001-302-6
01
1
0806-
686
08.155 FLAP ASM; MUD
8-98055-455-4
01
1
0806-
23
192
308
313
324
33
254
313
192
205
254
24
44
192
313
294
294
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
08.154 FASTENER; MUD COVER
16.320 OD=8.3
8-97997-832-0
06
1
0806-
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
0806-
24
08.155 PLATE; MUD COVER
(B)
8-98069-060-0
02
1
0806-0910
24
08.155 PLATE; MUD COVER
(B)
8-98154-261-0
02
1
0911-
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0806-1209
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0806-
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0806-
44
08.154 CLIP; ANCHOR
08.155 OD=16 L=11
1-76378-155-0
06
1
0806-
192
08.153 SEAL; MUD COVER
(A)
8-98106-053-0
01
1
0806-
192
08.153 SEAL; MUD COVER
(A)
8-98106-052-0
01
1
0806-
192
08.153 SEAL; MUD COVER
(B)
8-98022-756-1
01
1
0806-
192
08.153 SEAL; MUD COVER
(B)
8-98022-755-1
01
1
0806-
205
08.155 FASTENER; MUD COVER
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
0806-
254
08.153 COVER; MUD,VALANCE
8-98022-769-2
01
1
0806-0806
254
08.153 COVER; MUD,VALANCE
8-98115-264-0
01
1
0807-
254
08.153 COVER; MUD,VALANCE
8-98022-768-2
01
1
0806-0806
254
08.153 COVER; MUD,VALANCE
8-98115-263-0
01
1
0807-
294
08.154 CLIP; MUD COVER
16.069 OD=12 L=14.8
8-94279-921-0
22
1
0806-
308
08.155 FASTENER; MUD GUARD
16.320 OD=8.3
8-97997-832-0
06
1
0806-
313
08.513 EXTENSION; M/GUARD RR
08.153 (B)
8-98022-785-2
02
1
0806-1107
313
08.513 EXTENSION; M/GUARD RR
08.153 (B)
8-98192-388-0
02
1
1108-
313
08.513 EXTENSION; M/GUARD RR
(A)
8-98106-050-0
01
1
0806-
313
08.513 EXTENSION; M/GUARD RR
(A)
8-98106-049-0
01
1
0806-
324
08.155 PROTECTOR; FRT FENDER
8-98022-786-2
02
1
0806-
90
140
61
140
90
150
139
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
08.155 BRACKET; COVER
8-98033-140-0
01
1
0806-
90
08.153 BOLT; COVER
08.155 (B) M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0806-
90
08.153 BOLT; COVER
02.343 (A) M8X16 FLANGE
0-28050-816-0
01
1
0806-
139
08.153 PANEL; SIDE
(A)
8-97385-590-3
01
1
0806-
139
08.153 PANEL; SIDE
(B)
8-98053-670-1
01
1
0806-
140
08.155 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
02
1
0806-
150
08.155 NUT; SIDE PANEL
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
0806-
