3-70 — BRAKE PIPING; AIR,AIR MASTER (#7602) — 100 parça

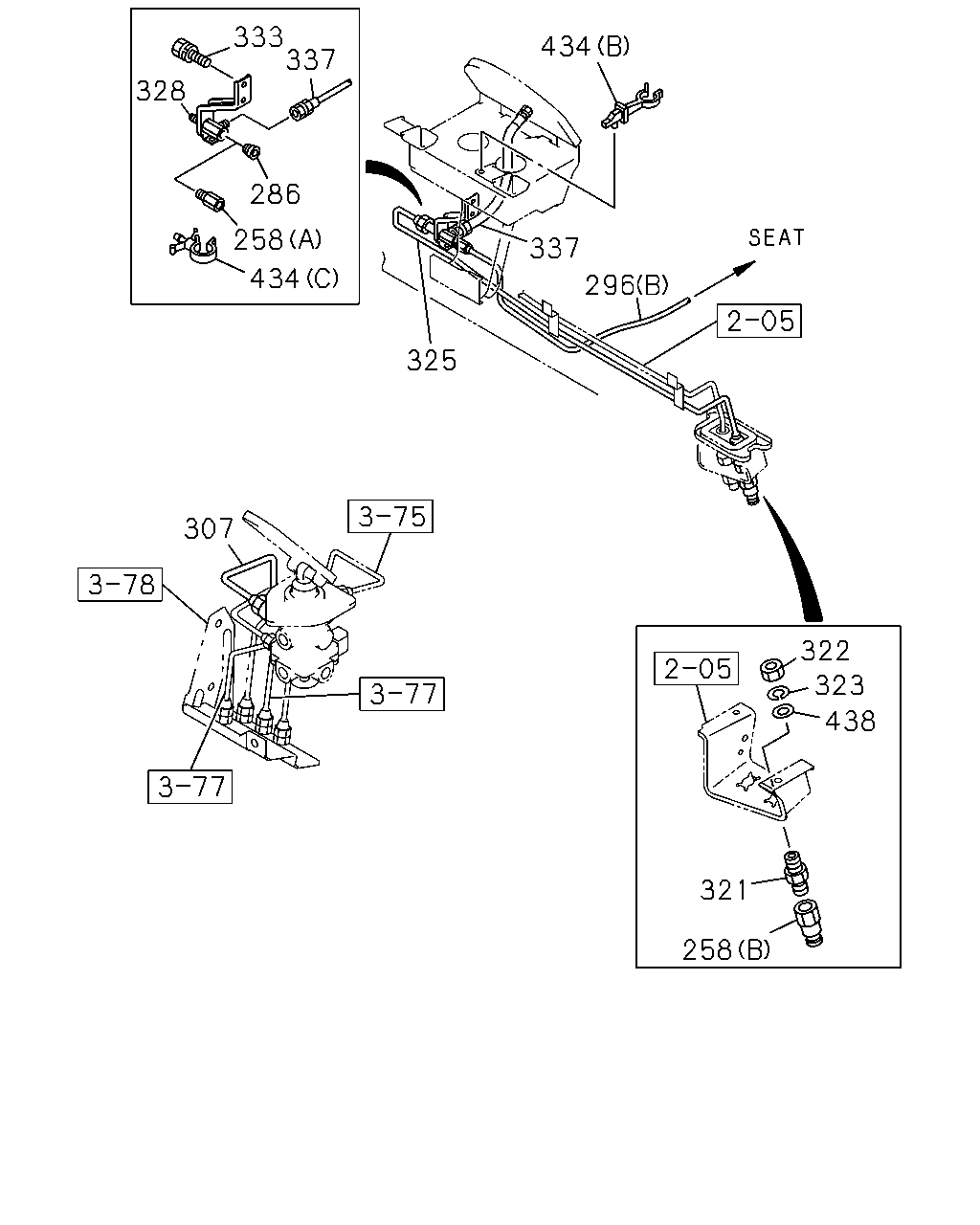

çizim 40906
333 337 434 328 286 258 337 434 296 325 307 322 323 438 321 258
BalonParca AdiParca NoAdetTipApplied Date
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0101-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
6HE1 TC ENG<57L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
6HE1 TC ENG<57L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0101-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0101-
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0101-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0101-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0101-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0101-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0101-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0101-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0101-
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0101-
434 CLIP
(B) ID=17 THA 		1-09987-105-1 01 1 0101-
434 CLIP
(C) THA 		8-94297-486-0 02 1 0101-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0101-

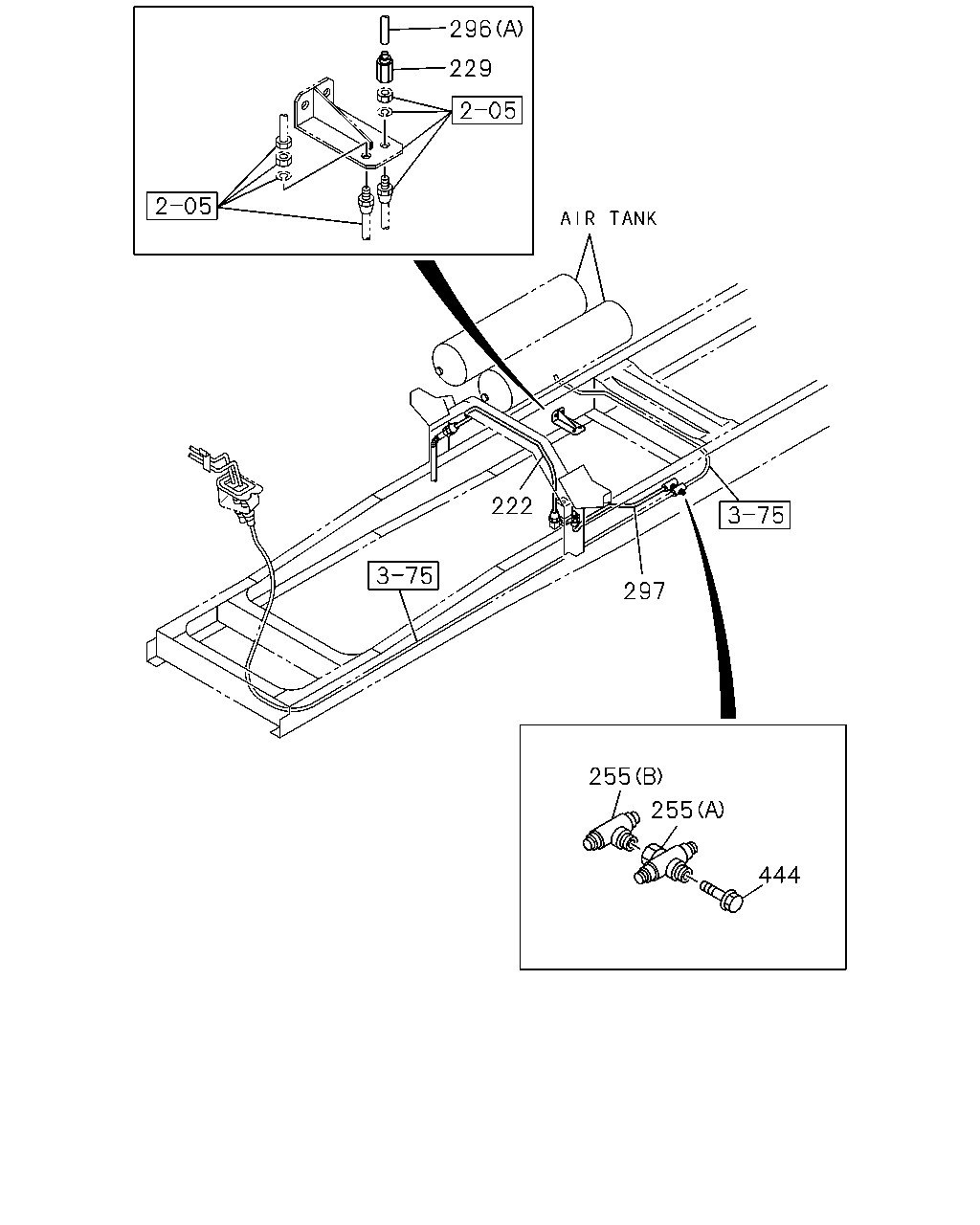

çizim 41357
296 229 222 297 255 255 444
BalonParca AdiParca NoAdetTipApplied Date
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG<57L> L=1052 SERVICED BY L=1100 THA 		1-47426-351-0 01 1 0101-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG<65L> L=1105 SERVICED BY L=1250 THA 		1-47434-389-0 01 1 0101-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0101-
255 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0101-
255 UNION; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
6HE1 TC ENG<57L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
6HE1 TC ENG<57L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0101-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0101-

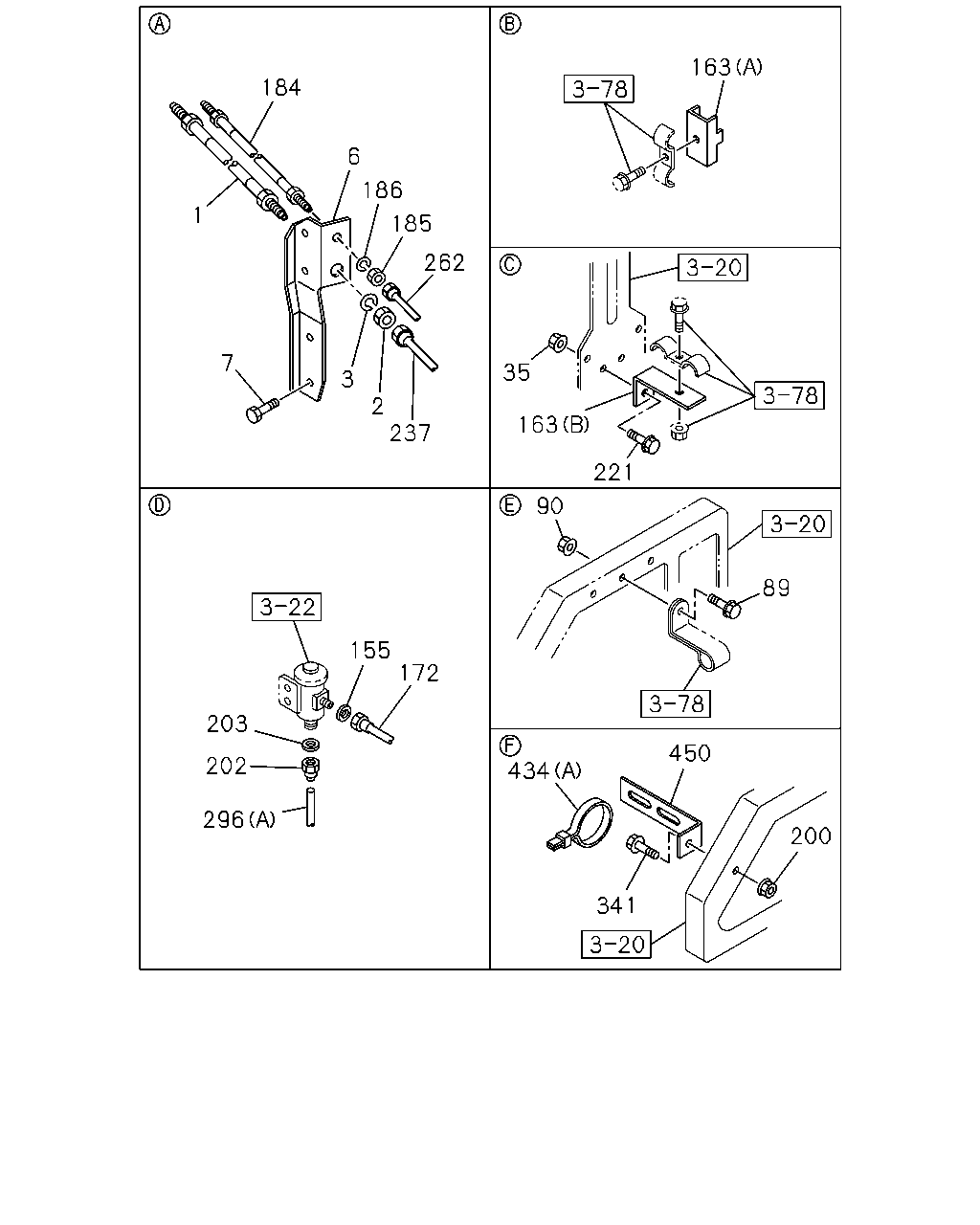

çizim 41358
163 184 6 186 1 185 262 7 35 3 2 237 163 221 90 89 155 172 203 434 450 202 296 200 341
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG<57L> L=320 		1-09363-560-1 01 1 0101-
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG<65L> L=360 		1-09363-530-0 01 1 0101-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0101-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0101-
6 BRACKET; FLEX HOSE,AIR TANK
THA 		1-47477-264-2 01 1 0101-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0101-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0101-
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0101-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0101-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 0101-
163 BRACKET; AIR PIPE
(A) 		1-47475-427-1 02 1 0101-
163 BRACKET; AIR PIPE
(B) L=90 B=25 		1-47475-530-0 01 1 0101-
172 PIPE; AIR,GOV TO UNION 1-49118-003-0 01 1 0101-
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG<57L> L=330 		1-09363-584-0 01 1 0101-
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG<65L> L=370 		1-09363-586-0 01 1 0101-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0101-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0101-
200 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0101-
202 ADAPTER
DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0101-
203 GASKET; ADAPTER,GOV
ID=11 OD=18 		9-09572-510-0 01 1 0101-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0101-
237 PIPE; AIR,FLEX HOSE TO UNION 1-49119-126-0 01 1 0101-
262 PIPE; AIR,UNION TO FLEX
L=1068 SERVICED BY L=1100 THA 		1-47426-351-0 01 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
6HE1 TC ENG<57L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
6HE1 TC ENG<57L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0101-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0101-
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0101-
434 CLIP
(B) ID=17 THA 		1-09987-105-1 01 1 0101-
434 CLIP
(C) THA 		8-94297-486-0 02 1 0101-
450 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 02 1 0101-

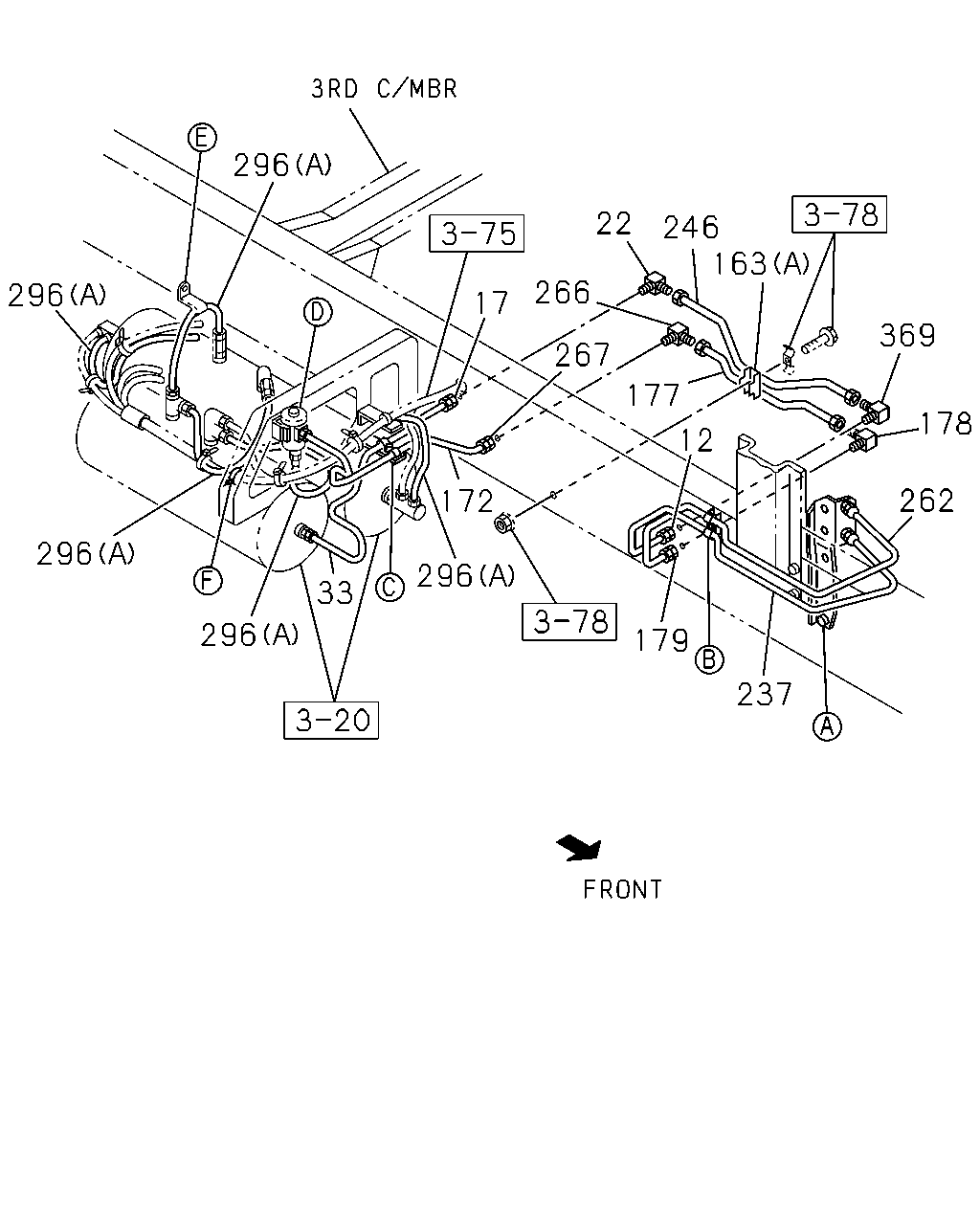

çizim 43144
296 22 246 163 266 296 17 369 267 177 12 178 262 172 296 296 33 296 179 237
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
M22 		9-09111-422-0 01 1 0101-
17 NUT; UNION
M22 		9-09111-422-0 01 1 0101-
22 NIPPLE; AIR PIPE
M22 		9-09235-215-1 01 1 0101-
33 PIPE; AIR,UNION TO AIR TANK 1-49118-183-0 01 1 0101-
163 BRACKET; AIR PIPE
(A) 		1-47475-427-1 02 1 0101-
163 BRACKET; AIR PIPE
(B) L=90 B=25 		1-47475-530-0 01 1 0101-
172 PIPE; AIR,GOV TO UNION 1-49118-003-0 01 1 0101-
177 PIPE; AIR,UNION TO UNION 1-49118-185-0 01 1 0101-
178 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0101-
179 NUT; UNION
M12 		9-09840-280-0 01 1 0101-
237 PIPE; AIR,FLEX HOSE TO UNION 1-49119-126-0 01 1 0101-
246 PIPE; AIR,UNION TO UNION 1-49118-181-0 01 1 0101-
262 PIPE; AIR,UNION TO FLEX
L=1068 SERVICED BY L=1100 THA 		1-47426-351-0 01 1 0101-
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0101-
267 NUT; UNION
M12 		9-09840-280-0 01 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0101-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
6HE1 TC ENG<57L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0101-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
6HE1 TC ENG<57L> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0101-
369 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 0101-
