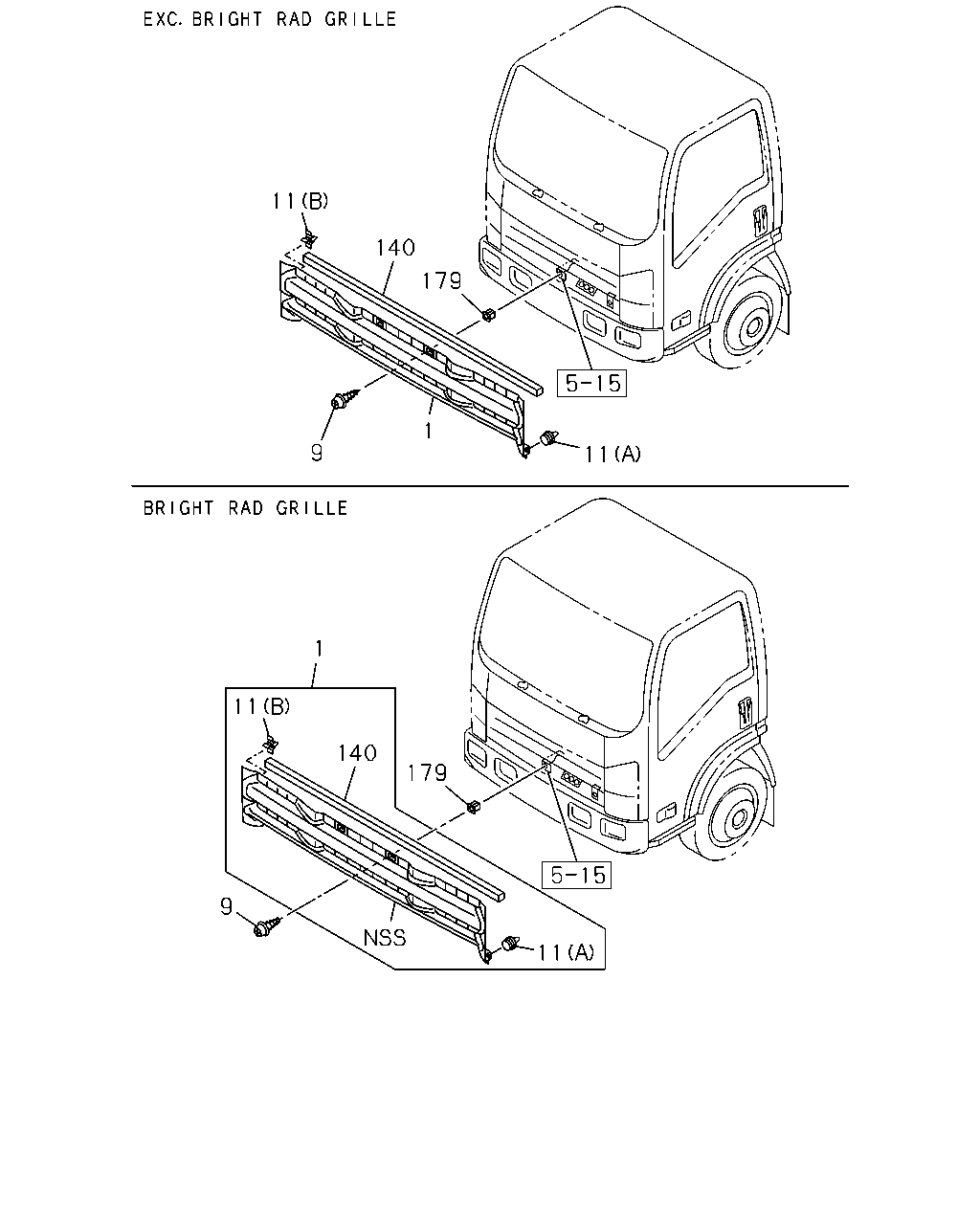

6-03 — RADIATOR GRILLE (#76016) — 15 parça

11 140 179 1 9 11 1 11 140 179 9 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> PLATED	8-98025-455-4	01	1	0906-
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97412-264-3	01	1	0811-0905
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97412-264-3	01	1	0906-
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97407-291-3	01	1	0806-0905
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97407-291-3	01	1	0906-
1	01.266 GRILLE; RAD BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY	8-97407-290-3	01	1	0806-0905
1	01.266 GRILLE; RAD BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY	8-97407-290-3	01	1	0906-
1	01.266 GRILLE; RAD BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97407-289-3	01	1	0806-0905
1	01.266 GRILLE; RAD BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97407-289-3	01	1	0906-
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB>	8-98025-465-3	01	1	0806-
9	01.269 SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74165-516-0	01	1	0806-
11	01.269 CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0806-
11	01.269 CLIP; RAD GRILLE (B)	8-98025-698-0	05	1	0806-
140	01.266 SEAL; RAD GRILLE	8-98054-279-0	01	1	0806-
179	01.269 RETAINER; GRILLE,RAD 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0806-
