5-20 — BATTERY CARRIER (#76013) — 17 parça

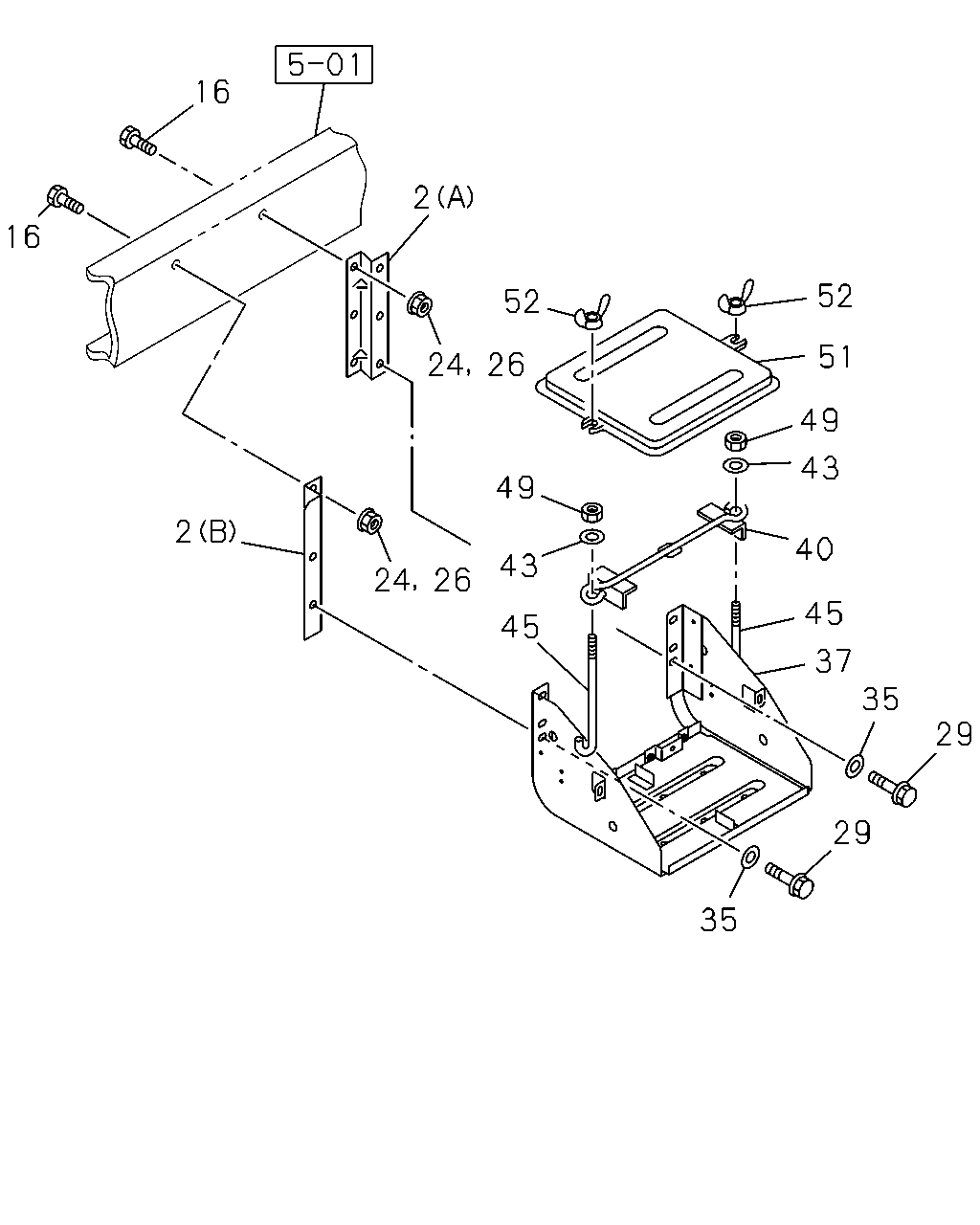

çizim 125962
16 2 16 52 52 51 24 26 49 43 49 2 40 43 24 26 45 45 37 35 29 2 35
BalonParca AdiParca NoAdetTipApplied Date
2 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-97384-069-1 01 1 0806-
2 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (B) 		8-97384-070-1 01 1 0806-
16 02.334 BOLT; BRKT TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 0806-0912
16 02.334 BOLT; BRKT TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1001-
24 02.334 NUT; BRKT TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE 		0-91180-210-0 01 1 0806-0912
24 02.334 NUT; BRKT TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1001-
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 0806-
29 02.334 BOLT; BRKT TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 0806-
35 02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0806-
37 02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 		8-97384-068-2 01 1 0806-
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 0806-
40 02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		5-53615-004-1 01 1 0806-
43 02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0806-
45 02.334 ROD; TENSION,BATTERY 9-53616-615-0 02 1 0806-
49 02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0806-
51 02.335 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		8-97120-747-0 01 1 0806-
52 02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT 		0-91118-408-0 02 1 0806-
