5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#76010) — 39 parça
◀
[501A] FRAME ASM (1 parça)

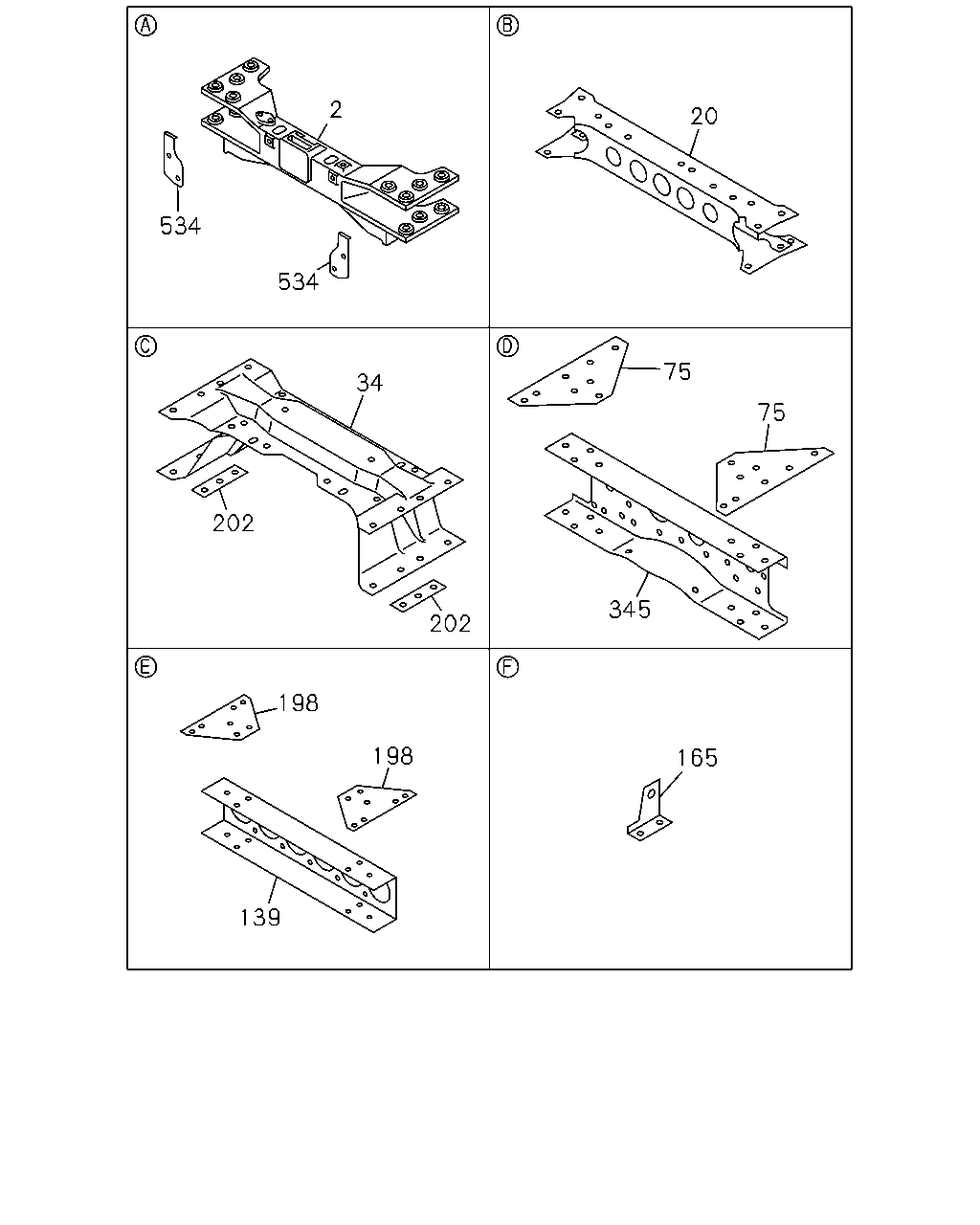

[501A] CROSS MEMBER AND BRACKET(NO.1) (12 parça)
[501A] RIVET,BOLT,NUT (16 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (10 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
8-98084-494-1
01
1
0806-
2
20
534
534
75
34
75
202
345
202
198
198
165
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.010 MEMBER; CROSS,1ST
8-98020-895-2
01
1
0806-
20
07.012 MEMBER; CROSS,2ND
8-98038-419-2
01
1
0806-
34
07.012 MEMBER; CROSS,3RD
8-98006-324-0
01
1
0806-
75
07.039 GUSSET; 5TH C/MBR
8-98011-863-0
04
1
0806-
139
07.012 MEMBER; CROSS,6TH
8-97384-745-0
01
1
0806-
165
01.270 BRACKET; RAD STAY
8-98000-886-0
01
1
0806-
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER & LH-UPPER
8-94258-068-1
02
1
0806-
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER & LH-LOWER
8-94258-069-1
02
1
0806-
202
07.105 SPACER; 3RD C/MBR
8-98041-607-0
02
1
0806-
345
07.012 MEMBER; CROSS,5TH
8-98011-861-2
01
1
0806-
534
07.869 BRACKET; BACK BAR
8-98061-414-0
01
1
0806-
534
07.869 BRACKET; BACK BAR
8-98061-413-0
01
1
0806-
376
376
376
376
376
376
376
376
376
376
16
296
16
118
4
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
07.039 NUT; 1ST C/MBR TO S/MBR
04.085 M10 FLANGE
0-91180-210-0
04
1
0806-
16
07.039 BOLT; 1ST C/MBR TO S/MBR
01.060 (A) M8X35 FLANGE
0-28650-835-0
02
1
0806-
16
07.039 BOLT; 1ST C/MBR TO S/MBR
03.613 (B) M10X40 FLANGE
0-28651-040-0
06
1
0806-
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
02
1
0806-
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
02
1
0806-
296
07.039 BOLT; 3RD C/MBR
M10X30
0-20851-030-0
02
1
0806-
376
07.039 RIVET; FRAME
(A) D10X22 TAPER END
9-06751-022-0
AR
1
0806-
376
07.039 RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
0806-
376
07.039 RIVET; FRAME
(C) D10X26 TAPER END
9-06751-026-0
AR
1
0806-
376
07.039 RIVET; FRAME
(D) D10X30 TAPER END
9-06751-030-0
AR
1
0806-
376
07.039 RIVET; FRAME
(E) D10X32 TAPER END
9-06751-032-0
AR
1
0806-
376
07.039 RIVET; FRAME
(F) M10X34 TAPER END
9-06751-034-0
AR
1
0806-
376
07.039 RIVET; FRAME
07.105 (G) D12X30 TAPER END
9-06751-230-0
AR
1
0806-
376
07.039 RIVET; FRAME
07.006 (H) D12X32 TAPER END
9-06751-232-0
AR
1
0806-
376
07.039 RIVET; FRAME
07.535 (I) D12X34 TAPER END
9-06751-234-0
AR
1
0806-
376
07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END
9-06751-236-0
AR
1
0806-
103
103
101
147
147
105
215
140
140
217
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
07.112 BRACKET; RR SPR,FRT
8-97034-156-1
02
1
0806-
103
07.420 STOPPER; SUB SPR
(B)
8-97223-748-0
02
1
0806-
103
07.420 STOPPER; SUB SPR
(A)
8-97223-750-0
02
1
0806-
105
07.112 BRACKET; RR SPR,RR
8-98032-488-0
01
1
0806-
105
07.112 BRACKET; RR SPR,RR
8-98032-489-0
01
1
0806-
140
07.112 BRACKET; S/ABS,RR
(A)
8-98006-176-0
01
1
0806-
140
07.112 BRACKET; S/ABS,RR
(B)
8-98006-180-0
01
1
0806-
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
0806-
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
0806-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-98006-210-0
02
1
0806-
