Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#76009) — 19 parça
◀

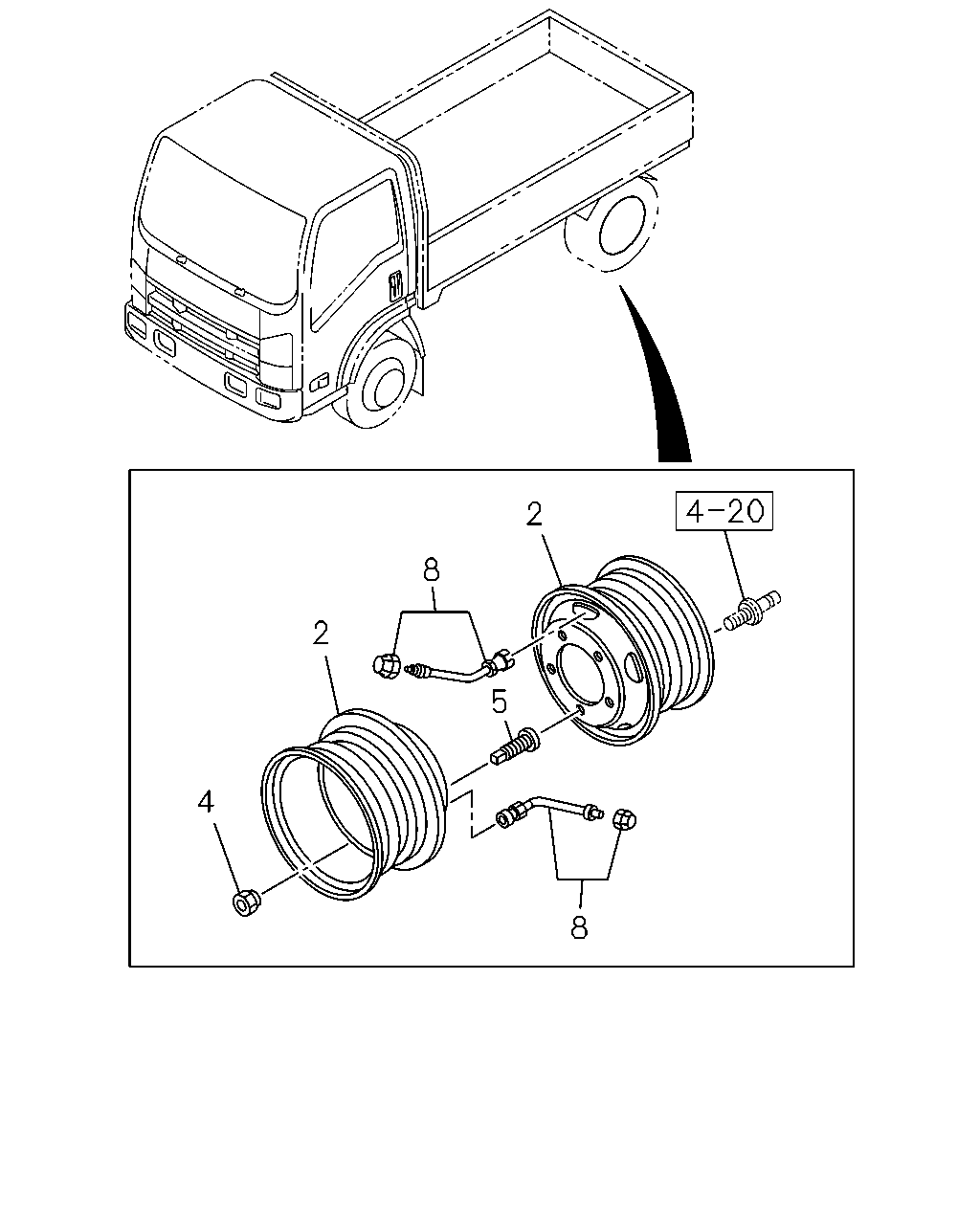

[480A] REAR (10 parça)

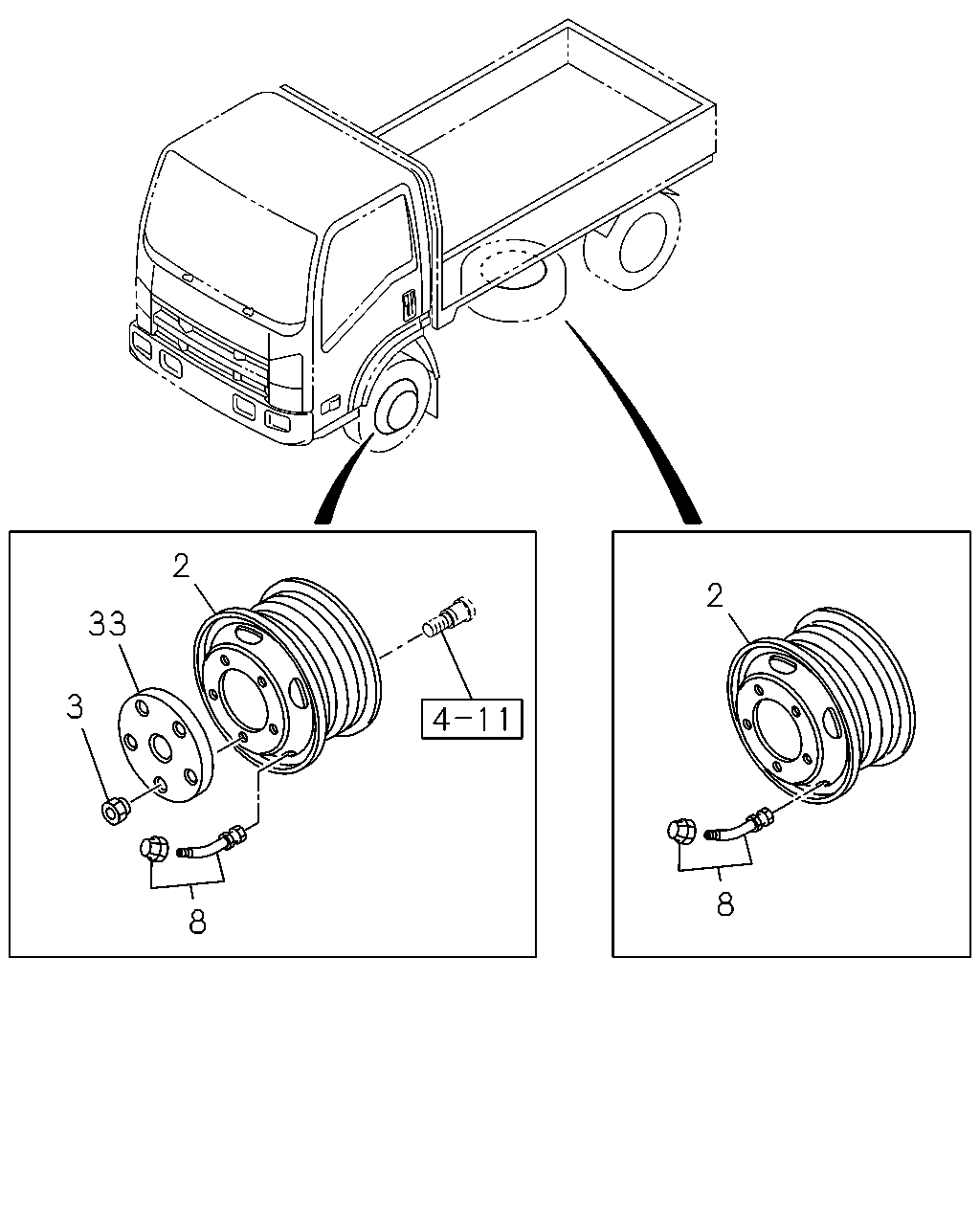

[480A] FRONT AND SPARE (9 parça)
▶
2
8
2
4
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 195/75R16C DISC 16X5.5J-116.5 WHITE (CUH),FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 WHITE(CUR) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
01
1
0806-
2
05.803 WHEEL; DISC
FRT&RR 195/75R16C DISC 16X5.5J-116.5 WHITE (CUH),FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 WHITE(CUR) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
06
1
0806-
2
05.803 WHEEL; DISC
FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 SIL VER(CUG),FRT&RR 195/75R16C DISC 16X5.5J-116.5 SILVER(CUS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0806-
2
05.803 WHEEL; DISC
FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 SIL VER(CUG),FRT&RR 195/75R16C DISC 16X5.5J-116.5 SILVER(CUS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0806-
4
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
0806-
4
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
0806-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
0806-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
0806-
8
05.875 VALVE; TIRE
SPARE
8-98221-106-0
01
1
0806-
8
05.875 VALVE; TIRE
FRONT,REAR
8-98221-106-0
06
1
0806-
8
2
8
33
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 195/75R16C DISC 16X5.5J-116.5 WHITE (CUH),FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 WHITE(CUR) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
01
1
0806-
2
05.803 WHEEL; DISC
FRT&RR 195/75R16C DISC 16X5.5J-116.5 WHITE (CUH),FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 WHITE(CUR) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
06
1
0806-
2
05.803 WHEEL; DISC
FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 SIL VER(CUG),FRT&RR 195/75R16C DISC 16X5.5J-116.5 SILVER(CUS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0806-
2
05.803 WHEEL; DISC
FRT&RR 205/75R16C-8 DISC 16X5.5J-116.5 SIL VER(CUG),FRT&RR 195/75R16C DISC 16X5.5J-116.5 SILVER(CUS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0806-
3
05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
0806-
3
05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
0806-
8
05.875 VALVE; TIRE
SPARE
8-98221-106-0
01
1
0806-
8
05.875 VALVE; TIRE
FRONT,REAR
8-98221-106-0
06
1
0806-
33
05.858 COVER; WHEEL
8-98083-921-0
02
1
0806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
