◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51175 - NLS(EUROPE)LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#76008) — 11 parça

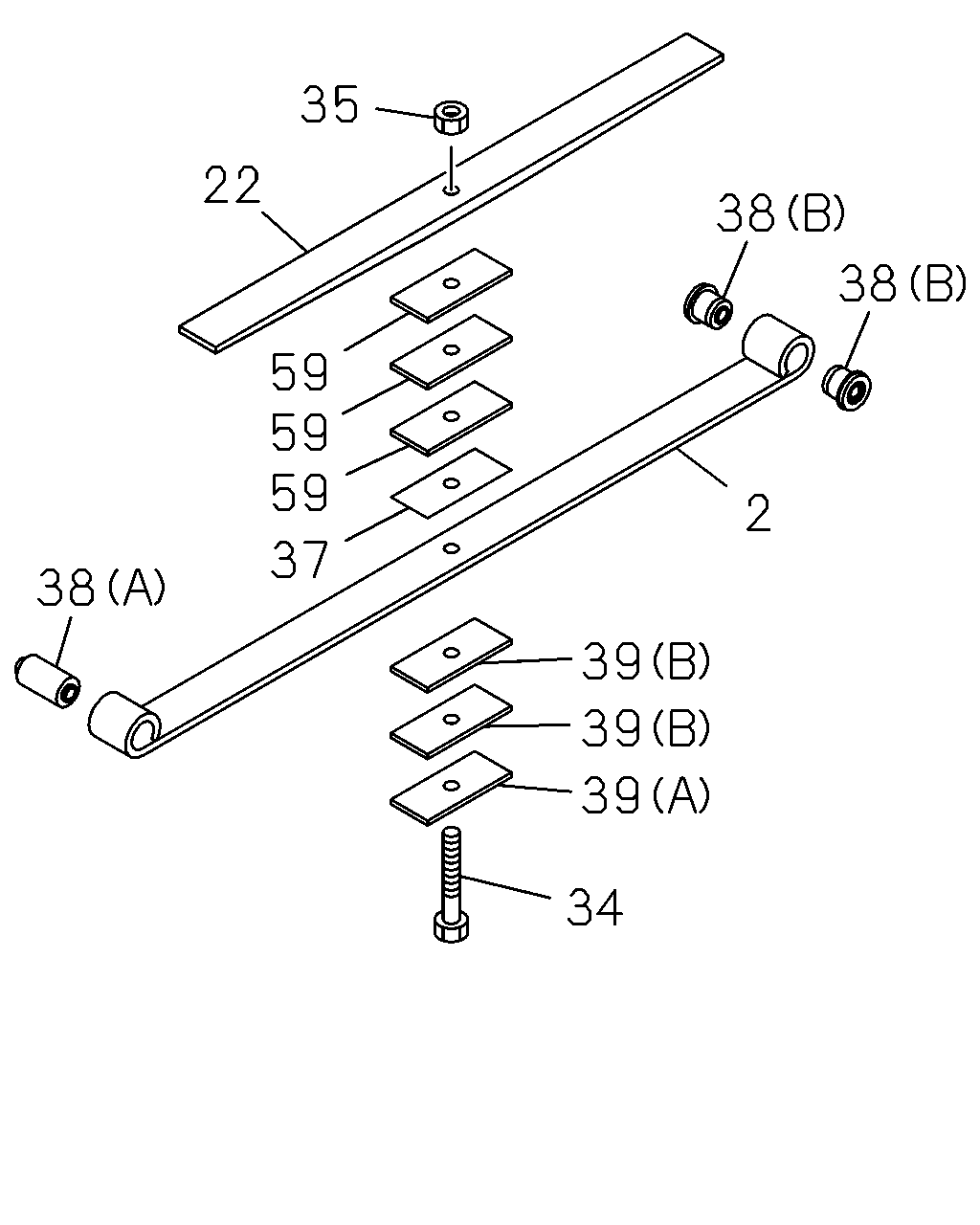

çizim 124904
35 22 38 38 59 59 59 2 37 38 39 39 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98033-692-1, 98033692 		8-98041-562-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98033-692-1, 98033692 		8-98041-563-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-98033-692-1, 98033692 		8-98040-307-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98033-692-1, 98033692 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98033-692-1, 98033692 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98033-692-1, 98033692 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98033-692-1, 98033692 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98033-692-1, 98033692 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
07.513, (A) ASM PART: A = 8-98033-692-1, 98033692 		8-98034-524-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
07.513, (B) ASM PART: A = 8-98033-692-1, 98033692 		8-98040-779-0 02 1 -
59 07.513 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-98033-692-1, 98033692 		8-98040-779-0 03 1 -
