◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51175 - NLS(EUROPE)LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#76002) — 10 parça

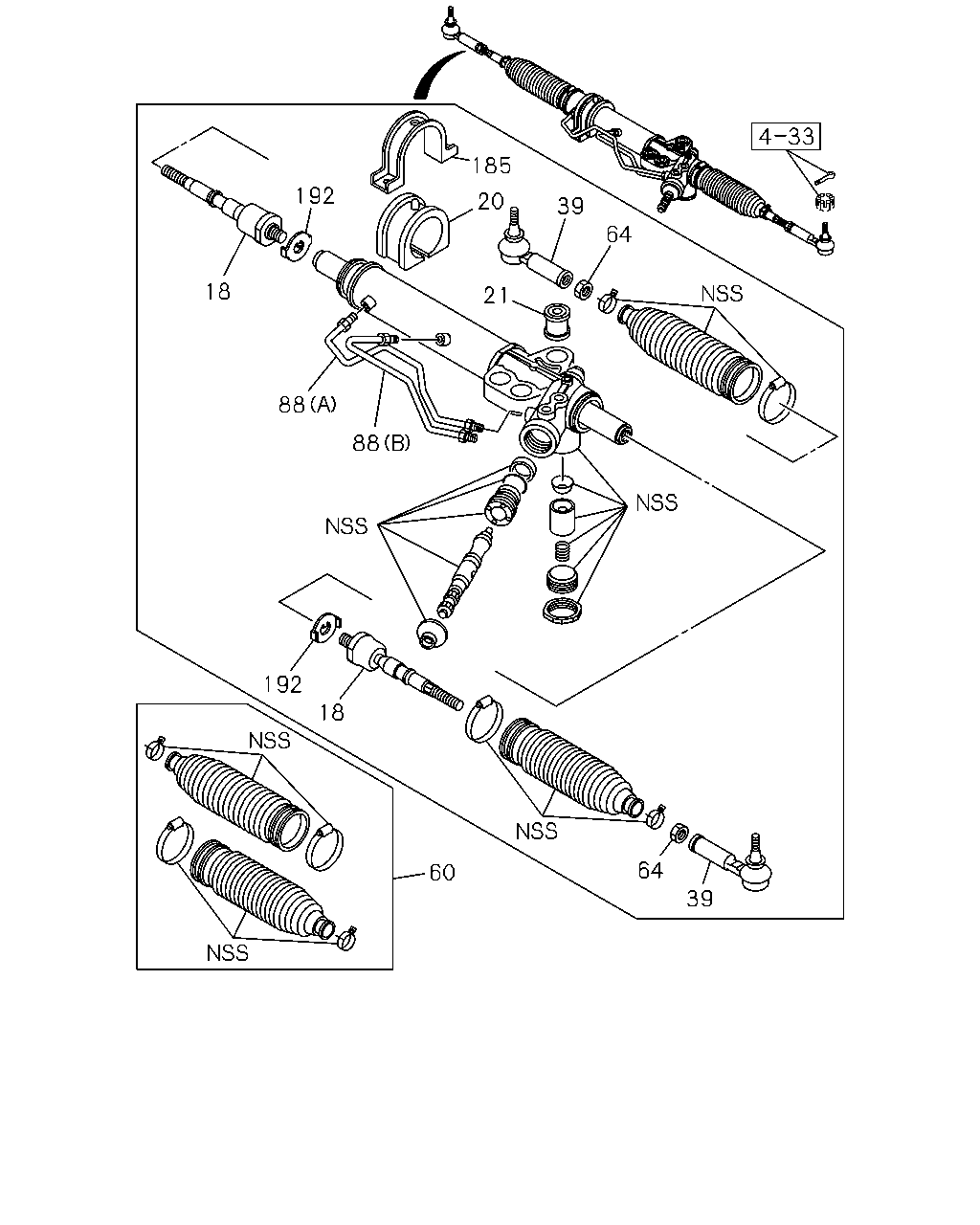

çizim 124120
185 192 20 39 64 18 21 88 88 192 18 64 60 39
BalonParca AdiParca NoAdetTipApplied Date
18 06.230 ROD ASM; INNER
ASM PART: A = 8-98080-380-2, 98080380 		8-97374-354-0 02 1 -
20 06.509 RUBBER; MTG
ASM PART: A = 8-98080-380-2, 98080380 		8-98061-373-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-98080-380-2, 98080380 		8-98061-372-0 03 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-98080-380-2, 98080380 		8-98008-838-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-98080-380-2, 98080380 		8-97357-199-0 01 1 -
64 06.242 NUT; ROD END OUTER TO INNER
03.330, M18 ASM PART: A = 8-98080-380-2, 98080380 		0-91111-518-0 02 1 -
88 06.671 PIPE; HSG TO VLV
(A) ASM PART: A = 8-98080-380-2, 98080380 		8-98111-355-0 01 1 -
88 06.671 PIPE; HSG TO VLV
(B) ASM PART: A = 8-98080-380-2, 98080380 		8-98111-357-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-98080-380-2, 98080380 		8-98111-323-0 01 1 -
192 06.521 WASHER; LK,JOINT
ASM PART: A = 8-98080-380-2, 98080380 		8-97357-196-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
