3-55 — BRAKE PIPING; OIL,REAR (#7600) — 52 parça

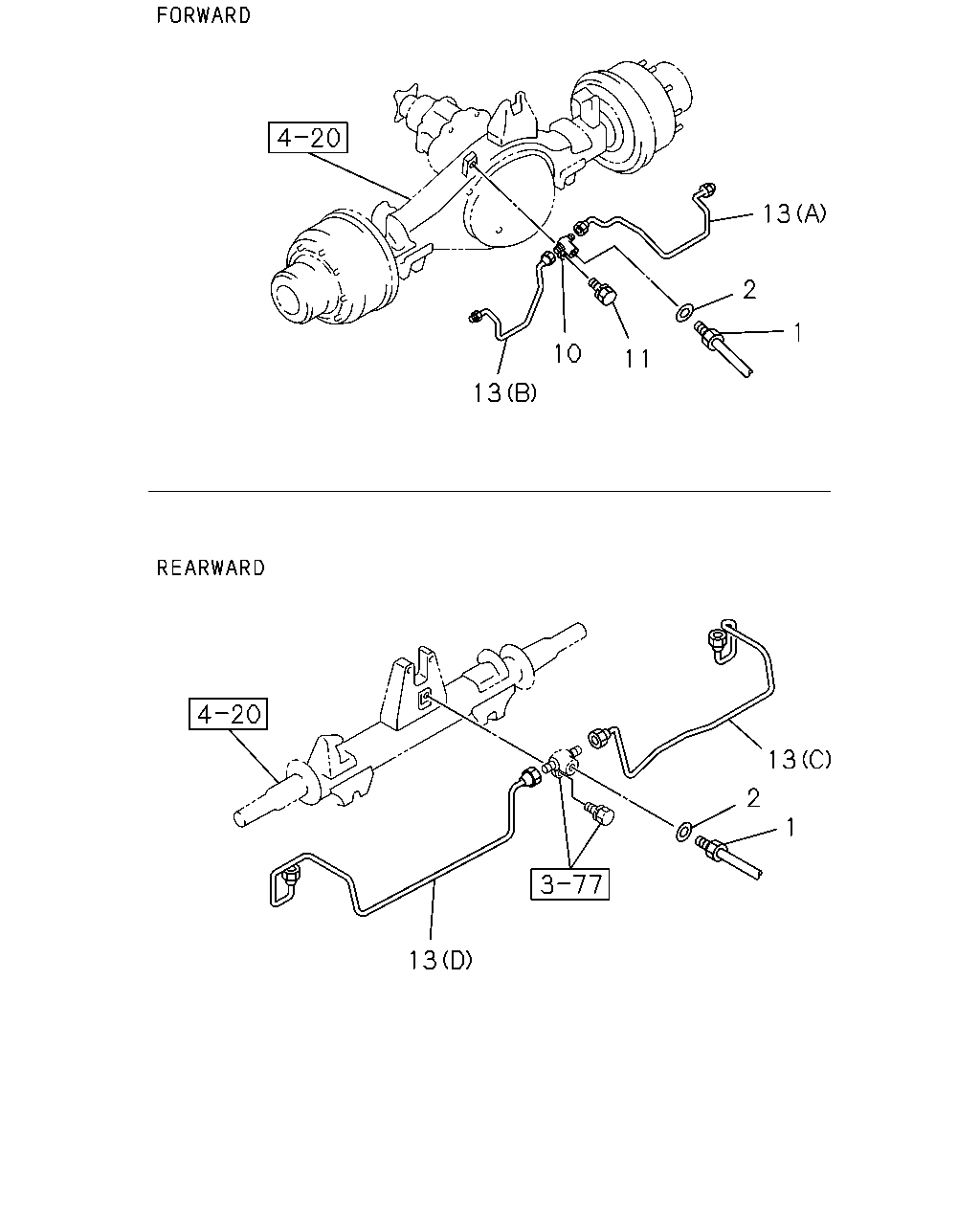

13 2 1 10 11 13 13 2 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK RWD RR L=600	0-05312-600-0	01	1	0101-
1	HOSE; FLEX,RR BRK FWD RR L=400	1-09364-461-0	01	1	0101-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0101-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0101-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0101-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0101-
13	PIPE; BRK,RR AXLE (B) FWD RR THA	8-97917-458-0	01	1	0101-
13	PIPE; BRK,RR AXLE (D) RWD RR THA	8-97917-464-0	01	1	0101-
13	PIPE; BRK,RR AXLE (A) FWD RR THA	8-97917-457-0	01	1	0101-
13	PIPE; BRK,RR AXLE (C) RWD RR THA	8-97917-463-0	01	1	0101-

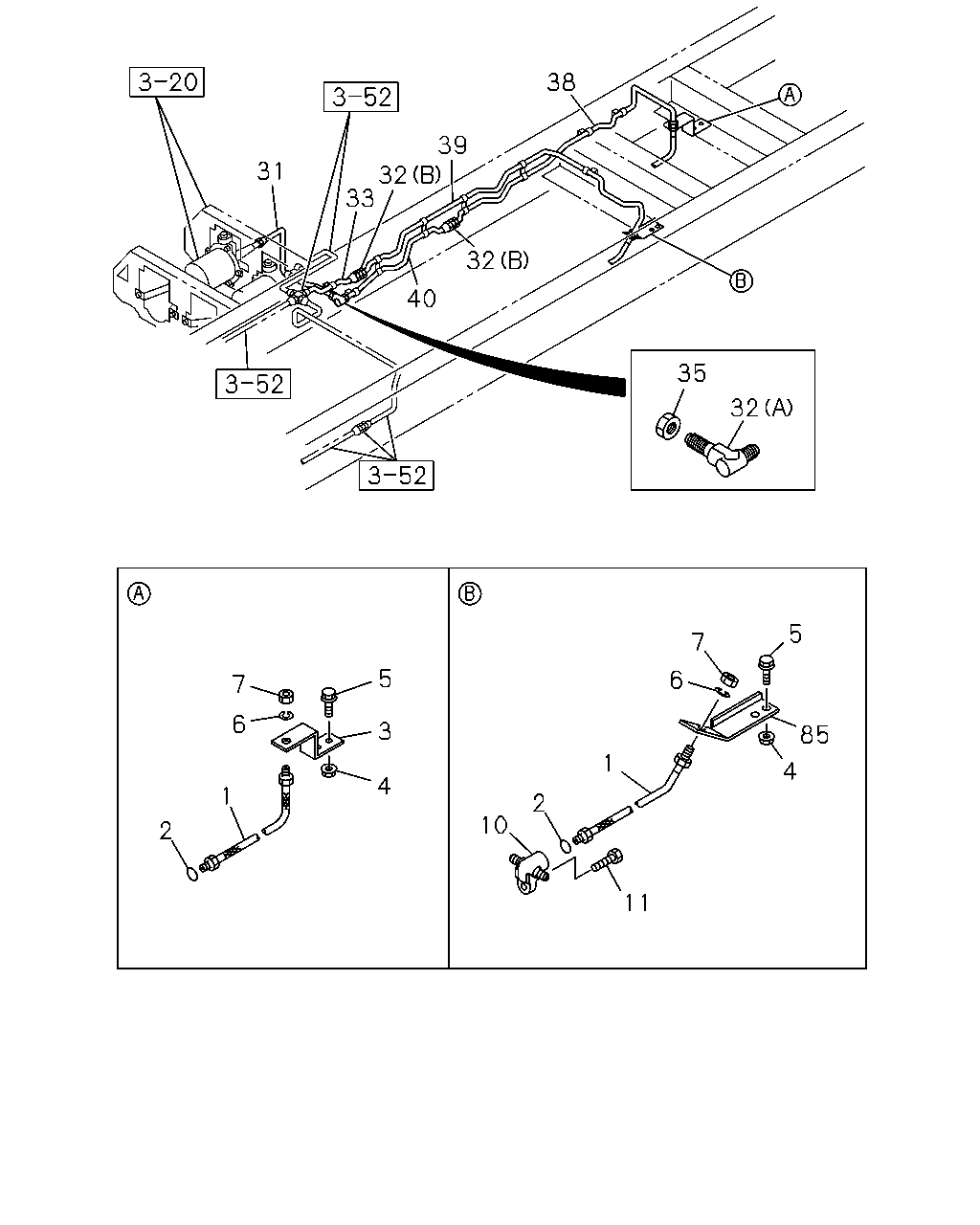

38 39 32 33 31 32 40 35 32 5 7 5 6 7 6 3 85 1 4 4 1 2 10 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK RWD RR L=600	0-05312-600-0	01	1	0101-
1	HOSE; FLEX,RR BRK FWD RR L=400	1-09364-461-0	01	1	0101-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0101-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0101-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-608-0	01	1	0101-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0101-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0101-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28680-830-0	02	1	0101-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28680-830-0	02	1	0101-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0101-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0101-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0101-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0101-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0101-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0101-
31	PIPE; OIL,AIR MASTER TO UNION L=574 THA	1-49161-389-0	01	1	0101-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0101-
32	UNION; OIL PIPE WHEEL BASE 5400MM<54W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) M12 L=40	9-09223-006-1	01	1	0101-
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	0101-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W> THA	8-97917-619-0	01	1	0101-0101
33	PIPE; OIL,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 5400MM<54W> THA	8-97917-619-0	01	1	0102-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W> THA	8-97917-619-0	01	1	0102-
33	PIPE; OIL,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 5400MM<54W> L=1010 THA	8-97917-620-0	01	1	0101-0101
33	PIPE; OIL,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 5800MM<58W> L=1010 THA	8-97917-620-0	01	1	0101-0101
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> L=1010 THA	8-97917-620-0	01	1	0102-
33	PIPE; OIL,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 5400MM<54W> L=598 THA	1-49161-387-0	01	1	0101-
33	PIPE; OIL,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 5400MM<54W> THA	8-97917-618-0	01	1	0101-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> L=1010 SERVICED BY L=1100 THA	1-47426-351-0	01	1	0106-
35	NUT; UNION M12	9-09840-280-0	01	1	0101-
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5200MM<52W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> L=2438 THA	8-97916-206-0	01	1	0101-
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5400MM<54W> L=2509 THA	8-97916-205-0	01	1	0101-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5200MM<52W> L=2852 THA	8-97917-623-0	01	1	0101-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W> THA	8-97917-931-0	01	1	0101-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HE1 TC ENG<57L> WHEEL BASE 5400MM<54W> THA	8-97921-516-0	01	1	0101-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HH1 STD ENG<65L> WHEEL BASE 5400MM<54W> L=2452 THA	8-97917-622-0	01	1	0101-
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5200MM<52W> L=1072 THA	8-97917-631-0	01	1	0101-
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5800MM<58W> L=1675 THA	8-97917-632-0	01	1	0101-
40	PIPE; BRK,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 5400MM<54W> THA	8-97921-517-0	01	1	0101-
40	PIPE; BRK,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 6300MM<63W> L=2173 THA	8-97917-633-0	01	1	0101-
40	PIPE; BRK,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 5400MM<54W> L=1224 THA	8-97917-629-0	01	1	0101-
40	PIPE; BRK,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 6300MM<63W> L=2174 THA	8-97917-630-0	01	1	0101-
85	BRACKET; FLEX HOSE,FWD RR	1-47476-068-0	01	1	0101-
