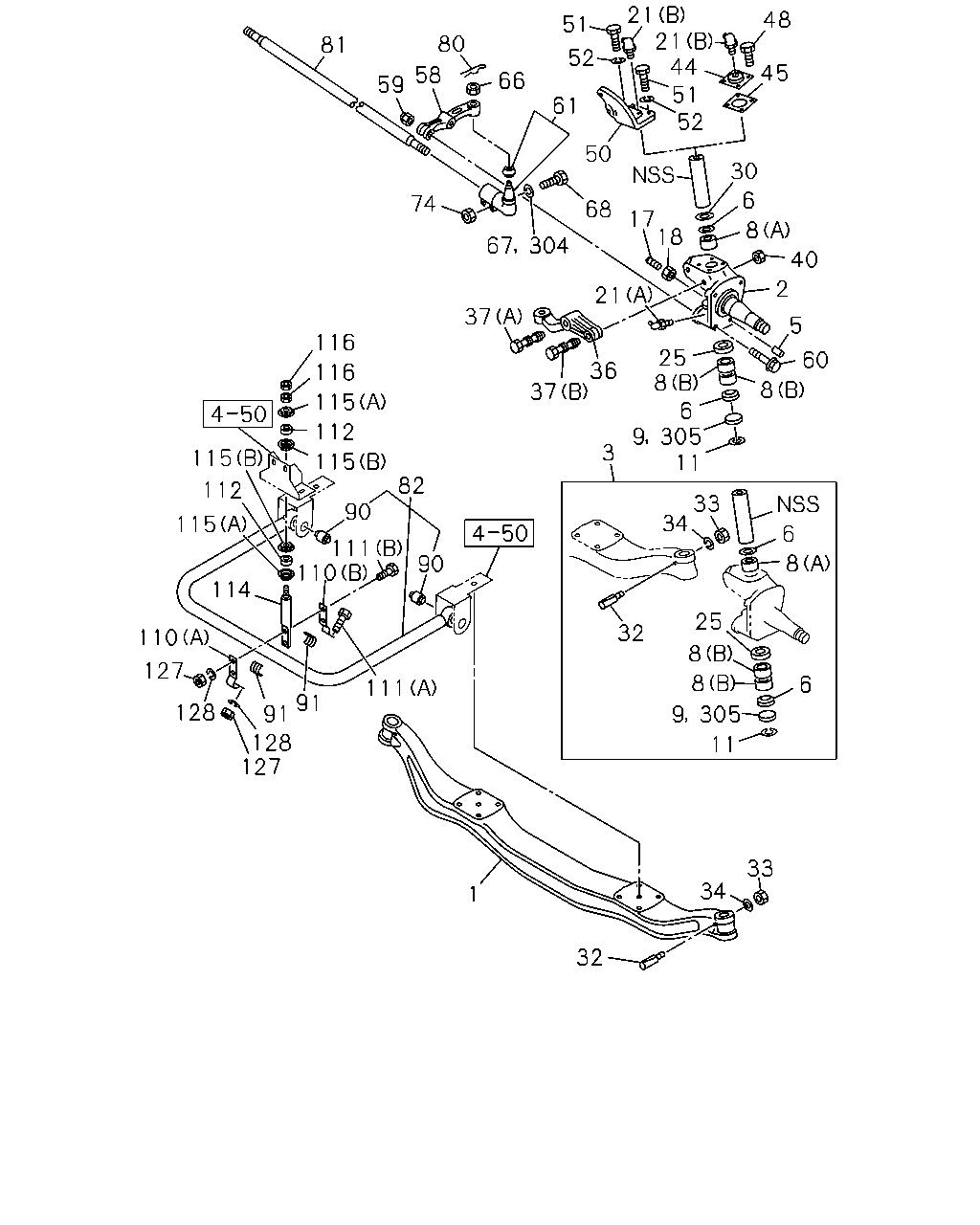

4-10 — FRONT AXLE (#760) — 119 parça

21 21 44 51 52 48 51 80 81 52 45 58 66 59 61 50 30 6 74 68 17 18 8 67 304 40 2 21 37 5 116 25 8 6 305 11 60 36 37 116 8 115 112 115 9 3 115 82 112 33 34 90 115 6 111 110 8 90 114 25 32 110 8 127 8 6 111 91 128 91 305 9 128 127 11 33 34 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRT AXLE GREASE NON MAINTENANCE<B3L> AUSTRALIA EQUIPMENT(RR3)	1-43111-113-0	01	1	9204-9208
1	AXLE; FRT FRT AXLE GREASE NON MAINTENANCE<B3L> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-113-0	01	1	9209-9302
1	AXLE; FRT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-113-1	01	1	9303-9312
1	AXLE; FRT	1-43111-113-1	01	1	9401-
1	AXLE; FRT EXC. FRT AXLE GREASE NON MAINTENANCE<B3L>	1-43111-102-1	01	1	9204-9208
1	AXLE; FRT FRT AXLE GREASE NON MAINTENANCE<B3L> EXC. AUSTRALIA EQUIPMENT(RR3)	1-43111-102-1	01	1	9204-9208
1	AXLE; FRT EXC. FRT AXLE GREASE NON MAINTENANCE<B3L>	1-43111-102-1	01	1	9209-9302
1	AXLE; FRT FRT AXLE GREASE NON MAINTENANCE<B3L> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-102-1	01	1	9209-9302
1	AXLE; FRT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-43111-102-2	01	1	9303-9312
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9204-9404
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9204-9404
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-
3	KING PIN SET FRT AXLE GREASE NON MAINTENANCE<B3L> AUSTRALIA EQUIPMENT(RR3)	1-87830-640-0	02	1	9204-9208
3	KING PIN SET FRT AXLE GREASE NON MAINTENANCE<B3L> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-640-0	02	1	9209-9302
3	KING PIN SET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-640-0	02	1	9303-9404
3	KING PIN SET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-738-0	02	1	9405-9412
3	KING PIN SET	1-87830-738-0	02	1	9501-
3	KING PIN SET EXC. FRT AXLE GREASE NON MAINTENANCE<B3L>	1-87830-039-5	02	1	9204-9208
3	KING PIN SET FRT AXLE GREASE NON MAINTENANCE<B3L> EXC. AUSTRALIA EQUIPMENT(RR3)	1-87830-039-5	02	1	9204-9208
3	KING PIN SET EXC. FRT AXLE GREASE NON MAINTENANCE<B3L>	1-87830-039-5	02	1	9209-9302
3	KING PIN SET FRT AXLE GREASE NON MAINTENANCE<B3L> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-039-5	02	1	9209-9302
3	KING PIN SET EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-039-5	02	1	9303-9404
3	KING PIN SET EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-87830-737-0	02	1	9405-9412
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9204-9404
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-
6	SEAL; KING PIN	9-09926-024-0	04	1	9204-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-242-0	04	1	9204-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-243-0	02	1	9204-
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9204-9404
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9204-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9204-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9204-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9204-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9204-
25	BEARING; THRUST,KING PIN FRT AXLE GREASE NON MAINTENANCE<B3L> AUSTRALIA EQUIPMENT(RR3) NSK	1-09829-043-0	02	1	9204-9208
25	BEARING; THRUST,KING PIN FRT AXLE GREASE NON MAINTENANCE<B3L> NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NSK	1-09829-043-0	02	1	9209-9302
25	BEARING; THRUST,KING PIN NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NSK	1-09829-043-2	02	1	9303-9412
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9501-
25	BEARING; THRUST,KING PIN EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> NTN	1-09829-027-1	02	1	9204-9208
25	BEARING; THRUST,KING PIN FRT AXLE GREASE NON MAINTENANCE<B3L> EXC. AUSTRALIA EQUIPMENT(RR3) NTN	1-09829-027-1	02	1	9204-9208
25	BEARING; THRUST,KING PIN EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> NTN	1-09829-027-1	02	1	9209-9302
25	BEARING; THRUST,KING PIN FRT AXLE GREASE NON MAINTENANCE<B3L> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NTN	1-09829-027-1	02	1	9209-9302
25	BEARING; THRUST,KING PIN EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) NTN	1-09829-027-1	02	1	9303-9412
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9204-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9204-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9204-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9204-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9204-
36	ARM; KNUCKLE	1-43133-057-1	01	1	9204-9404
36	ARM; KNUCKLE	1-43133-063-0	01	1	9405-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-0	01	1	9204-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-2	01	1	9204-
40	NUT; KNUCKLE ARM M22	9-09844-670-0	02	1	9204-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9505-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9505-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9505-
50	BRACKET; POWER CHAMBER	1-43145-010-1	01	1	9204-9504
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-1	01	1	9505-
50	BRACKET; POWER CHAMBER	1-43145-009-1	01	1	9204-9504
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-1	01	1	9505-
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	9204-9504
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	0-10806-260-0	02	1	9505-
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	9204-9504
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	0-20801-228-0	06	1	9505-
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9204-9504
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9505-
58	ARM; TIE ROD	1-43135-036-0	01	1	9204-9404
58	ARM; TIE ROD	1-43135-043-0	01	1	9405-
58	ARM; TIE ROD	1-43134-036-0	01	1	9204-9404
58	ARM; TIE ROD	1-43134-043-0	01	1	9405-
59	NUT; TIE ROD ARM M22	9-09844-670-0	04	1	9204-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-1	04	1	9204-
61	ROD END; TIE ROD FRT AXLE GREASE NON MAINTENANCE<B3L>	1-43150-627-1	01	1	9204-9302
61	ROD END; TIE ROD	1-43150-627-2	01	1	9303-
61	ROD END; TIE ROD FRT AXLE GREASE NON MAINTENANCE<B3L>	1-43150-626-1	01	1	9204-9302
61	ROD END; TIE ROD	1-43150-626-2	01	1	9303-
61	ROD END; TIE ROD EXC. FRT AXLE GREASE NON MAINTENANCE<B3L>	1-43150-662-1	01	1	9204-9302
61	ROD END; TIE ROD EXC. FRT AXLE GREASE NON MAINTENANCE<B3L>	1-43150-661-1	01	1	9204-9302
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9204-
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9204-9207
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9204-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9204-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9204-
81	ROD; TIE	9-43151-119-1	01	1	9204-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-072-1	01	1	9204-9406
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5)	1-51770-072-1	01	1	9407-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) W/BUSH	1-51770-041-2	01	1	9407-
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-067-0	02	1	9204-9406
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5)	1-51779-067-0	02	1	9407-
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3)	1-51779-066-0	02	1	9407-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9204-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-1	02	1	9204-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9204-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9204-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9204-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9204-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	9204-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	9204-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	9204-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9204-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9204-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9204-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9505-
