◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#76) — 44 parça
çizim 27364
123 11 60 57 60
BalonParca AdiParca NoAdetTipApplied Date A B
11 ACTUATOR; DOOR LK,FRT
POWER WINDOW<A30> 		1-79997-349-0 01 1 9206- ●
57 SWITCH; DOOR LK
AUTO DOOR LOCK<AU4> 		1-79998-672-0 01 1 9211- ●
60 SCREW; DOOR LK SW
AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9211- ●
123 ROD; ACTUATOR,DOOR LOCK
POWER WINDOW<A30> 		1-74517-163-0 01 1 9206- ●

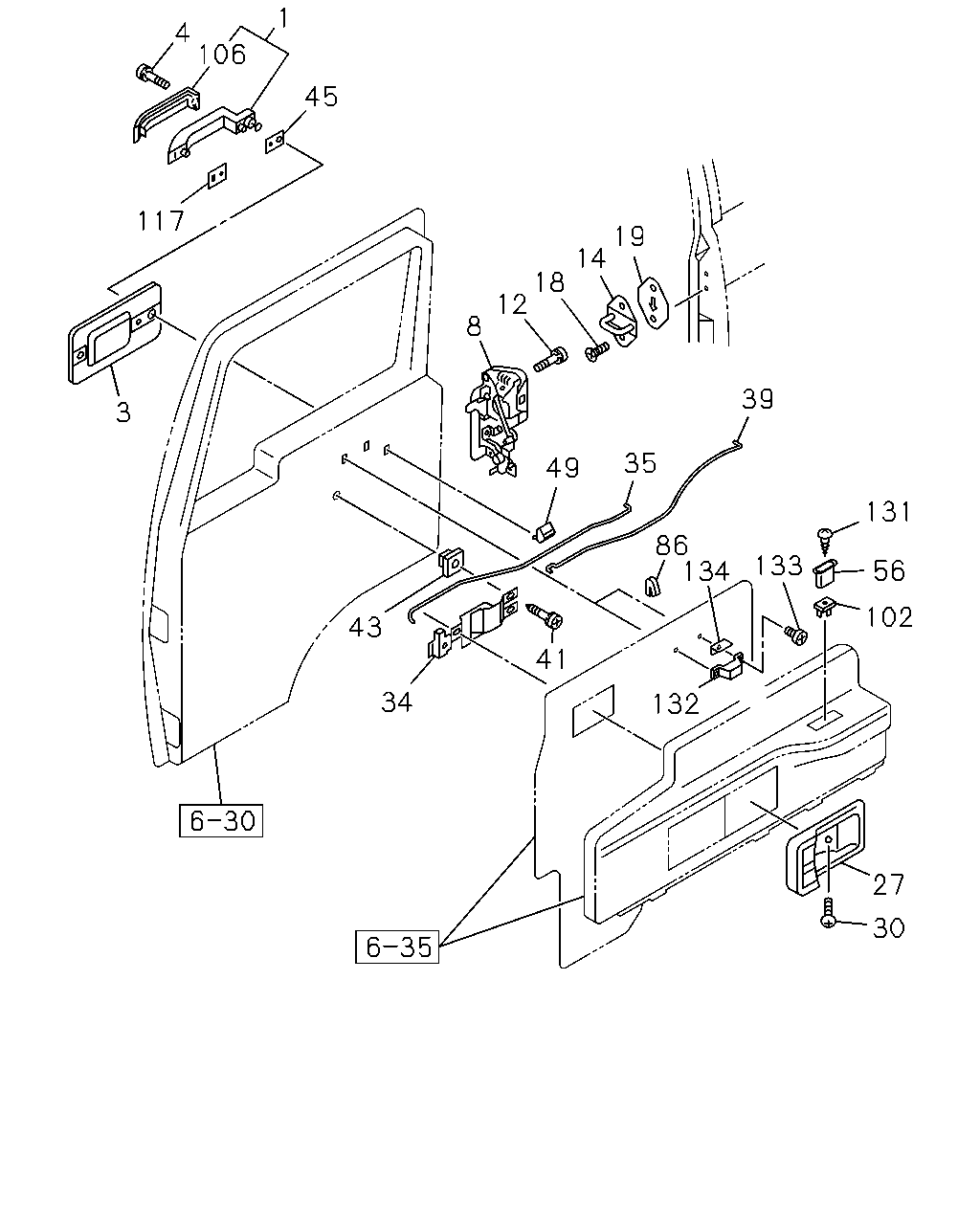

çizim 92605
1 4 106 45 117 3 19 14 18 12 8 39 35 49 43 34 41 132 86 134 133 131 56 102 27 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 1-74617-038-2 02 1 9202- ● ●
3 BASE; HANDLE,DOOR OUTSIDE
AUSTRALIA EQUIPMENT(RR3) 		1-74617-024-5 02 1 9202- ● ●
4 SCREW; OUTSIDE HANDLE,DOOR
M6X16 W/LK&PL WASHER 		1-09981-439-0 04 1 9202- ● ●
8 LOCK; DOOR,FRT DOOR 1-74517-162-0 01 1 9202- ● ●
8 LOCK; DOOR,FRT DOOR 1-74517-158-0 01 1 9202- ● ●
12 SCREW; DOOR LK
M6X12 W/LK&PL WASHER 		1-09981-430-0 02 1 9202- ● ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9202- ● ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 9202- ● ●
14 STRIKER; FRT DOOR 1-74527-001-1 02 1 9202- ● ●
18 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9202- ● ●
19 SHEET; ADJ,DOOR STRIKER
T=1.4 		8-94282-546-0 AR 1 9202- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK 		8-94201-500-1 01 1 9202- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK 		8-94201-499-1 01 1 9202- ● ●
30 SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD 		0-70580-410-0 02 1 9202- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74717-019-4 01 1 9202- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74717-018-4 01 1 9202- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74517-115-4 01 1 9202- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74517-114-4 01 1 9202- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74517-121-1 01 1 9202- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74517-120-1 01 1 9202- ● ●
41 SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 04 1 9202- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR 1-09983-061-0 04 1 9202- ● ●
45 SEAT; DOOR OUTSIDE HANDLE,RR
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-74618-011-1 02 1 9202- ● ●
49 CLAMP; DOOR LOCK LINK ROD 1-74517-116-0 02 1 9202- ● ●
56 ESCUTCHEON; LOCK KNOB
EXC. THAILAND KD SPECIAL<PT6> 		1-73337-195-2 02 1 9202-9212 ● ●
56 ESCUTCHEON; LOCK KNOB 1-73337-195-2 02 1 9301- ● ●
86 SEAL; DOOR LOCK LINK 1-76777-101-2 02 1 9202- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. THAILAND KD SPECIAL<PT6> 		1-09983-061-0 04 1 9202-9205 ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. THAILAND KD SPECIAL<PT6> 		1-09983-061-0 04 1 9206-9212 ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
POWER WINDOW<A30> 		1-09983-061-0 04 1 9206-9212 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL 1-09983-061-0 04 1 9301- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
POWER WINDOW<A30> 		1-09983-061-0 04 1 9301- ●
106 COVER; DOOR,OUTSIDE HANDLE 1-74617-033-1 02 1 9202- ● ●
117 SEAT; DOOR OUTSIDE HANDLE,FRT
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-74618-010-0 02 1 9202- ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
EXC. THAILAND KD SPECIAL<PT6> M6X16 TAPPING W/PL WASHER 		0-74110-616-0 04 1 9202- ● ●
132 STAY; DOOR PULL
POWER WINDOW<A30> 		1-73337-321-0 02 1 9206- ●
132 STAY; DOOR PULL
EXC. POWER WINDOW<A30>,THAILAND KD SPECIAL<PT6> 		1-73337-196-6 02 1 9202- ●
132 STAY; DOOR PULL 1-73337-196-6 02 1 9202- ●
133 SCREW; DOOR PULL STAY
EXC. THAILAND KD SPECIAL<PT6> M6X12 W/LK&PL WASHER 		1-09981-430-0 04 1 9202- ● ●
134 RUBBER; CUSHION,DOOR PULL STAY
EXC. THAILAND KD SPECIAL<PT6> 		1-73337-197-2 02 1 9202- ● ●
