4-31 — STEERING COLUMN AND SHAFT
(#75998) — 38 parça
◀

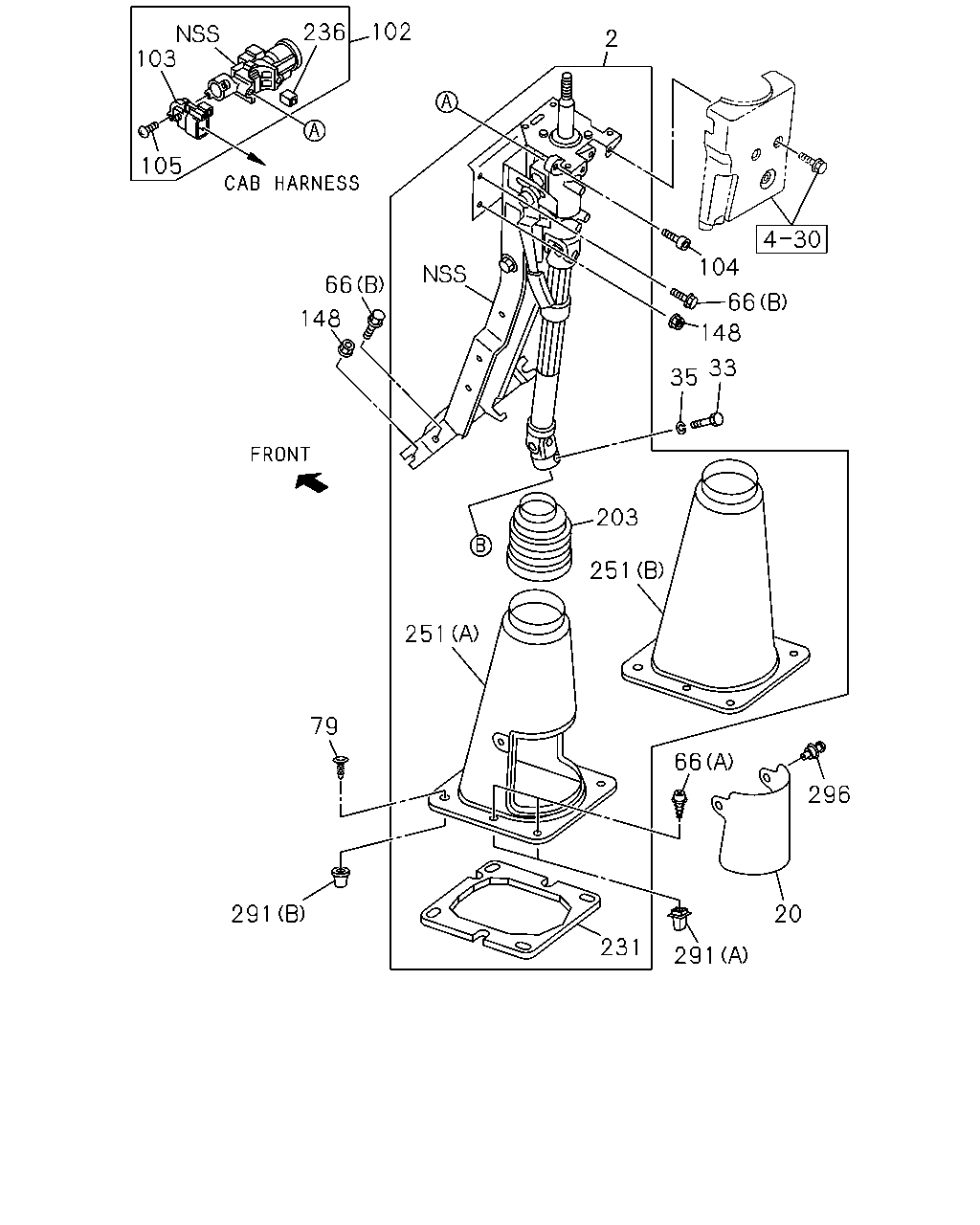

[431A] FIXING;STEERING SHAFT (27 parça)
[431A] FIXING;STEERING UNIT (11 parça)
▶
102
236
103
2
105
104
66
66
148
148
33
35
203
251
251
79
66
296
291
20
231
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
06.518 SHAFT ASM; STRG
8-97414-962-1
01
1
0806-1006
2
06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK
8-97418-803-1
01
1
1007-
20
06.525 COVER; STRG SHAFT
BLACK
8-97405-159-0
01
1
0806-1006
20
06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97405-159-0
01
1
1007-
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
0806-
35
06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2
0-91510-808-0
01
1
0806-
66
06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1201-
66
06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
04
1
0806-
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0806-1112
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1201-
79
06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK
8-94363-776-0
02
1
0806-
102
06.500 LOCK ASM; STRG
8-97387-036-0
01
1
0806-
103
02.188 SWITCH; IGNITION
8-98045-349-0
01
1
0806-
104
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
0806-
105
06.500 SCREW; IGN SW
8-98045-346-0
02
1
0806-
148
06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
03
1
0806-
203
06.525 BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
0806-1006
203
06.525 BOOT; STRG COLUMN LWR
MANUAL TILT CAB<RWZ>
8-98137-331-0
01
1
1007-
231
06.525 SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
0806-1006
231
06.525 SEAL; RUBBER,STRG COLUMN
MANUAL TILT CAB<RWZ>
8-98137-329-0
01
1
1007-
236
02.195 SWITCH; DOOR WARNING,STRG LOCK
8-98045-350-0
01
1
0806-
251
06.518 COVER; LWR
(A) BLACK
8-97417-049-0
01
1
0806-1006
251
06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK
8-97418-804-0
01
1
1007-
291
06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15
8-94463-268-1
04
1
0806-
291
06.518 GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
0806-
296
06.525 CLIP; COVER
BLACK
8-97868-409-0
01
1
0806-1006
296
06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97868-409-0
01
1
1007-
95
8
1
95
152
271
271
149
8
271
149
95
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98080-380-2
01
1
0806-
8
06.525 JOINT; UNIVERSAL
(A)
8-98001-484-1
01
1
0806-0806
8
06.525 JOINT; UNIVERSAL
(B)
8-98115-713-0
01
1
0806-
95
06.509 BOLT; STRG UNIT
(A) M14X40 FLANGE
0-28851-440-0
02
1
0806-
95
06.509 BOLT; STRG UNIT
06.525 (B) M14X80 FLANGE
0-28851-480-0
01
1
0806-
95
06.509 BOLT; STRG UNIT
(C) M14X70 FLANGE
0-29261-470-0
02
1
0806-
96
06.509 NUT; STRG UNIT
00.429 M14 FLANGE
0-91180-214-0
01
1
0806-
149
06.525 BOLT; GEAR BOX
M8X30
8-97359-615-0
02
1
0806-
152
00.796 WASHER; LK,STRG UNIT
03.704 ID=15 OD=40
9-09851-995-0
01
1
0806-
271
06.514 WASHER; LK,GEAR BOX
02.559 (A) ID=8.2
0-91510-808-0
02
1
0806-
271
06.514 WASHER; LK,GEAR BOX
(B)
8-97354-092-0
01
1
0806-
