Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

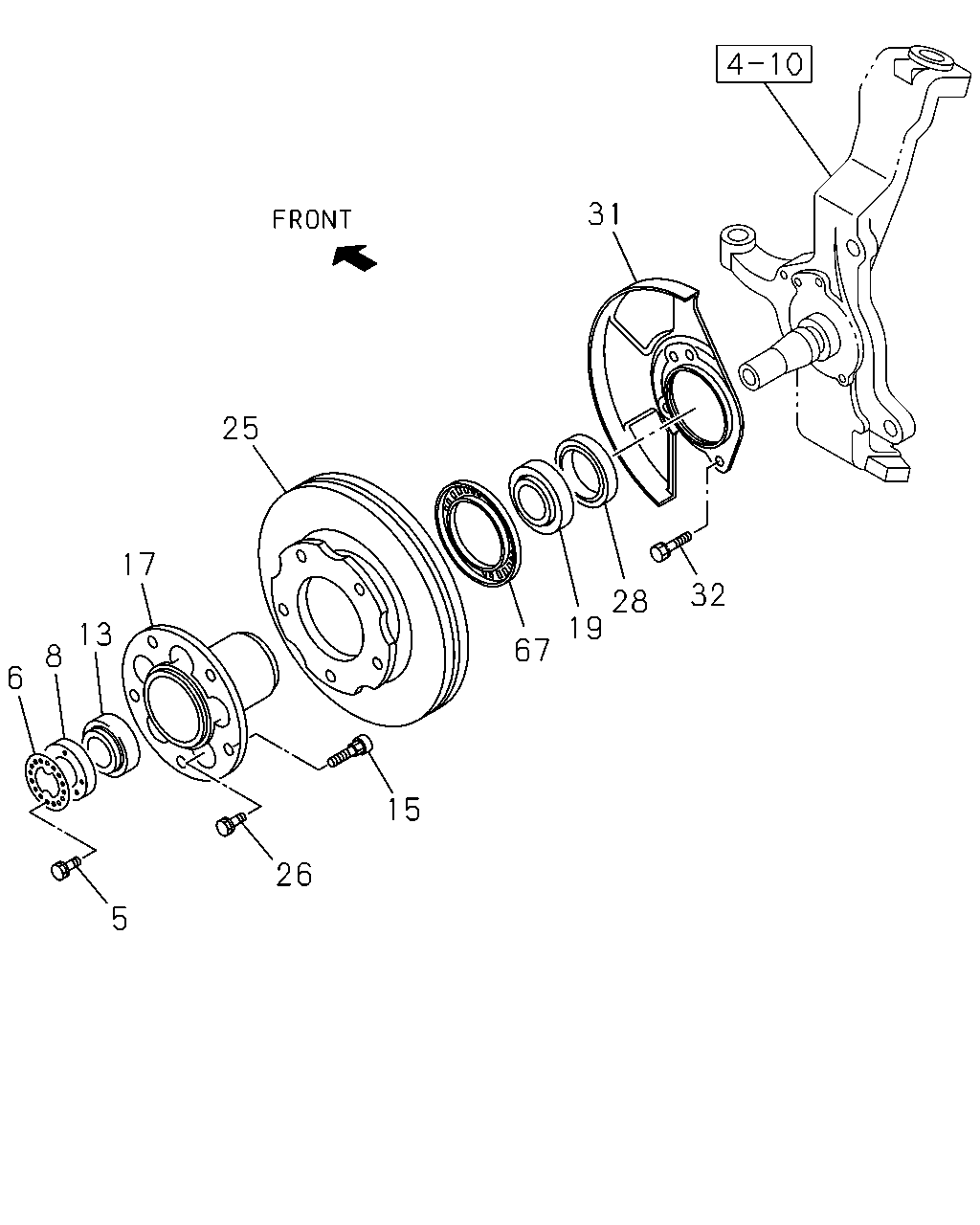

4-11 — FRONT HUB AND DRUM OR ROTOR
(#75991) — 17 parça
31
25
17
32
28
19
13
67
8
6
15
26
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
06.321 BOLT; LK WASHER
M6X10
8-98030-649-0
04
1
0806-
6
05.812 WASHER; LK,FRT HUB
8-94368-742-0
02
1
0806-
8
05.812 NUT; ADJ,FRT HUB
8-94368-741-1
02
1
0806-
13
06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK
8-94336-289-0
02
1
1206-
13
06.313 BEARING; HUB OUTER,FRT AXLE
NTN
8-98008-156-1
02
1
0806-
15
05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD
8-98028-533-1
05
1
0806-
15
05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD
8-98028-532-1
05
1
0806-
17
06.307 HUB; FRT AXLE
8-98049-165-0
02
1
0806-
19
06.311 BEARING; HUB INNER,FRT AXLE
8-98008-153-0
02
1
0806-
25
05.809 ROTOR; DISC BRK,FRT
8-97077-346-3
02
1
0806-1309
25
05.809 ROTOR; DISC BRK,FRT
8-98248-894-0
02
1
1310-
26
05.812 BOLT; BRK,DISC TO HUB
8-98021-781-0
10
1
0806-
28
06.326 SEAL; OIL,FRT HUB
8-97211-082-0
02
1
0806-
31
04.665 COVER; DUST,FRT BRAKE
8-98001-347-0
01
1
0806-
31
04.665 COVER; DUST,FRT BRAKE
8-98001-346-0
01
1
0806-
32
04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-98029-928-0
06
1
0806-
67
05.811 ROTOR; SENSOR
8-97387-157-1
02
1
0806-
