Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

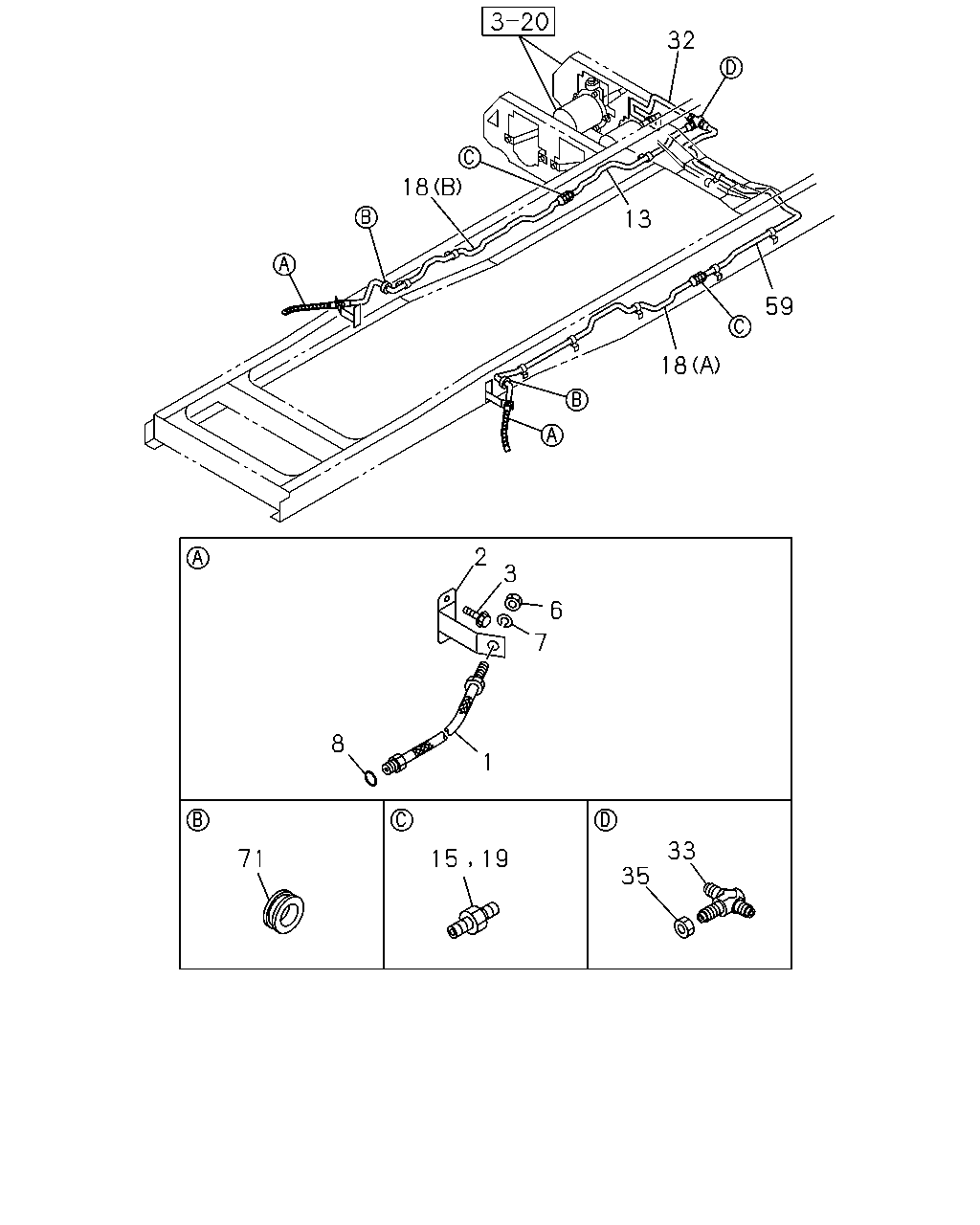

3-52 — BRAKE PIPING; OIL,FRONT
(#7599) — 18 parça
32
18
13
59
18
2
3
6
7
8
1
33
71
15
19
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610
0-05312-610-0
02
1
0101-
2
BRACKET; FLEX HOSE,FRT BRK
THA
1-47476-817-0
02
1
0101-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE
0-28680-820-0
04
1
0101-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
0101-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
9-09150-512-0
02
1
0101-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
0101-
13
PIPE; OIL,UNION TO UNION
THA
8-97921-754-0
01
1
0101-
15
JOINT; OIL PIPE
M12 L=40
9-09223-006-1
01
1
0101-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1620 THA
8-97919-377-0
01
1
0101-0106
18
PIPE; OIL,UNION TO FRT FLEX HOSE
THA
8-97922-127-0
01
1
0107-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2516 THA
8-97917-605-0
01
1
0101-0101
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) THA
8-97921-831-0
01
1
0102-
19
UNION; OIL PIPE
M12 L=40
9-09223-006-1
01
1
0101-
32
PIPE; OIL,AIR MASTER TO UNION
L=774 THA
8-97917-599-0
01
1
0101-
33
UNION; OIL PIPE
1-09656-019-1
01
1
0101-
35
NUT; UNION,OIL PIPE
M14
9-99111-414-0
01
1
0101-
59
PIPE; OIL,JOINT TO JOINT
L=1859 THA
8-97917-608-0
01
1
0101-
71
GROMMET; OIL PIPE
ID=28 OD=35 T=17 THA
9-09956-256-1
02
1
0101-
