Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#75988) — 213 parça

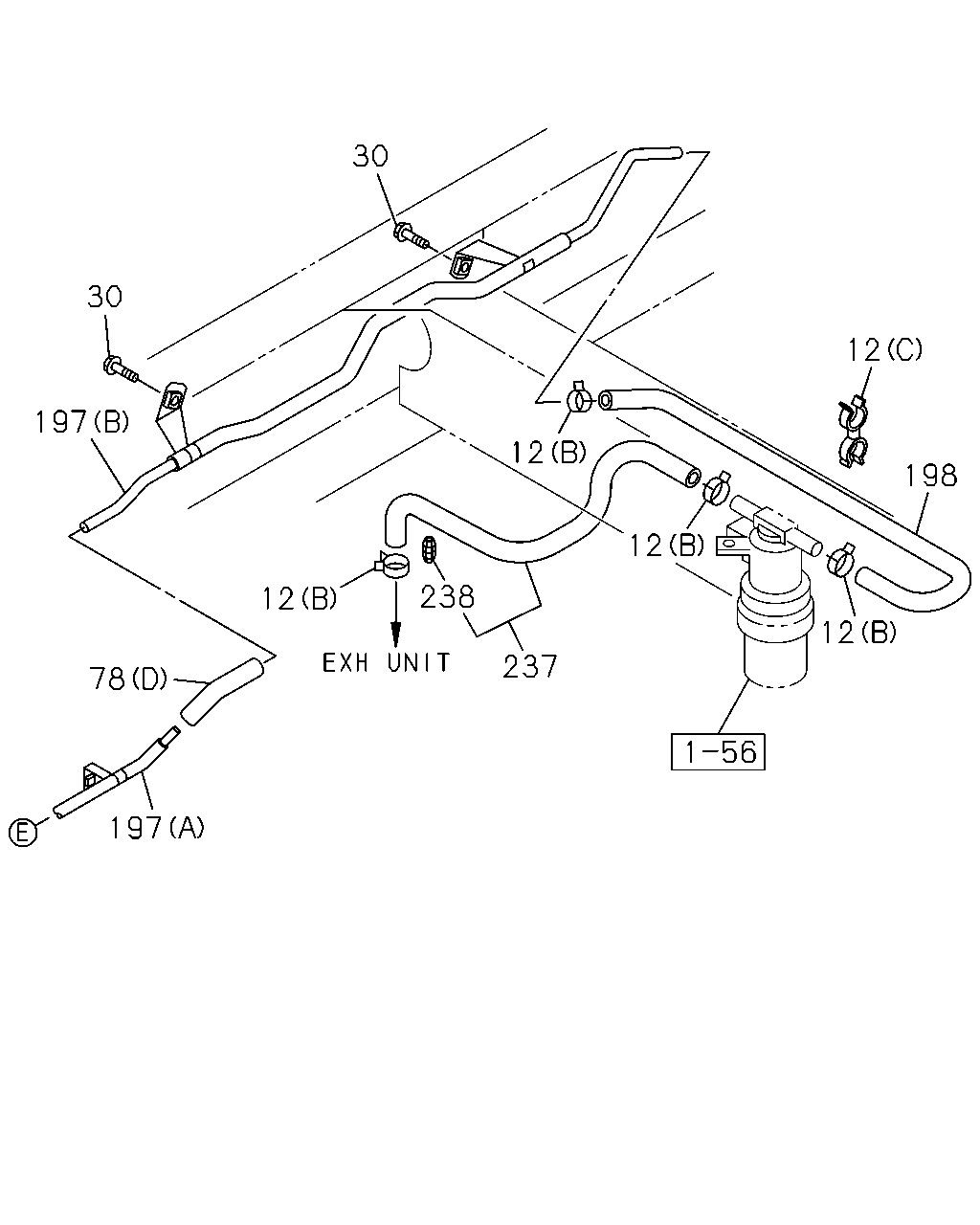

30 30 12 197 12 198 12 238 12 12 237 78 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	06	1	0806-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0906
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0906
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0806-0906
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	0806-0806
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0806-
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0806-0906
30	04.686 BOLT; CLIP,VAC PIPE CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0907-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98082-811-0	01	1	0806-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0907-
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	0806-0906
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97389-631-1	01	1	0907-
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=822	8-98118-860-0	01	1	0806-0906
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B) L=822	8-98118-860-0	01	1	0907-1403
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98258-155-0	01	1	1404-
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98041-640-0	01	1	0806-0906
198	04.931 HOSE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM)	8-98041-640-0	01	1	0907-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98036-102-0	01	1	1006-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98036-102-0	01	1	0806-0906
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98036-102-0	01	1	0907-1005
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1006-
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0806-0906
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	0907-1005

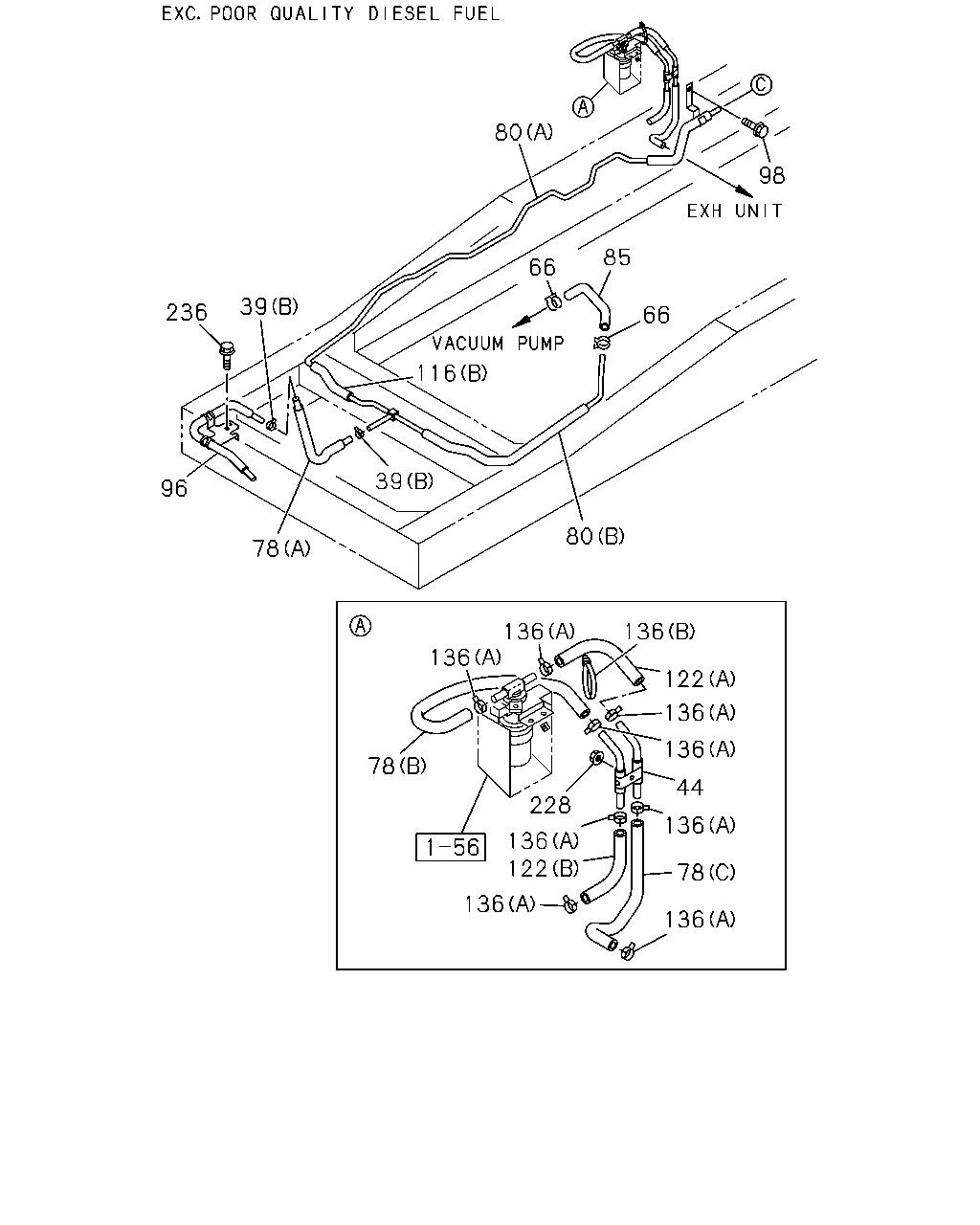

80 98 236 85 66 66 96 116 39 39 80 78 136 78 122 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0806-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0911
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0806-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0806-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0907-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98082-811-0	01	1	0806-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0907-
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0806-
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98106-596-0	01	1	0806-1010
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1011-
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	0806-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-732-1	01	1	0806-0909
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	0910-
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0806-
116	04.931 HOSE; VAC,M/VAC (B)	8-98033-137-1	01	1	0806-
116	04.931 HOSE; VAC,M/VAC (A)	8-98113-002-1	01	1	0806-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0806-0906
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0907-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0806-0906
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0907-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0812-0906
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0806-0906
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0907-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	08	1	0806-0811
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0812-0911
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
158	04.681 CLIP; HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0907-
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0806-
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0806-

153 118 172 189 152 159 158 154 162 172 156 172 154 172 81 172 155 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	04.930 PIPE; VAC,VSV	8-98001-363-1	01	1	0806-
118	04.930 BRACKET; VSV	8-98107-986-0	01	1	0806-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	0806-1302
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98222-432-0	01	1	1303-1310
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98256-404-0	01	1	1311-
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0806-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=270 SERVICED BY L=3000	0-04840-300-0	02	1	0806-
155	04.931 HOSE; VAC,AIR FILTER	8-98021-558-0	01	1	0806-
156	04.931 JOINT; 3 WAY (B) L=430	8-94467-387-0	01	1	0806-
156	04.931 JOINT; 3 WAY 04.681 (A)	8-98035-106-0	02	1	0806-
158	04.681 CLIP; HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0907-
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0806-
159	04.931 HOSE ASM; VAC	8-97370-921-0	01	1	0806-
162	04.931 HOSE; VAC	8-94481-279-1	01	1	0806-
172	04.930 CLIP; VAC HOSE (A) ID=14.5	8-94167-480-0	03	1	0806-
172	04.930 CLIP; VAC HOSE (B) ID=16	8-94238-568-0	02	1	0806-0911
172	04.930 CLIP; VAC HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
189	04.930 CONNECTOR 04.931	8-94481-279-1	01	1	0806-

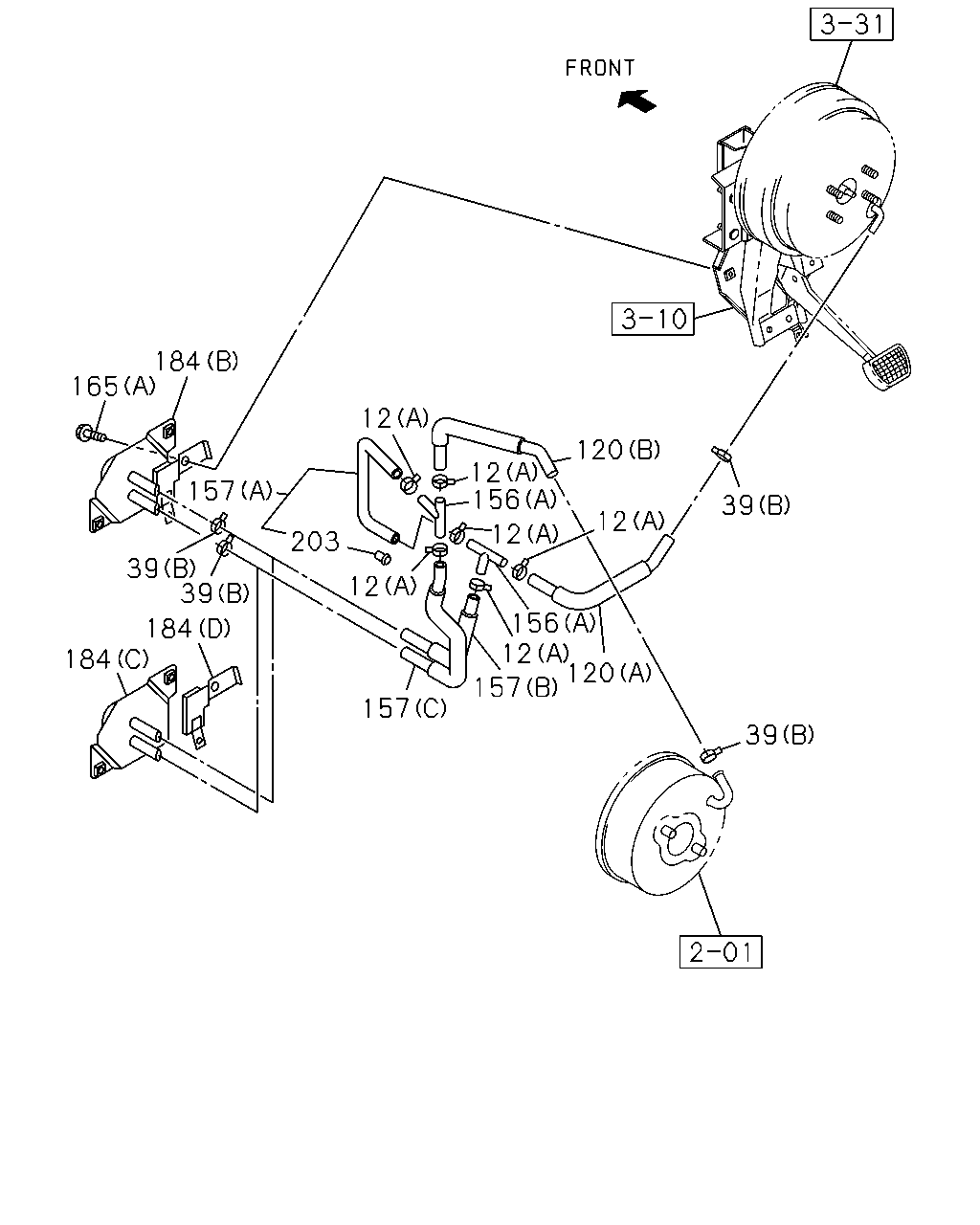

184 165 12 120 12 156 157 39 12 12 203 39 39 12 156 12 120 157 184 184 157 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	06	1	0806-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0906
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0906
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0806-0906
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	0806-0806
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0806-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0806-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0911
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0806-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98060-856-2	01	1	0806-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-98060-857-3	01	1	0806-
156	04.931 JOINT; 3 WAY (B) L=430	8-94467-387-0	01	1	0806-
156	04.931 JOINT; 3 WAY 04.681 (A)	8-98035-106-0	02	1	0806-
157	04.931 HOSE; JOINT (A)	8-98060-858-1	01	1	0806-
157	04.931 HOSE; JOINT (B)	8-98060-859-2	01	1	0806-
157	04.931 HOSE; JOINT (C)	8-98060-860-2	01	1	0806-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0806-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-1002
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1003-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0806-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-346-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1102-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0806-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0806-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1312-
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	0806-

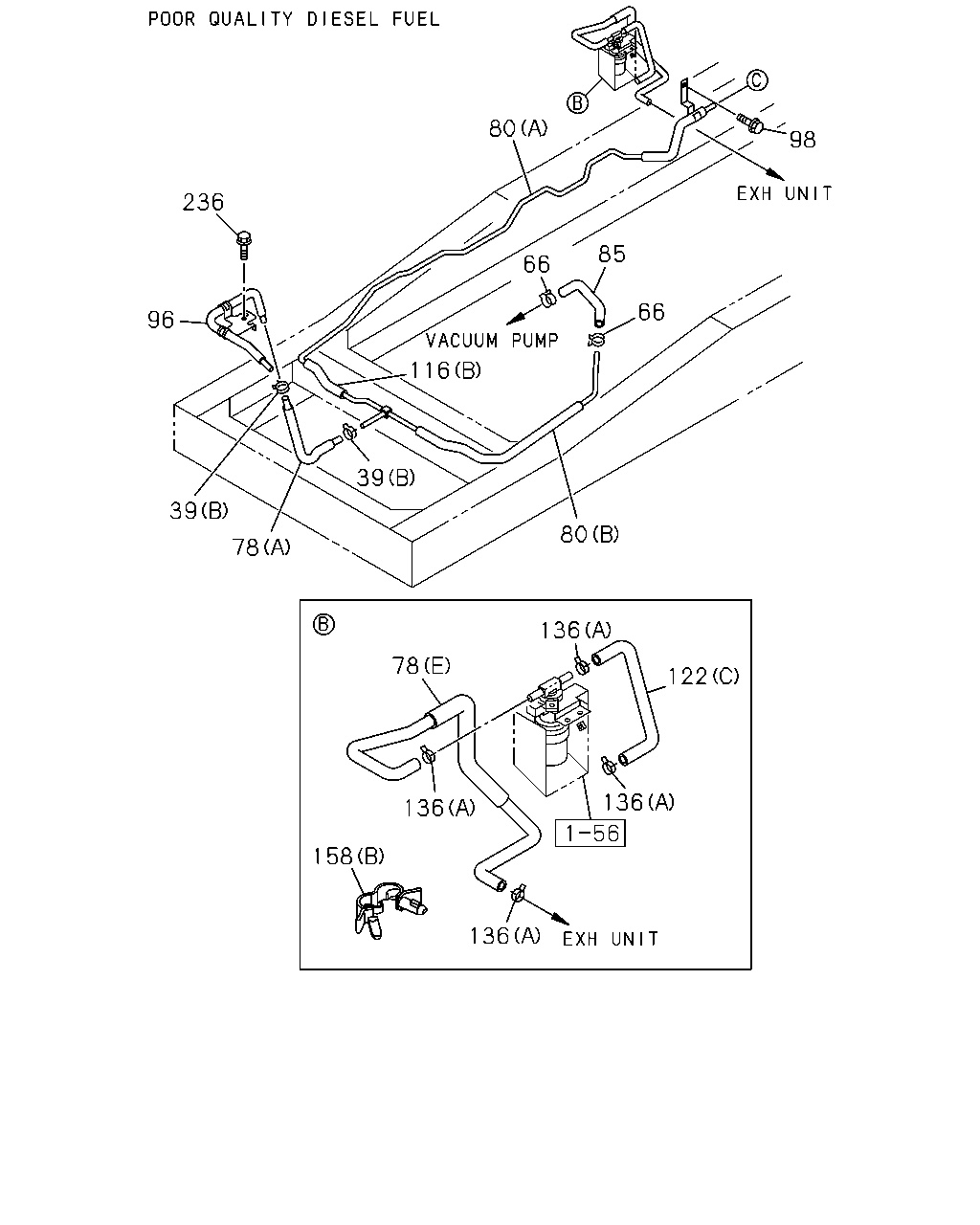

80 98 85 66 39 236 66 116 39 96 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0806-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0911
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0806-
44	04.930 PIPE; VAC,MAG VLV	8-98042-654-0	01	1	0806-0906
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98042-654-0	01	1	0907-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0806-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0907-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98082-811-0	01	1	0806-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0806-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0907-
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0806-
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98106-596-0	01	1	0806-1010
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1011-
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	0806-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-732-1	01	1	0806-0909
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	0910-
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0806-
116	04.931 HOSE; VAC,M/VAC (B)	8-98033-137-1	01	1	0806-
116	04.931 HOSE; VAC,M/VAC (A)	8-98113-002-1	01	1	0806-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0806-0906
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0907-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0806-0906
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0907-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0812-0906
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0806-0906
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0907-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	08	1	0806-0811
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0812-0911
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
228	04.930 NUT; PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-0906
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0806-

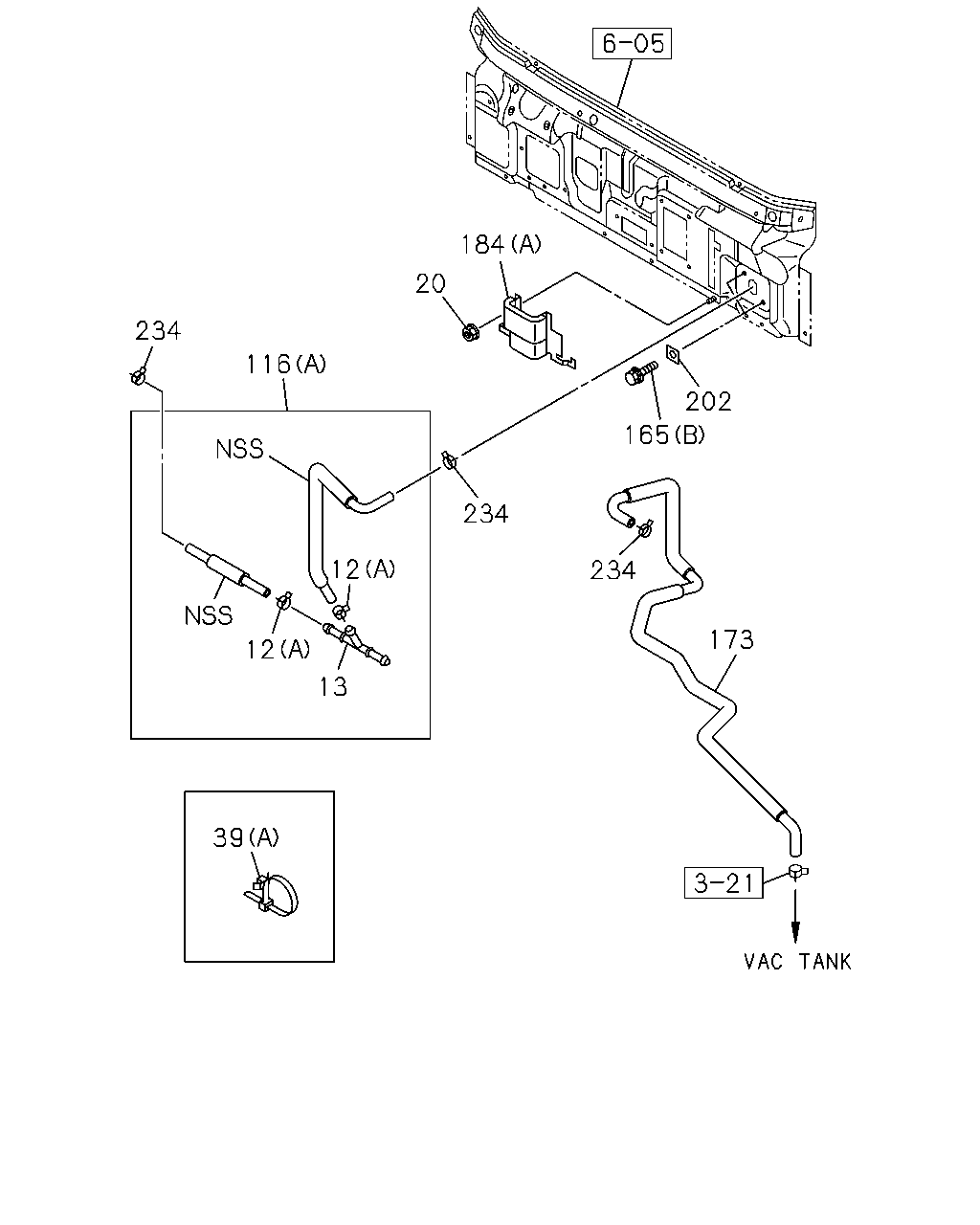

184 20 234 116 202 165 234 12 234 173 12 13 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	06	1	0806-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0906
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0906
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0806-0906
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	08	1	0806-0806
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0806-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0806-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0806-
20	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0806-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0806-0911
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0806-
116	04.931 HOSE; VAC,M/VAC (B)	8-98033-137-1	01	1	0806-
116	04.931 HOSE; VAC,M/VAC (A)	8-98113-002-1	01	1	0806-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0806-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-1002
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1003-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0806-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-98047-184-2	01	1	0806-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-346-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1102-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0806-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0806-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1312-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0806-
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	04	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
