Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

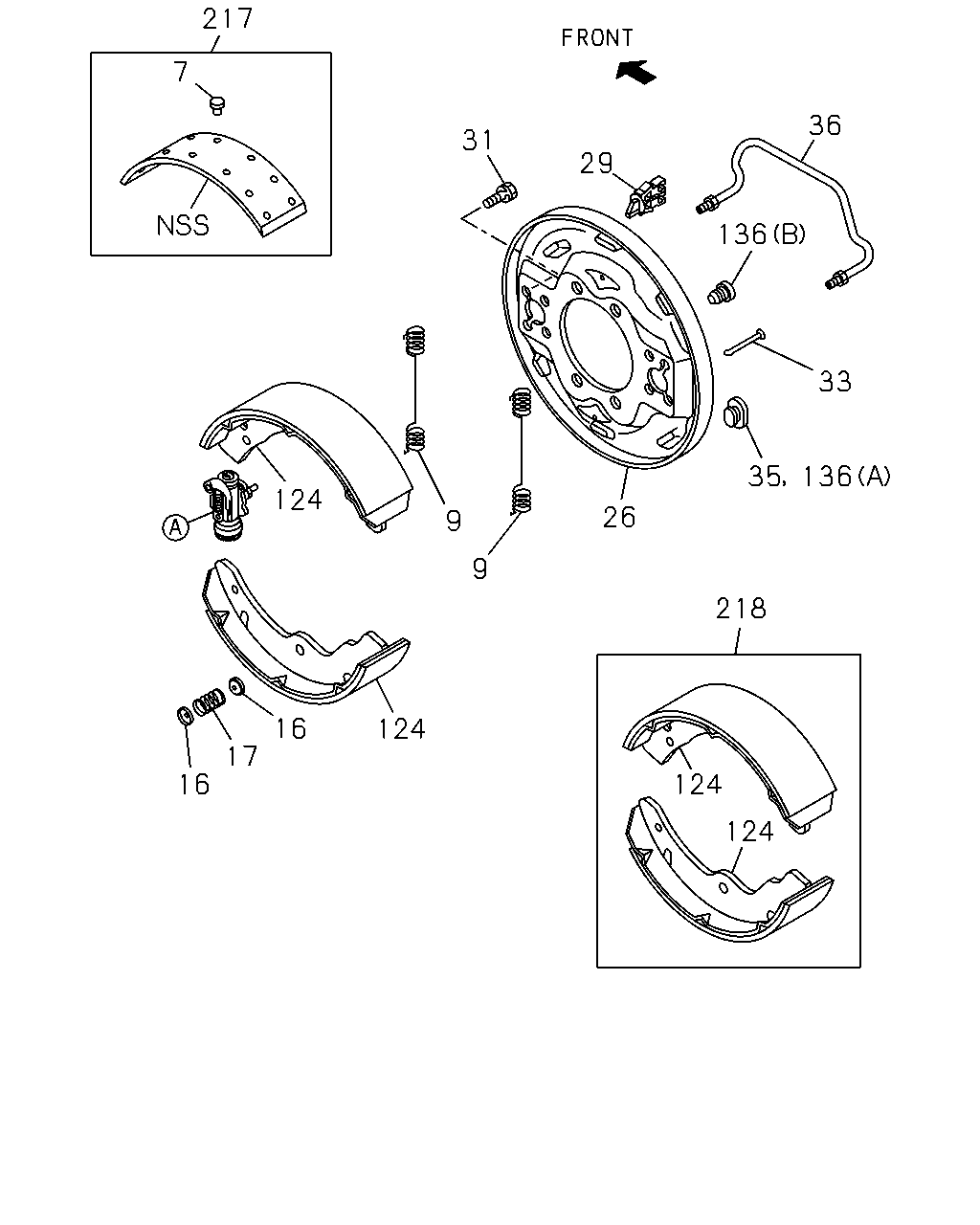

3-05 — REAR WHEEL BRAKE
(#75976) — 36 parça
◀
[305A] NO.1 (17 parça)
[305A] NO.2 (19 parça)
▶
217
7
36
31
29
136
33
136
35
124
26
9
9
218
16
124
17
16
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
05.019 RIVET; LINING,RR BRK
1-09732-029-0
40
1
0806-
9
05.026 SPRING; RETURN,BRK SHOE
5-09583-118-0
04
1
0806-
16
05.043 CUP; SHOE HOLDING
9-47165-096-0
08
1
0806-
17
04.043 SPRING; SHOE HOLD DOWN
05.043
5-09580-101-1
04
1
0806-
26
05.001 PLATE; BACK,RR BRK
8-97079-855-0
01
1
0806-
26
05.001 PLATE; BACK,RR BRK
8-97079-854-0
01
1
0806-
29
04.685 CLIP; PIPE,BRK
8-94128-306-0
02
1
0806-
31
04.665 BOLT; RR WHEEL CYL
5-09030-016-1
16
1
0806-
33
05.043 PIN; SHOE HOLD DOWN
5-47162-001-0
04
1
0806-
35
05.002 GROMMET; CHECK HOLE
8-94171-287-0
02
1
0806-
36
04.685 PIPE; OIL,RR BRK
8-94154-916-0
02
1
0806-
124
05.017 SHOE ASM; BRK,RR
8-97287-778-0
04
1
0806-
136
05.002 GROMMET
04.670 (B)
1-47154-008-0
04
1
0806-
136
05.002 GROMMET
(A)
8-94171-287-0
04
1
0806-
217
05.018 LINING KIT; RR BRK
5-87831-801-0
01
1
0806-
217
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-121-0
01
1
0806-
218
05.017 SHOE KIT; BRK,RR
5-87832-047-0
01
1
0806-
94
102
97
96
101
104
99
106
108
101
107
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97349-689-0
01
1
0806-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97349-691-0
01
1
0806-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97349-690-0
01
1
0806-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97349-692-0
01
1
0806-
95
04.665 CUP SET; RR WHEEL CYL
5-87831-622-0
01
1
0806-
96
04.666 SCREW; BLEEDER,RR BRK
8-98050-476-0
02
1
0806-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
02
1
0806-
99
04.668 PISTON; RR WHEEL CYL
8-97349-727-0
02
1
0806-
99
04.668 PISTON; RR WHEEL CYL
8-97349-728-0
02
1
0806-
101
04.666 SCREW; ADJ,RR WHEEL CYL
(B)
8-97349-747-0
04
1
0806-
101
04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD
5-47622-004-1
02
1
0806-
101
04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD
5-47622-003-1
02
1
0806-
102
04.668 PISTON; REAR WHEEL CYL
D=25.4
8-94128-531-1
04
1
0806-
104
05.103 LEVER; ADJ
8-97349-743-0
02
1
0806-
104
05.103 LEVER; ADJ
8-97349-744-0
02
1
0806-
106
05.107 SPRING; ADJ LEVER
8-97349-745-0
04
1
0806-
107
05.110 GEAR; ADJ,RR W/CYL
8-97349-737-0
02
1
0806-
107
05.110 GEAR; ADJ,RR W/CYL
8-97349-739-0
02
1
0806-
108
05.110 WASHER; THRUST,GEAR ADJ
8-97029-304-0
04
1
0806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
