Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

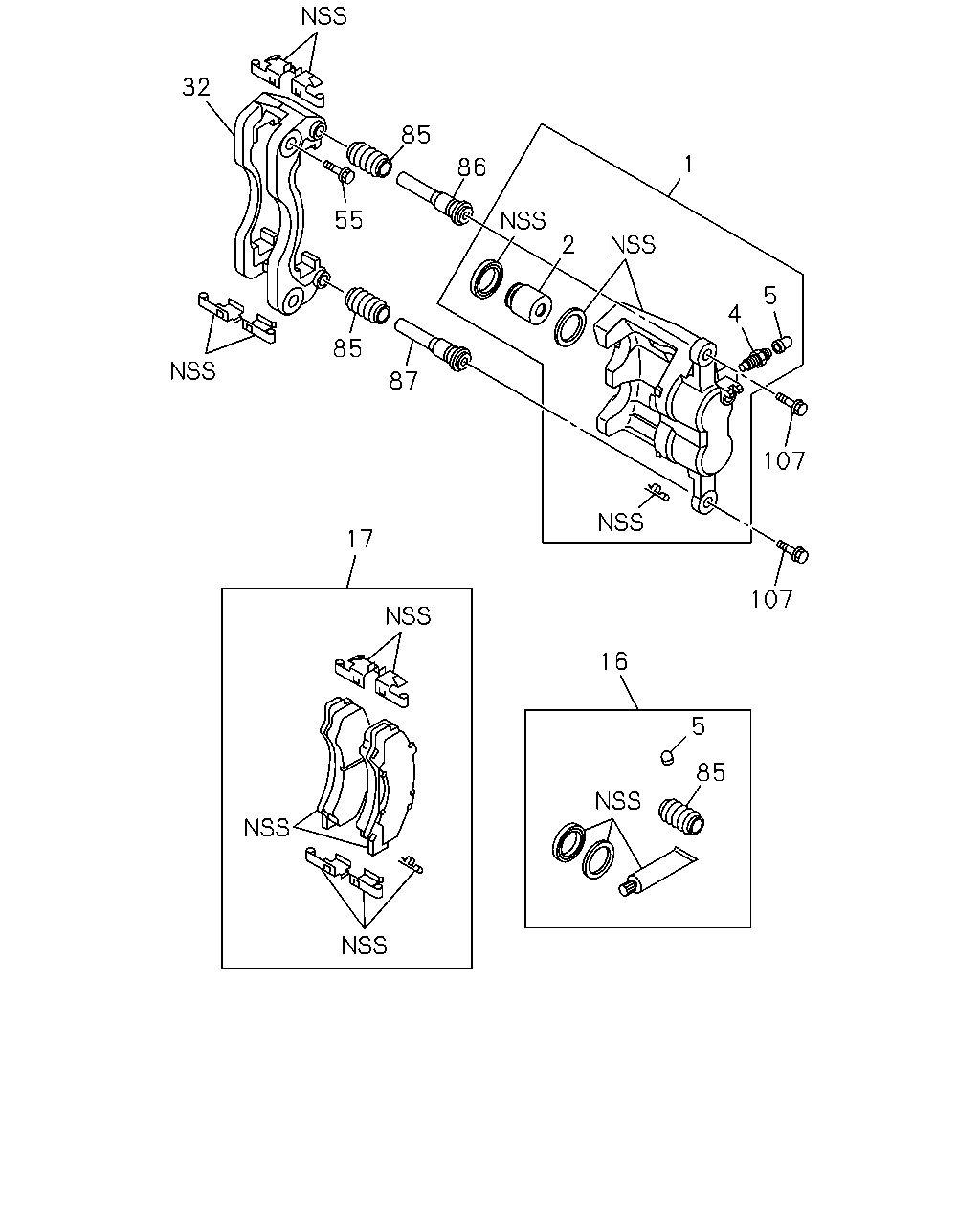

3-02 — FRONT DISC BRAKE CALIPER
(#75975) — 20 parça
32
85
1
86
55
2
5
4
85
87
107
17
107
16
5
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.665 CALIPER; FRT DISC BRK
8-97367-534-0
01
1
0806-1412
1
04.665 CALIPER; FRT DISC BRK
8-98303-460-0
01
1
1501-
1
04.665 CALIPER; FRT DISC BRK
8-97367-533-0
01
1
0806-1412
1
04.665 CALIPER; FRT DISC BRK
8-98303-459-0
01
1
1501-
2
04.668 PISTON; CALIPER,DISC BRK,FRT
8-97365-256-0
04
1
0806-
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
1-47615-027-0
02
1
0806-1412
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
8-98050-476-0
02
1
1501-
5
04.666 CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
0806-1412
5
04.666 CAP; BLEEDER,DISC BRK,FRT
8-98050-479-0
02
1
1501-
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-98120-383-0
01
1
0806-1412
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-98302-529-0
01
1
1501-
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
8-98091-271-0
01
1
0806-1212
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
8-98216-921-0
01
1
1301-
32
04.665 SUPPORT; FRT DISC BRK
8-97365-266-0
02
1
0806-
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X48 FLANGE
8-98033-656-0
04
1
0806-
85
04.665 BOOT; PIN
8-97365-265-0
04
1
0806-0901
85
04.665 BOOT; PIN
8-98120-354-0
04
1
0902-
86
04.665 PIN; GUIDE
8-98047-530-0
02
1
0806-
87
04.665 PIN; LOCK
8-98047-532-0
02
1
0806-
107
04.665 BOLT; PIN
8-97365-264-0
04
1
0806-
