Sayfa 2-62 - Isuzu EPC

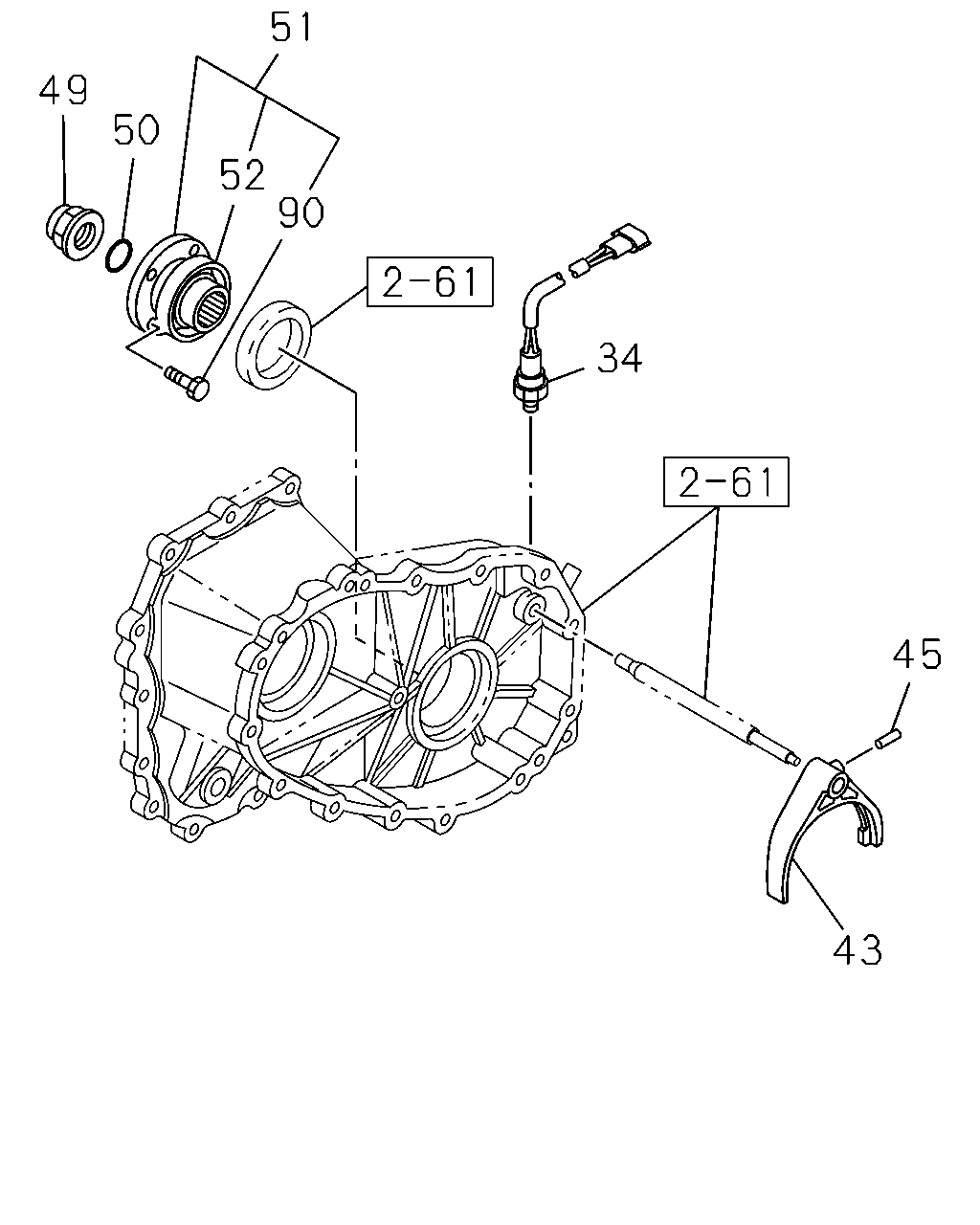

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#75969) — 9 parça

51 49 50 52 90 34 45 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	04.075 SWITCH; TRANSFER INDICATOR 02.698	8-98023-050-0	01	1	0806-1312
34	04.075 SWITCH; TRANSFER INDICATOR 04.054	8-98242-172-1	01	1	1401-
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER 04.302	8-97241-325-1	01	1	0806-
45	04.303 PIN; SPR,SHIFT ARM TO ROD 04.302 L=32	8-97011-596-2	01	1	0806-
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	0806-
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP ID=29.7 OD=36.1	8-94483-035-0	01	1	0806-
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN	8-98034-186-0	01	1	0806-
52	05.545 COVER; DUST,TRANSFER FLANGE	8-94320-867-3	01	1	0806-
90	05.555 BOLT; COUPLING DRIVER,FRT OUTPUT M10X27	8-98034-315-0	04	1	0806-
