◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51175 - NLS(EUROPE)LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#75963) — 21 parça

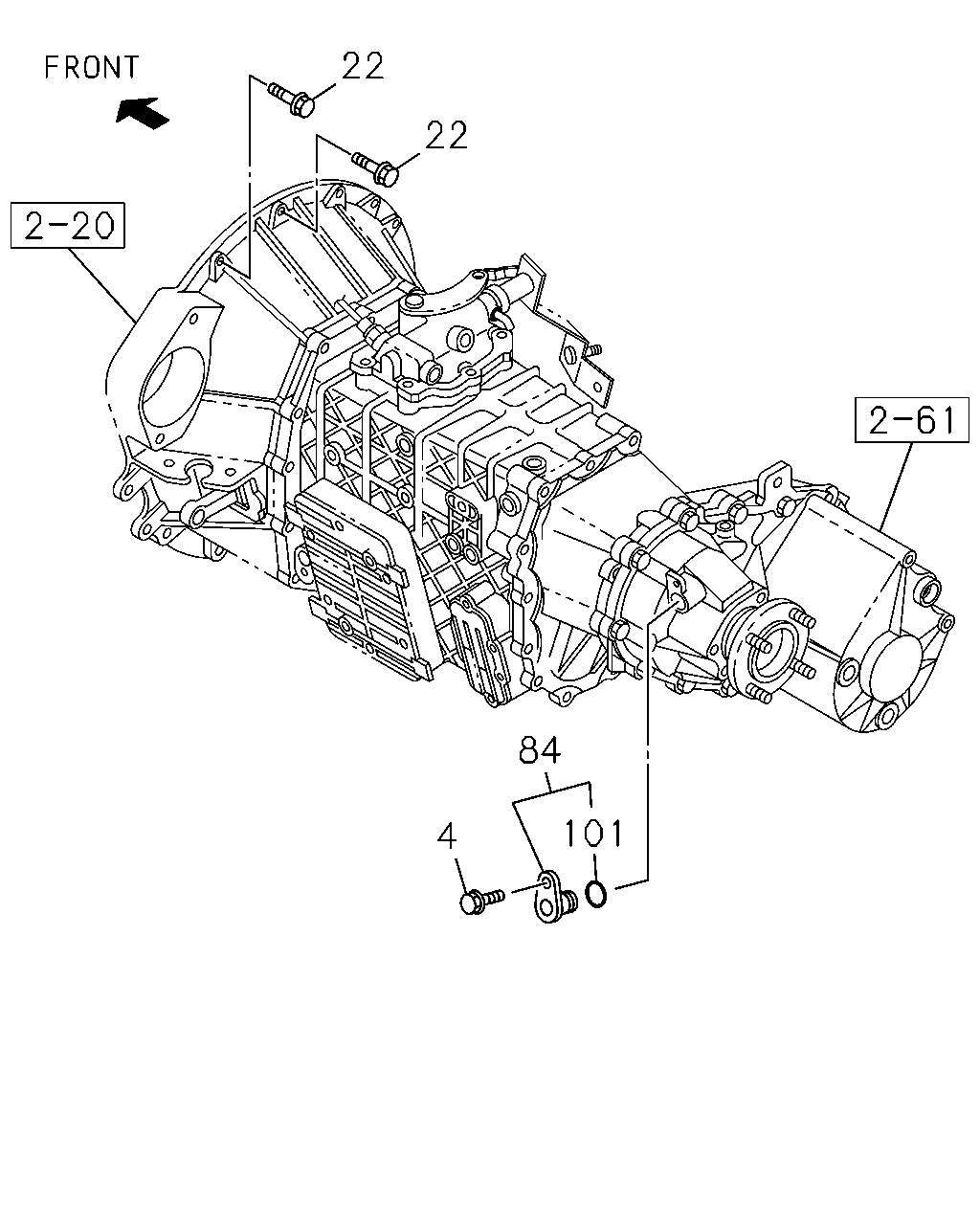

çizim 109873
22 22 84 101 4
BalonParca AdiParca NoAdetTipApplied Date
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0806-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0806-1211
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),POWER TAKEOFF CONTROL ELECTRIC(7GR) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 0806-1211
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),POWER TAKEOFF CONTROL ELECTRIC(7GR) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0806-1211
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),POWER TAKEOFF CONTROL ELECTRIC(7GR) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X140 FLANGE 		0-28156-014-0 01 1 0806-1211
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),POWER TAKEOFF CONTROL ELECTRIC(7GR) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 0806-0906
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 01 1 0907-1211
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0806-0906
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0907-1211
22 00.685 BOLT; TRANS CASE TO ENG
POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1212-
22 00.685 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),POWER TAKEOFF CONTROL ELECTRIC(7GR) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1212-
84 04.104 CAP; BUSH,SPEEDOMETER GEAR 8-98035-151-1 01 1 0806-
101 04.338 GASKET; CAP
04.439 		9-09561-324-0 01 1 0806-
