2-05 — CLUTCH PIPING (#75957) — 19 parça

2 3 3 3 2 5 3 7 18 42 20 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	00.782 BOLT; EYE,SLAVE CYL 04.681 M10X22	8-97381-454-0	02	1	0806-0905
2	00.782 BOLT; EYE,SLAVE CYL 04.681 M10X22	8-98014-005-0	02	1	0906-
3	00.785 GASKET; FLEX HOSE,CLU 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0806-
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	0806-
5	00.785 HOSE; FLEX,CLU PIPE CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98083-229-2	01	1	0806-
5	00.785 HOSE; FLEX,CLU PIPE EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98081-052-2	01	1	0806-
7	00.785 NUT; FLEX HOSE,CLU CONT 03.162 M10 FLANGE	0-91180-110-0	01	1	0806-
18	00.830 DAMPER ASM; CLU OIL	8-98077-610-1	01	1	0806-
20	00.837 NUT; CLU OIL DAMPER 01.062 M8 FLANGE	0-91180-108-0	02	1	0806-
42	00.785 BRACKET; FLEX HOSE,CLU CONT	8-98050-401-0	01	1	0806-
183	00.785 HOSE; VAC,VAC TANK SIDE	8-98047-185-0	01	1	0806-

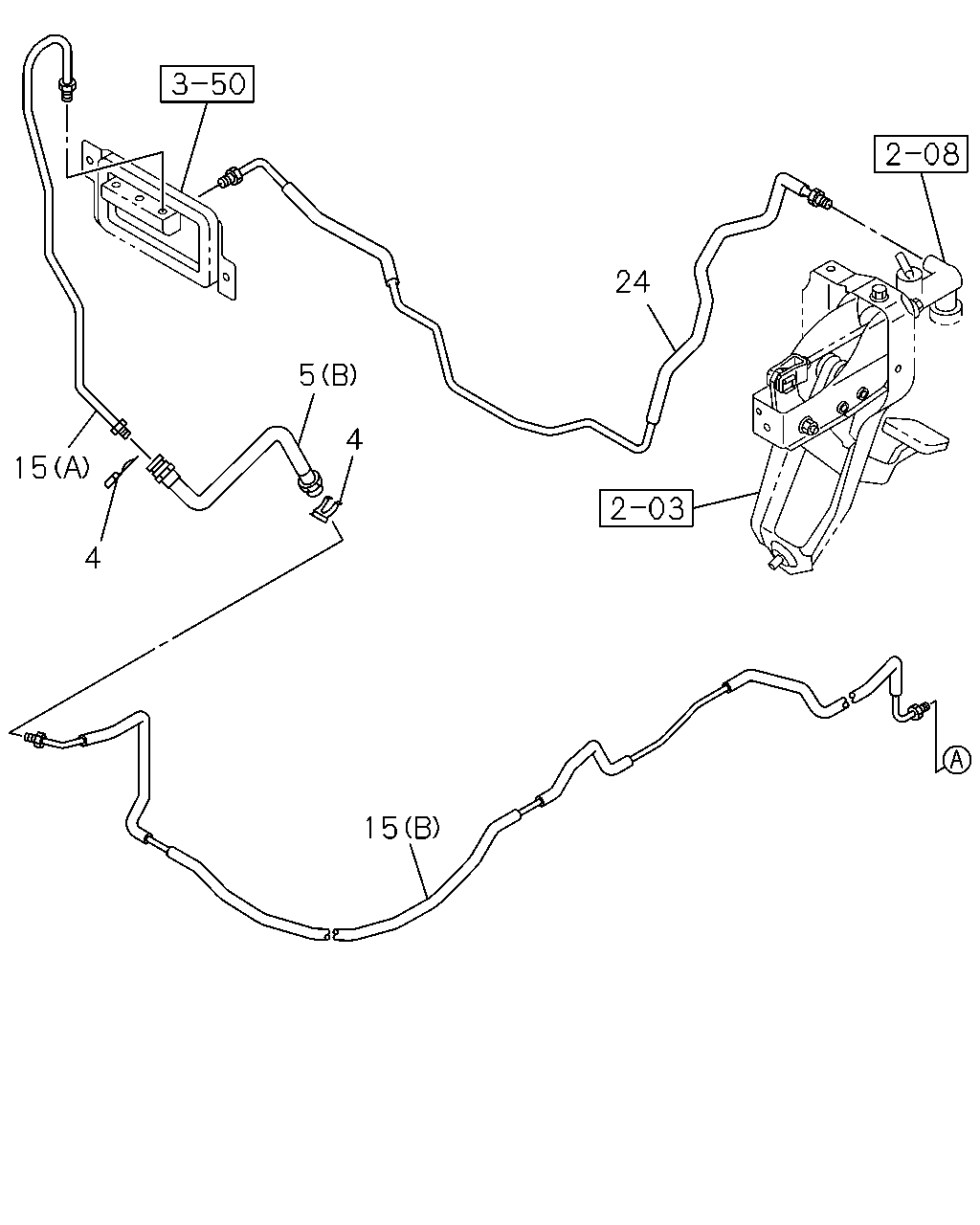

24 5 4 15 4 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	02	1	0806-
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	0806-
5	00.785 HOSE; FLEX,CLU PIPE CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98083-229-2	01	1	0806-
5	00.785 HOSE; FLEX,CLU PIPE EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98081-052-2	01	1	0806-
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-98047-211-1	01	1	0806-
15	00.785 PIPE; CLU,FLEX HOSE (B)	8-98106-595-0	01	1	0806-
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-98099-806-2	01	1	0806-1504
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-98250-075-0	01	1	1505-
