Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#75951) — 218 parça

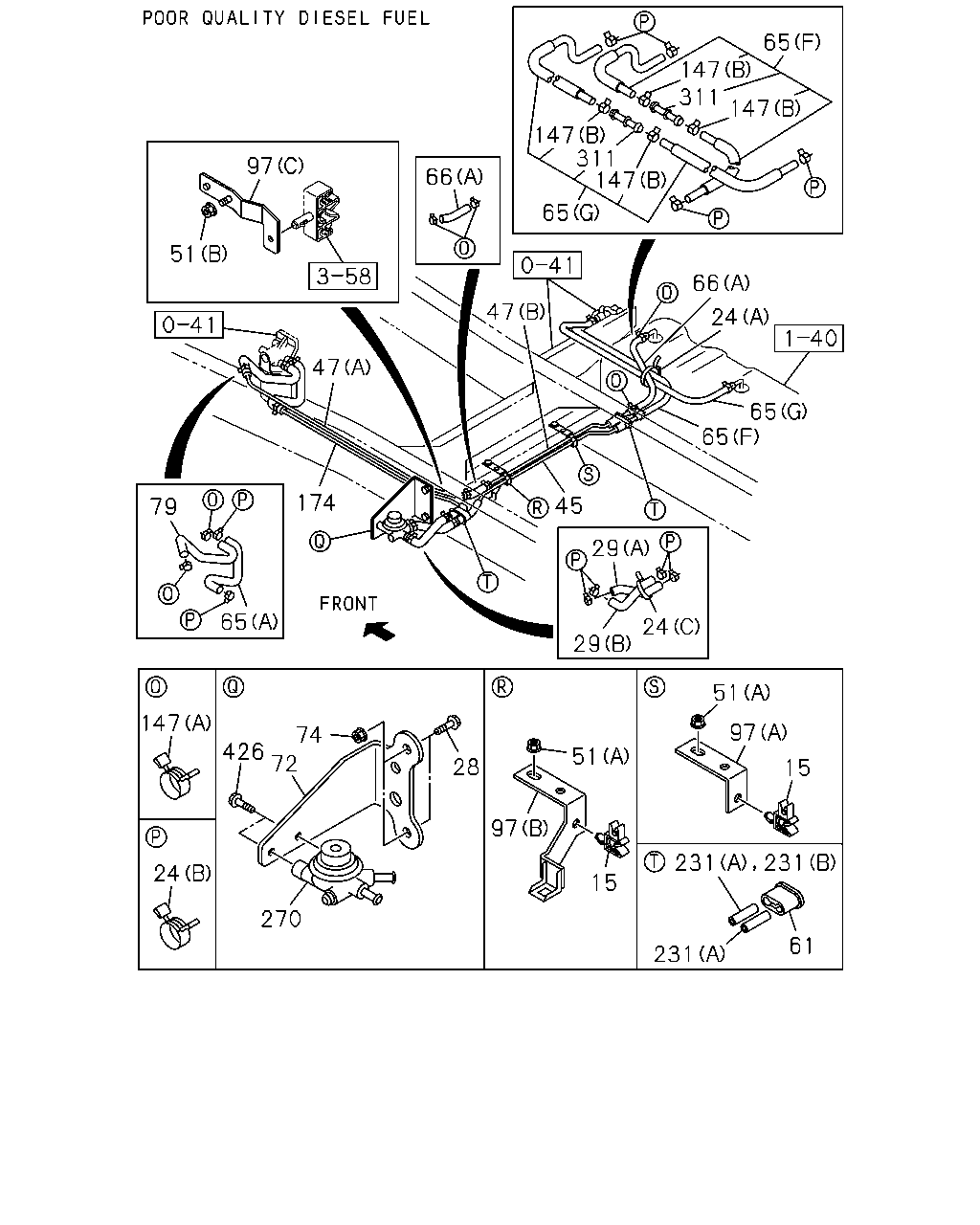

65 66 66 47 47 45 174 29 79 65 29 74 51 72 426 28 97 270 15 51 24 97 231 97 24 61 51 231 15 147 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0806-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (C) L=250	5-09707-030-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0806-0906
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0806-0906
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0806-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	0907-
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98120-599-0	01	1	0907-
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0806-0906
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0907-
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0806-0906
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	0907-
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0806-
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	0907-
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	0907-
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0806-0906
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-97389-594-3	01	1	0907-1005
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1006-
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0806-0906
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	0907-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0806-
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0806-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0806-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0806-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (F)	8-98098-175-1	01	1	1010-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-176-1	01	1	1010-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98139-110-1	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98139-111-1	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98120-600-0	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0806-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0806-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	0907-1009
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0806-0906
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0806-0906
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0907-
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	0806-
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO5 SPECIFICATION(NT5)	8-98147-758-0	01	1	0907-1005
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98147-758-0	01	1	1006-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0806-0906
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO4 SPECIFICATION(NT4)	8-97389-777-1	01	1	0907-1005
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0806-
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0806-
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0806-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	0912-1009
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.219 (A) ID=12	8-94238-610-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0806-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0806-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0806-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0806-

627 313 629 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
313	03.163 COOLER ASM; FUEL EURO5 SPECIFICATION(NT5)	8-98141-558-0	01	1	0907-
627	03.162 BOLT; FUEL CLR EURO5 SPECIFICATION(NT5) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	0907-
628	03.162 NUT; FUEL CLR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	04	1	0907-
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (C)	8-98146-892-0	02	1	0907-
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (A)	8-98142-068-1	01	1	0907-
629	03.162 BRACKET; FUEL CLR EURO5 SPECIFICATION(NT5) (B)	8-98142-069-1	01	1	0907-
639	03.162 BOLT; BRKT,FUEL CLR EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-

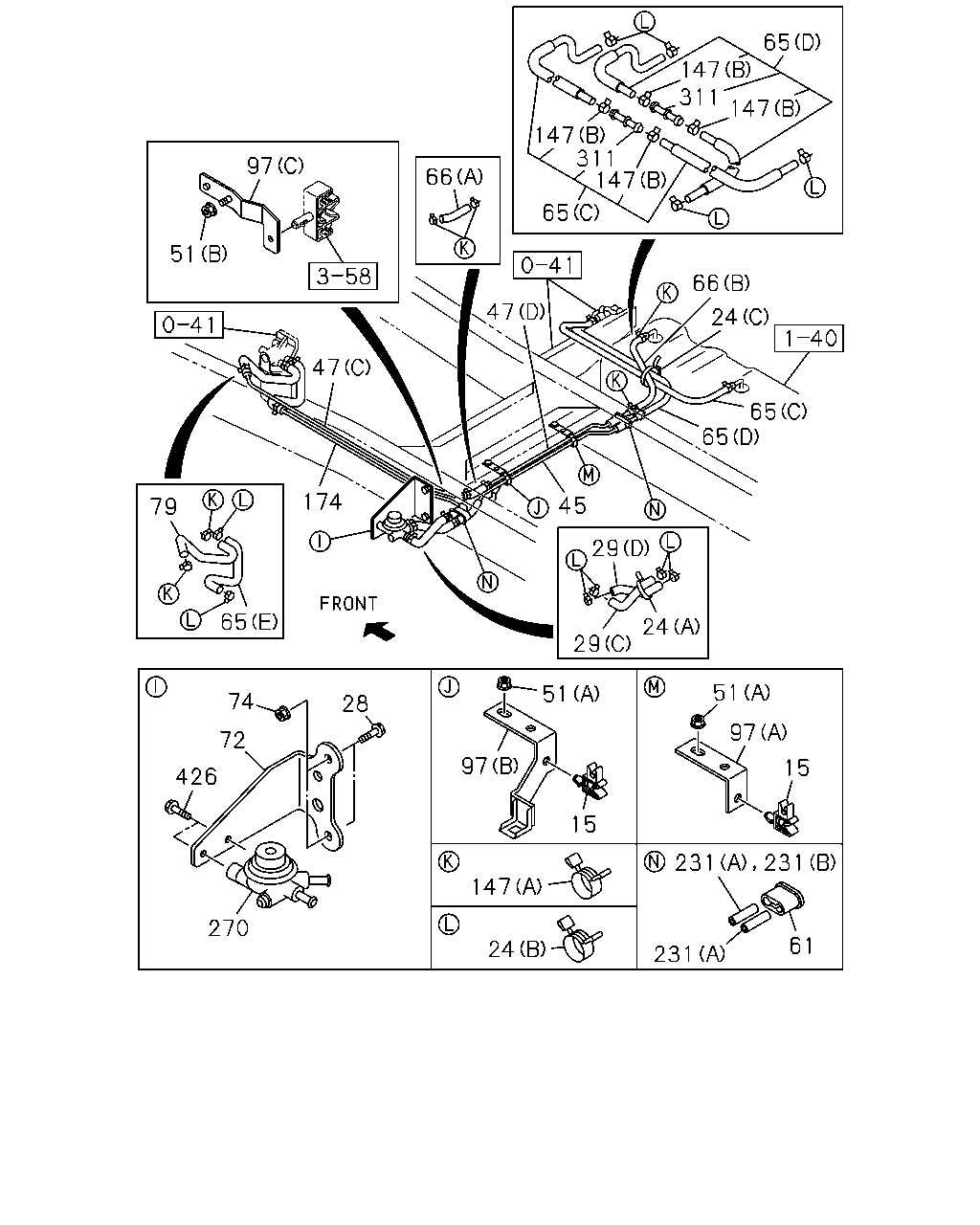

65 147 311 147 147 311 147 97 66 65 51 66 47 24 47 65 65 174 45 79 29 65 24 29 51 51 74 28 97 72 97 15 426 15 231 147 270 61 24 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0806-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (C) L=250	5-09707-030-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0806-0906
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0806-0906
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0806-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	0907-
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98120-599-0	01	1	0907-
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0806-0906
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0907-
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0806-0906
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	0907-
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0806-
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	0907-
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	0907-
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0806-0906
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-97389-594-3	01	1	0907-1005
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1006-
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0806-0906
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	0907-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0806-
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0806-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0806-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0806-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (F)	8-98098-175-1	01	1	1010-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-176-1	01	1	1010-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98139-110-1	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98139-111-1	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98120-600-0	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0806-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0806-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	0907-1009
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0806-0906
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0806-0906
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0907-
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	0806-
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO5 SPECIFICATION(NT5)	8-98147-758-0	01	1	0907-1005
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98147-758-0	01	1	1006-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0806-0906
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO4 SPECIFICATION(NT4)	8-97389-777-1	01	1	0907-1005
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0806-
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0806-
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0806-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	0912-1009
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.219 (A) ID=12	8-94238-610-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0806-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0806-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0806-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	0907-1009
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1010-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0806-

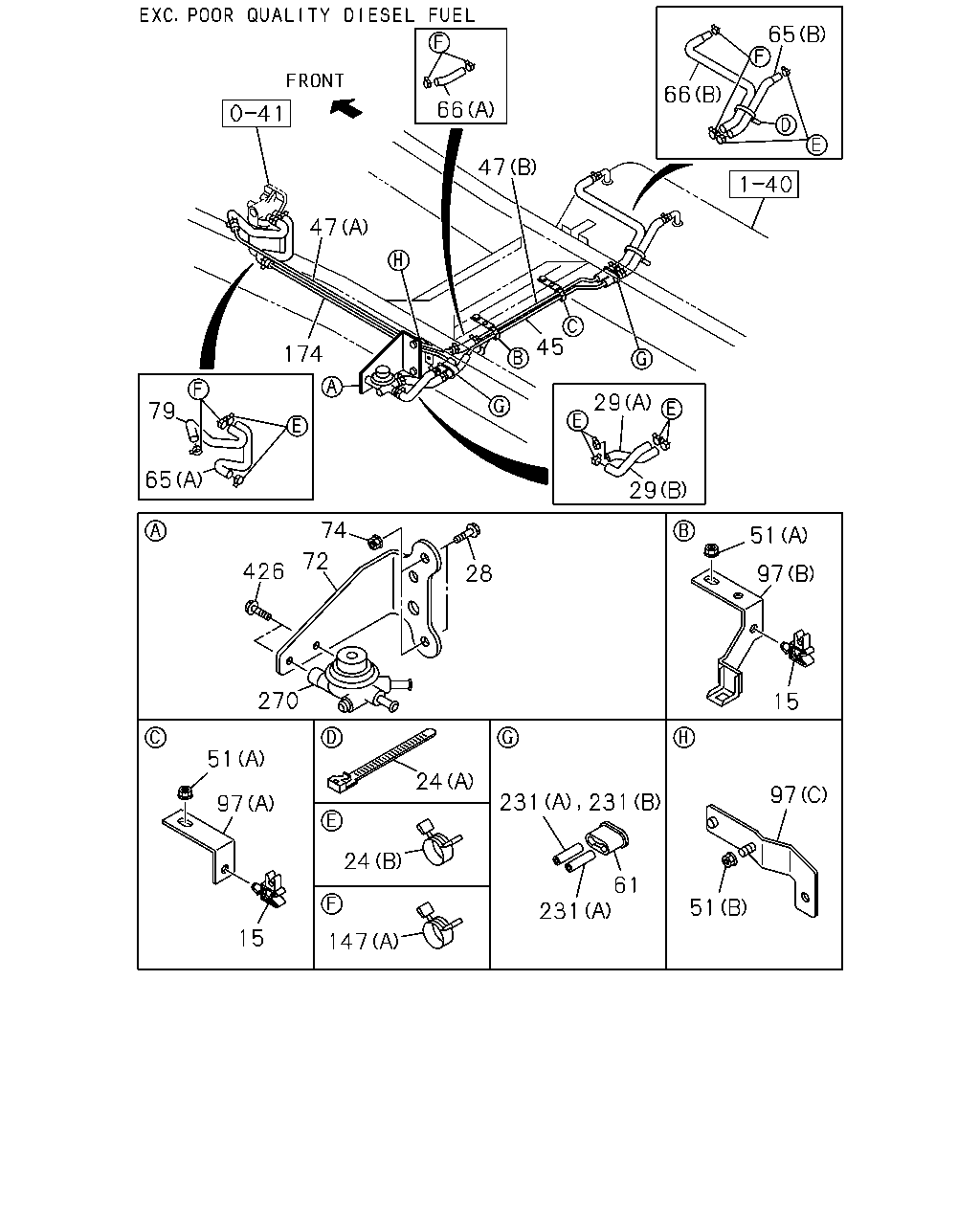

65 147 147 311 147 311 147 65 66 47 66 24 65 65 45 29 24 29 51 97 15 231 231 51 97 15 231 61 28 74 72 426 270 24 147 65 79 174 47 51 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0806-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 02.559 (C) L=250	5-09707-030-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0806-0906
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0806-0906
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0806-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0806-
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (C) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	0907-
29	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (D)	8-98120-599-0	01	1	0907-
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0806-0906
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0907-
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0806-0906
29	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B) L=200	8-98081-038-0	01	1	0907-
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0806-
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (C) L=971	8-98137-013-2	01	1	0907-
47	03.163 PIPE; FUEL,RETURN EURO5 SPECIFICATION(NT5) (D) L=984	8-98137-015-0	01	1	0907-
47	03.163 PIPE; FUEL,RETURN (A)	8-97389-594-3	01	1	0806-0906
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-97389-594-3	01	1	0907-1005
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (A)	8-98110-833-0	01	1	1006-
47	03.163 PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0806-0906
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (B) L=679	8-98020-778-3	01	1	0907-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0806-
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0806-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0806-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0806-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (F)	8-98098-175-1	01	1	1010-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4) (G)	8-98098-176-1	01	1	1010-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (C)	8-98139-110-1	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (D)	8-98139-111-1	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO5 SPECIFICATION(NT5) (E)	8-98120-600-0	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0806-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (A)	8-97389-772-0	01	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-97389-796-0	01	1	0806-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) (B)	8-97389-796-0	01	1	0907-1009
65	03.163 HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION(NT4) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1010-
66	03.163 HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION(NT4) (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE EURO5 SPECIFICATION(NT5) (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0806-0906
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL(KF0) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380	8-97389-805-1	01	1	0806-0906
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0907-
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	0806-
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0806-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO5 SPECIFICATION(NT5)	8-98147-758-0	01	1	0907-1005
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98147-758-0	01	1	1006-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-97389-777-1	01	1	0806-0906
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EURO4 SPECIFICATION(NT4)	8-97389-777-1	01	1	0907-1005
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0806-
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	0806-
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	0806-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	0912-1009
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) ID=16	8-98008-098-0	04	1	1010-
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.219 (A) ID=12	8-94238-610-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EURO5 SPECIFICATION(NT5) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	06	1	0806-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0806-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0806-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0806-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	0907-1009
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-97353-668-0	02	1	1010-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
