1-40 — FUEL TANK (#75950) — 64 parça
çizim 92875
300 303 302
BalonParca AdiParca NoAdetTipApplied Date
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0907-
300 03.162 BOLT; BRKT TO BODY
KD PREPARATORY PACK<6HF> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0905
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-0906
300 03.162 BOLT; BRKT TO BODY
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0911
300 03.162 BOLT; BRKT TO BODY
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0911
300 03.162 BOLT; BRKT TO BODY
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0912-
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0907-
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0907-

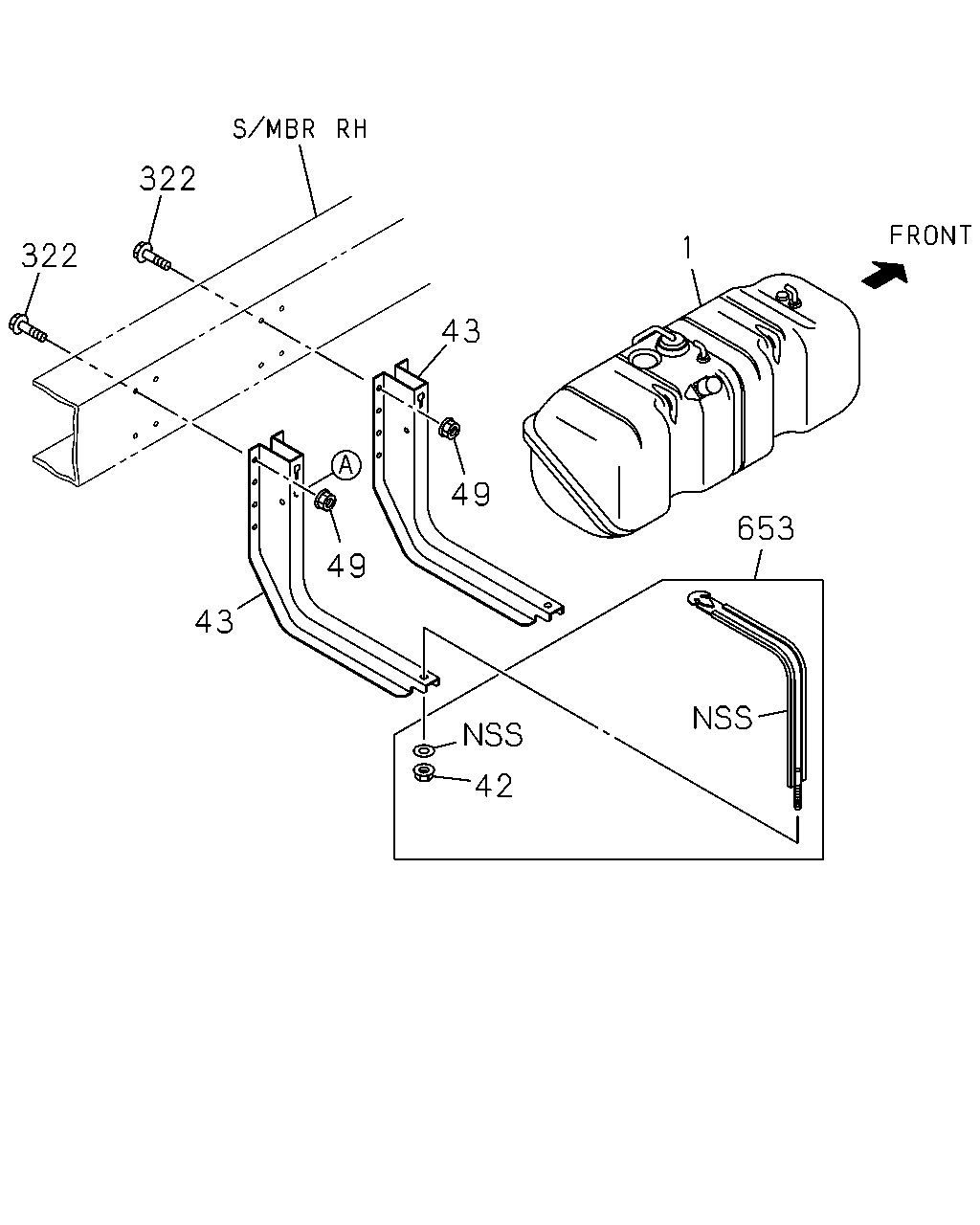

çizim 93034
1 653 42 49 49 43 43 322 322
BalonParca AdiParca NoAdetTipApplied Date
1 03.001 TANK; FUEL
756X375X375 70L 		8-98104-005-4 01 1 0806-
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0806-
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97384-056-1 01 1 0806-
43 03.015 BRACKET; FUEL TANK
REAR 		8-97384-081-1 01 1 0806-
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0806-
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0806-
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0806-

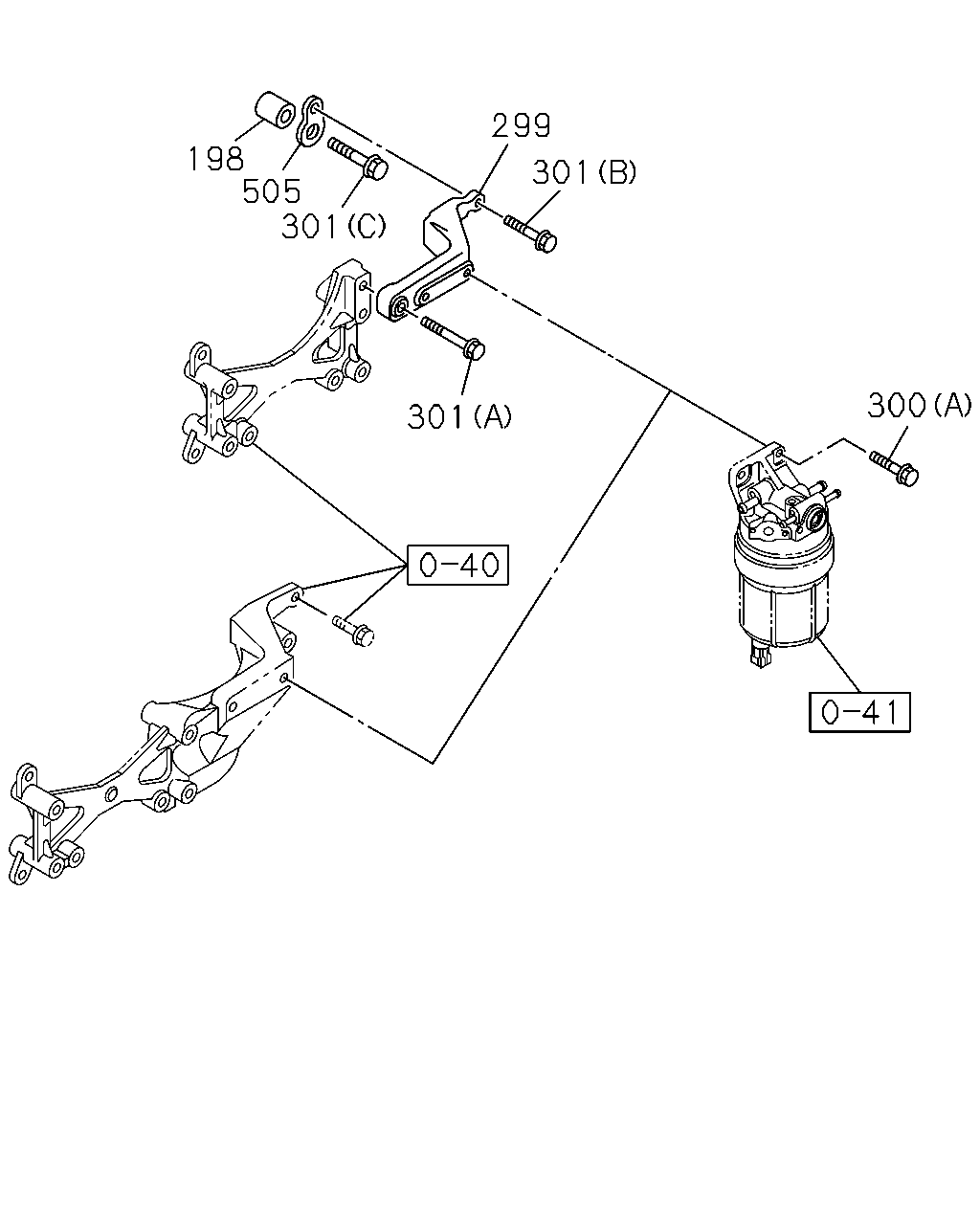

çizim 93168
299 198 505 301 301 300 301
BalonParca AdiParca NoAdetTipApplied Date
198 03.107 SPACER
KD PREPARATORY PACK<6HF> 		8-98081-509-0 01 1 0806-0905
198 03.107 SPACER 8-98081-509-0 01 1 0906-0906
198 03.107 SPACER
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 		8-98081-509-0 01 1 0907-0911
198 03.107 SPACER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 		8-98081-509-0 01 1 0907-0911
198 03.107 SPACER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98081-509-0 01 1 0912-1001
299 03.162 BRACKET; FUEL FILTER
KD PREPARATORY PACK<6HF> 		8-98009-087-4 01 1 0806-0905
299 03.162 BRACKET; FUEL FILTER 8-98009-087-4 01 1 0906-0906
299 03.162 BRACKET; FUEL FILTER
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 		8-98009-087-4 01 1 0907-0911
299 03.162 BRACKET; FUEL FILTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 		8-98009-087-4 01 1 0907-0911
299 03.162 BRACKET; FUEL FILTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98009-087-4 01 1 0912-1001
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0907-
300 03.162 BOLT; BRKT TO BODY
KD PREPARATORY PACK<6HF> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0905
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-0906
300 03.162 BOLT; BRKT TO BODY
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0911
300 03.162 BOLT; BRKT TO BODY
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0911
300 03.162 BOLT; BRKT TO BODY
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0912-
301 03.162 BOLT; BRKT TO SEDIMENTER
KD PREPARATORY PACK<6HF> (B) M8X40 FLANGE 		0-28060-840-0 01 1 0806-0905
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0906-0906
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (B) M8X40 FLANGE 		0-28060-840-0 01 1 0907-0911
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (B) M8X40 FLANGE 		0-28060-840-0 01 1 0907-0911
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0912-1001
301 03.162 BOLT; BRKT TO SEDIMENTER
KD PREPARATORY PACK<6HF> (A) M8X66 FLANGE 		8-98081-507-0 01 1 0806-0905
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0906-0906
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (A) M8X66 FLANGE 		8-98081-507-0 01 1 0907-0911
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (A) M8X66 FLANGE 		8-98081-507-0 01 1 0907-0911
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0912-1001
301 03.162 BOLT; BRKT TO SEDIMENTER
KD PREPARATORY PACK<6HF> (C) M14X58 FLANGE 		8-98081-508-0 01 1 0806-0905
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0906-0906
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> (C) M14X58 FLANGE 		8-98081-508-0 01 1 0907-0911
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> (C) M14X58 FLANGE 		8-98081-508-0 01 1 0907-0911
301 03.162 BOLT; BRKT TO SEDIMENTER
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0912-1001
505 03.163 BRACKET
KD PREPARATORY PACK<6HF> 		8-98081-486-0 01 1 0806-0905
505 03.163 BRACKET 8-98081-486-0 01 1 0906-0906
505 03.163 BRACKET
EURO4 SPECIFICATION(NT4) EXC. KD PREPARATORY PACK<6HF> 		8-98081-486-0 01 1 0907-0911
505 03.163 BRACKET
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> 		8-98081-486-0 01 1 0907-0911
505 03.163 BRACKET
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 		8-98081-486-0 01 1 0912-1001

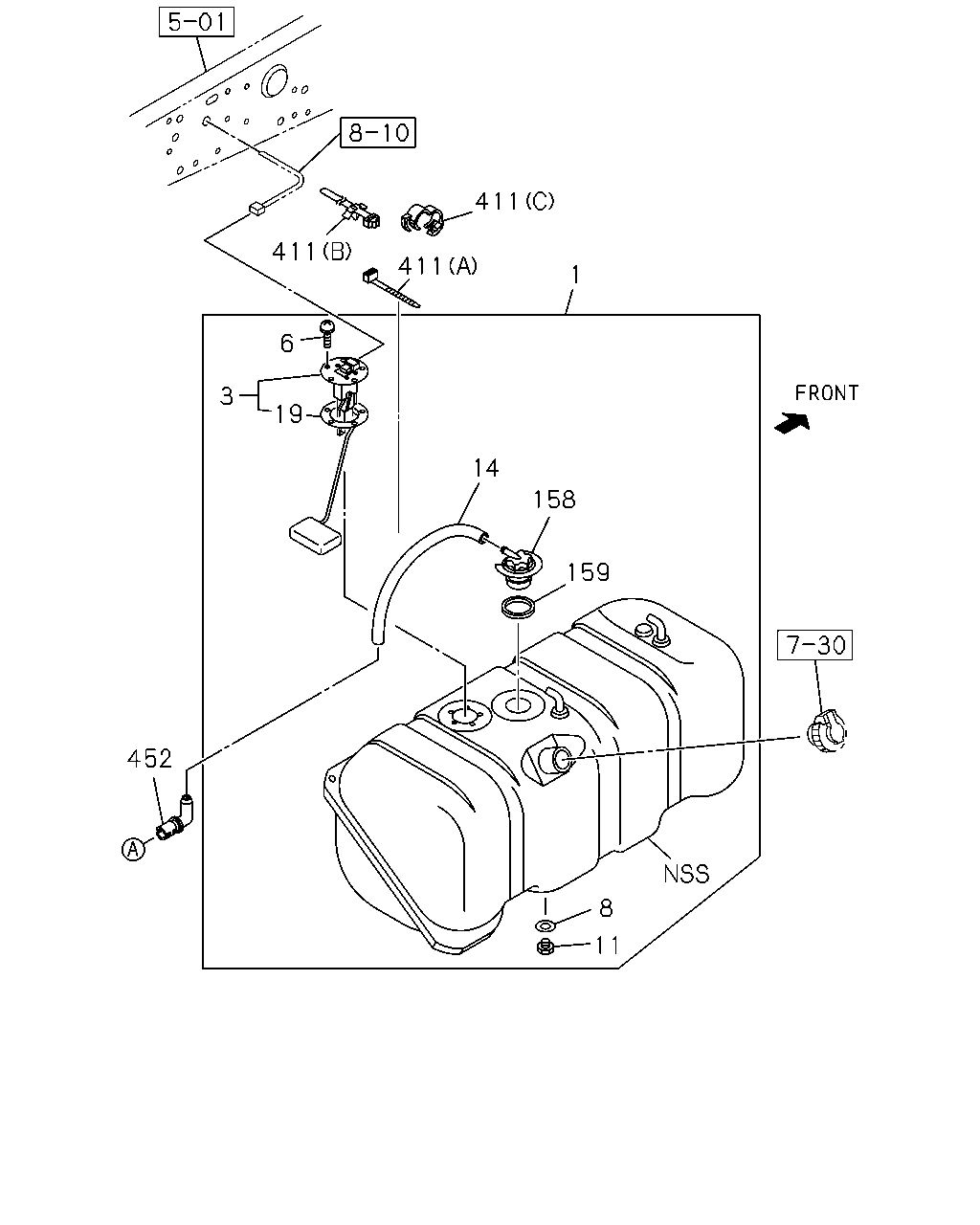

çizim 93330
411 411 411 1 6 3 19 14 158 159 452 8 11
BalonParca AdiParca NoAdetTipApplied Date
1 03.001 TANK; FUEL
756X375X375 70L 		8-98104-005-4 01 1 0806-
3 03.107 UNIT; FUEL TANK,SUB 8-98113-177-0 01 1 0806-
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0806-
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0806-
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0806-
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 0806-
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0806-
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0806-
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0806-
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO5 SPECIFICATION(NT5) (C) ID=20 		8-94241-972-0 01 1 0907-
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0806-
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0806-
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0806-
