Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#75940) — 39 parça
◀
[060A] STARTER,GENERATOR AND SENSOR (11 parça)
[060A] SENSOR AND OTHER PARTS (8 parça)
[060A] ENG CONTROL UNIT (11 parça)
[060A] BATTERY CABLE BRACKET AND DRM (7 parça)
[060A] RELAY (2 parça)
▶

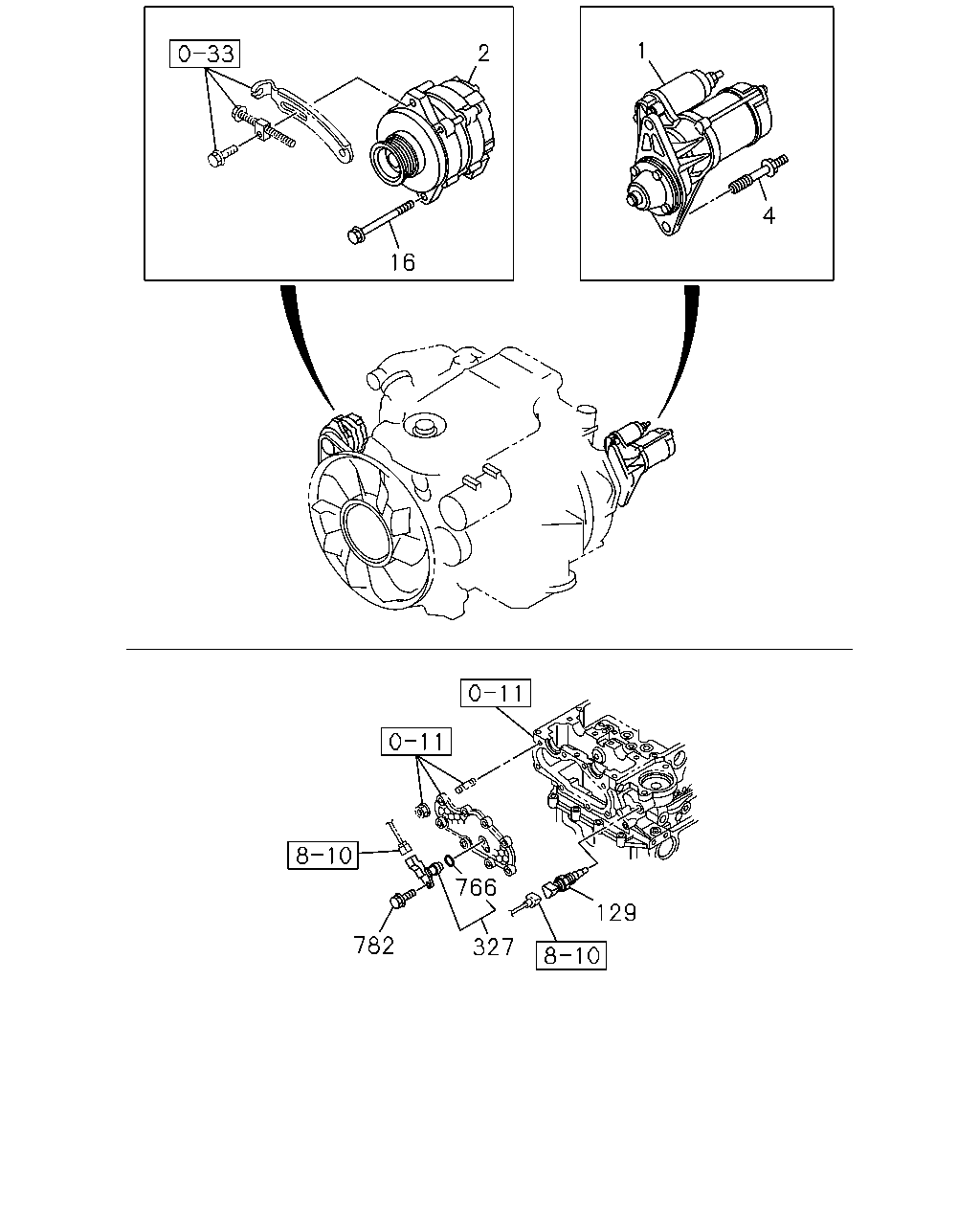

1
2
4
16
766
129
782
327
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98054-984-0
01
1
0806-1006
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98055-279-1
01
1
1007-1207
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-2
01
1
1208-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A
8-98029-887-2
01
1
0806-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A
8-98029-889-2
01
1
0806-
4
02.042 BOLT; STARTER
M10X15,M14X75 L=103
8-97212-602-0
02
1
0806-
16
02.277 BOLT; GEN
M10X120 FLANGE
0-28056-012-0
01
1
0806-
129
01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT
8-98023-717-0
01
1
0806-
327
02.361 SENSOR; CAMSHAFT POSITION
8-97312-108-1
01
1
0806-
766
02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
0806-
782
02.510 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
0806-

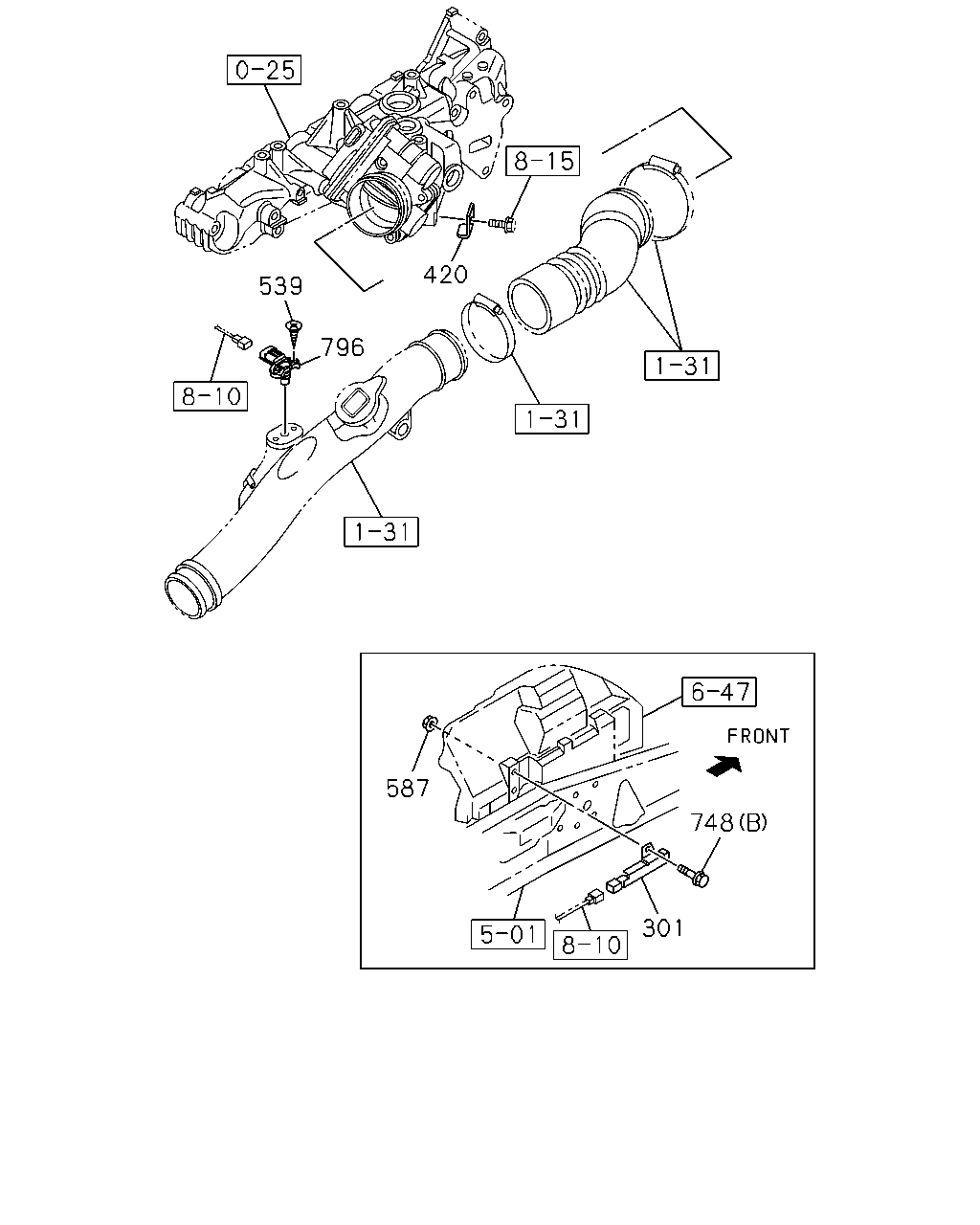

420
539
796
587
748
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
301
02.510 RESISTOR; DROPPING
8-97357-613-0
01
1
0806-
420
02.183 BRACKET; HARNESS
8-98009-094-0
01
1
0806-
539
02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
0806-
587
03.671 NUT; RESISTOR & RELAY
04.115 M6 W/DISHED WASHER
8-98029-921-0
02
1
0806-
748
02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE
0-28050-612-0
04
1
0806-
748
02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE
0-28650-620-0
02
1
0806-
748
02.500 BOLT; CONT UNIT
00.029 (C) M10X25 FLANGE
0-28651-025-0
03
1
0806-
796
01.150 SENSOR; MAP
8-98009-418-0
01
1
0806-

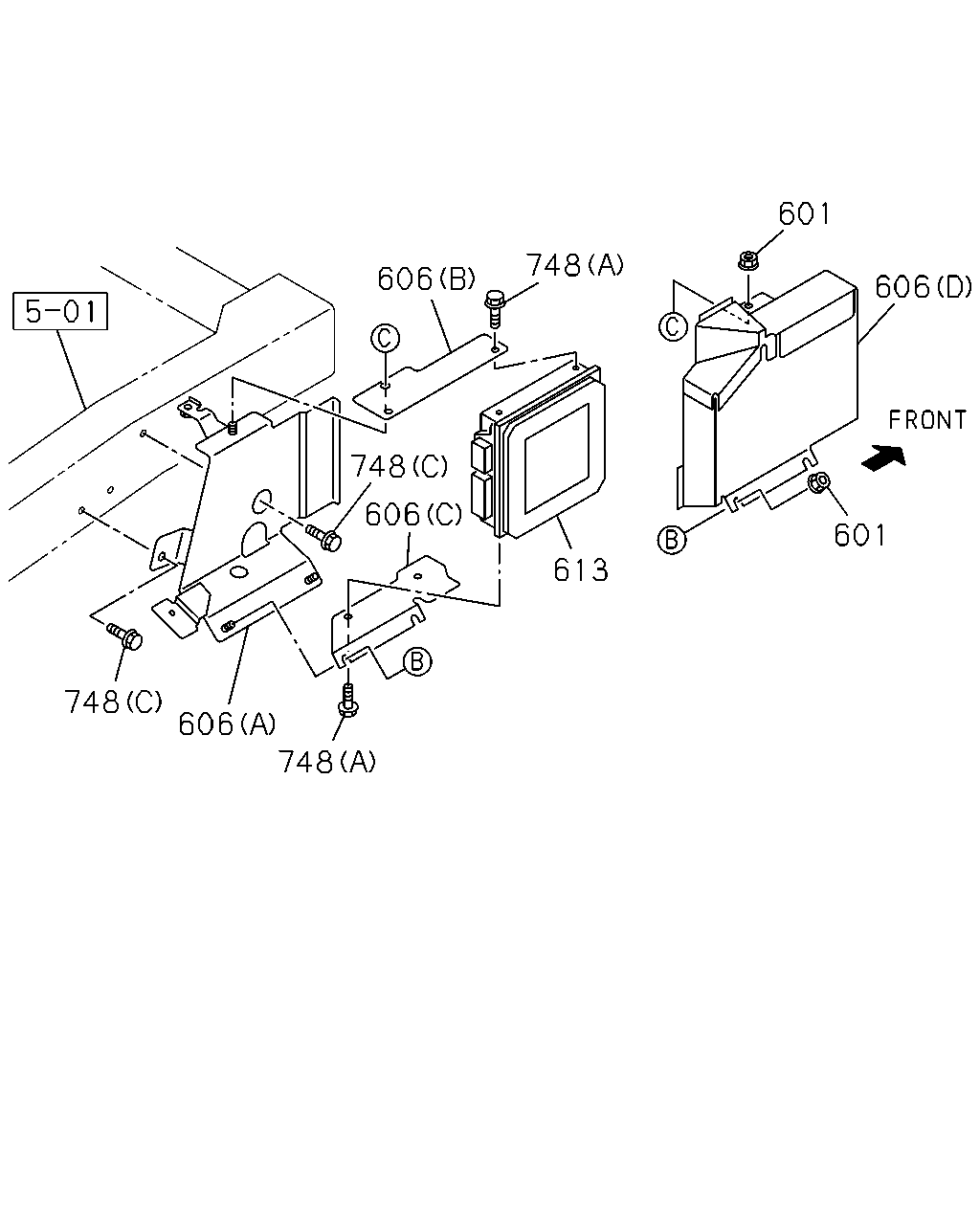

601
748
606
606
748
606
601
613
748
606
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
601
03.670 NUT; UNIT
01.062 M8 FLANGE
0-91180-108-0
03
1
0806-
606
03.680 BRACKET; CONT UNIT
(B)
8-98032-913-1
01
1
0806-
606
03.680 BRACKET; CONT UNIT
(C)
8-98032-914-1
01
1
0806-
606
03.680 BRACKET; CONT UNIT
(D)
8-98038-718-2
01
1
0806-
606
03.680 BRACKET; CONT UNIT
(A)
8-98109-854-1
01
1
0806-
613
03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5)
8-98122-333-4
01
1
0907-
613
03.670 CONTROL UNIT; ENG
8-98084-147-8
01
1
0806-0906
613
03.670 CONTROL UNIT; ENG
EURO4 SPECIFICATION(NT4)
8-98084-147-8
01
1
0907-
748
02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE
0-28050-612-0
04
1
0806-
748
02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE
0-28650-620-0
02
1
0806-
748
02.500 BOLT; CONT UNIT
00.029 (C) M10X25 FLANGE
0-28651-025-0
03
1
0806-

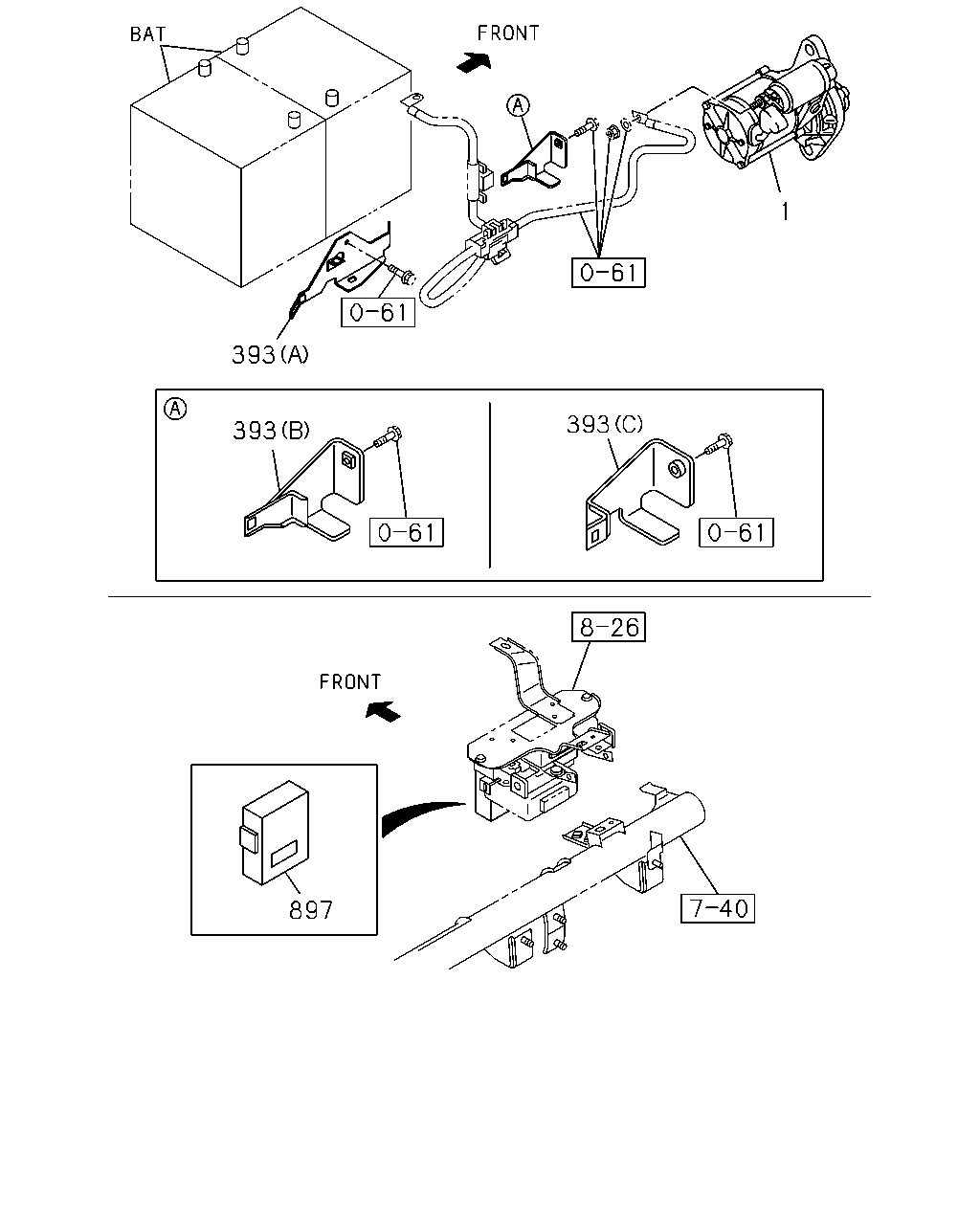

1
393
393
393
897
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98054-984-0
01
1
0806-1006
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98055-279-1
01
1
1007-1207
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-2
01
1
1208-
393
02.343 BRACKET; HARNESS TO BODY
(B)
8-98018-903-0
01
1
0806-1103
393
02.343 BRACKET; HARNESS TO BODY
(C)
8-98123-872-0
01
1
1104-
393
02.343 BRACKET; HARNESS TO BODY
(A)
8-98028-601-3
01
1
0806-
897
02.510 DRM
8-98082-814-6
01
1
0806-
10
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
02.100 RELAY; STARTER
24V 50A
8-97264-947-0
01
1
0806-
46
02.510 RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
0806-
