0-40 — FUEL INJECTION SYSTEM (#75934) — 83 parça

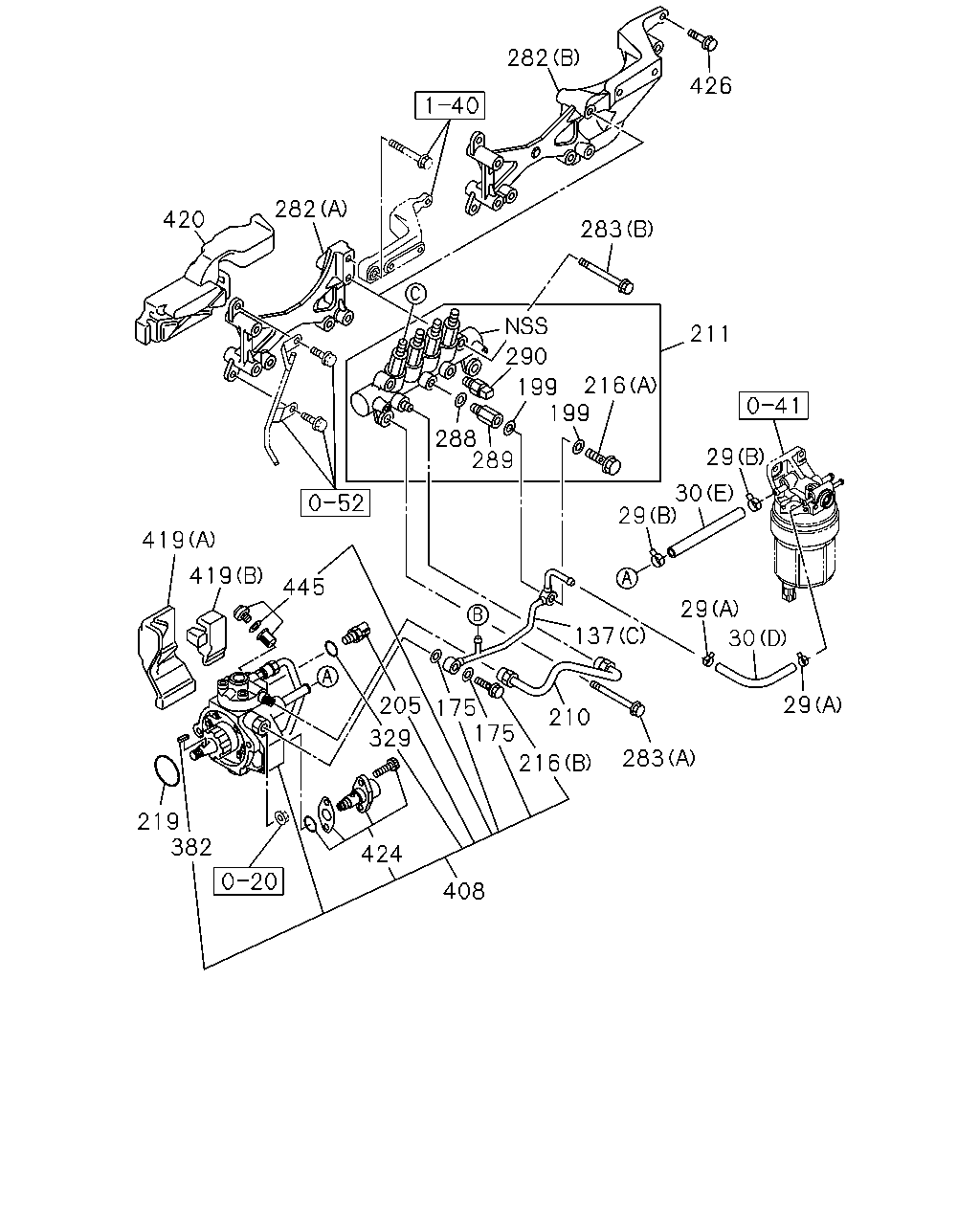

426 282 283 211 29 30 29 29 30 29 283 216 210 137 175 175 205 329 424 408 382 219 419 445 419 289 288 199 199 216 290 282 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0806-
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0806-
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0806-1101
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0806-1101
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1102-
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0806-1101
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1102-
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0806-
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0806-
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0806-
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	0806-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0806-
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	0806-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0806-
216	03.162 BOLT; EYE 03.280 (B)	9-88130-088-0	01	1	0806-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0806-
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	0806-
282	03.163 BRACKET; COMMON RAIL (A)	8-98053-912-0	01	1	0806-1001
282	03.163 BRACKET; COMMON RAIL (B)	8-98147-694-0	01	1	1002-
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0806-
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	0806-
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0806-
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0806-
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0806-0809
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	0810-
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0806-1104
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0806-1104
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1105-
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	0806-
419	03.340 RUBBER; SPACE,PUMP (A)	8-98037-442-0	01	1	0806-1011
419	03.340 RUBBER; SPACE,PUMP (B)	8-98037-443-0	01	1	0806-1011
420	03.340 RUBBER; SPACE,COMMON RAIL	8-98037-444-1	01	1	0806-
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98145-484-0	01	1	0806-0905
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	0906-
426	03.330 BOLT; BRACKET 04.686 M8X60 FLANGE	0-28050-860-0	01	1	1002-
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	0806-

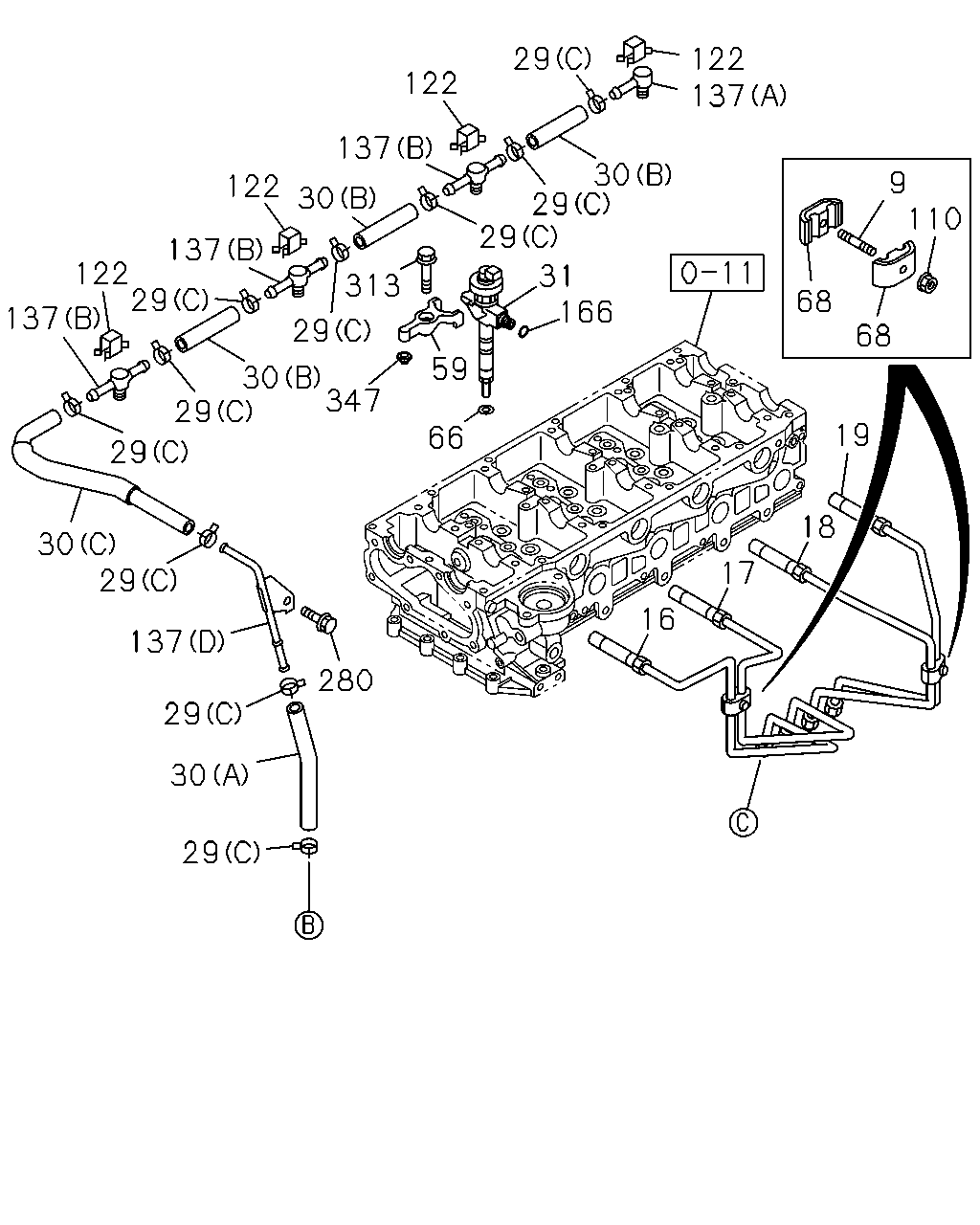

29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 137 29 68 59 30 347 29 19 66 29 18 30 29 17 16 137 280 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	0806-1201
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1202-
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0806-1201
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0806-1201
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0806-1201
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0806-1201
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0806-
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0806-
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0806-
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0806-1101
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-
31	03.332 NOZZLE ASM; INJ EURO5 SPECIFICATION(NT5)	8-98074-909-2	04	1	0907-
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	0806-0906
31	03.332 NOZZLE ASM; INJ EURO4 SPECIFICATION(NT4)	8-98011-604-5	04	1	0907-
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0806-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0806-1103
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1104-
68	03.162 CLIP; INJ PIPE	8-97213-481-0	04	1	0806-1201
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	04	1	1406-
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0806-
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0806-
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0806-1101
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1102-
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0806-1101
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1102-
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0806-
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0806-
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	0806-
280	03.330 BOLT; CLIP,FUEL HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0806-
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	0806-
347	03.332 PIN	8-97383-286-0	04	1	0806-1011
347	03.332 PIN	8-98165-035-0	04	1	1012-
