Isuzu WW
▶
TRUCKS
▶
NLS
▶
51175 - NLS(EUROPE)LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#75926) — 32 parça
◀

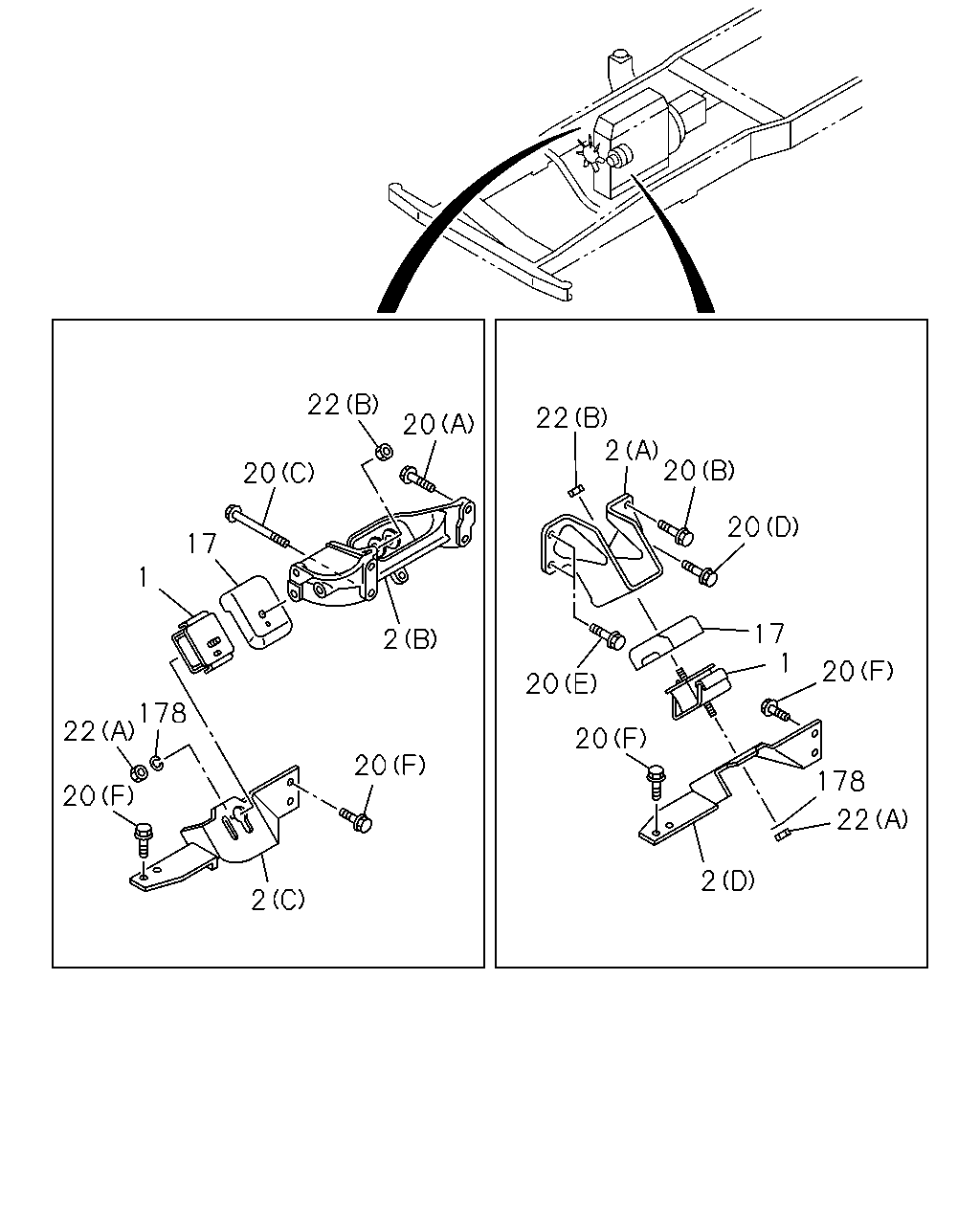

[022A] FRONT (21 parça)
[022A] REAR (11 parça)
▶
22
22
2
20
20
20
20
17
1
17
1
2
20
20
178
22
20
178
20
20
22
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.027 RUBBER; ENG FOOT,FRT
8-98053-832-0
01
1
0806-
1
00.027 RUBBER; ENG FOOT,FRT
8-98053-831-0
01
1
0806-
2
00.029 FOOT; ENG
(A)
8-97381-513-1
01
1
0806-
2
00.029 FOOT; ENG
(D)
8-98001-505-0
01
1
0806-0910
2
00.029 FOOT; ENG
(D)
8-98001-505-0
01
1
0911-1405
2
00.029 FOOT; ENG
(D)
8-98280-569-0
01
1
1406-
2
00.029 FOOT; ENG
(B)
8-97381-514-2
01
1
0806-
2
00.029 FOOT; ENG
(C)
8-98001-504-0
01
1
0806-0910
2
00.029 FOOT; ENG
(C)
8-98001-504-0
01
1
0911-1405
2
00.029 FOOT; ENG
(C)
8-98280-568-0
01
1
1406-
17
00.027 COVER; CUSHION RUBBER,FRT
8-97229-825-0
01
1
0806-
17
00.027 COVER; CUSHION RUBBER,FRT
8-97383-796-0
01
1
0806-
20
00.029 BOLT; ENG FOOT
00.004 (F) M12X35 FLANGE
0-28661-235-0
08
1
0806-
20
00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE
0-28651-020-0
01
1
0806-
20
00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE
0-28651-025-0
02
1
0806-
20
00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE
0-28651-035-0
01
1
0806-
20
00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE
0-28051-070-0
01
1
0806-
20
00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE
0-28651-030-0
03
1
0806-
22
00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (A) M12
0-91110-512-0
02
1
0806-
22
00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE
0-91180-112-0
02
1
0806-
178
00.002 WASHER; PL,CUSHION RUBBER TO BRK
07.529 ID=12.5 OD=32
0-91614-712-0
02
1
0806-
87
84
76
71
78
134
52
76
134
71
78
76
76
134
67
67
76
71
52
76
134
71

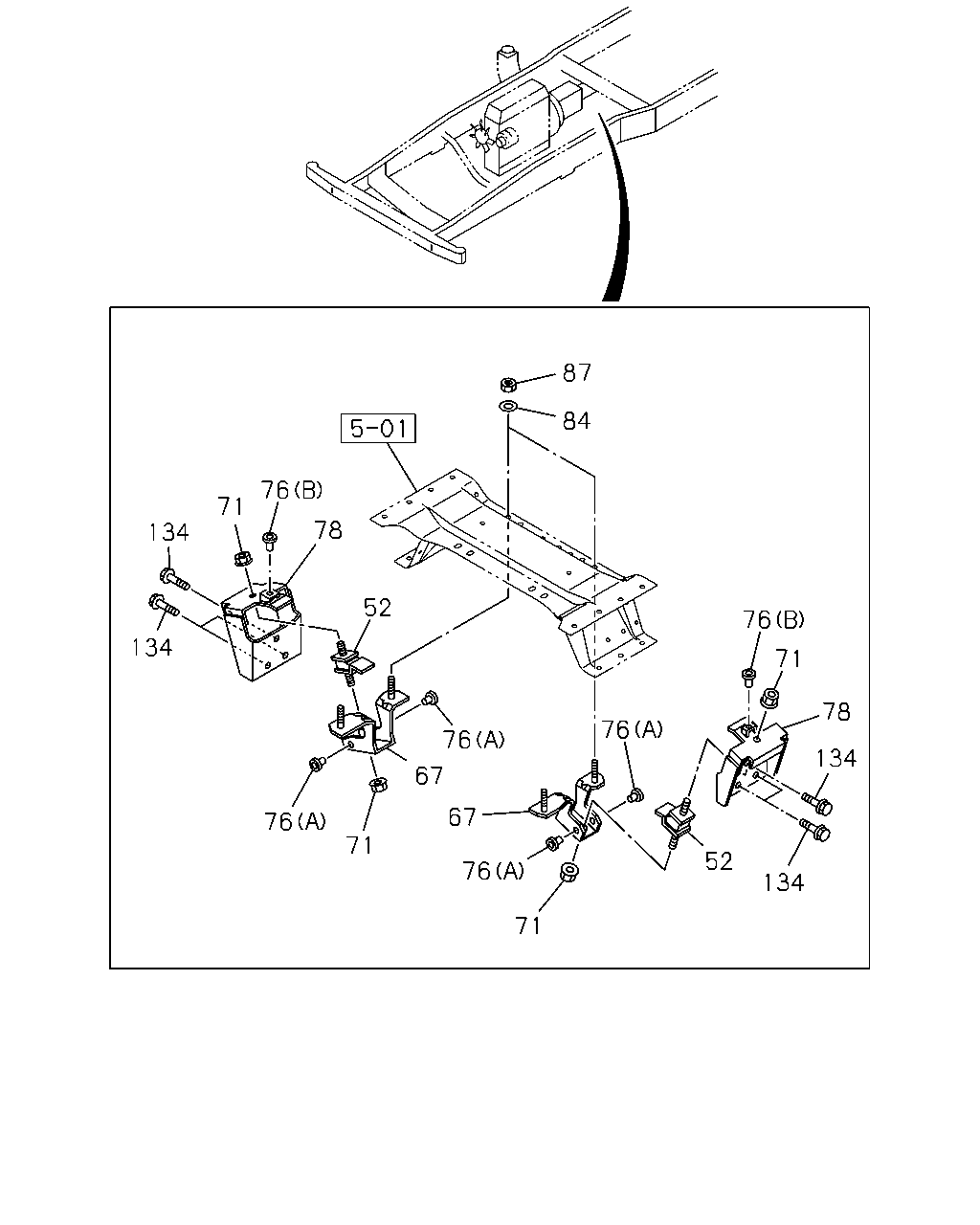

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
00.027 RUBBER; CUSHION,ENG MTG,RR
8-97176-994-0
02
1
0806-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-98022-698-0
01
1
0806-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-98022-699-0
01
1
0806-
71
00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
0806-
76
00.002 STOPPER; ENG MTG RUBBER
00.027 (B)
8-94111-904-0
02
1
0806-
76
00.002 STOPPER; ENG MTG RUBBER
(A)
8-97039-947-1
04
1
0806-
78
00.029 BRACKET; ENG MTG,RR
8-98022-703-0
01
1
0806-
78
00.029 BRACKET; ENG MTG,RR
8-98022-704-0
01
1
0806-
84
00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0806-
87
00.029 NUT; ENG MTG RR
03.162 M10 FLANGE
0-91180-110-0
04
1
0806-
134
00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE
0-28751-225-0
06
1
0806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
