Sayfa 9-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

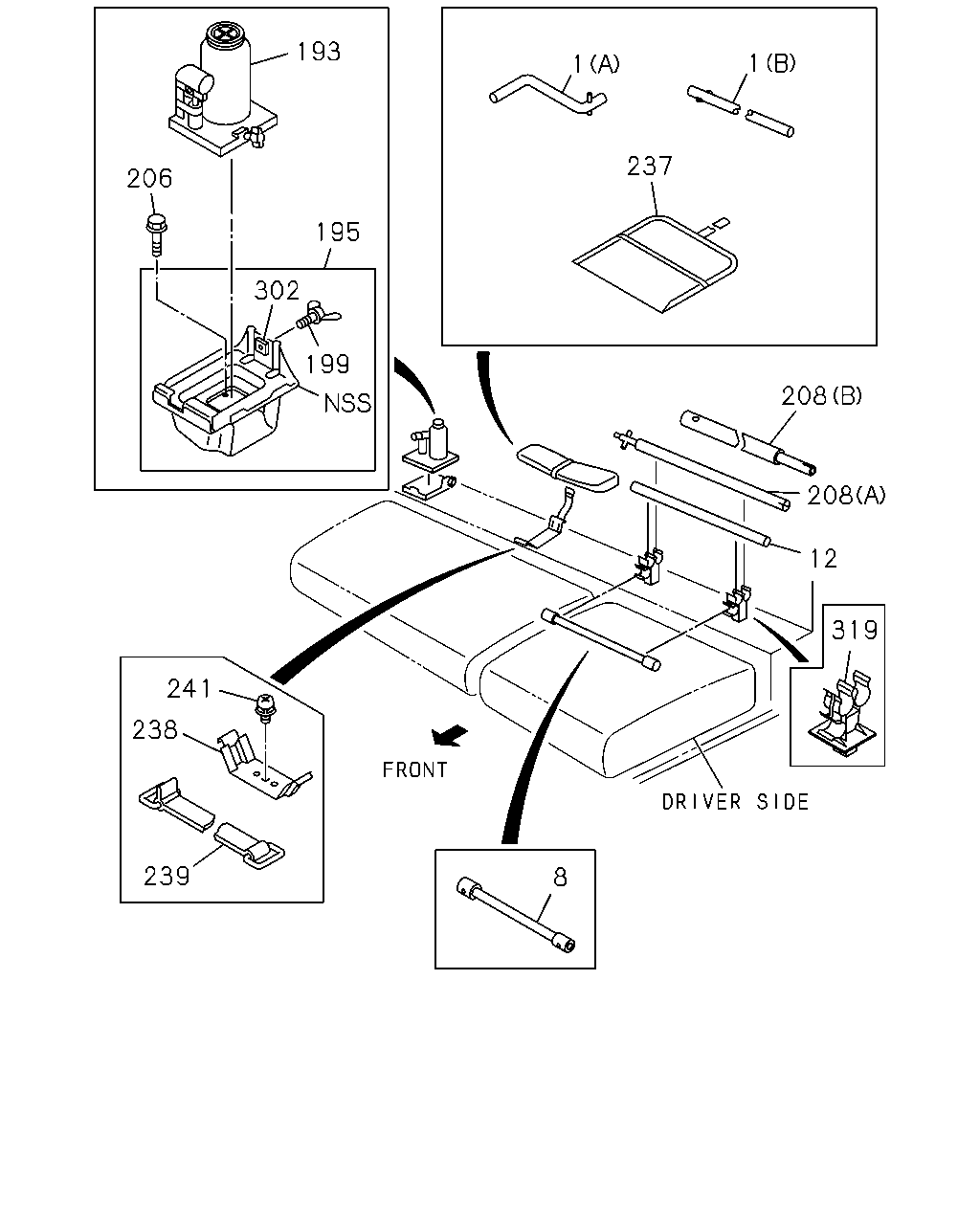

9-01 — TOOLS (#75916) — 24 parça

193 1 1 237 206 195 302 199 208 208 12 319 241 238 239 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> (B) L=280	1-85515-007-0	01	1	0807-1108	●	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> (B) L=280	8-98181-251-0	01	1	1109-	●	●
1	HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0807-	●	●
8	WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0807-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0807-1001	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	1002-1407	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1408-	●	●
193	JACK ASM 5TON	8-98114-047-0	01	1	0807-		●
193	JACK ASM 4TON	8-98012-285-0	01	1	0807-	●
195	BRACKET; JACK	8-97589-376-2	01	1	0807-		●
195	BRACKET; JACK	8-98033-737-2	01	1	0807-	●
199	BOLT; JACK M8X30 WING	8-98005-536-0	01	1	0807-		●
199	BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0807-	●
206	SCREW; OIL JACK BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-	●	●
208	HANDLE; JACK SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> (B) L=580	1-85515-005-1	01	1	0807-1108	●	●
208	HANDLE; JACK SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> (B) L=580	8-98181-249-0	01	1	1109-	●	●
208	HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0807-1108	●	●
208	HANDLE; JACK (A) L=642	8-98181-477-0	01	1	1109-	●	●
237	BAG; TOOL	8-97130-903-1	01	1	0807-	●	●
238	SUPPORT; TOOL BAG	8-97994-977-0	01	1	0807-	●	●
239	BAND; TOOL BAG L=100	5-73997-026-1	01	1	0807-	●	●
241	SCREW; TOOL BAG SUPPORT M6X16	0-38050-616-0	01	1	0807-	●	●
302	NUT; JACK BRKT	8-98021-556-0	01	1	0807-	●	●
319	CLIP; TOOL BAR	8-97853-077-2	02	1	0807-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
