◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#75915) — 16 parça

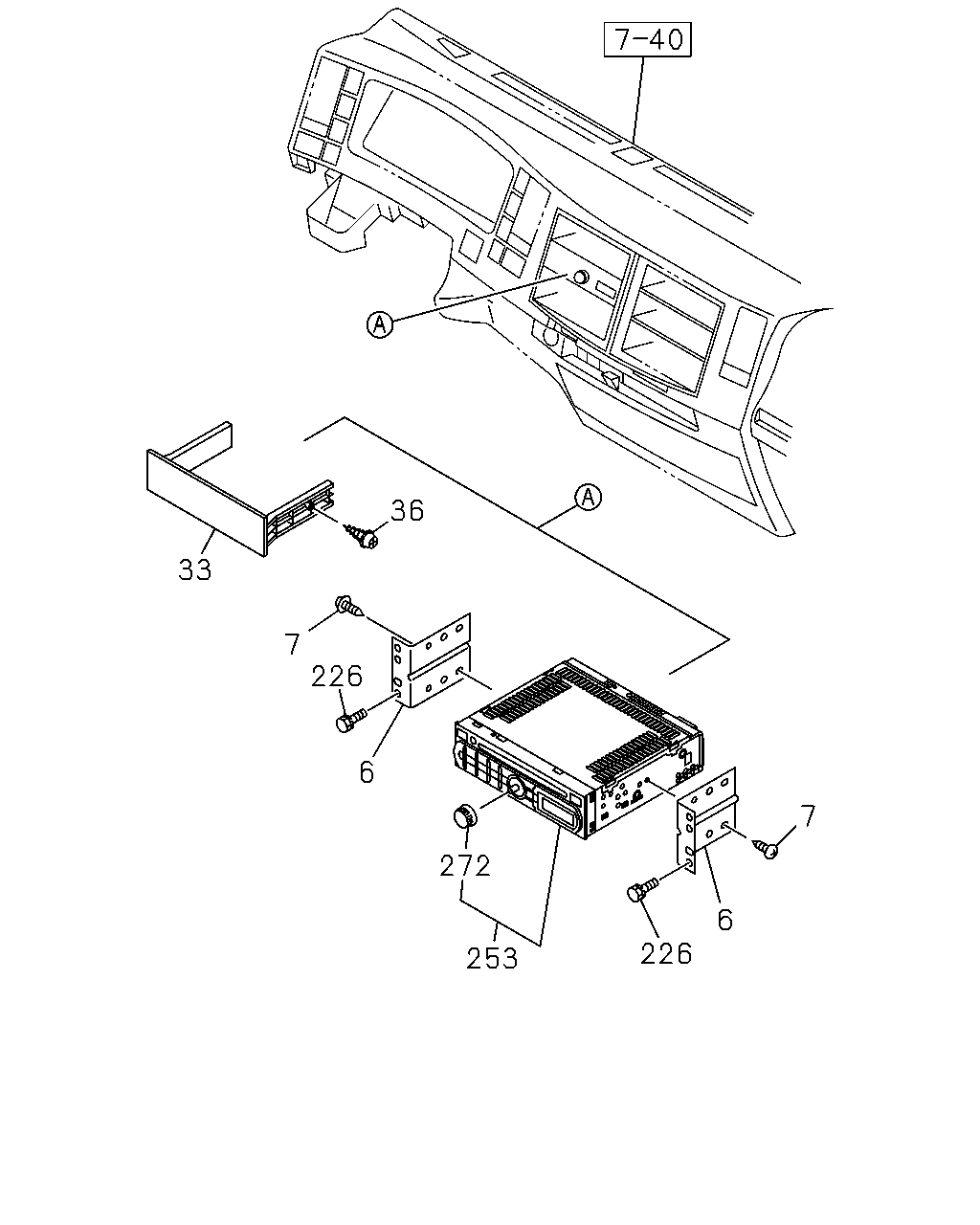

çizim 14479
36 33 7 226 6 7 272 6 226 253
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0807- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0807- ● ●
33 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) BLACK 		8-97407-896-2 01 1 0807- ● ●
36 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0807- ● ●
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0807-1101 ● ●
226 BOLT; BRKT
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ●
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98032-186-0 01 1 0807- ● ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 0807- ● ●

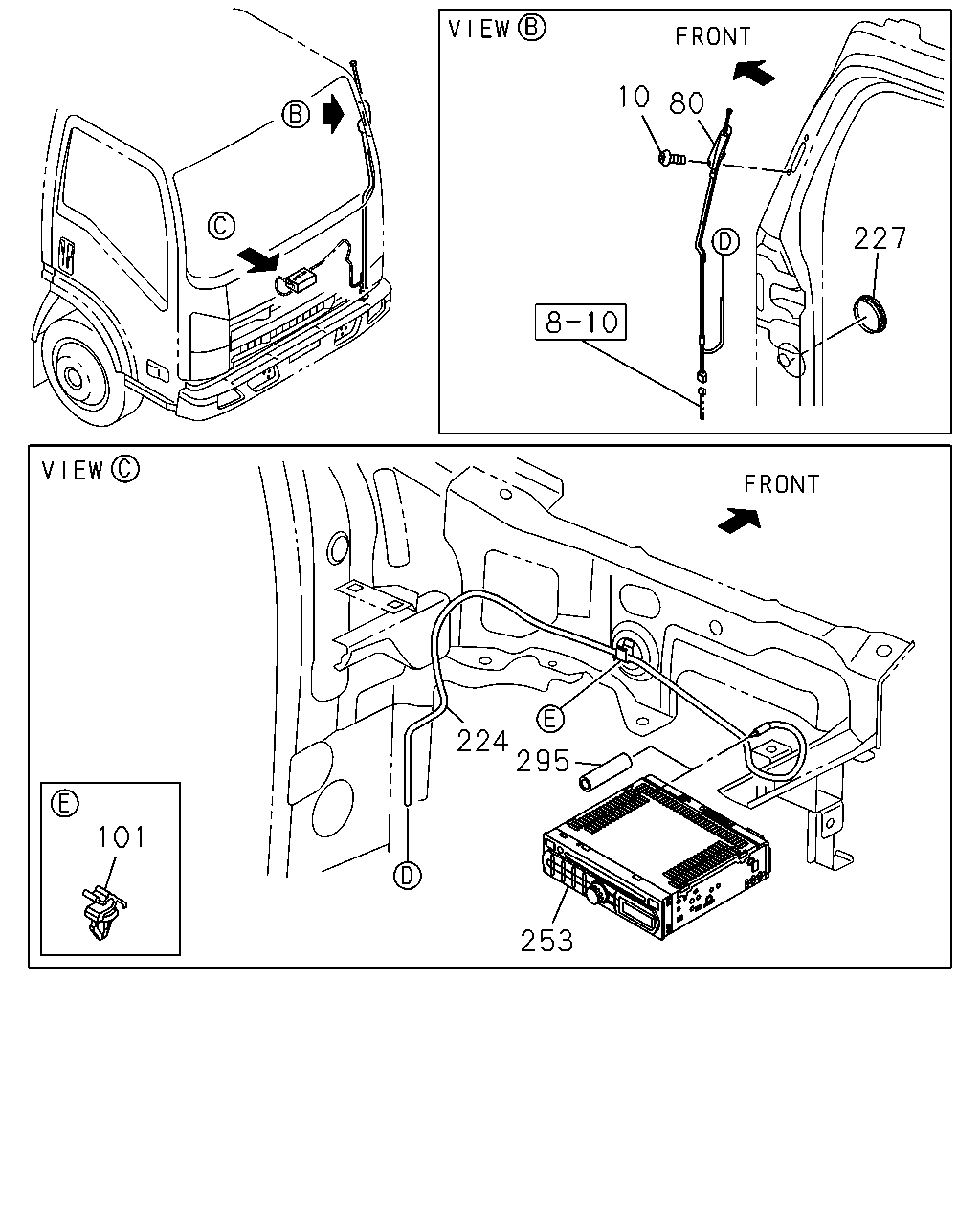

çizim 14537
10 80 227 224 295 101 253
BalonParca AdiParca NoAdetTipApplied Date A B
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0807- ● ●
80 ANTENNA 8-97387-265-3 01 1 0807- ● ●
101 CLIP; FEEDER TO BRKT
ID=6.5 		5-09709-117-0 01 1 0807- ● ●
224 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0807- ● ●
227 PROTECTOR; EDGE 8-98053-117-0 01 1 0807- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98032-186-0 01 1 0807- ● ●
295 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-98095-617-1 01 1 0807- ● ●
