◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#75914) — 39 parça

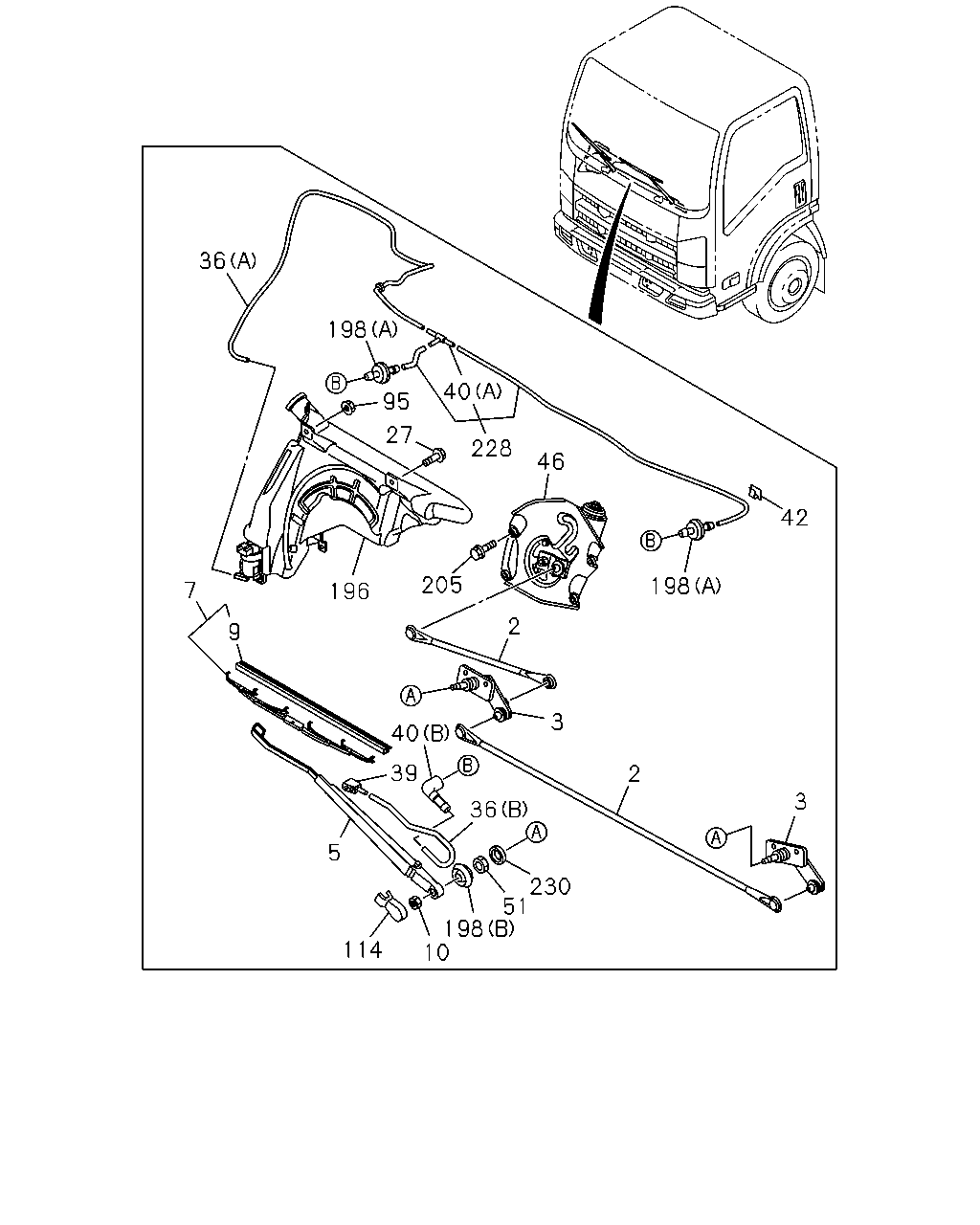

çizim 158299
36 198 40 95 27 228 46 42 205 198 7 196 2 9 3 40 39 2 3 36 5 230 51 198 10 114
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
PASSENGER SIDE L=350 W/CAP STAMP P 		8-98053-766-0 01 1 0807- ● ●
2 LINK; FRT WIPER
DRIVER SIDE L=840 W/CAP 		8-98053-771-0 01 1 0807- ● ●
3 PIVOT ASM; FRT WIPER
PASSENGER SIDE 		8-98053-762-0 01 1 0807- ● ●
3 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-98053-764-0 01 1 0807- ● ●
5 ARM; WIPER
DRIVER SIDE 		8-98053-782-0 01 1 0807- ● ●
5 ARM; WIPER
PASSENGER SIDE 		8-98053-783-0 01 1 0807- ● ●
7 BLADE; WIPER 8-98053-789-0 02 1 0807- ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 0807- ● ●
9 RUBBER; FRT WIPER BLADE
L=500 		8-98053-792-0 02 1 0807- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		0-91110-508-0 02 1 0807- ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0807- ● ●
36 HOSE; WASHER
(A) 		8-98029-172-3 01 1 0807- ● ●
36 HOSE; WASHER
(B) DRIVER SIDE 		8-98053-797-0 01 1 0807- ● ●
36 HOSE; WASHER
(B) PASSENGER SIDE 		8-98053-798-0 01 1 0807- ● ●
39 NOZZLE; WINDSHIELD WASHER 8-98053-795-0 02 1 0807- ● ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0807- ● ●
40 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 0807- ● ●
42 CLIP; WASHER HOSE 8-98039-708-0 01 1 0807- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-119-3 01 1 0807- ● ●
51 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 0807- ● ●
95 NUT; WASHER TANK
M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
114 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 0807- ● ●
196 TANK; WASHER 8-98029-138-2 01 1 0807- ● ●
198 COVER; PIVOT,WIPER
(B) 		8-98029-164-0 02 1 0807- ● ●
198 COVER; PIVOT,WIPER
(A) 		8-98063-776-0 02 1 0807- ● ●
205 BOLT; WIPER MOTOR
M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0807- ● ●
228 HOSE ASM; WASHER 8-98029-170-1 01 1 0807- ● ●
230 COLLAR; WIPER LINK 8-98029-097-0 02 1 0807- ● ●
çizim 158361
196 34 30 43 46 135 74 33 48 137
BalonParca AdiParca NoAdetTipApplied Date A B
30 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 0807- ● ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0807- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0807- ● ●
43 RUBBER; GASKET,TANK 8-94352-050-0 01 1 0807- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-119-3 01 1 0807- ● ●
48 ARM; WIPER MOTOR 8-98052-215-0 01 1 0807- ● ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0807- ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 0807- ● ●
137 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 0807- ● ●
196 TANK; WASHER 8-98029-138-2 01 1 0807- ● ●

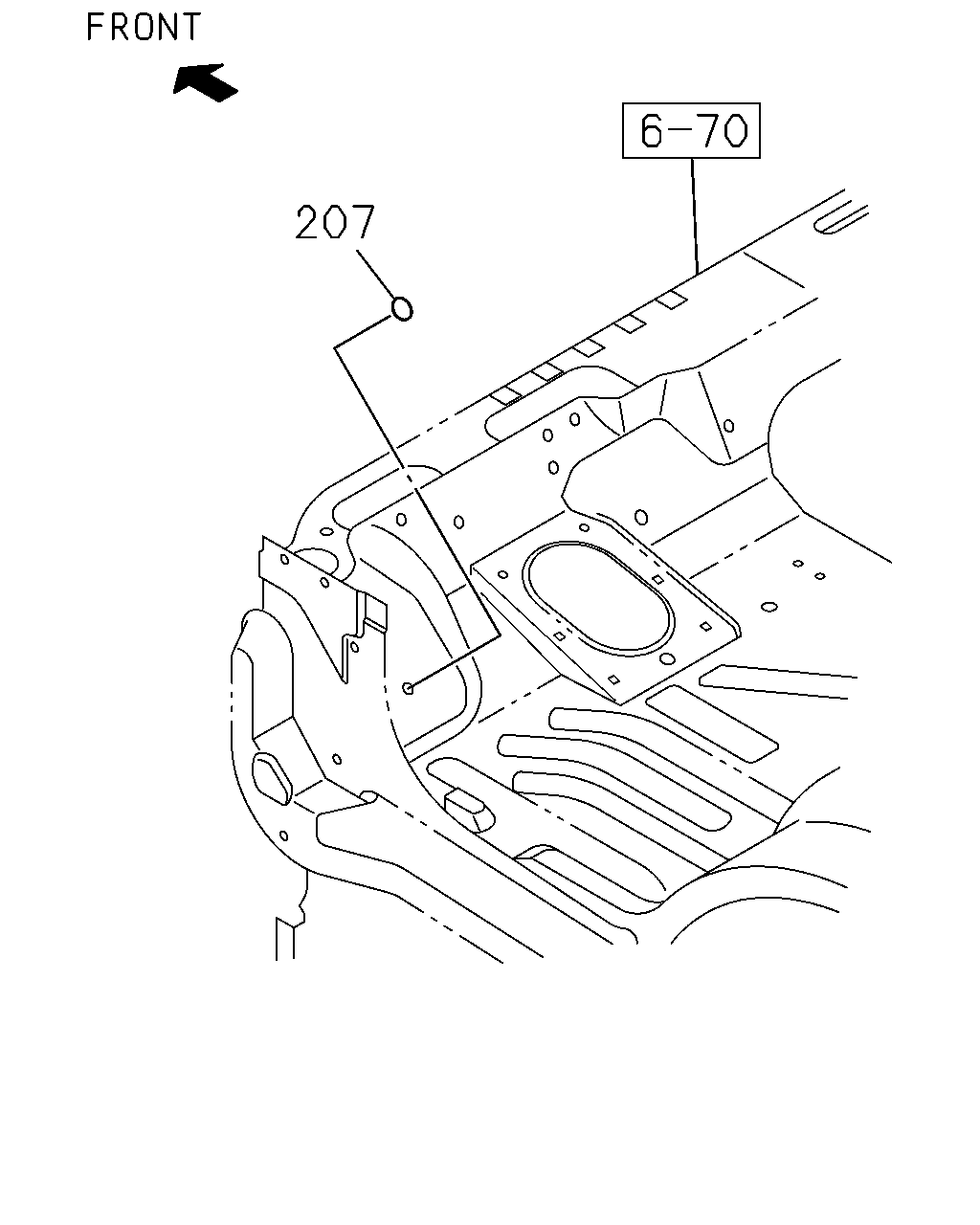

çizim 185907
207
BalonParca AdiParca NoAdetTipApplied Date A B
207 SEAL; HOLE
OD=32 BLACK 		8-98031-126-0 01 1 0807- ● ●
