◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#75910) — 15 parça

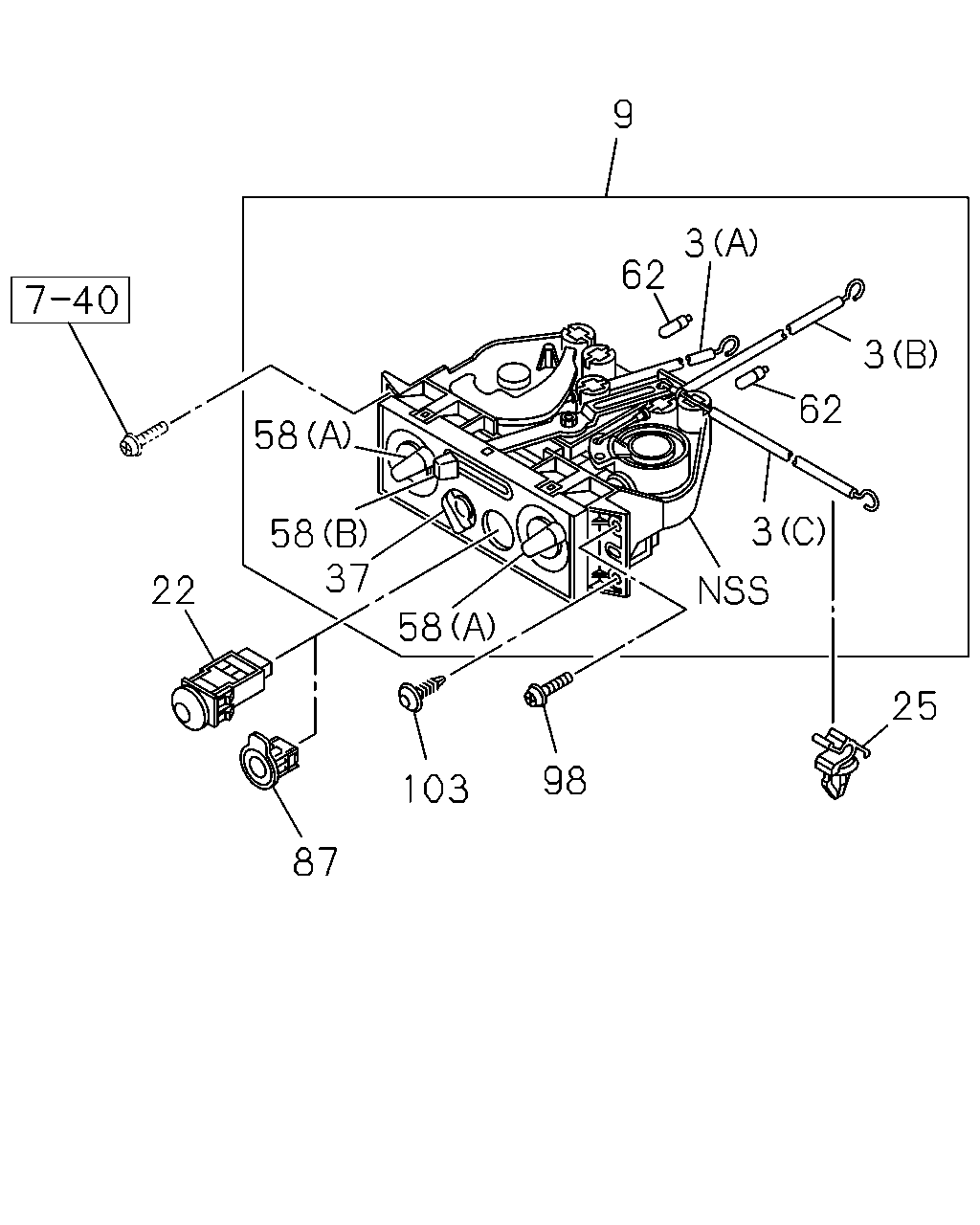

çizim 140970
9 3 62 3 62 58 3 58 37 58 22 25 98 103 87
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE 		8-98039-254-1 01 1 0807- ● ●
3 CABLE; HTR CONT LVR
(B) MIX 		8-98039-255-1 01 1 0807- ● ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-256-1 01 1 0807- ● ●
9 LEVER ASM; HTR & A/C CONT 8-98037-365-4 01 1 0807- ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-983-0 01 1 0807- ● ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 01 1 0807- ● ●
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 0807- ● ●
58 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 0807- ● ●
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 0807- ● ●
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 0807- ● ●
87 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-98006-089-0 01 1 0807- ● ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0807-1101 ● ●
98 SCREW; CONT PANEL
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 0807- ● ●
