3-05 — REAR WHEEL BRAKE (#7591) — 84 parça

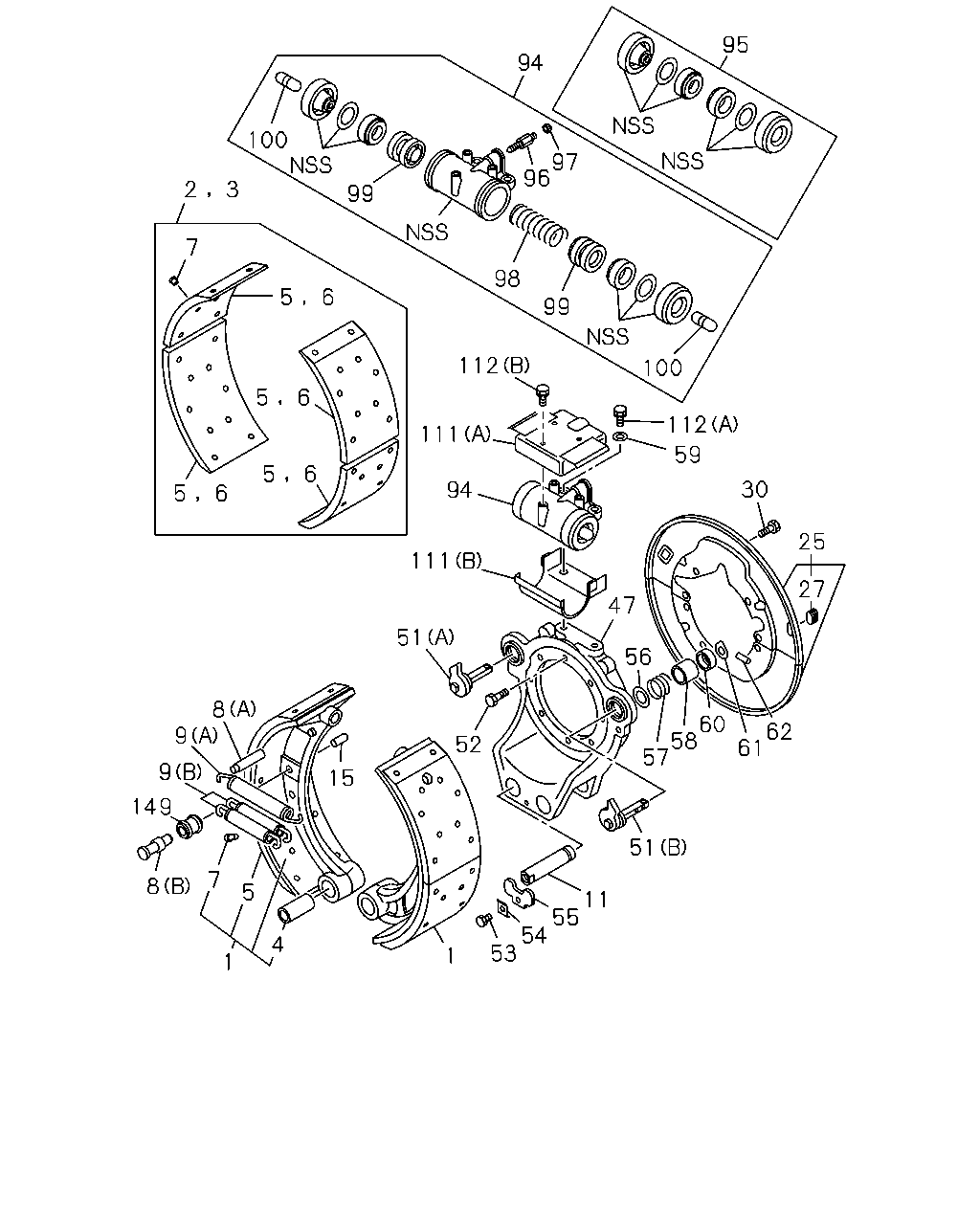

çizim 9216
95 94 100 97 96 2 3 99 7 98 5 6 99 112 100 5 6 112 111 59 5 6 30 94 5 6 25 111 27 47 51 56 8 60 58 57 62 61 9 52 9 15 149 51 7 8 5 11 55 54 53 4 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47120-326-0 04 1 0101-
1 SHOE; BRK,RR 1-47120-326-0 04 1 0101-
2 LINING SET; RR BRK,STANDARD
T=16 		1-88310-301-0 02 1 0101-
2 LINING SET; RR BRK,STANDARD
T=16 		1-88310-301-0 02 1 0101-
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88310-302-0 02 1 0101-
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88310-302-0 02 1 0101-
4 BUSHING; BRK SHOE,RR WHEEL
THA 		1-47112-012-0 04 1 0101-
4 BUSHING; BRK SHOE,RR WHEEL
THA 		1-47112-012-0 04 1 0101-
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47125-420-0 08 1 0101-
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47125-420-0 08 1 0101-
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47125-421-0 08 1 0101-
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47125-421-0 08 1 0101-
7 RIVET; LINING,RR BRK
L=18.5 THA 		1-09732-034-0 AR 1 0101-
7 RIVET; LINING,RR BRK
L=18.5 THA 		1-09732-034-0 AR 1 0101-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) THA 		1-09744-051-0 04 1 0101-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) THA 		1-09744-051-0 04 1 0101-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) THA 		1-47119-025-0 04 1 0101-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) THA 		1-47119-025-0 04 1 0101-
9 SPRING; RETURN,BRK SHOE
(A) THA 		1-09583-175-0 02 1 0101-
9 SPRING; RETURN,BRK SHOE
(A) THA 		1-09583-175-0 02 1 0101-
9 SPRING; RETURN,BRK SHOE
(B) THA 		1-09583-210-0 04 1 0101-
9 SPRING; RETURN,BRK SHOE
(B) THA 		1-09583-210-0 04 1 0101-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 THA 		1-47131-039-0 04 1 0101-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 THA 		1-47131-039-0 04 1 0101-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK
THA 		1-47116-002-0 04 1 0101-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK
THA 		1-47116-002-0 04 1 0101-
25 COVER SET; RR BRK DRUM
THA 		1-47151-526-1 02 1 0101-
25 COVER SET; RR BRK DRUM
THA 		1-47151-526-1 02 1 0101-
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0101-
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0101-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0101-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0101-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		1-47137-151-0 02 1 0101-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		1-47137-151-0 02 1 0101-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) THA 		1-47165-058-1 02 1 0101-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) THA 		1-47165-058-1 02 1 0101-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) THA 		1-47165-059-1 02 1 0101-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) THA 		1-47165-059-1 02 1 0101-
52 BOLT; ANCHOR BRKT
M14X50 THA 		1-09040-066-0 02 1 0101-
52 BOLT; ANCHOR BRKT
M14X50 THA 		1-09040-066-0 02 1 0101-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0101-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0101-
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 0101-
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 0101-
55 PLATE; LK,RR WHEEL CYL
THA 		1-47133-005-0 02 1 0101-
55 PLATE; LK,RR WHEEL CYL
THA 		1-47133-005-0 02 1 0101-
56 WASHER; ADJ CAM,RR WHEEL BRK
THA 		1-47169-033-0 04 1 0101-
56 WASHER; ADJ CAM,RR WHEEL BRK
THA 		1-47169-033-0 04 1 0101-
57 SPRING; ADJ CAM,RR WHEEL BRK
THA 		1-47169-046-0 04 1 0101-
57 SPRING; ADJ CAM,RR WHEEL BRK
THA 		1-47169-046-0 04 1 0101-
58 BOOT; ADJ CAM,RR WHEEL BRK
THA 		1-47169-034-0 04 1 0101-
58 BOOT; ADJ CAM,RR WHEEL BRK
THA 		1-47169-034-0 04 1 0101-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0101-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0101-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK
THA 		1-47169-031-0 04 1 0101-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK
THA 		1-47169-031-0 04 1 0101-
61 INDICATOR; WEAR,RR BRK SHOE
THA 		1-47169-032-1 04 1 0101-
61 INDICATOR; WEAR,RR BRK SHOE
THA 		1-47169-032-1 04 1 0101-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK
THA 		1-47169-030-0 04 1 0101-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK
THA 		1-47169-030-0 04 1 0101-
94 CYLINDER; WHEEL,RR BRK 1-47600-684-0 02 1 0101-
94 CYLINDER; WHEEL,RR BRK 1-47600-684-0 02 1 0101-
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 0101-
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 0101-
96 SCREW; BLEEDER,RR BRK
THA 		1-47615-002-0 02 1 0101-
96 SCREW; BLEEDER,RR BRK
THA 		1-47615-002-0 02 1 0101-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0101-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0101-
98 SPRING; RR WHEEL CYL
THA 		1-09580-019-0 02 1 0101-
98 SPRING; RR WHEEL CYL
THA 		1-09580-019-0 02 1 0101-
99 PISTON; RR WHEEL CYL 1-47624-302-0 04 1 0101-
99 PISTON; RR WHEEL CYL 1-47624-302-0 04 1 0101-
100 ROD; PUSH,RR WHEEL CYL
THA 		1-47621-009-0 04 1 0101-
100 ROD; PUSH,RR WHEEL CYL
THA 		1-47621-009-0 04 1 0101-
111 COVER; WHEEL CYL
(A) THA 		1-47159-089-0 02 1 0101-
111 COVER; WHEEL CYL
(A) THA 		1-47159-089-0 02 1 0101-
111 COVER; WHEEL CYL
(B) 		1-47159-118-0 02 1 0101-
111 COVER; WHEEL CYL
(B) 		1-47159-118-0 02 1 0101-
112 BOLT; WHEEL CYL SETTING
(A) M14X35 THA 		0-20801-435-0 04 1 0101-
112 BOLT; WHEEL CYL SETTING
(A) M14X35 THA 		0-20801-435-0 04 1 0101-
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0101-
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0101-
149 PIN; GUIDE RETURN
THA 		1-47119-024-0 04 1 0101-
149 PIN; GUIDE RETURN
THA 		1-47119-024-0 04 1 0101-
