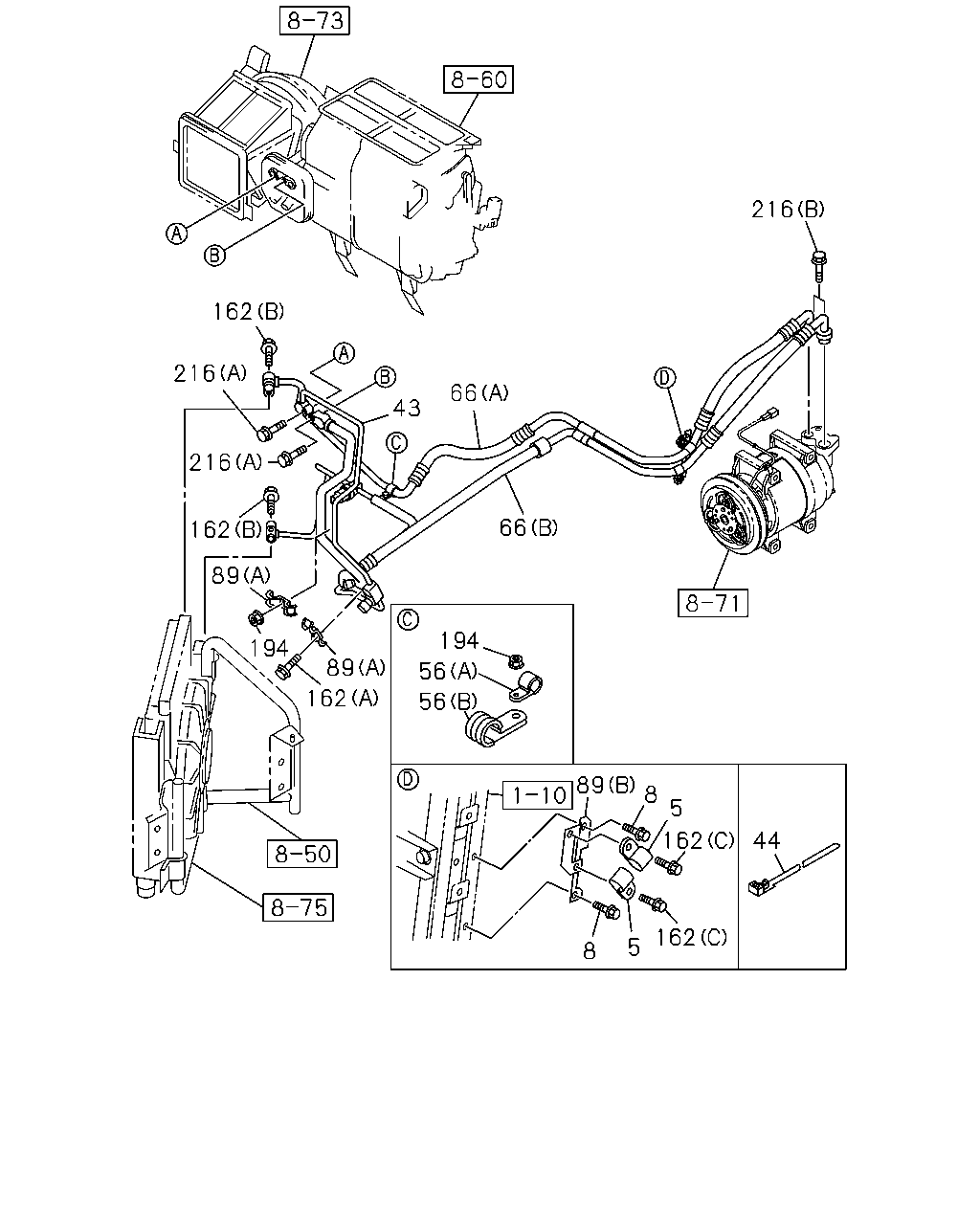

8-52 — PIPING; AIR CONDITIONING (#75908) — 34 parça

216 162 216 66 43 216 66 162 89 194 194 89 56 162 56 89 8 5 162 44 162 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=16 L=20	0-95235-532-0	02	1	0807-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	02	1	0807-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98114-522-0	01	1	0807-1009	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-009-0	01	1	1010-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250	5-09707-030-1	01	1	0807-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=350	8-94152-256-1	01	1	0807-	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20	0-95235-232-0	01	1	0807-	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	0807-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98081-490-0	01	1	0807-1009	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-616-1	01	1	1010-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98081-491-0	01	1	0807-	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98029-613-0	02	1	0807-1009	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98151-264-0	02	1	1010-	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98081-573-1	01	1	0807-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) M6X12 FLANGE	0-28050-612-0	02	1	0807-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28650-620-0	01	1	0807-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M6X25 FLANGE	0-28650-625-0	02	1	0807-	●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	02	1	0807-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X30 FLANGE	0-28650-630-0	02	1	0807-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●

50 202 43 50 147 67 66 67 67 67 66 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98114-522-0	01	1	0807-1009	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-009-0	01	1	1010-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	0807-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98081-490-0	01	1	0807-1009	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-616-1	01	1	1010-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98081-491-0	01	1	0807-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0807-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	0807-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	0807-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	0807-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0807-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97095-909-0	01	1	0807-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97095-909-0	01	1	0807-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	0807-	●	●
