◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#75907) — 25 parça

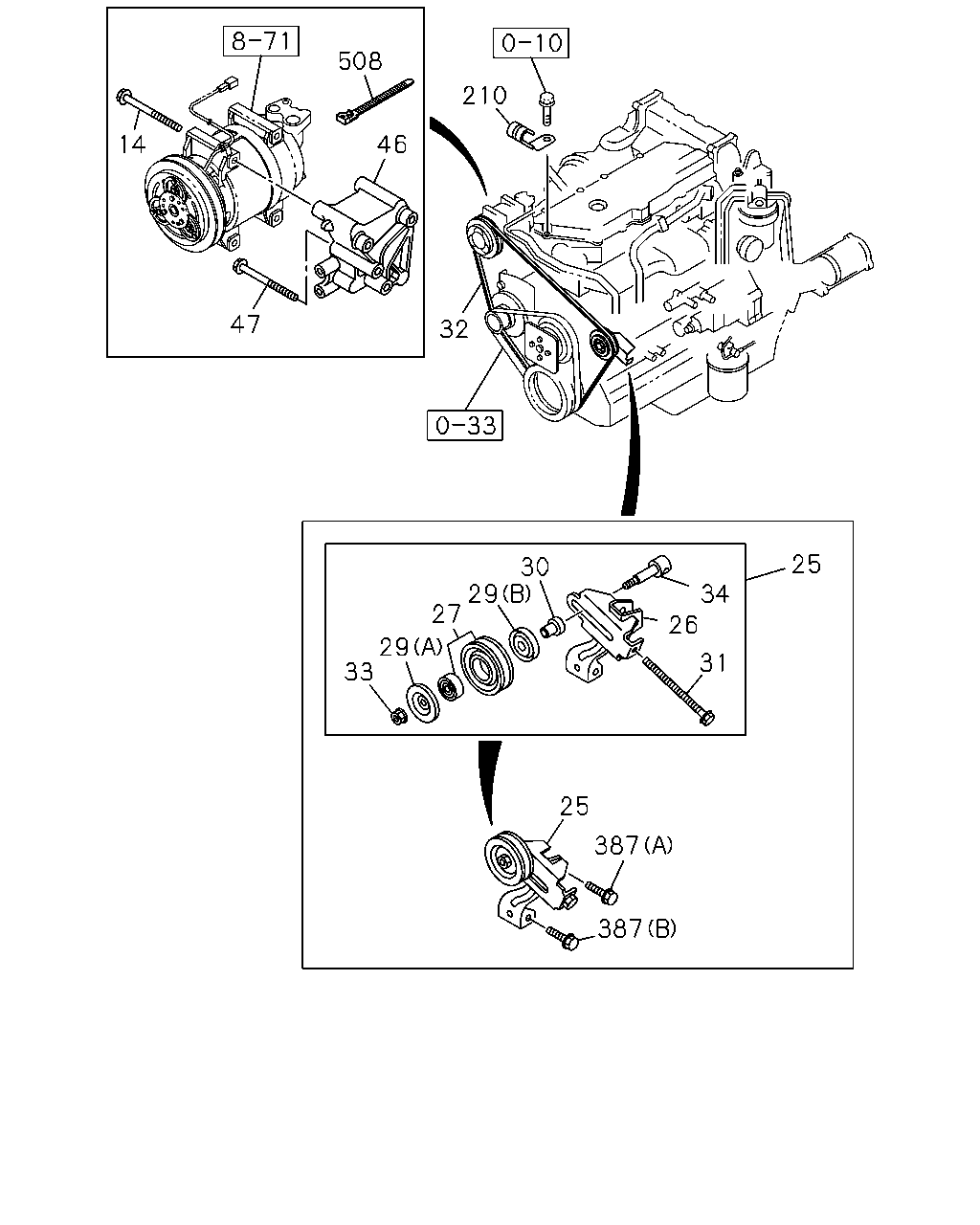

çizim 141205
508 210 46 14 47 32 25 30 29 27 34 26 29 33 31 25 387 387
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28050-890-0 04 1 0807- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0807- ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0807- ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0807- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0807- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0807- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0807- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0807- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 0807- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0807- ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0807- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0807- ● ●
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97379-507-2 01 1 0807- ● ●
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 02 1 0807- ● ●
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) M10X80 FLANGE 		0-28151-080-0 02 1 0807- ● ●
210 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0807- ● ●
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0807- ● ●
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0807- ● ●
508 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) L=140 		5-09707-031-1 01 1 0807- ● ●

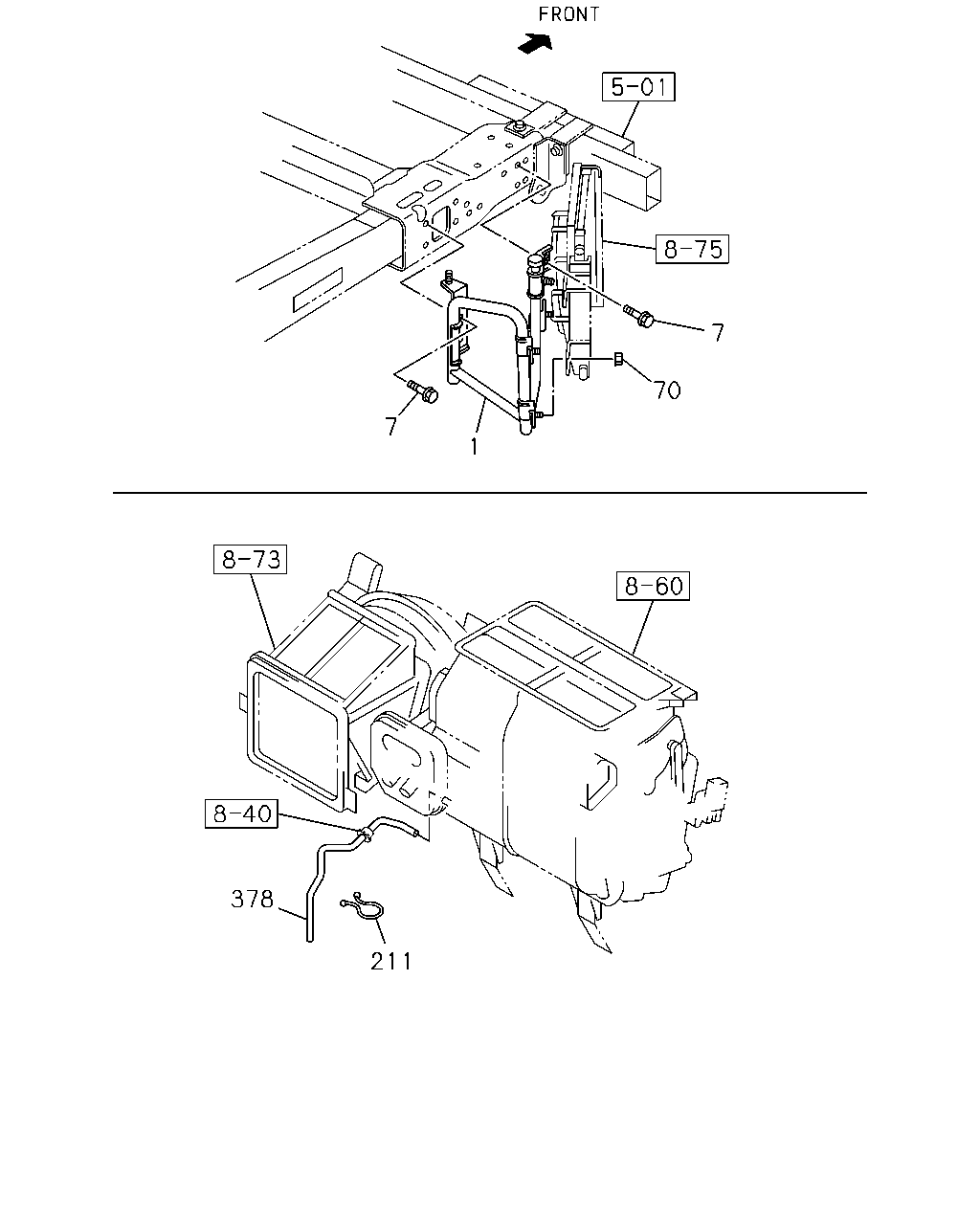

çizim 185905
7 70 7 1 378 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98006-339-0 01 1 0807-1303 ● ●
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98214-412-0 01 1 1304- ● ●
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M12X30 FLANGE 		0-28651-230-0 04 1 0807- ● ●
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91180-108-0 04 1 0807- ● ●
211 CLIP; HOSE
ID=44 		8-94463-508-0 01 1 0807- ● ●
378 HOSE; DRAIN,EVAPORATOR 8-98006-239-3 01 1 0807- ● ●
